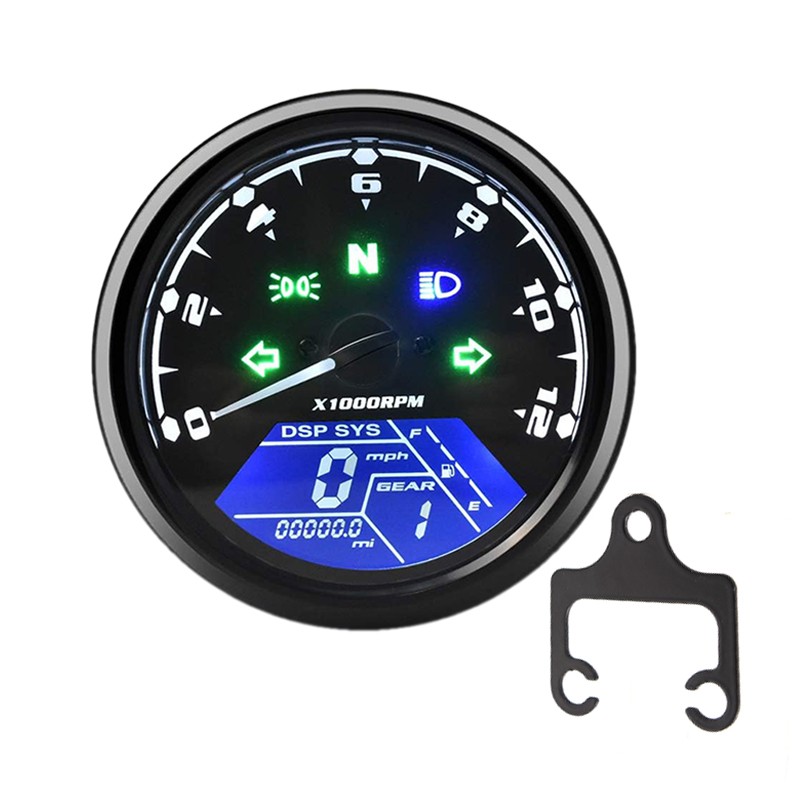

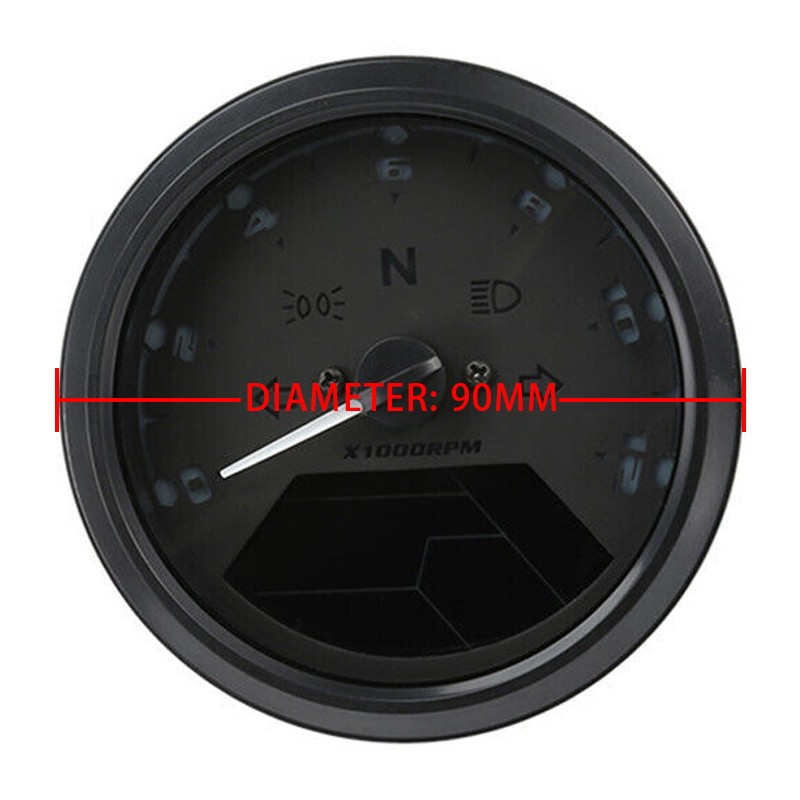

  • ELING 90mm Motorcycle Digital Speedometer
  • ELING 90mm Motorcycle Digital Speedometer
  • ELING 90mm Motorcycle Digital Speedometer
  • ELING 90mm Motorcycle Digital Speedometer
ELING 90mm Motorcycle Digital Speedometer ELING 90mm Motorcycle Digital Speedometer ELING 90mm Motorcycle Digital Speedometer ELING 90mm Motorcycle Digital Speedometer

ELING 90mm Motorcycle Digital Speedometer

  • Product Item:90mm Motorcycle Digital Speedometer
  • Large-screen LCD anti-glare display
  • Background Light Color: Blue
  • Working voltage :8-18VDC
  • Waterproof & Anti-vibration
  • Motorcycle Digital Speedometer  , Digital Speedometer  , Motorcycle Speed Gauge
    Inquiry Send Email PDF

    Description

    Data:


    1 The working temperature : -20 - +70 degree;


    2 Storage temperature : -30 - +80 degree;


    3 The working voltage :8-18VDC;


    4 Cable Length: 13.5cm


    Description:


    -Large-screen LCD anti-glare display;


    -Background Light Color: Blue


    -Digital display speed, speed range 0-199km/h ;


    -Needle display rpm: range 0-12000rpm;


    -Digital display ODO distance, distance range 0-99999.9km;

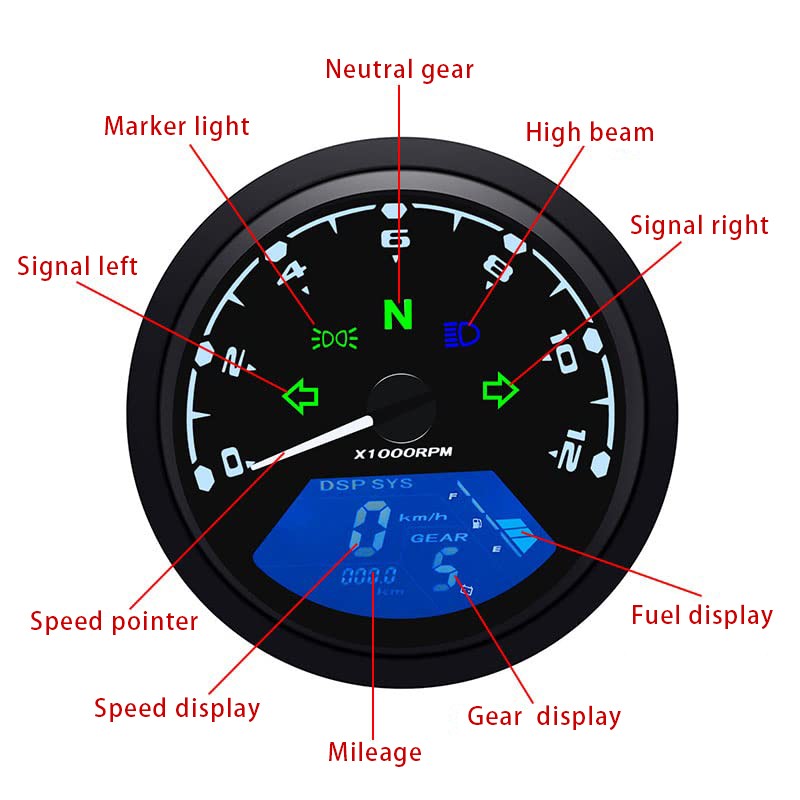

    -Indicator functions: the left turn signal , high beam , right turn lights, position lights , N lights ;


    -LCD display gear position: 1- 6


    -The alarm function : Low oil alarm, low voltage alarm .


    -Waterproof & Anti-vibration


    -Fits for most motorcycle that is with 4 stroke, 2 / 4 Cylinders (default as 1 cylinder of the setting)


    -The button to switch mileage Subtotal


    -Light board used as car dashboard


    -Please allow 1-2 cm difference due to manual measurement.


    -Please check size to make sure the fitment before bidding. Thank you.

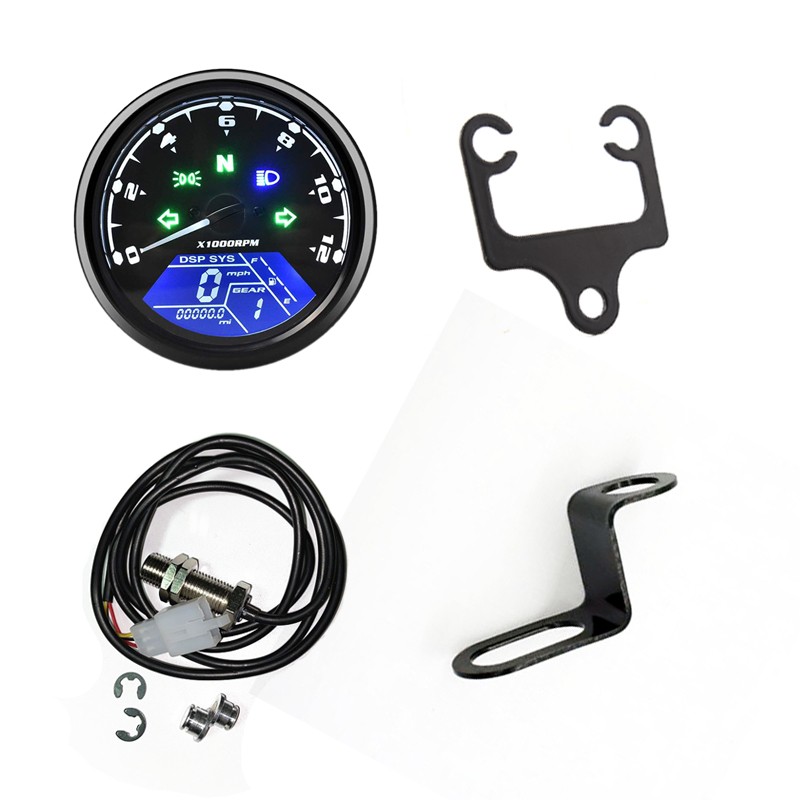

    Package Include:


    1 x LCD digital Motorcycle speedometer


    1 x Wire diagram Instruction
