  5. ELING CX 110MM GPS Speedometer with Tach

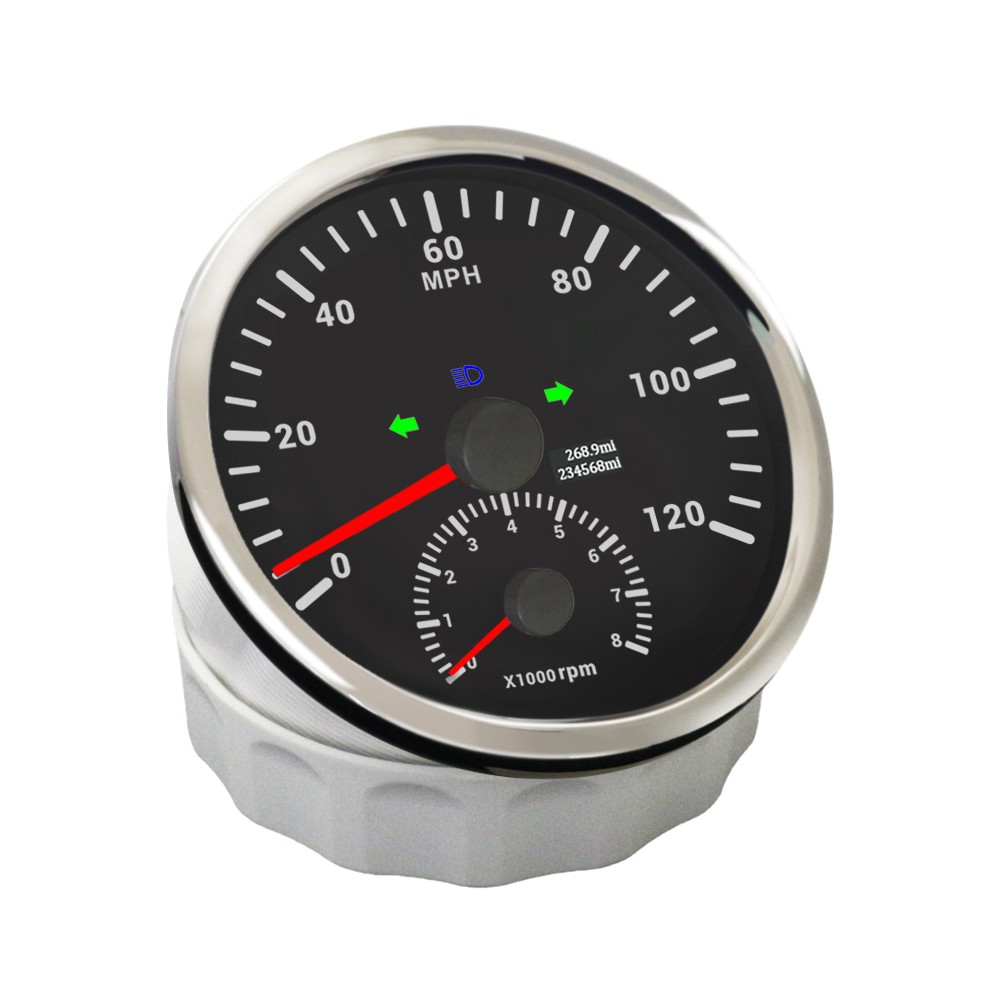

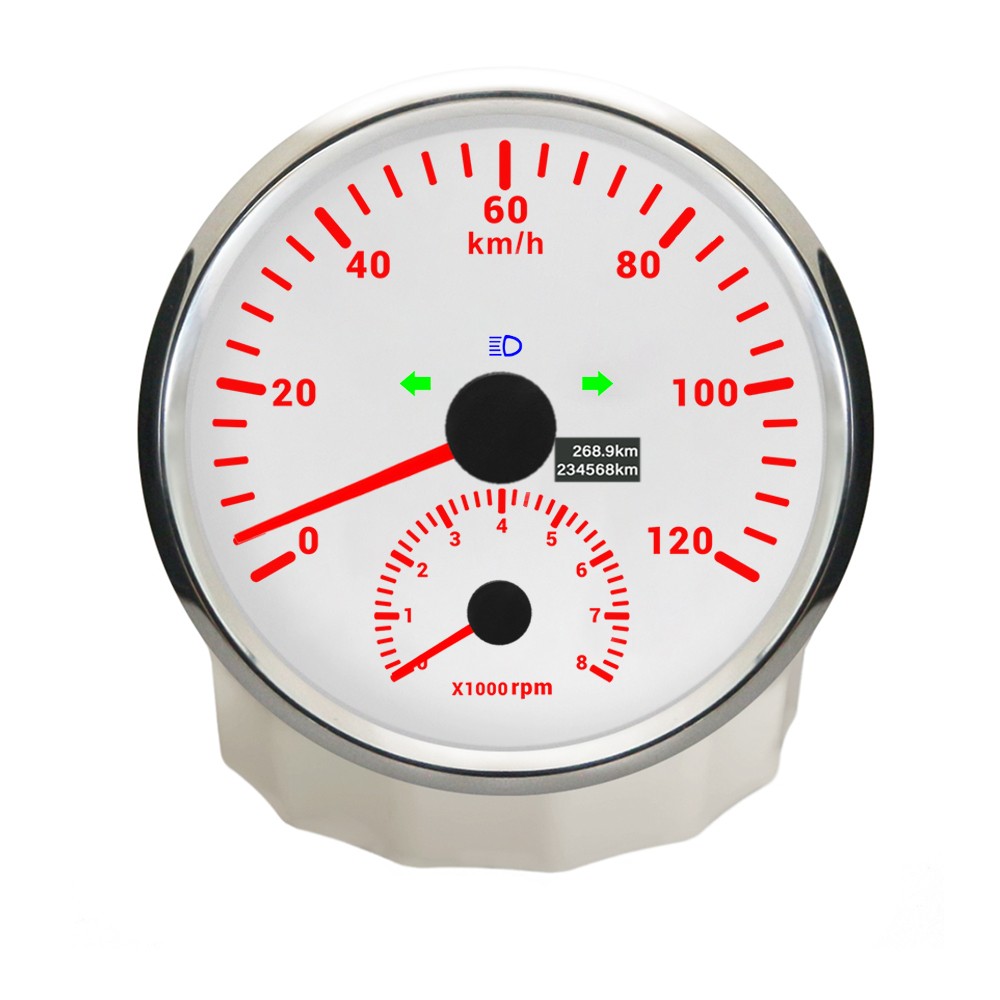

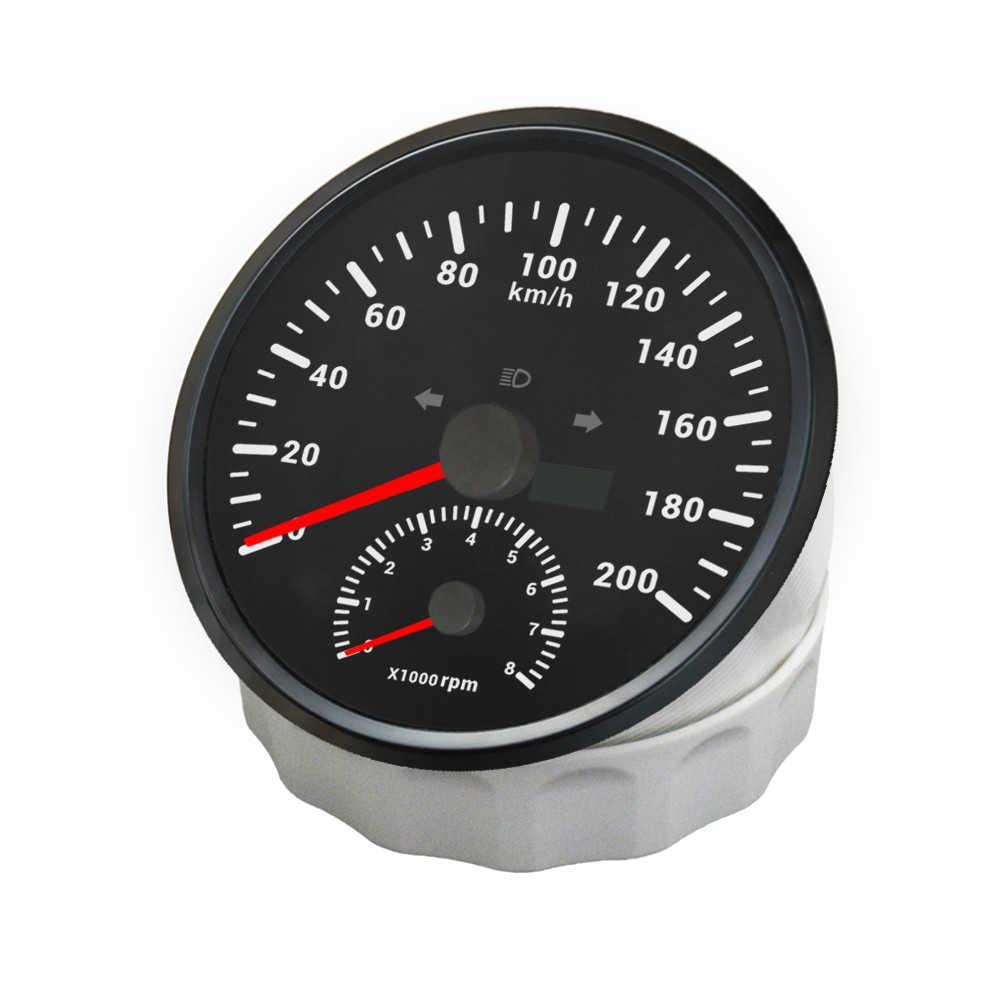

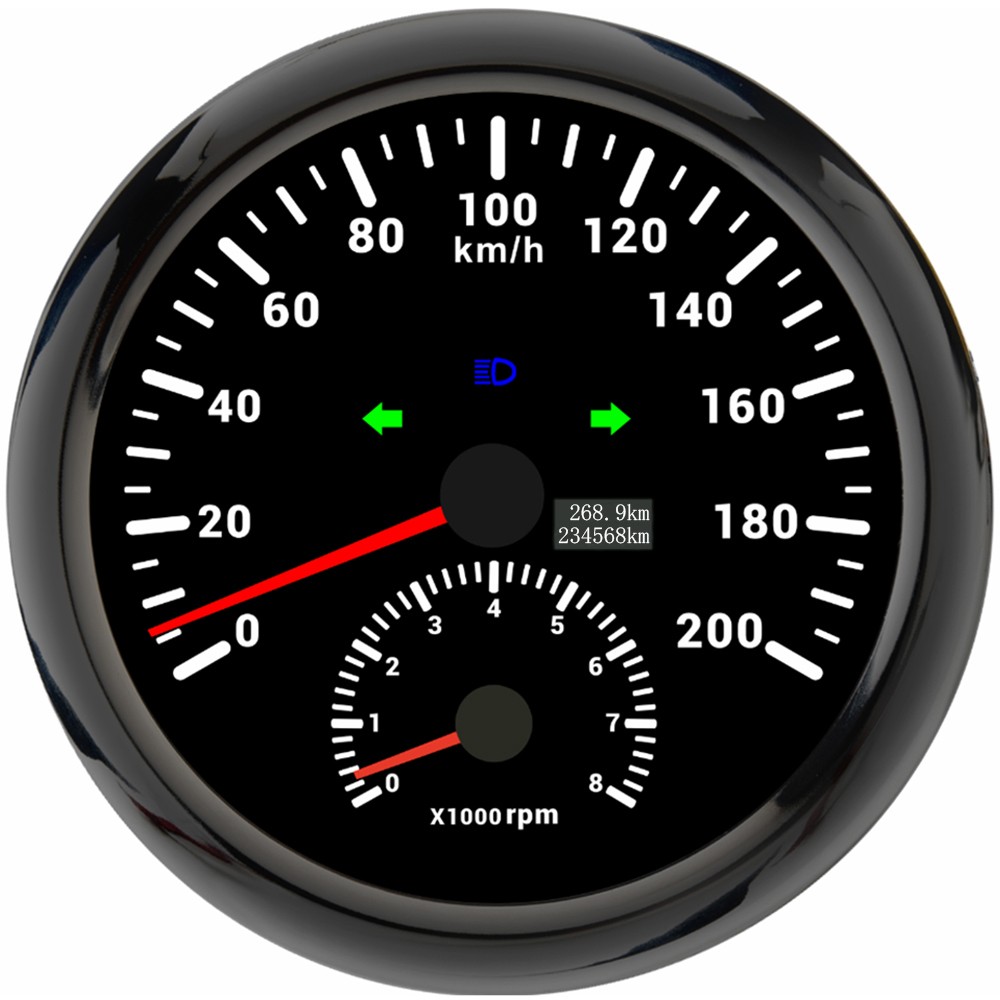

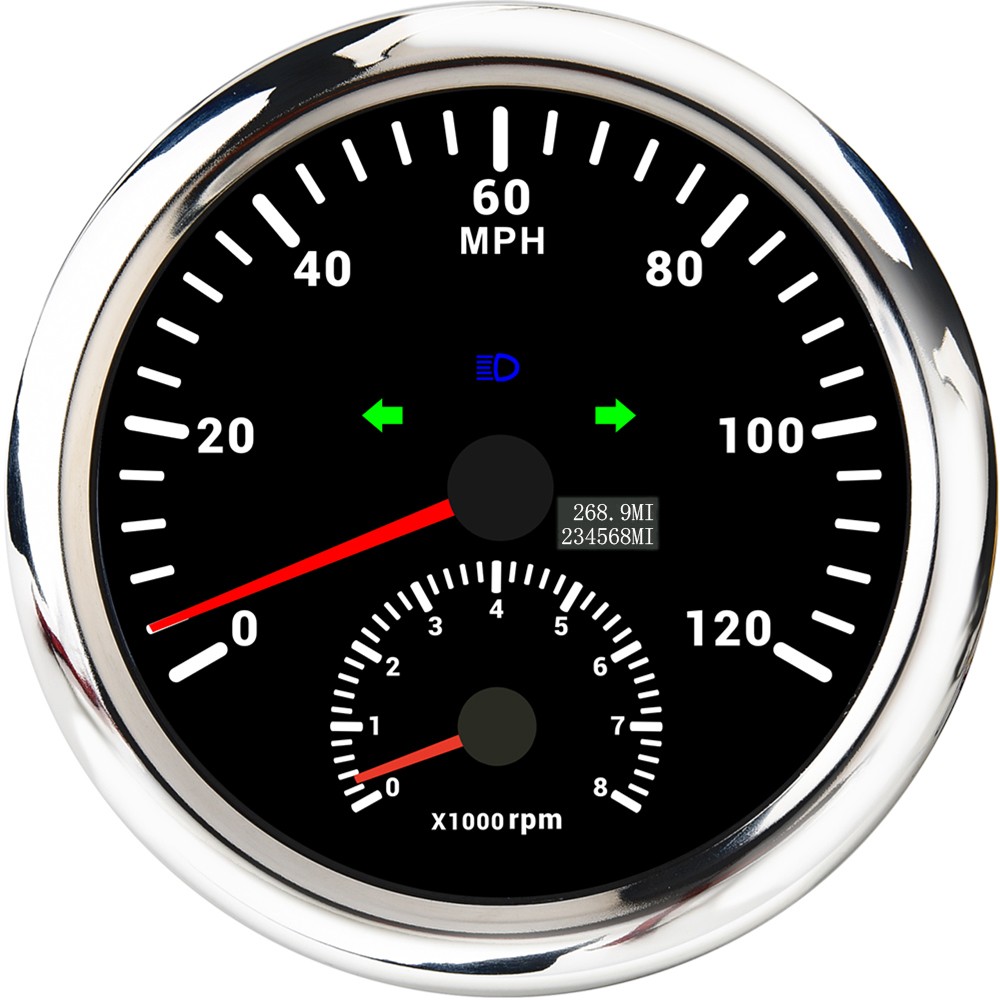

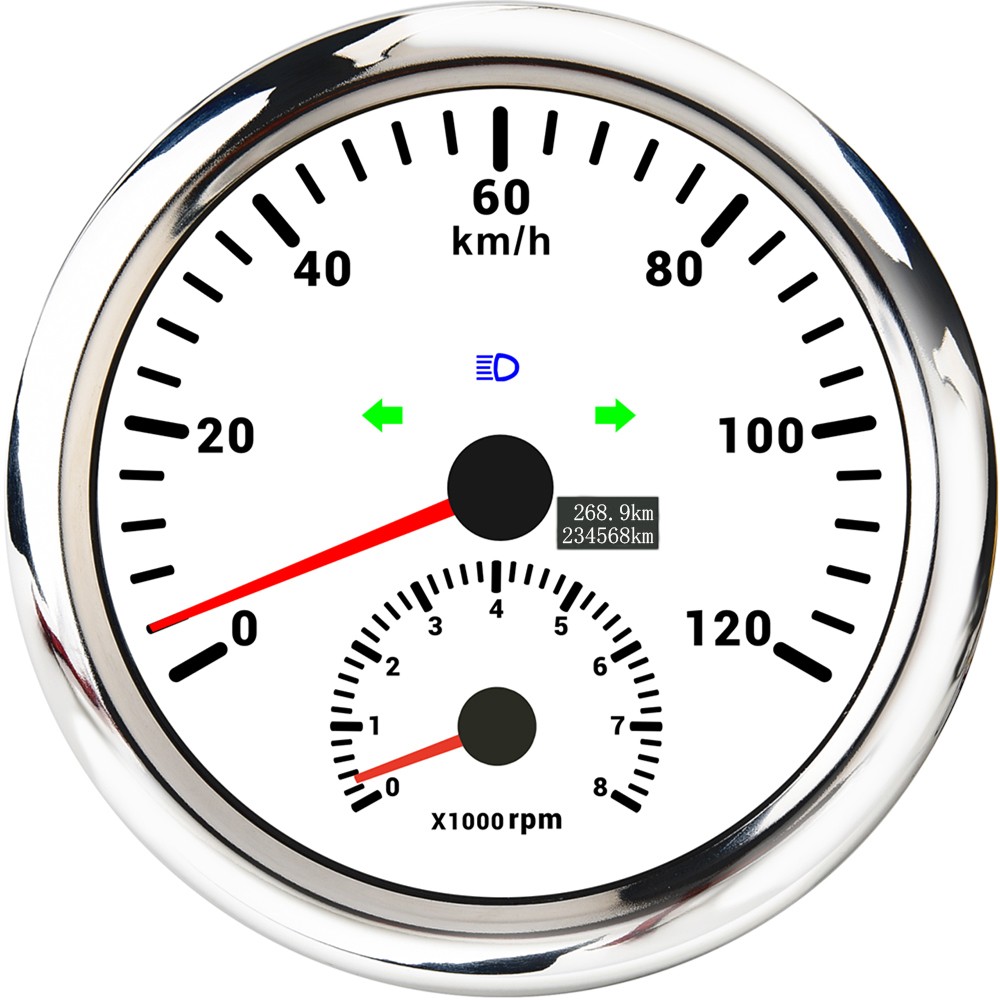

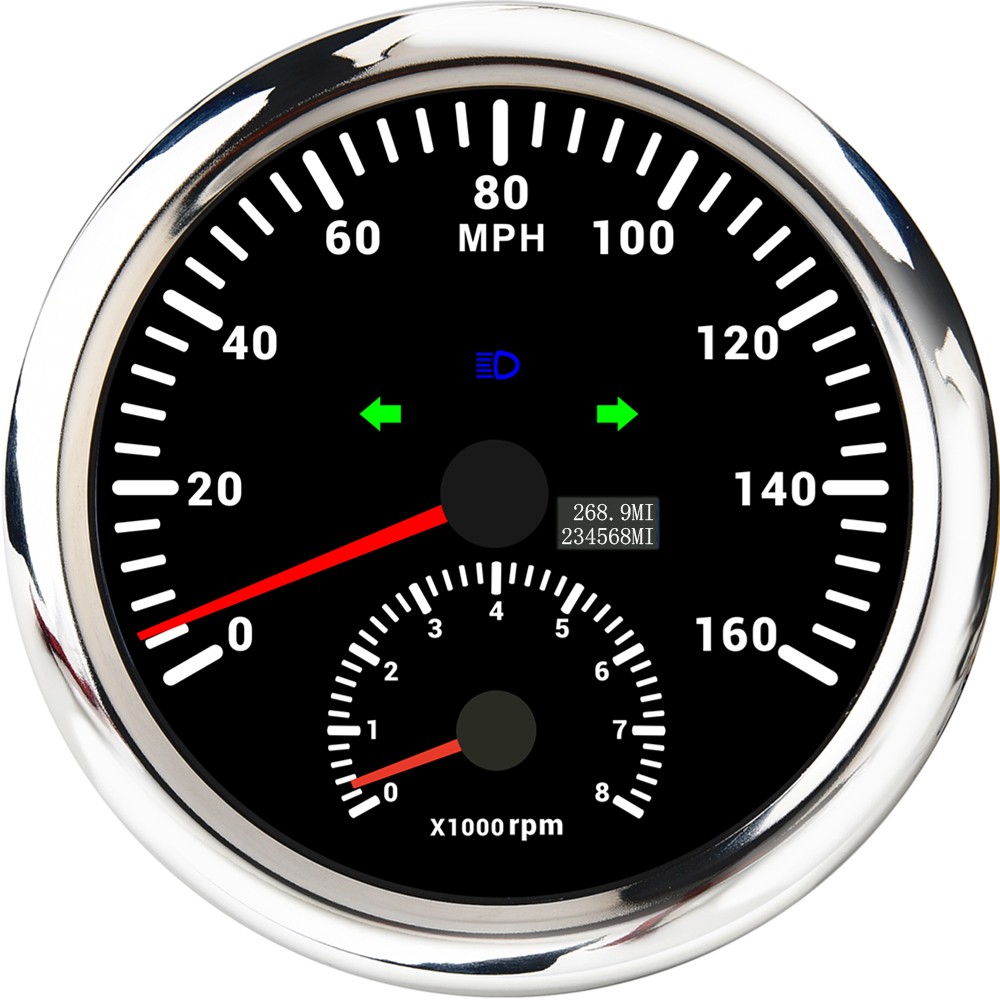

  • ELING CX 110MM GPS Speedometer with Tachometer
  • ELING CX 110MM GPS Speedometer with Tachometer
  • ELING CX 110MM GPS Speedometer with Tachometer
  • ELING CX 110MM GPS Speedometer with Tachometer
ELING CX 110MM GPS Speedometer with Tachometer ELING CX 110MM GPS Speedometer with Tachometer ELING CX 110MM GPS Speedometer with Tachometer ELING CX 110MM GPS Speedometer with Tachometer

ELING CX 110MM GPS Speedometer with Tachometer

  • Product Item:CX 110MM GPS Speedometer with Tachometer
  • Fixing dimension: 110mm
  • Backlight: Red
  • Working Voltage: 12V/24V
  • Indication light: LEFT, HIGH BEAM, RIGHT
  • 110MM GPS Speedometer with Tachometer  , 2 in 1 Multifunction Gauge  , GPS Speedometer  , Tachometer Gauge
    Inquiry Send Email PDF

    Description

    Feature:


    1.Suitable for all vehicles and off-road vehicles


    2.Speedometer signal comes directly from the satellite signal receiver(GPS Antenna), don’t need other speed sensor. Tachometer needs to get rpm signal.


    3.The gauge has the advantages of high precision, quick location confirmation and short start up time.


    4.IP67 waterproof and dustproof grade


    5.Reverse polarity protection and anti-fogging performance


    6.No Stationery Drift


    7.Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    Specification:


    -Fixing dimension: 110mm


    -Indicating Range: 0-120KM/H and 0-8000rpm;0-200KM/H and 0-8000rpm;0-120MPHH and 0-8000rpm;0-160MPH and 0-8000rpm


    -Working Voltage: 12V/24V


    -Trip meter range: 0-999.9 km or 0-999.9 miles


    -ODO Mileage Range: 0-999999 km or 0-999999 miles


    -OverSpeed Buzzer Alarm (Value Adjustable)


    -Indication light: LEFT, HIGH BEAM, RIGHT


    -Backlight: Red


    -Working temperatures: - 40 to 85°C


    -Operation mode: LCD display, stepper motor

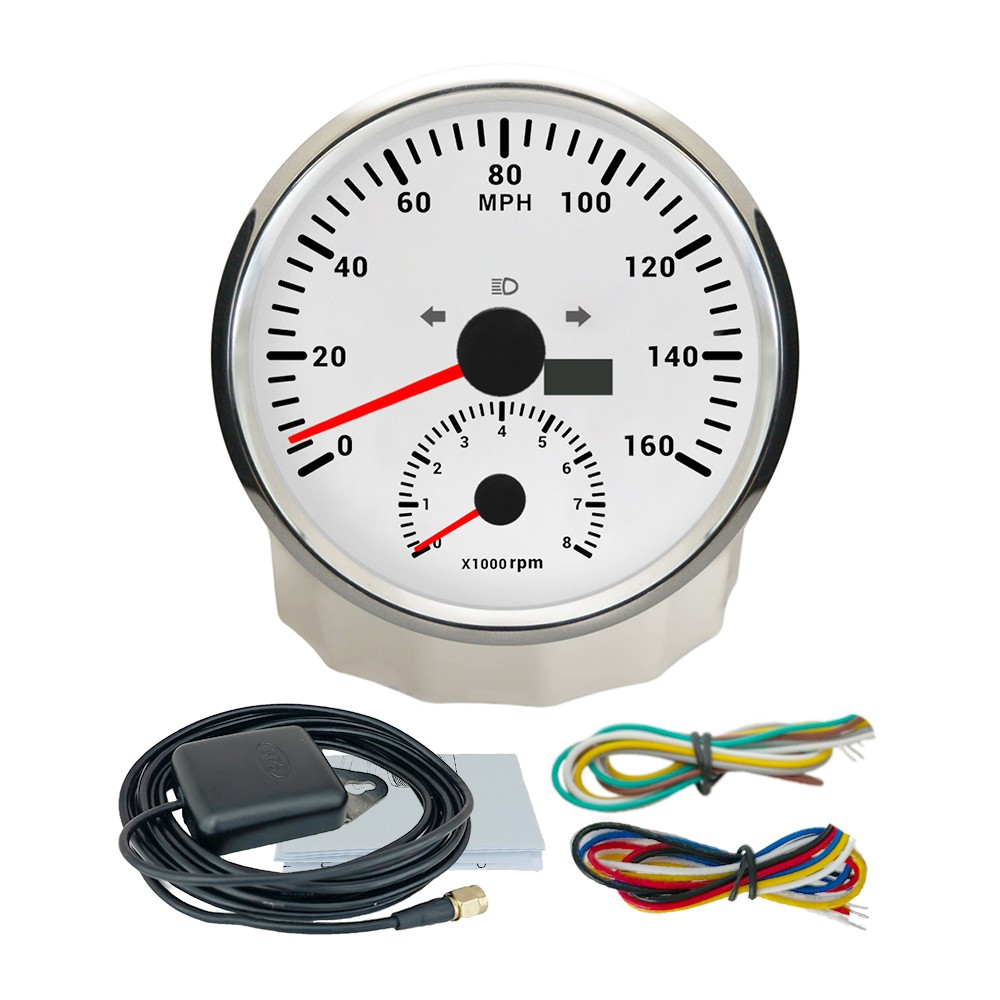

    Package Includes:


    1x GPS speedometer with tachometer


    1x GPS Antenna


    2x Multi-plug socket


    1x Installation Instruction
