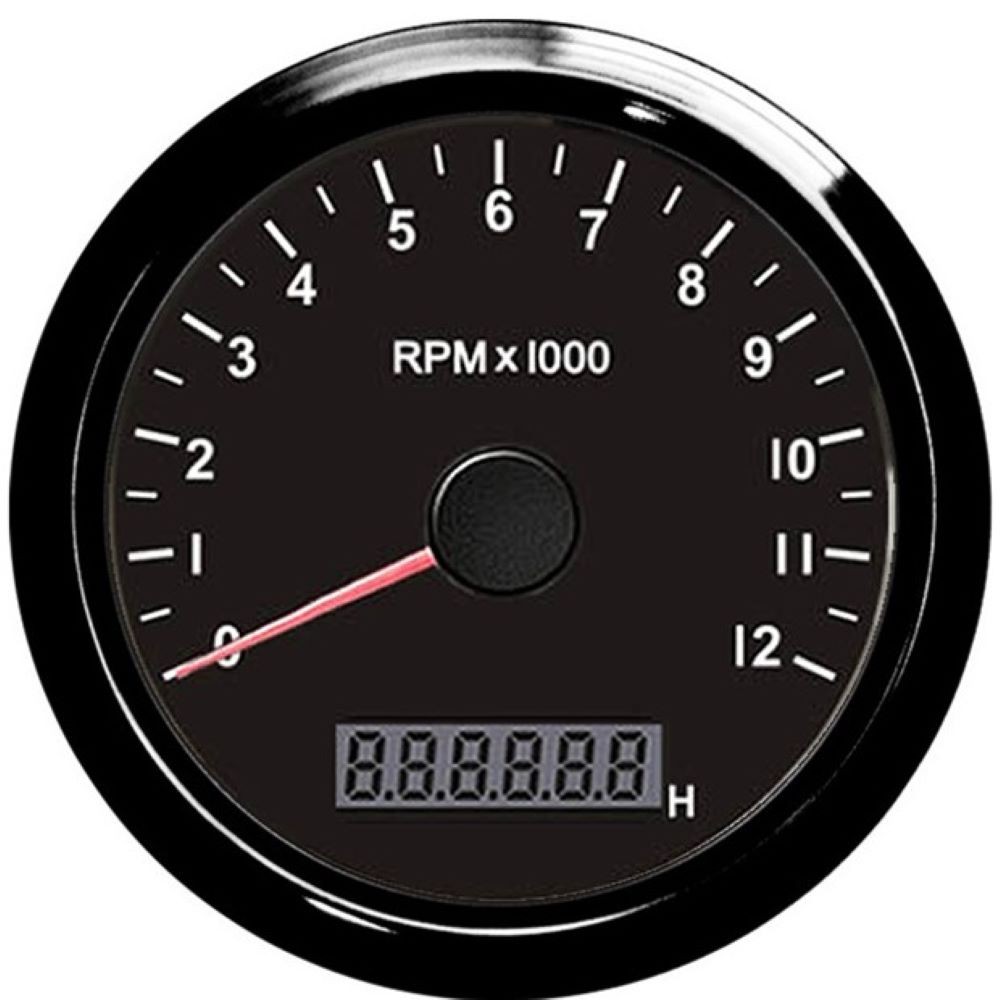

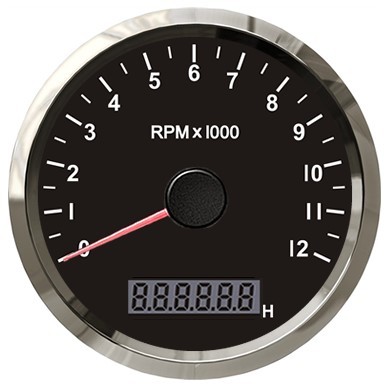

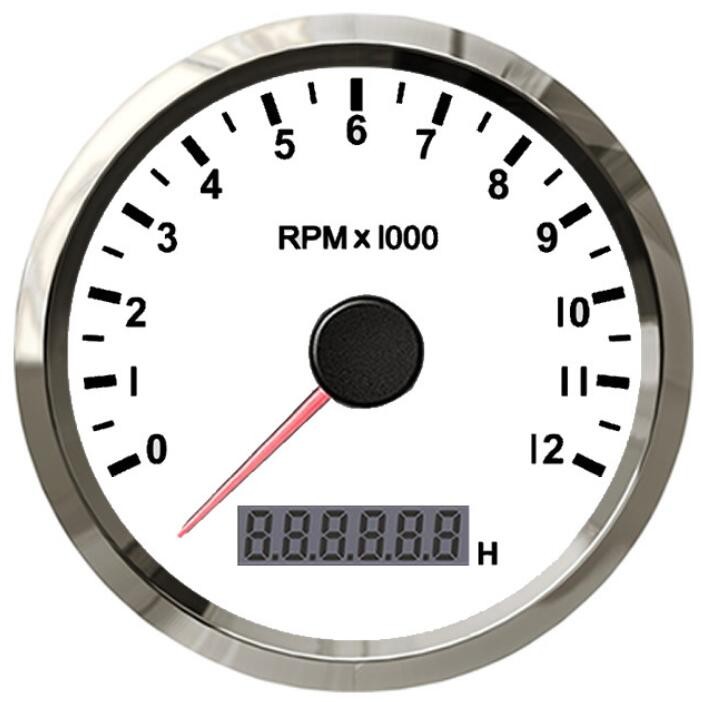

TN Tachometer Gauge(12000RPM)

  • Product Item:TN 12000RPM Tachometer
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Indicating Range: 0-12000RPM
  • Suitable for gasoline engine
  • tachometer  , rpm tachometer  , rpm gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine.

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 8-80VDC.


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 0-12000RPM

    -Speed Ratio: 0-999 adjustable

    -Suitable for gasoline engine

    -There is a button in the back of tachometer, you can press it to adjust speed ratio, hour and BUZZ.

    When engine is in idle state, tachometer shows 600-800RPM, it means speed ratio is correct.

    If not, you can turn down or up speed ratio to see the difference of tachometer needle.

    -Working Voltage: 8-80V(12V/24V)

    -Backlight: Red and Yellow

    -Functions: current tacho/RPM and hour, hourmeter can be reset.

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x Tachometer

    1x Multi-plug socket

    1x Installation Instruction
