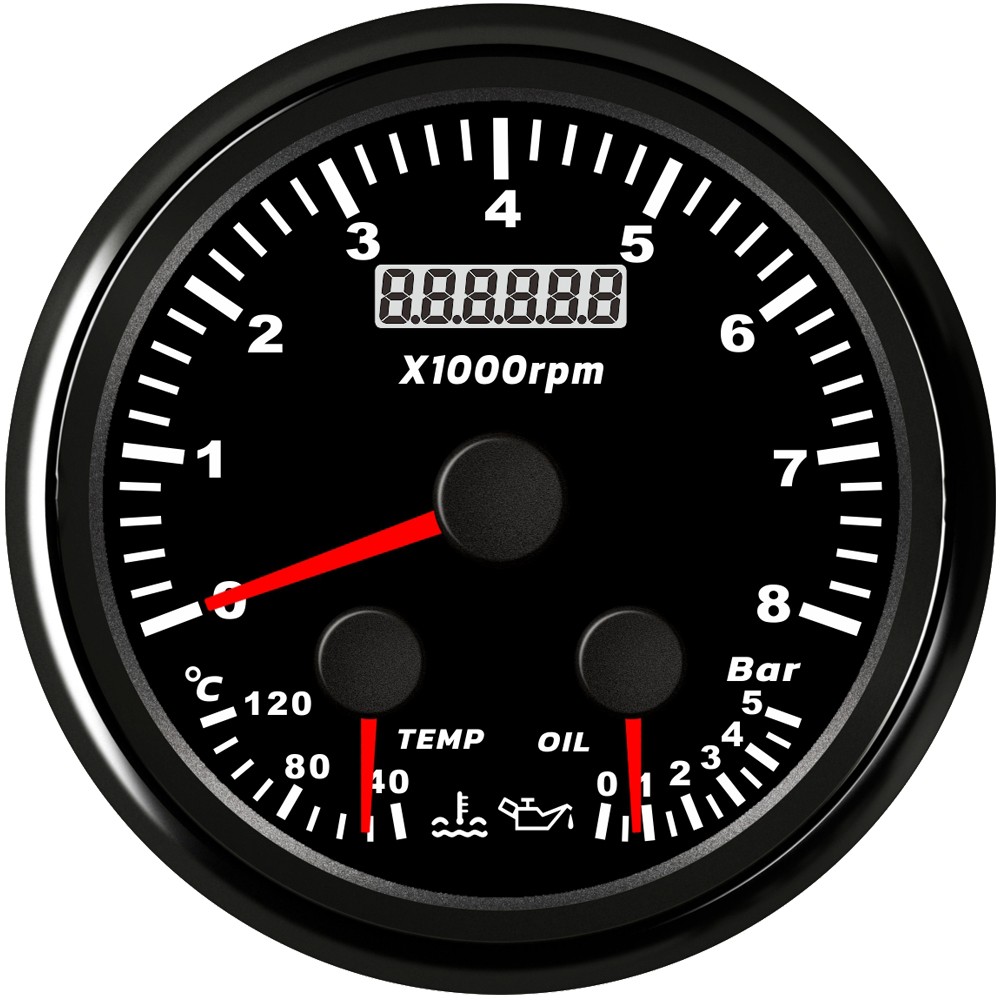

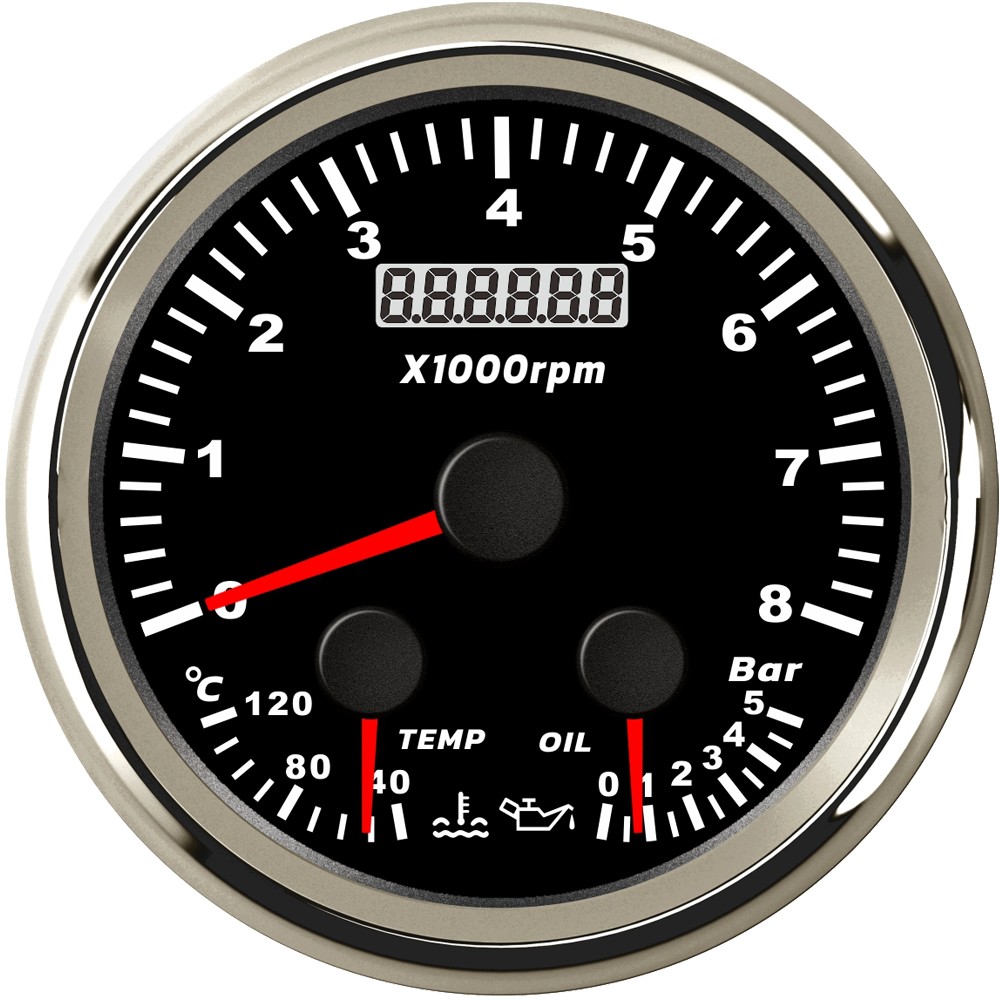

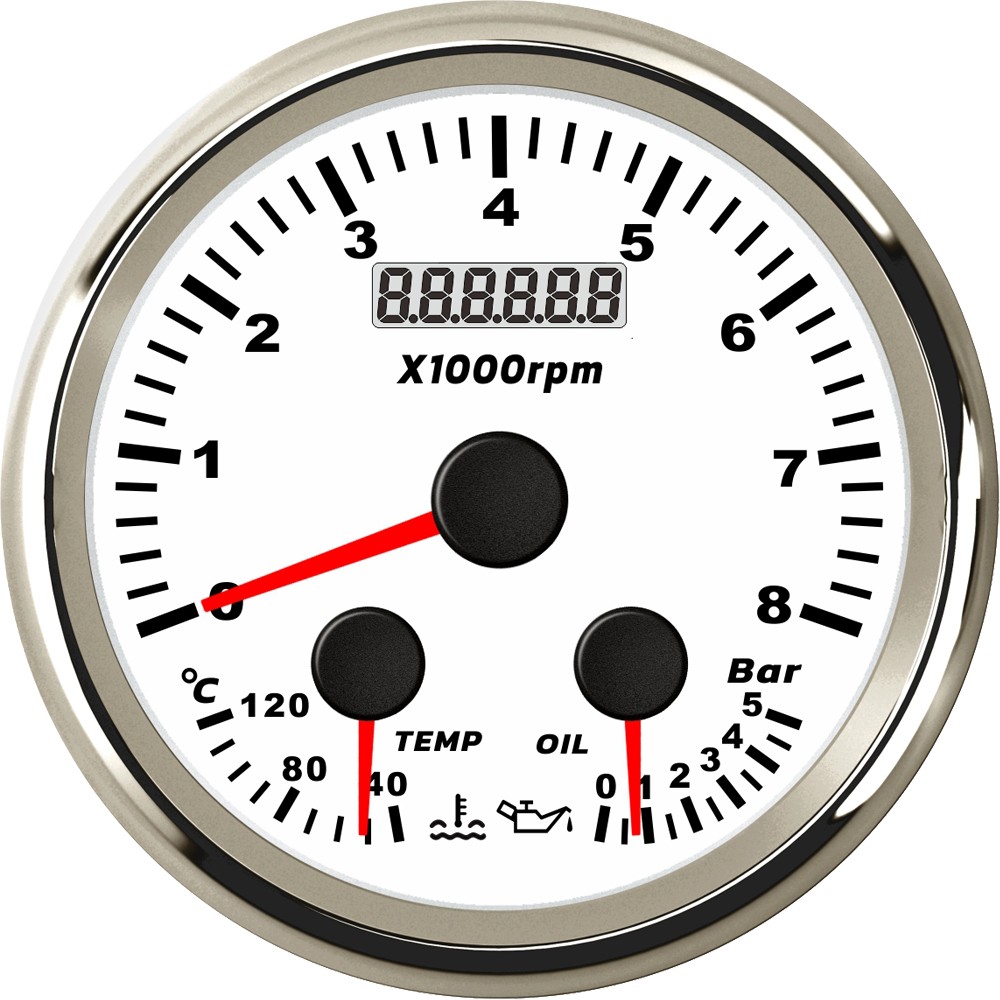

  5. ELING ECP 3 in 1 Tachometer 8000RPM
  • ELING ECP 3 in 1 Tachometer 8000RPM
  • ELING ECP 3 in 1 Tachometer 8000RPM
  • ELING ECP 3 in 1 Tachometer 8000RPM
ELING ECP 3 in 1 Tachometer 8000RPM ELING ECP 3 in 1 Tachometer 8000RPM ELING ECP 3 in 1 Tachometer 8000RPM

ELING ECP 3 in 1 Tachometer 8000RPM

  • Product Item:ECP 3 in 1 Tachometer
  • Tahcometer: 0-8000rpm
  • Water Temp Gauge: 40-120℃
  • Oil Pressure:0-5Bar
  • Installation Dimension: 85mm
  • Tachometer  , Water temp gauge  , oil pressure gauge  , 8000RPM
    Inquiry Send Email PDF

    Description

    Specifications:


    Name: 3 in 1 Multi-function gauge


    Materials: stainless steel+nickel-plated plastic


    Operating Voltage: 12V


    Indicating range:


    Tachometer: 0-8000rpm


    Water temp: 40-120℃


    Oil pressure: 0-5Bar


    Input signal:


    Water temp: 320-22ohm

    Oil pressure: 10-119ohm


    Protection Class: IP67, can work underwater 1meter position


    Sensors need to be purchased separately


    Features:


    Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the tachometer, water temp., oil pressure, hour.


    Instructions:


    Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.


    Notes: Due to the manual measurement, there might be some error.


    Connection:


    Red--Battery(+8-16VDC)


    Green--Tachometer signal


    Orange--Backlight(+)


    Purple--Temp. signal


    Yellow--Press. signal


    Black--Ground(-)


    Package Includes:


    1 x 3 in 1 Multi-function gauge


    1 x Cable


    1 x Owner's Manual
