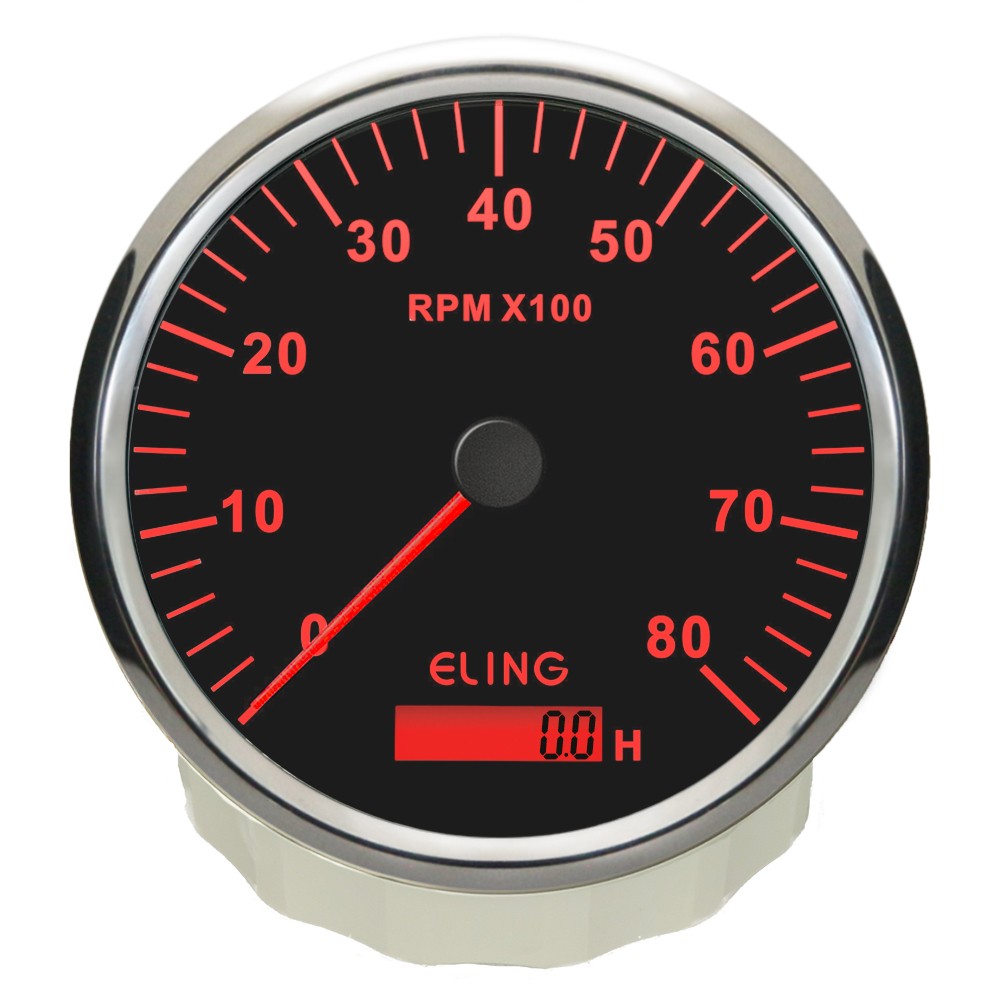

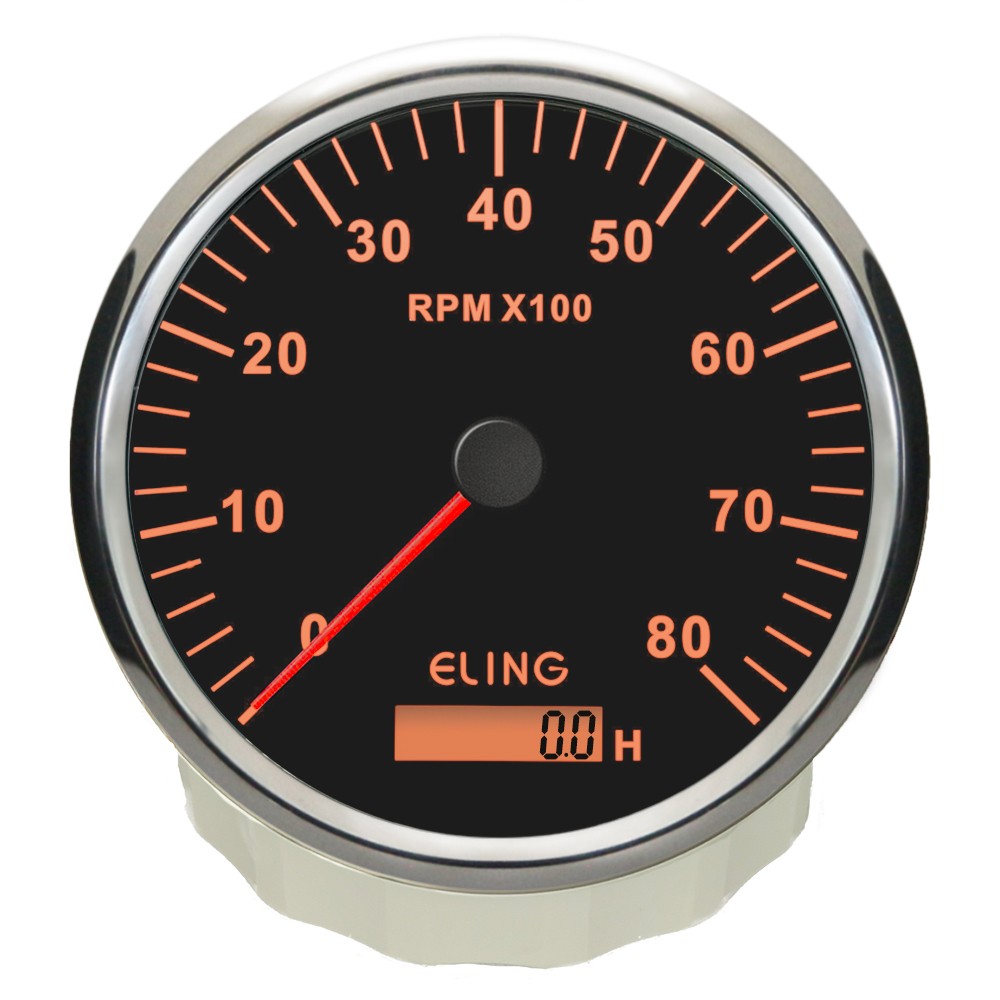

  5. ELING EL 110mm Tachometer 8000RPM
  • ELING EL 110mm Tachometer 8000RPM
  • ELING EL 110mm Tachometer 8000RPM
ELING EL 110mm Tachometer 8000RPM ELING EL 110mm Tachometer 8000RPM

ELING EL 110mm Tachometer 8000RPM

  • Product Item:EL 110mm Tachometer 8000RPM
  • Fixing dimension:110 mm (4 3/8")
  • Indicating Range:0-8000RPM
  • Speed Ratio:1.0-10.0 adjustable
  • Red and yellow backlight available
  • tachometer  , rpm tachometer  , rpm gauge  , tacho gauge
    Inquiry Send Email PDF

    Description

    Key Features:


    -Be suitable for all kinds of tacho sensors, and display the rotation speed of the engine.


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -Operating temperature: -40°C ~+85°C


    -Protection rank : IP67.


    Technical Data:


    -Fixing dimension: 110mm


    -Indicating Range: 0-8000RPM,Speed Ratio: 1.0-10.0 adjustable,Suitable for gasoline engine


    -Working Voltage: 12V/24V


    -Choice between red and yellow backlight


    -Operation mode: LCD display, stepper motor


    -Protection grade is IP67, the whole body is completely waterproof;


    -Excellent anti-fogging function;


    -316 Stainless steel bezel with curved glass;


    -Convenient Installation by multi-plug socket connecting way;


    Package Includes:


    1x Tachometer


    1x Multi-plug socket


    1x Installation Instruction
