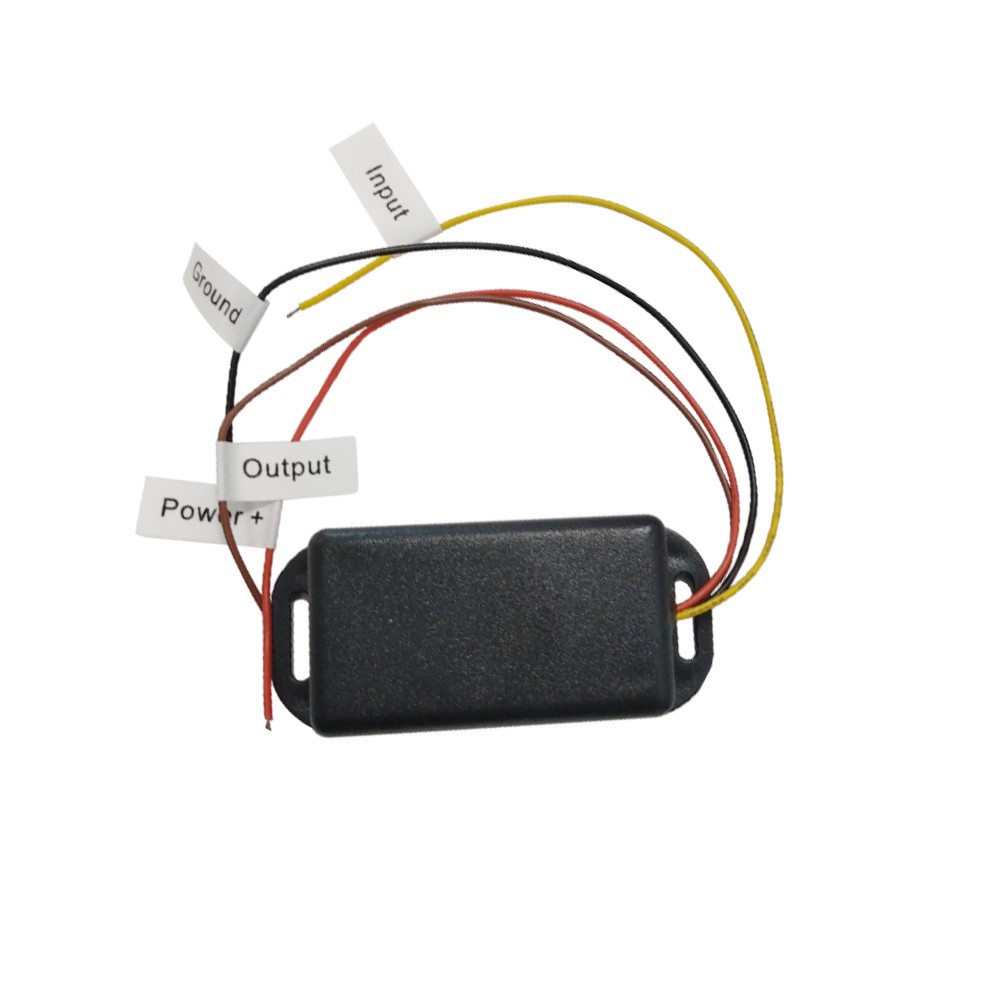

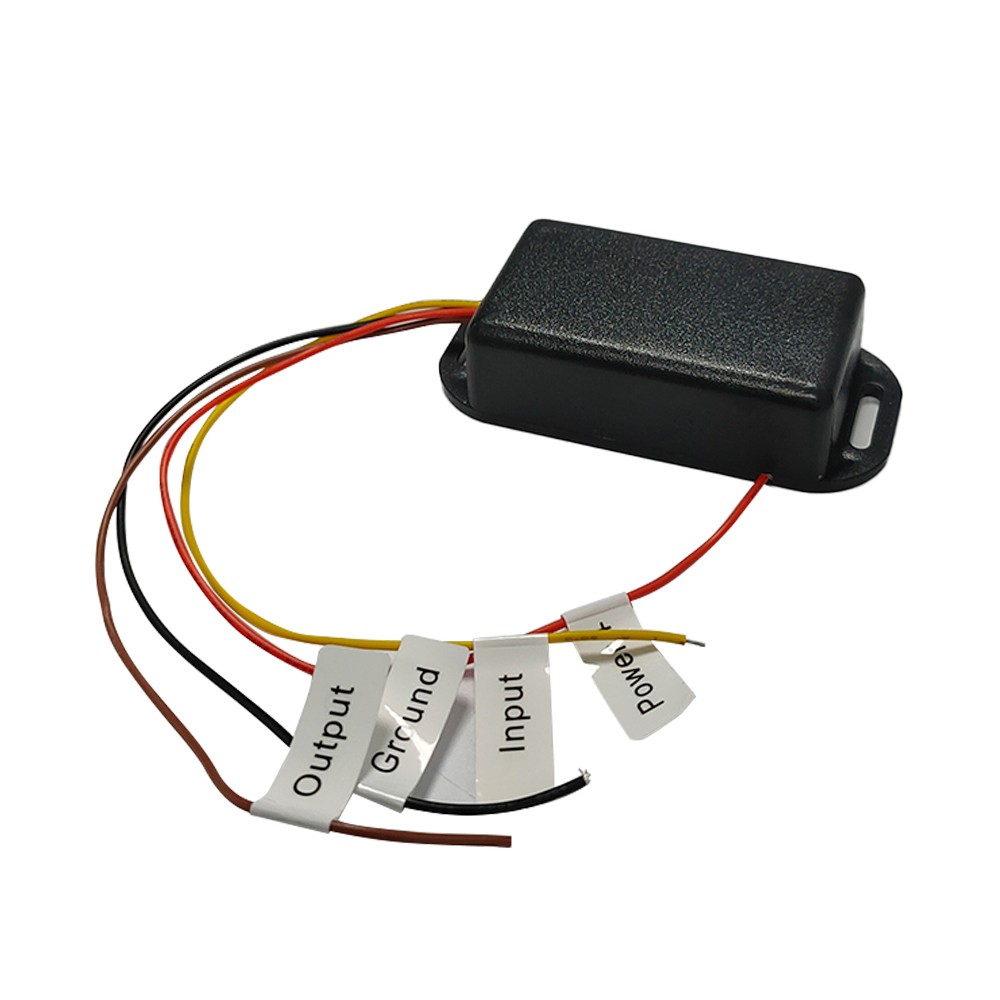

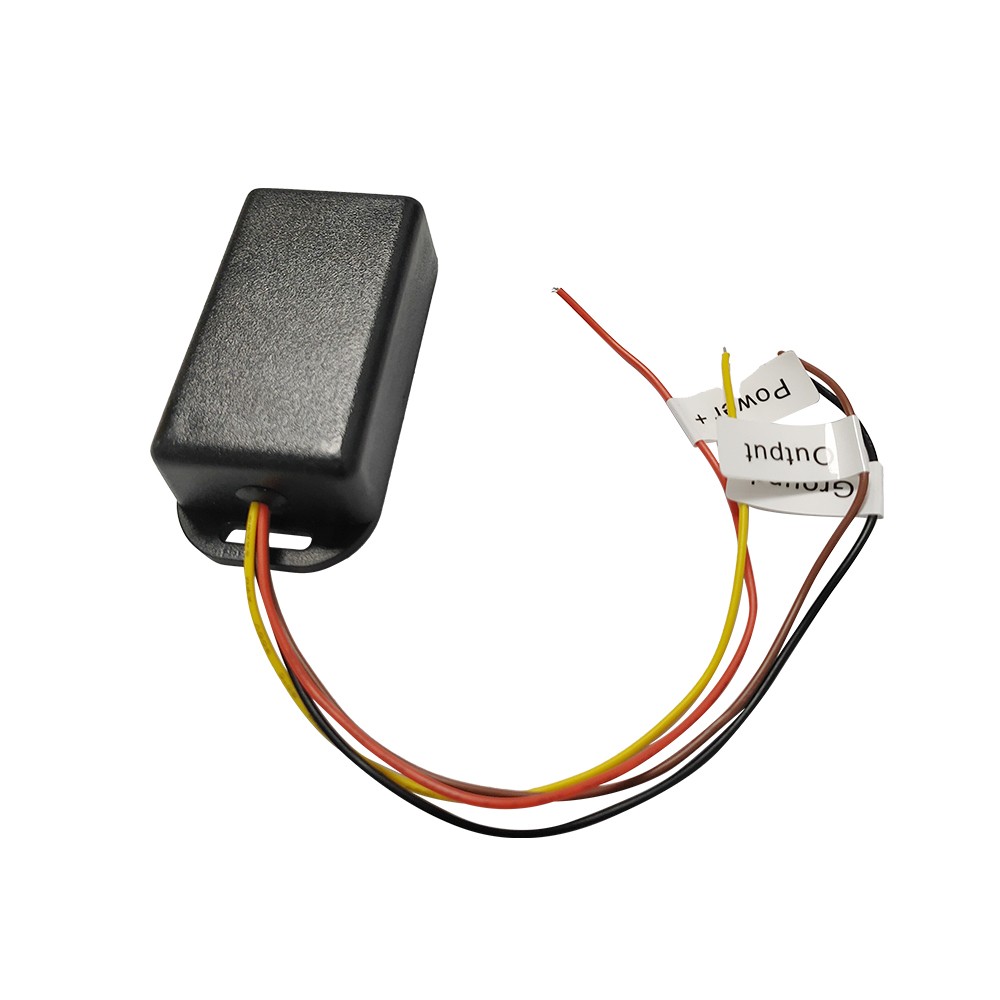

Resistance Signal Convertor

  • Product Item:Resistance Signal Convertor
  • Acts as Interface Between Fuel Senders & Gauges
  • Reads any fuel sender
  • Works with any fuel gauge
  • Mini Size 20(W) x 16(H) x35(L) mm
  • Resistance Signal Convertor  , Ohm Range Invertor  , Fuel Level Sensor
    Inquiry Send Email PDF

    Description

    Features:


    FM101 will convert the input resistance signal to a target resistance signal, so that Fuel/Water Gauge can work with different type/range of fuel/water sensors.


    Acts as Interface Between Fuel Senders & Gauges


    Reads any fuel sender


    Works with any fuel gauge


    Accurately Corrects OHM Mismatch & Erratic Movement from Fuel Slosh


    Pick up Voltage Input signal or Ohm Input Signal


    Custom Calibration for empty, half level and full


    Mini Size 20(W)x16(H)x35(L) mm


    Store mode:


    The Full, Half, and Empty position can be programmed.


    The“in-between” positions between F, 1/2, and E are calculated by the microprocessor and are linear.


    The“power on” gauge start position is selected from either the sender position or the programed position.


    The output is a npn pulse width modulated signal which may cause“buzzing”in undamped gauges.


    1. Power off. Wait 5 seconds. Press “F” switch and power on then release “F” switch.


    2. Red LED only will turn on


    3. Set fuel resistor to Full position. Adjust gauge to Full using the calibration screw on FM101.


    Press “F” switch then release.


    4. Set fuel resistor to 1/2 way. Adjust gauge to 1/2 way using the calibration screw.

    Press “H” switch then release.


    5. Set fuel resistor to Empty. Adjust the gauge to Empty using the calibration screw.

    Press “E” switch then release.


    6. Adjust the calibration screw to where you want the gauge to go to when the car is started.

    (Usually this will be the position of the pointer when the car is off)


    Press “E” and “F” simultaneously then release.


    Power on mode:


    1. Power off. Wait 5 seconds.


    2. Choose where you want the gauge to start from when the car is started(Usually the gauge"off position")
    If you want the gauge to start at sender position. (suits bi-metal and cross coil gauges with damping)

    Press"E"switch and power on, release"E"switch.


    If you want the gauge to start at the preset position(set in store mode step /6). (suits gauges with no damping)

    Press"H"switch and power on, Release"H"switch.


    3. Green LED will turn on.


    Run mode:


    1. Power off, Wait 5 seconds, then power on.


    2. Green LED will turn on.

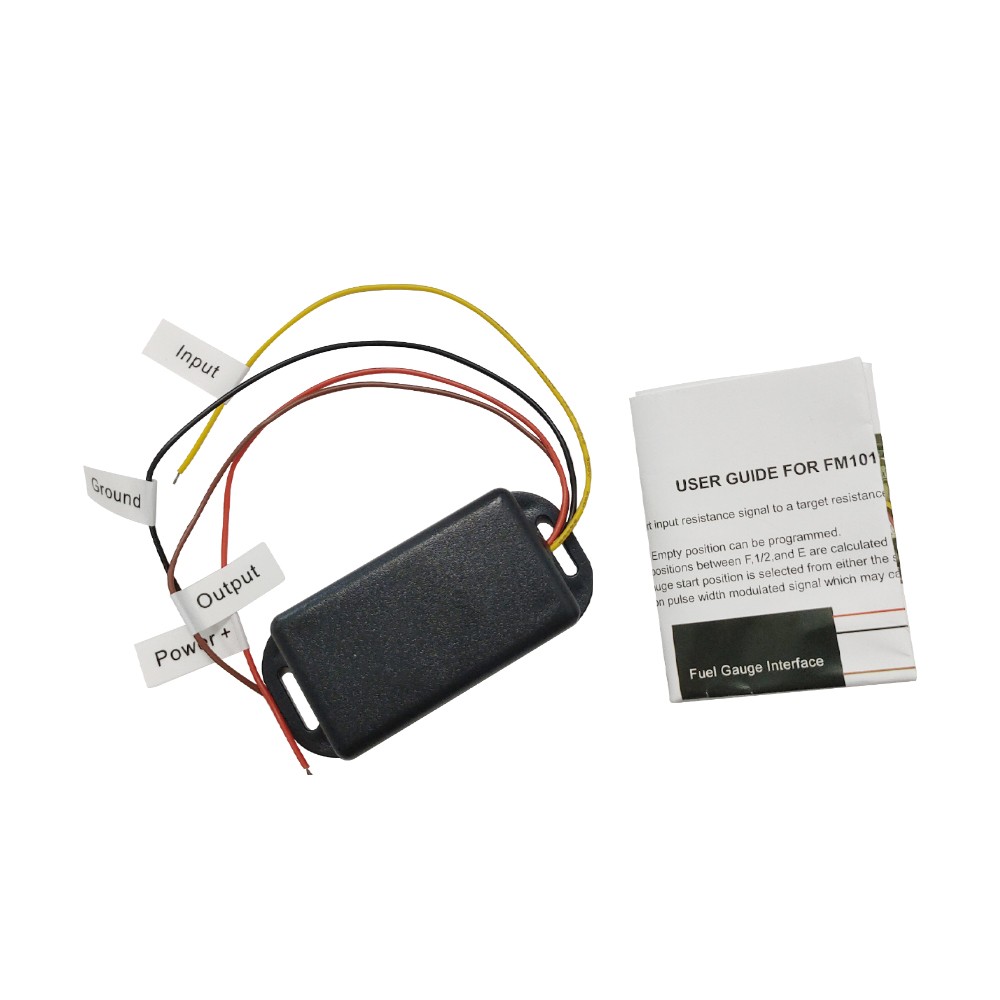

    Package Includes:


    1PC FM101
