Description
The KMG20T Marine Gauge is a Multi-Functional Digital instrument developed specifically for boats, yachts, and marine applications.
The instrument integrates major displaying functions and it offers 10 different display settings for customers.
Product Specifications:
Product Dimension: 2″, 52mm
Mounting Dimension: 52 mm
Protection Rating: IP67
Resolution: 480 x 480 Pixels
Input Signal: NMEA 2000, J1939, and Support 2 Analog signals input: (Resistance and Speed)
Operating Voltage: 9-32V DC
Operating Current: <80mA (12V)
Operation Temperature: -4°F~158°F
Storage Temperature: -22°F~176°F
Operation Settings: Mobile Phone App (Bluetooth)
Background Brightness: 10-100%
Product Features:
High flexibility, 10 types of meters to choose from
Support black and white background switching; support digital display and pointer style switching; support backlight brightness adjustment.
Chinese and English language selectable.
Compatible with NMEA2000, J1939, analog signal
Self-defined alarm value to ensure safe driving
Analog signal custom resistance value, can match most sensors
Alarm function can be customized
IP67 rated waterproof
Product Data:
Voltmeter: 12V(8~16.0V);24V(18~32.0V)
Fuel Level/Water Level/sewage :E-1/2-F or 1-100%,Signal:0~190 ohm, 240~33 ohm, customization
Water Temperature Meter:40 ~ 120 ℃,Signal:301~23 ohm, customization
Oil Temperature :50 ~ 150 ℃,Signal:362~19 ohm, customization
Oil pressure:0~5.0Bar/0~10.0Bar,Signal:10~185 ohm, customization
Tachometer:0-4000RPM,Speed Ratio:0.1-24.0
Hourmeter:0-99999.9 H
Trim:DOWN-UP

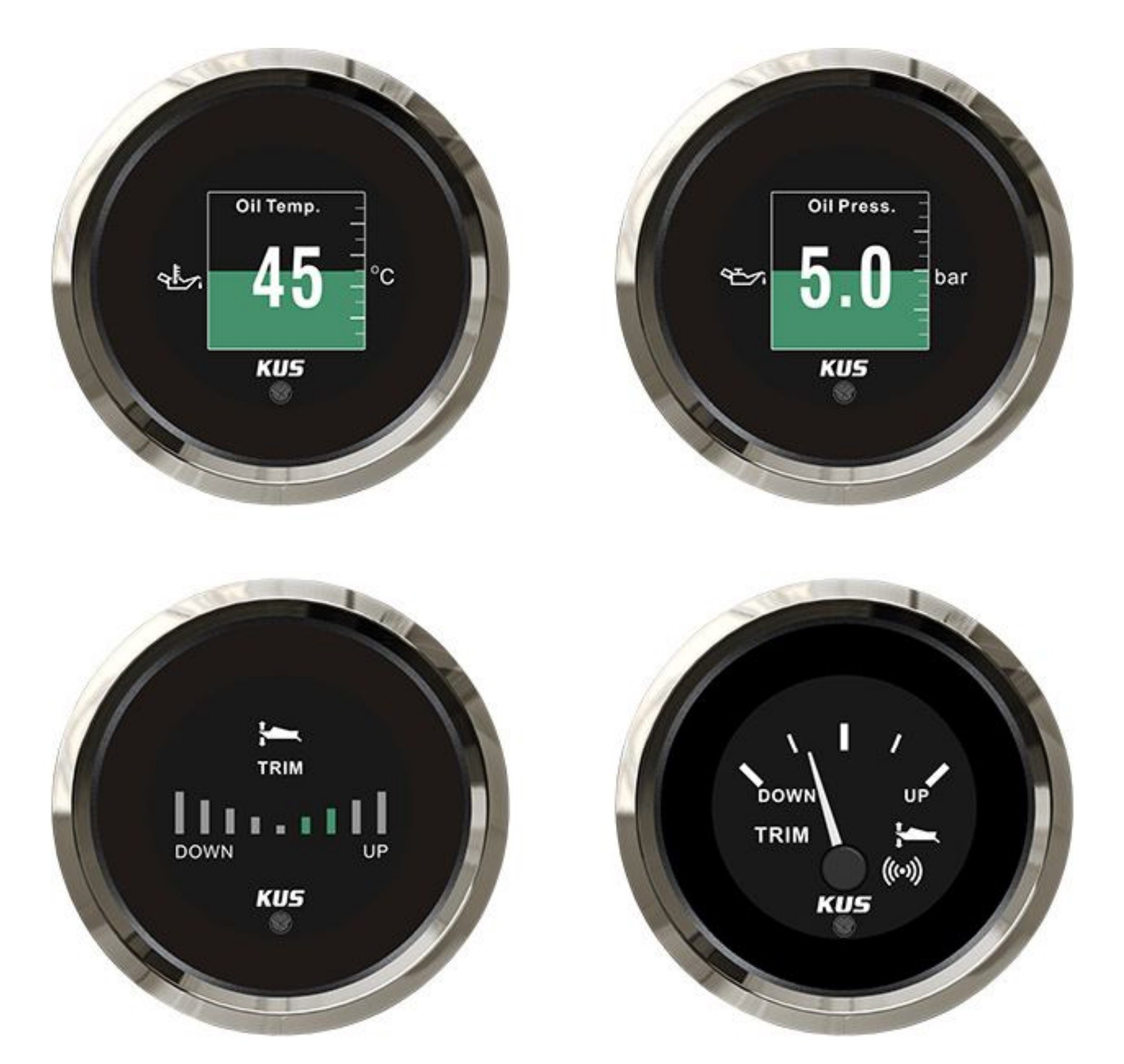

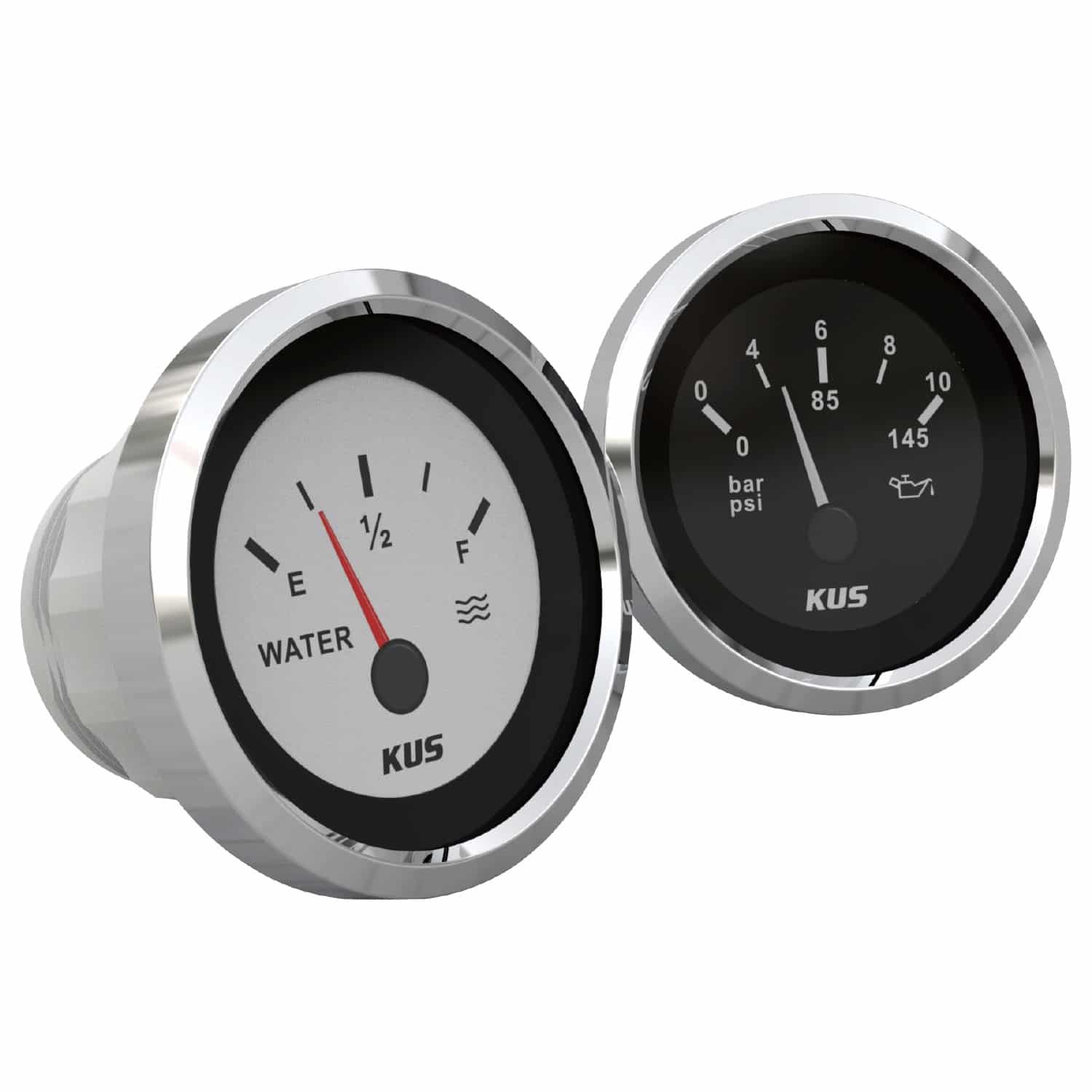

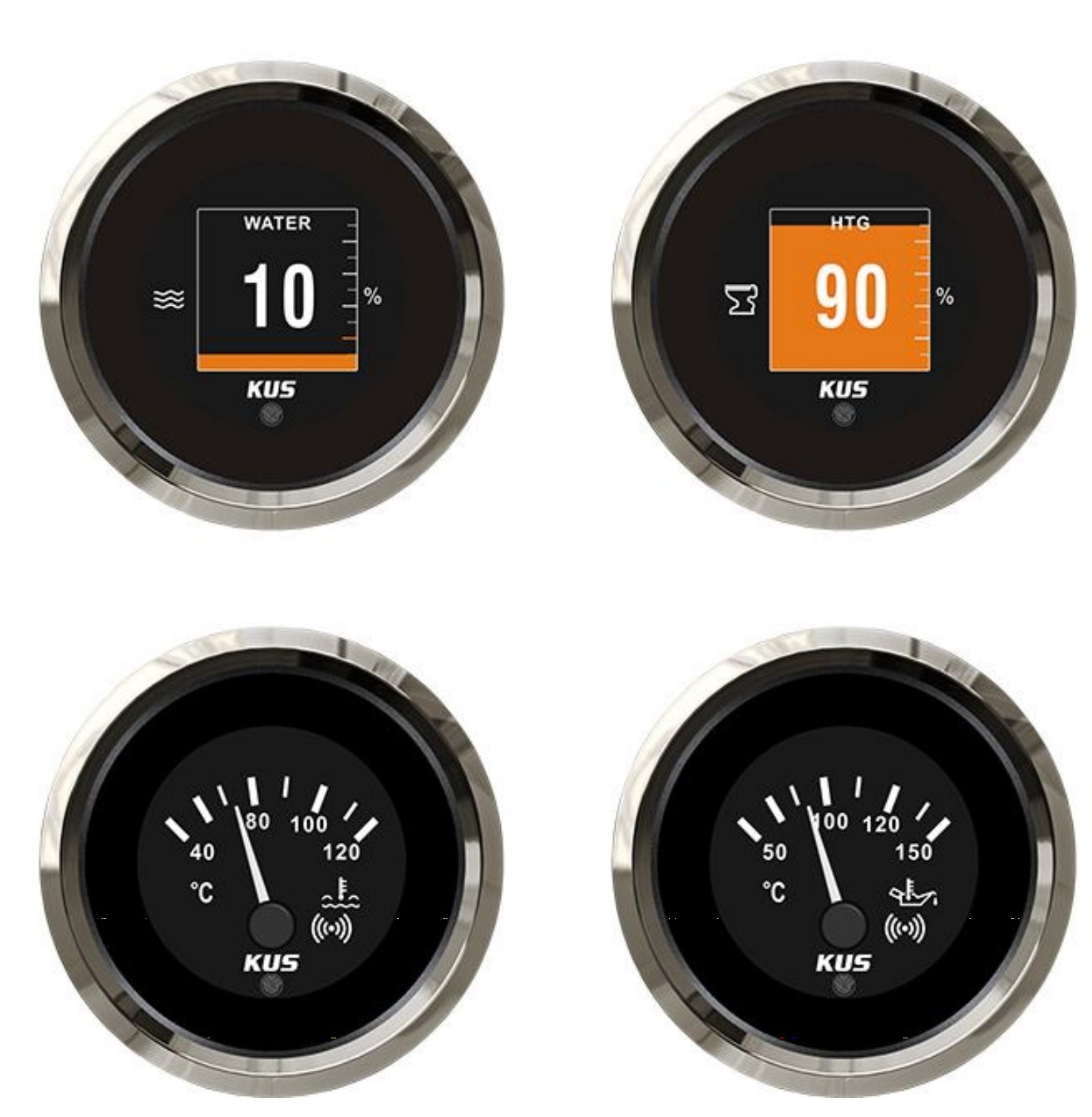

Gauge Display Options:
(12V/24V) voltmeter
Oil level meter
Water level meter

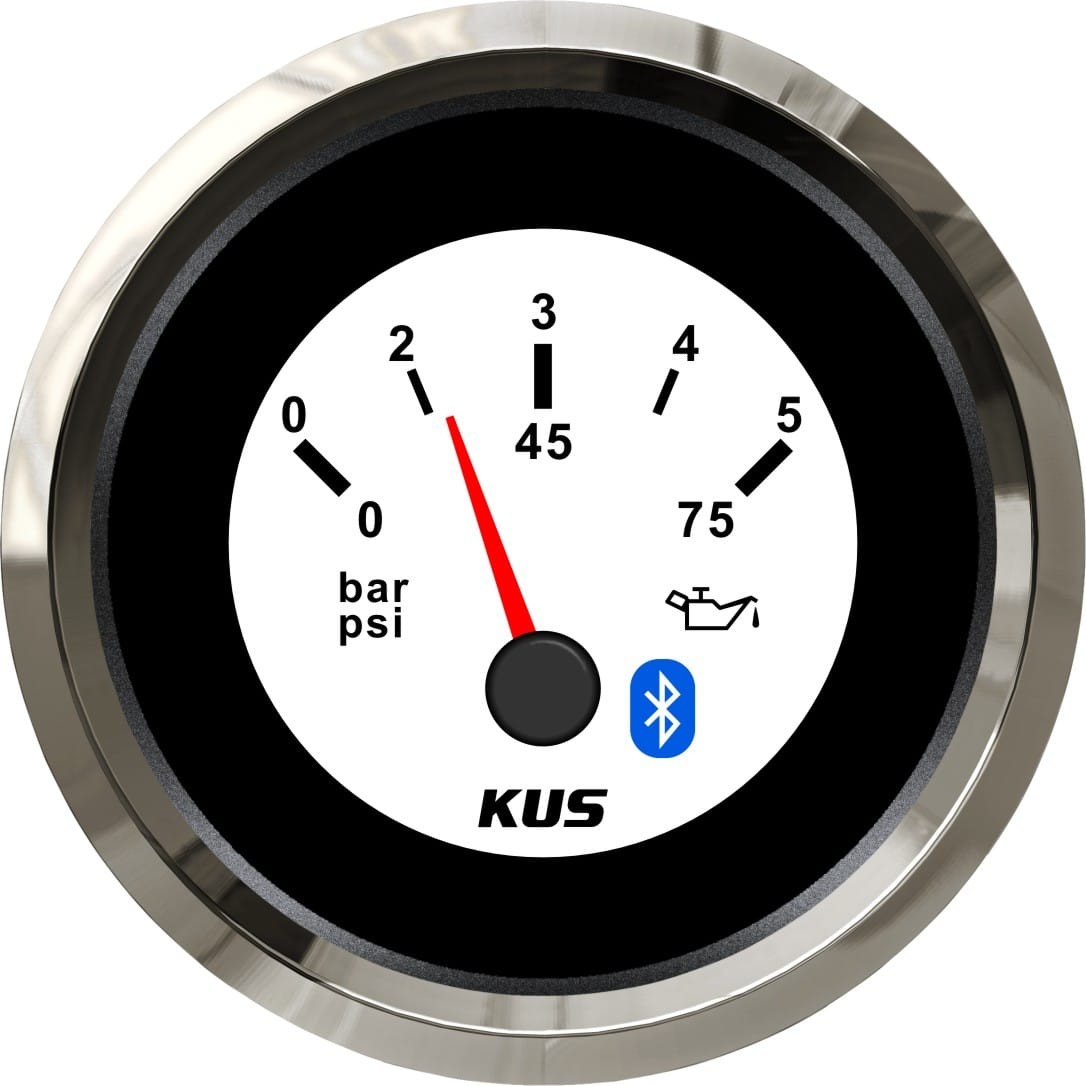

Oil pressure meter
Oil temperature meter
Water temperature meter
Sewage meter
Trim/Balance meter
Tachometer RPM
Three-in-one combination meter (tachometer, voltage, fuel level)
Package Includes:
1*KMG-20T
1*CAN-BUS cable
1*Analog signal wiring harness
1*Instruction
