  • ELING OBD2 HUD Speedometer A8
  • ELING OBD2 HUD Speedometer A8
  • ELING OBD2 HUD Speedometer A8
  • ELING OBD2 HUD Speedometer A8
ELING OBD2 HUD Speedometer A8 ELING OBD2 HUD Speedometer A8 ELING OBD2 HUD Speedometer A8 ELING OBD2 HUD Speedometer A8

ELING OBD2 HUD Speedometer A8

  • Product Item:HUD A8
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

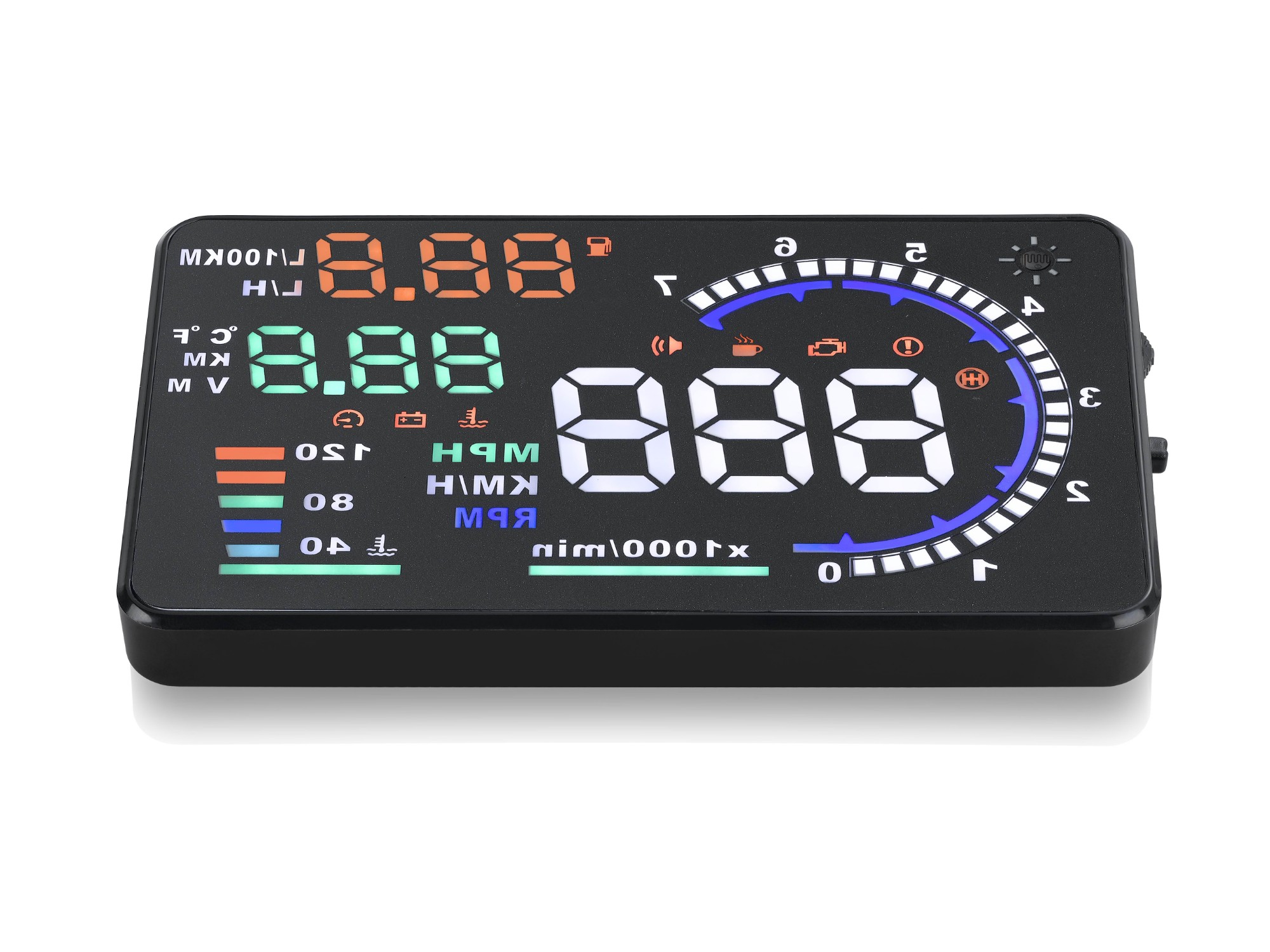

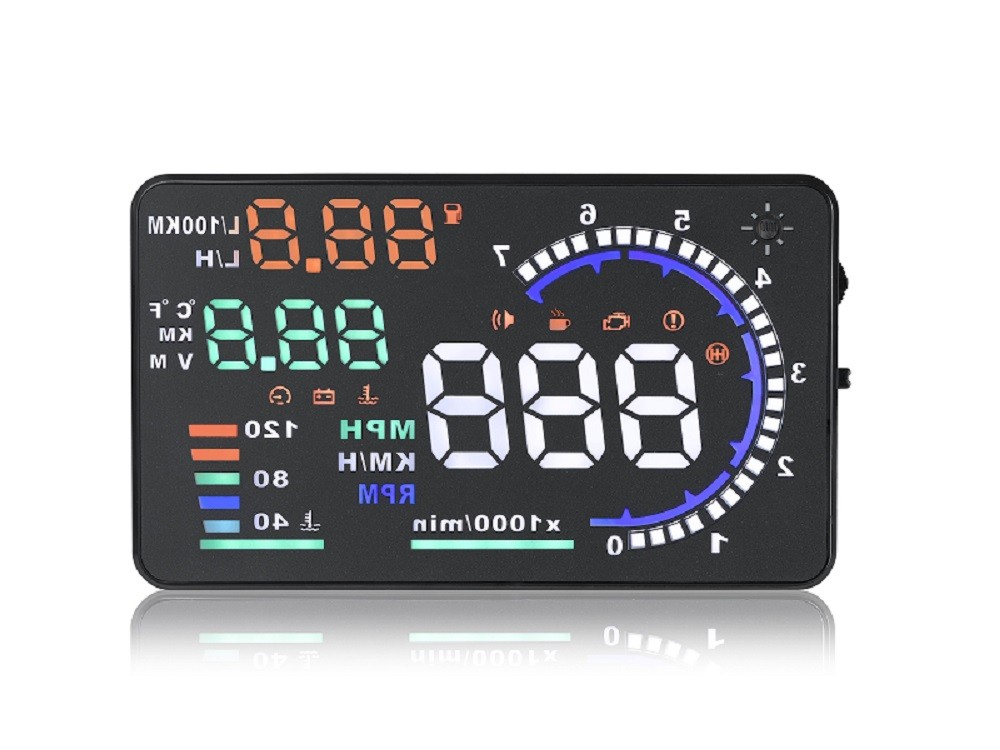

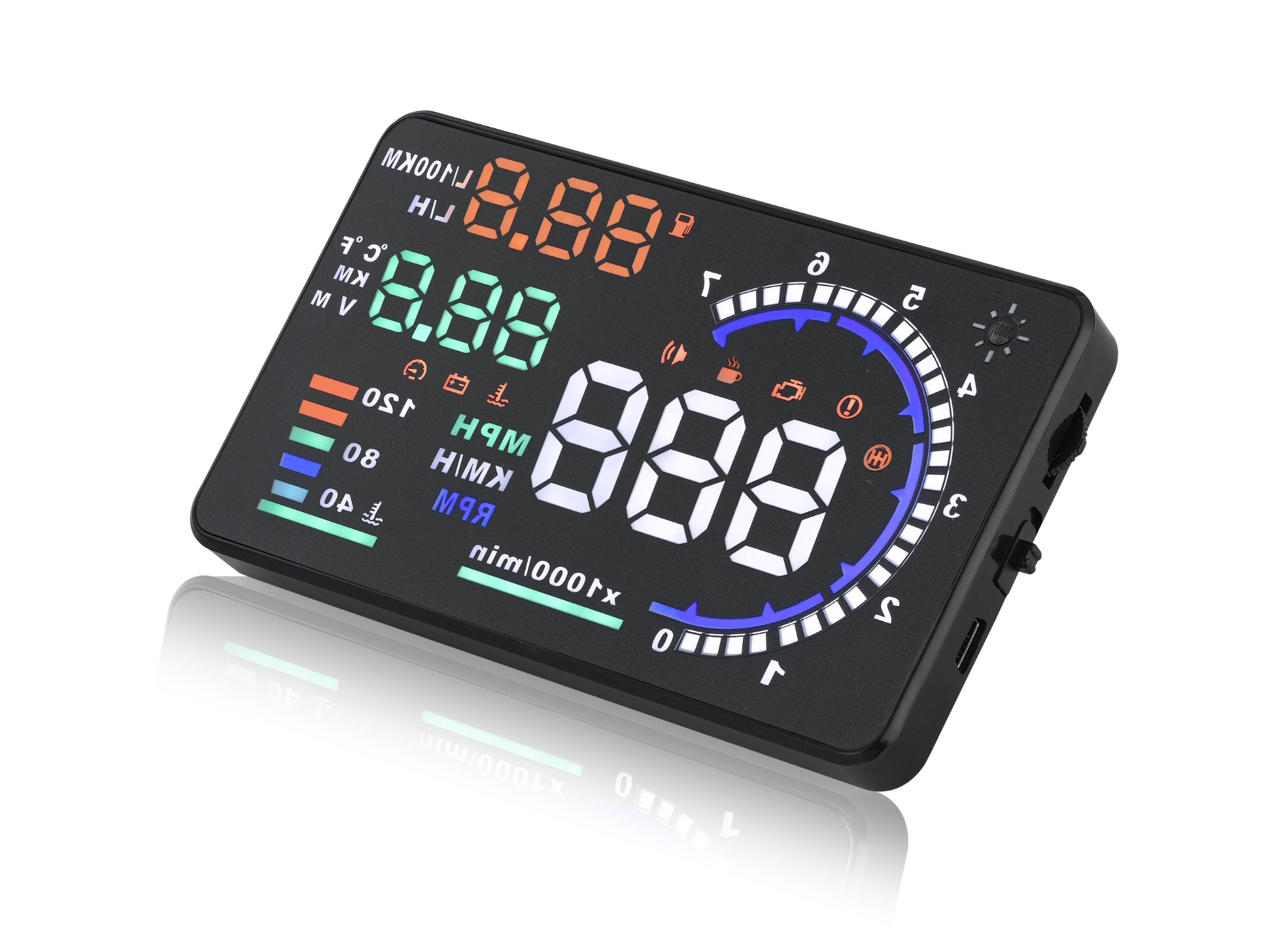

    Functions:

    1. Light sensor:Automatically adjust the brightness according to the environment.

    2. Rotational speed(RPM): the rotational speed of the engine.

    3. Alarm icon panel: From left to right→Shift reminder, over speed alarm, engine fault, fatigued driver reminder, buzzer.

    4. Speed: Driving speed.

    5. Rotational speed units: the units of rotational speed.

    6. Unit mark: KM/H= Kilometers/hour, MPH= Miles/hour, RPM=rotations per minute.

    7. Water temperature:Display the car's tank temperature.

    8. Secondary Alarm icon panel: From left to right→High water temperature temperature alarm, battery voltage alarm, over-speed alarm.

    9. Unit mark: Degrees (Celsius℃or Fahrenheit ℉),  KM = Kilometers,  V = Voltage, M = Miles.

    10. Multi function display: Voltage, Mileage, Water temperature.

    11. Fuel consumption unit :L/100km = Liter/100 kilometers, L/H = Liter/hour.

    12. Fuel consumption datas.

    13. Fuel consumption icon.

    Technical Parameters:

    Environment temperature: - 40℃— +80℃

    Barometric press: 86-106KPa

    Relative humidity: 10%-95%

    Environment voice: <=60dB

    Alarm of sound level: >=30dB(A)

    Work voltage: 9V~16Vdc(12Vdc/400mA)

    Size of product: 12.5*7.5*1.5(cm)

    Weight of product: 110g
