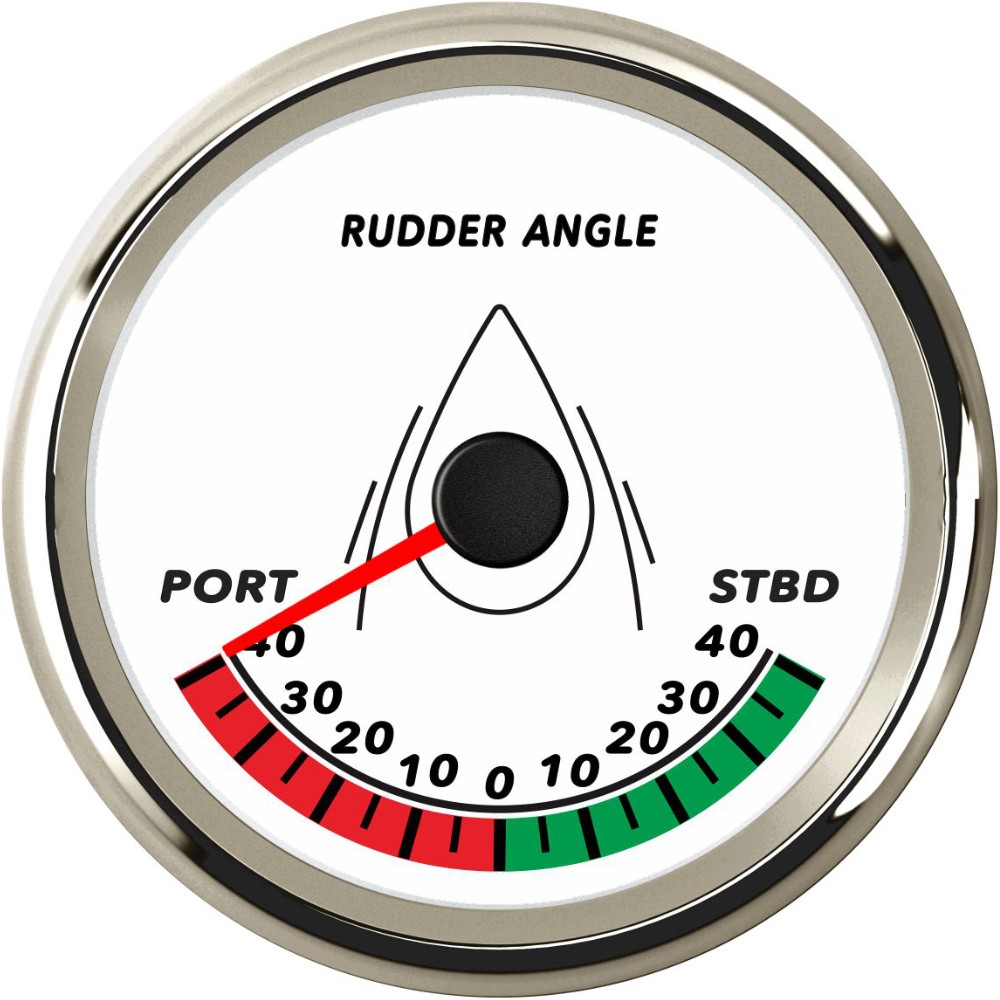

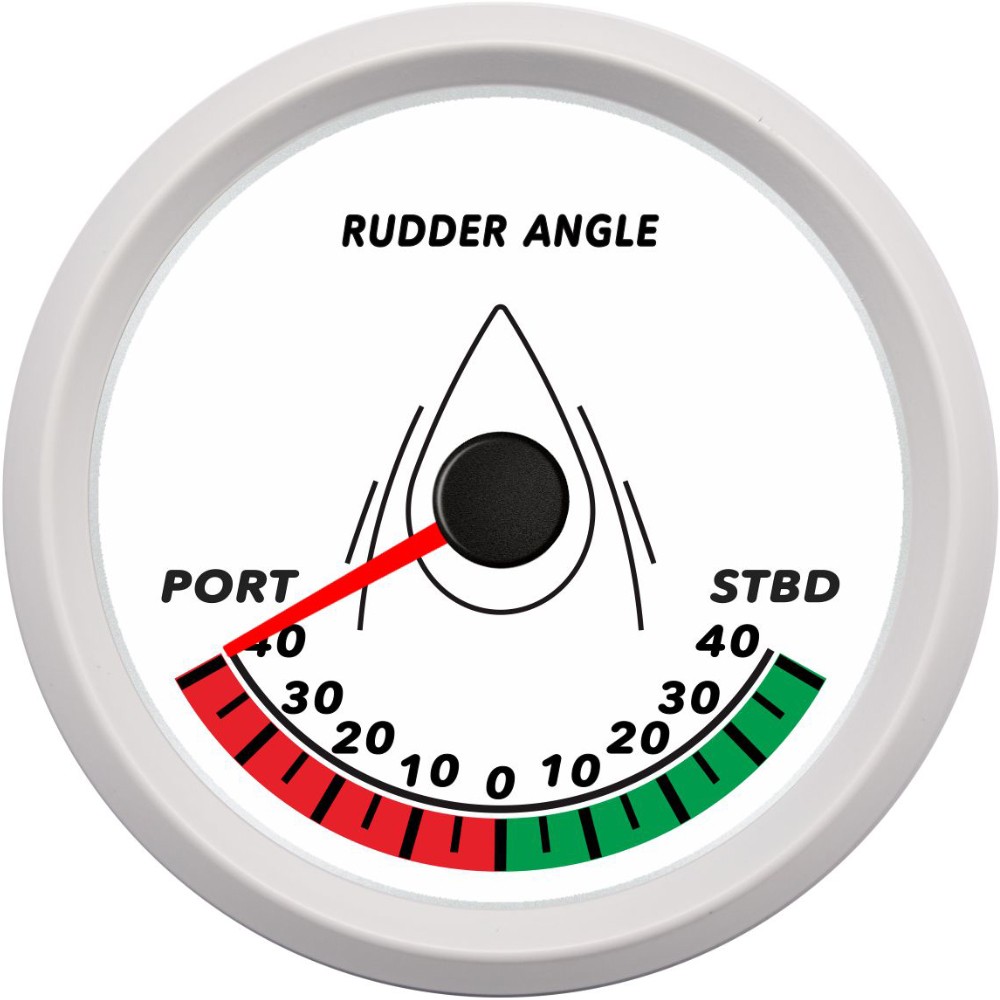

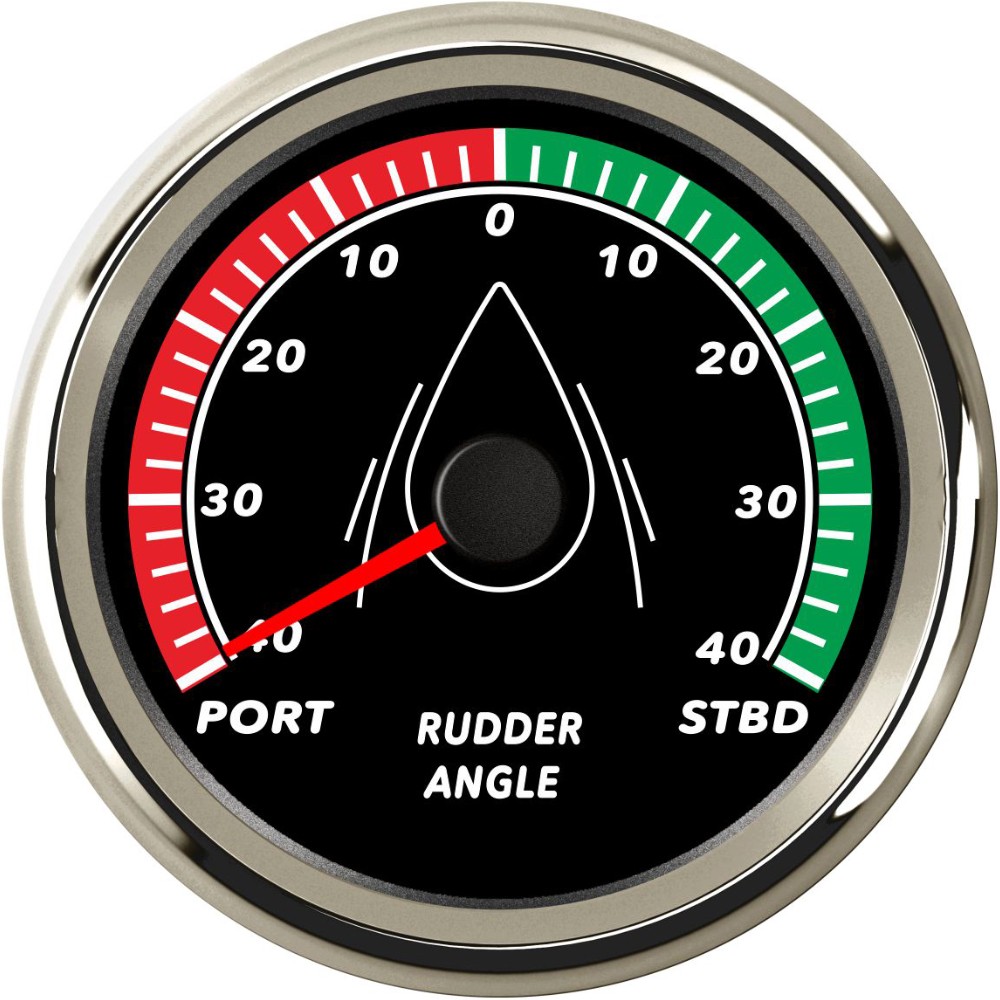

  • ELING ECPW Rudder Angle Gauge 85mm
  • ELING ECPW Rudder Angle Gauge 85mm
  • ELING ECPW Rudder Angle Gauge 85mm
  • ELING ECPW Rudder Angle Gauge 85mm
ELING ECPW Rudder Angle Gauge 85mm ELING ECPW Rudder Angle Gauge 85mm ELING ECPW Rudder Angle Gauge 85mm ELING ECPW Rudder Angle Gauge 85mm

ELING ECPW Rudder Angle Gauge 85mm

  • Product Item:ECPW Rudder Angle Gauge 85mm
  • Fixing dimension: 85mm(3-3/8
  • Working Voltage:9-32V
  • Backlight:Red
  • Indicating Range: 40PORT-40STBD
  • rudder angle meter  , rudder angle gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of rudder sensors, and display the direction of the underway marine.


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 85mm(3-3/8")


    -Indicating Range: 40PORT-40STBD


    -Signal: 0-190ohm
    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Rudder Angle Indicator


    1x Rudder Angle Sensor


    1x Multi-plug socket


    1x Installation Instruction
