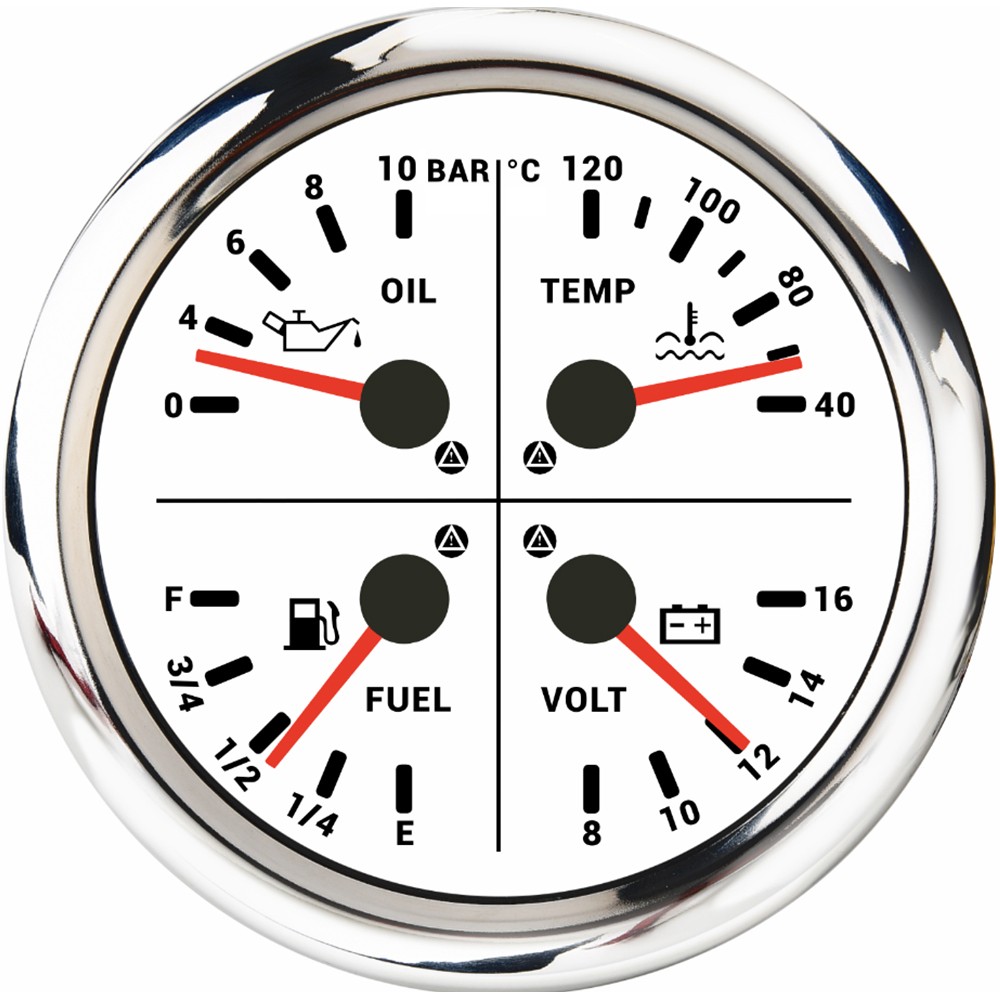

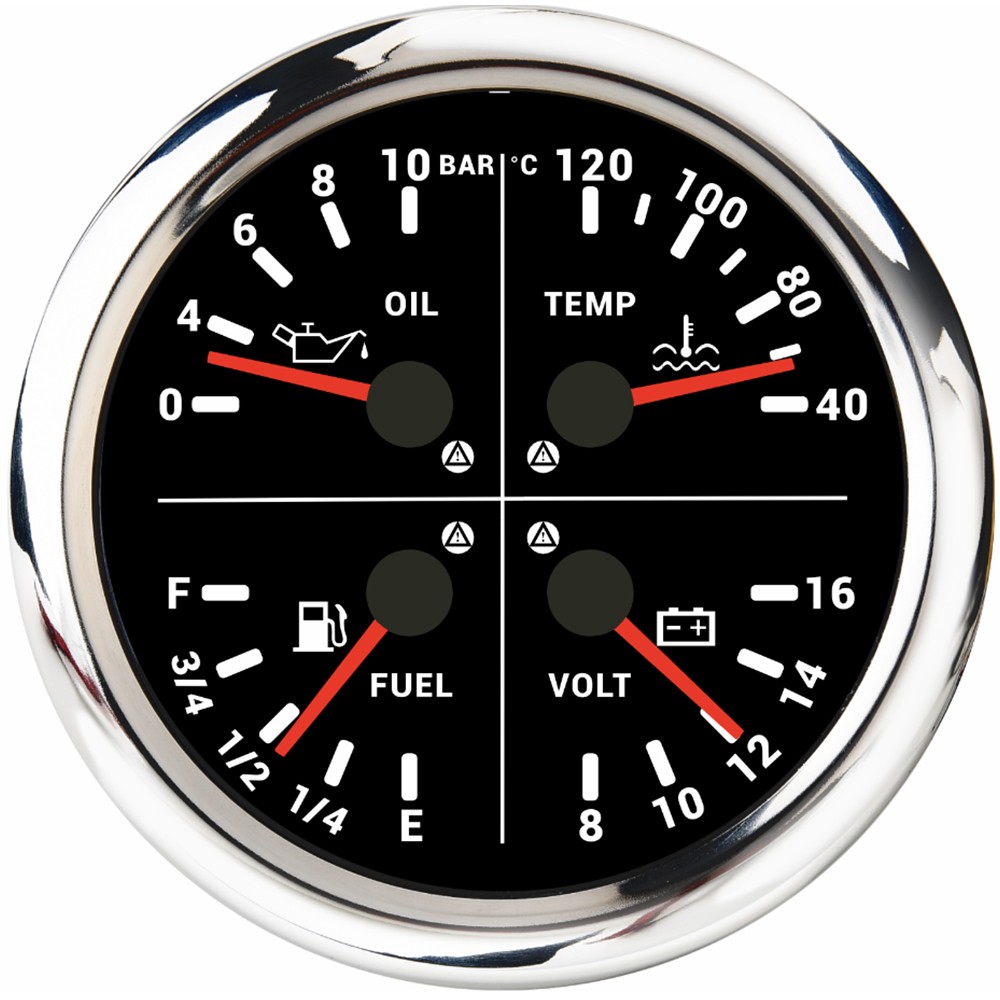

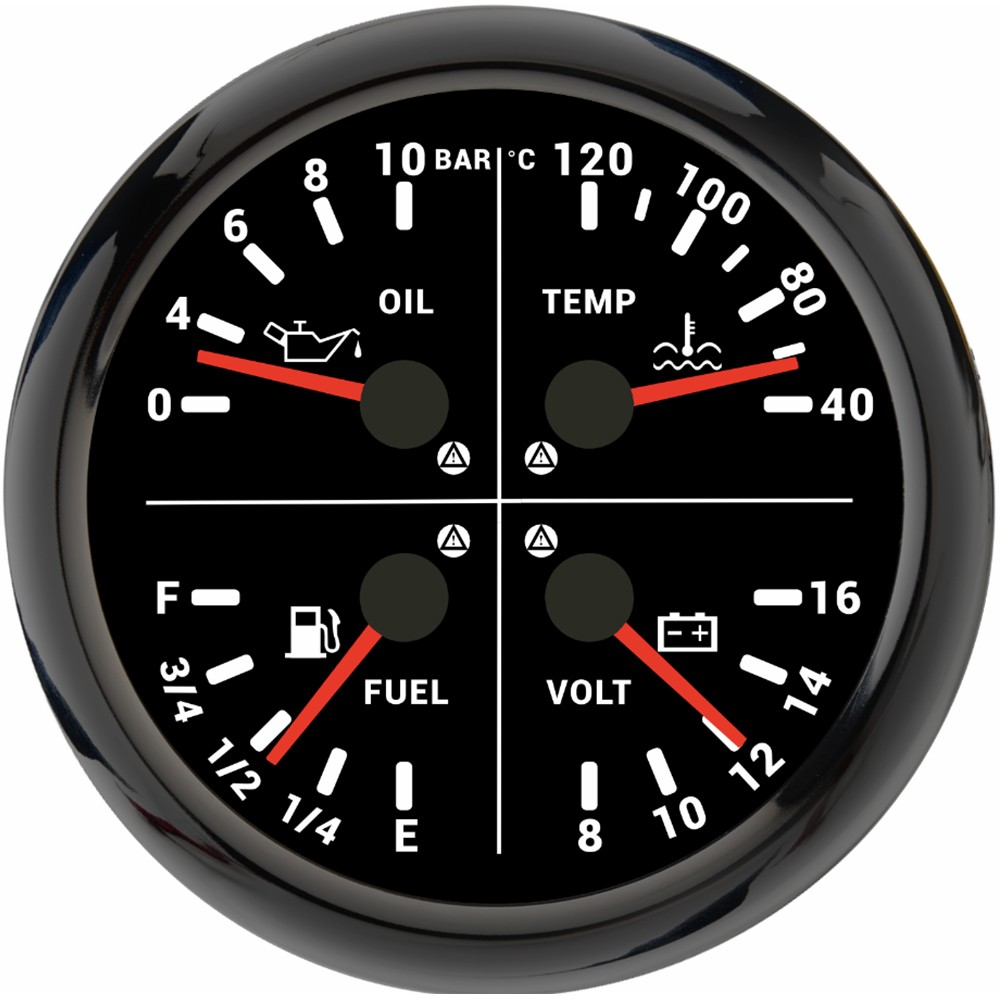

  5. ELING 110mm Multifunction Gauge 4in1
  • ELING 110mm Multifunction Gauge 4in1
  • ELING 110mm Multifunction Gauge 4in1
  • ELING 110mm Multifunction Gauge 4in1
ELING 110mm Multifunction Gauge 4in1 ELING 110mm Multifunction Gauge 4in1 ELING 110mm Multifunction Gauge 4in1

ELING 110mm Multifunction Gauge 4in1

  • Product Item:CX-4C1B
  • Fixing dimension: 110mm
  • Protection rank : IP67
  • Backlight :Red
  • Voltmeter: 8-16V
  • Multifunction Gauge  , 4in1 Gauge  , Fuel Level Meter  , Oil Pressure Gauge
    Inquiry Send Email PDF

    Description

    Specification:


    -Be suitable for all kinds of vehicles and boats,ships


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -Operating temperature: -20°C ~+70°C


    -Protection rank : IP67.


    Technical data:


    -Name :110mm 4 In 1 Multifunction Gauge


    -Fixing dimension: 110mm


    -Backlight :Red


    -Oil pressure: 0-10Bar


    -Oil pressure sensor:10-184ohm


    -Water temperature: 40-120℃


    -Water temperature sensor:301-22ohm


    -Voltmeter: 8-16V


    -Fuel level: E-1/4-1/2-3/4-F


    -Fuel level Signal:0-190ohm/240-33ohm


    Alarm message


    -Fuel<1/8 alarm


    -Oil pressure<0.8Bar alarm


    -Water temp. >95℃ alarm


    -Voltage <11.5V alarm


    Package Included:


    1 x 4 in 1 Multifunctional Gauge


    2 x Multi-plug socket


    1 x Installation Instruction
