  5. ELING Four in One Gauge Meter
  • ELING Four in One Gauge Meter
  • ELING Four in One Gauge Meter
ELING Four in One Gauge Meter ELING Four in One Gauge Meter

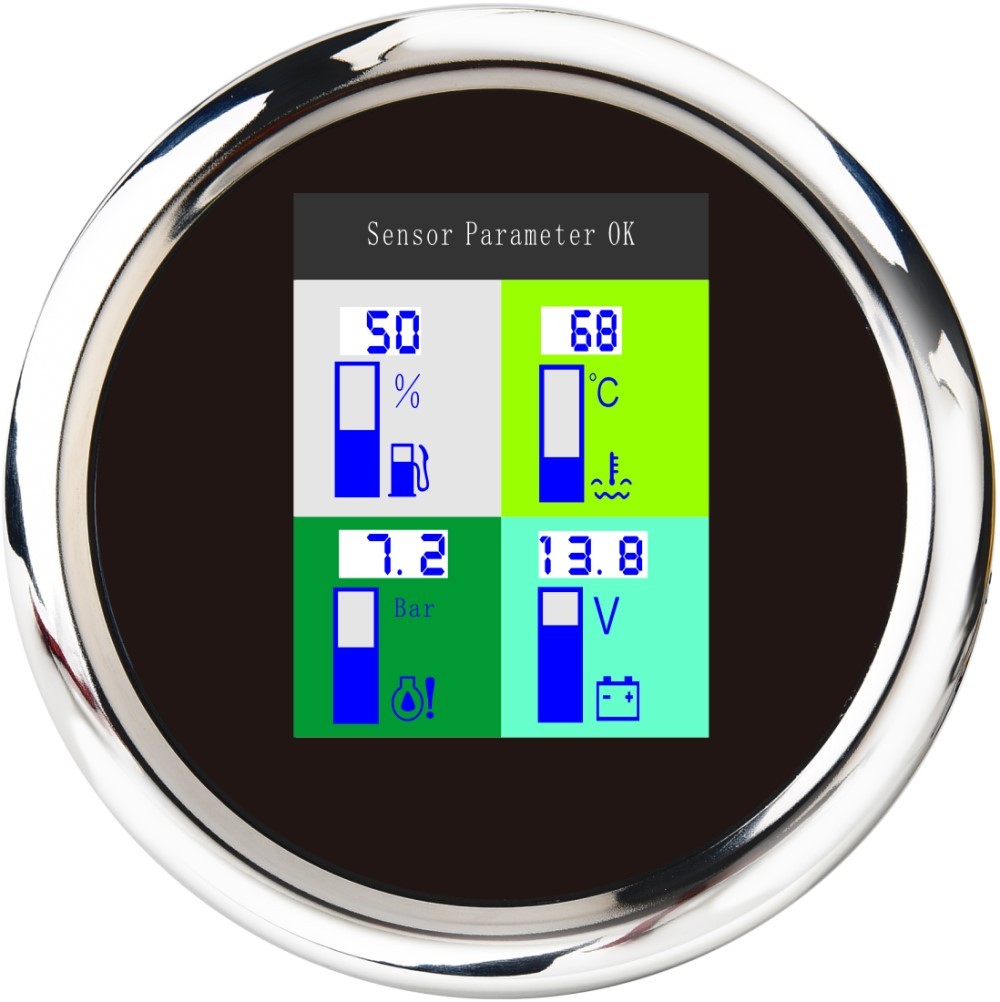

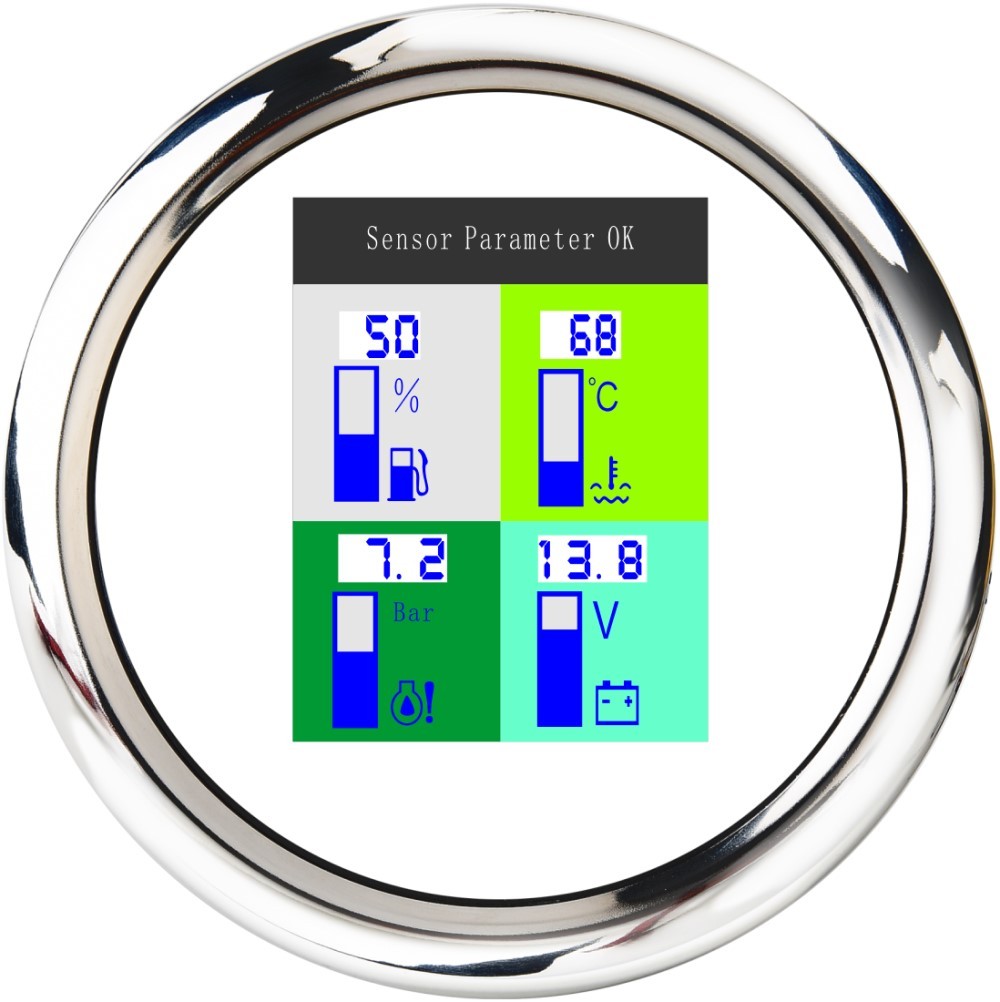

ELING Four in One Gauge Meter

  • Product Item:ELING Four in One Meter
  • Installation Dimension:85mm(3-3/8'')
  • Working Voltage:9-32V
  • Backlight:TFT Screen
  • Indication Range:fuel level,water temp,oil pressure,volt
  • fuel level gauge  , water temp gauge  , oil pressure gauge  , voltmeter
    Inquiry Send Email PDF

    Description

    Features:

    -Oil Pressure: 0-10 bar/0-145psi   (Pressure sensor: 10-184ohm)

    (After power on, press the back button to adjust unit, if the oil pressure unit is "psi", the temperature unit will be "℉".)

    -Water Temperature: 0-120℃/0-250℉   (signal : 1600-22ohm)

    (The water temperature is displayed by default. If you need oil temperature, please contact us to customize.)

    -Voltmeter: 9-32V
    -Fuel Level: 0-100% (Press the back button to adjust the level signal: 0-190Ω/240-33Ω available. )

    -Sensor Fault Alarm (Chinese and English can be switched)

    -Degree of Protection: IP67

    -Backlight: TFT Screen

    * Sensor are not provided with this gauge.

    * Plz. order the sensor separately if you need it.


    Dimensions:

    -85mm diameter (3-3/8")

    -55mm Depth (2-3/4")


    Package Included:

    1*4 in 1 Gauge

    1*multi-plug socket

    1*Instruction
