  5. ELING Motorcycle Gauge MLS003
  • ELING Motorcycle Gauge MLS003
  • ELING Motorcycle Gauge MLS003
  • ELING Motorcycle Gauge MLS003
  • ELING Motorcycle Gauge MLS003
ELING Motorcycle Gauge MLS003 ELING Motorcycle Gauge MLS003 ELING Motorcycle Gauge MLS003 ELING Motorcycle Gauge MLS003

ELING Motorcycle Gauge MLS003

  • Product Item:Motorcycle Gauge MLS003
  • GPS Speedometer: 0-299km/h; MPH
  • Tachometer: 0-19000RPM
  • Working voltage: DC 12V
  • Backlight color: blue, purple, red, yellow-green, green, light blue, white
  • Motorcycle Gauge  , Motorcycle speedometer  , Motorcycle tachometer
    Inquiry Send Email PDF

    Description

    Features:


    1. Shift between mph and km/h


    2. Trip distance clears


    3. Digital display speed, speed range 0-299km/h or mph


    4. Digital display trip distance, distance range 0-999.9km or miles


    5. Digital display odo distance, distance range 0-99999.9km or miles


    6. LED display fuel level, low fuel warning and blinkering


    7. Needle display rpm, range 0-19000


    8. LED shows left and right blinker, N, high-beam, engine, battery etc.


    9. Time


    10. Adjustable wheel perimeter


    11. Adjustable pulse


    12. Default backlight color is blue, when you set the color changing, The backlight color will show blue, purple, red, yellow-green, green, light blue, white in order.


    Specification:


    Size: 4.2 cm X 10cm X14cm (Height x width x length)


    Working temperature: -30-85℃


    Working voltage: DC 12V


    Function:


    1. Universal Speedometer fit for all motorcycles with DC 12V, adjustable for 8-22inch wheel


    2. ALL-IN-ONE Function: Motorcycle Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, N Gear, Battery, Water Temperature Indicator.


    3. Digital Speedometer Fits for all style motorcycle ,1 cylinder,2 cylinder and 4 cylinder (4 stroke motorcycle disc-brake front tire)


    4. Speedometer Gauge Shift Speed display in Kilometers or Miles,7 color screen backlight; For Single cylinder and 2 cylinder motors, RPM cable connects trigger signal line positive pole. For 4 cylinder motors, RPM cable connects ignition coil input Line.


    5. Particular Attention: Motorcycle Tachometer RPM does not compatible with Electric fuel Injection (EFI) engine, if your motorbike is Electric fuel Injection (EFI) engine, RPM function would not work properly, other functions run well

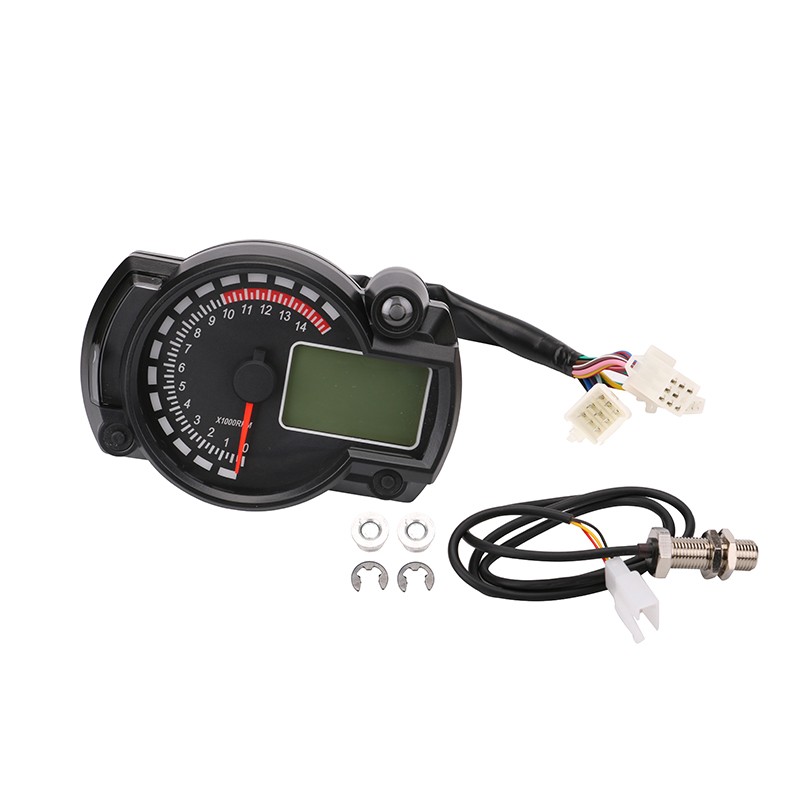

    Package includes:


    1pc gauge panel


    1pc English manual


    1pc speed sensor (optional)


    1pc gasket (optional)
