  • KUS SV 110mm Multi-function Gauge
  • KUS SV 110mm Multi-function Gauge

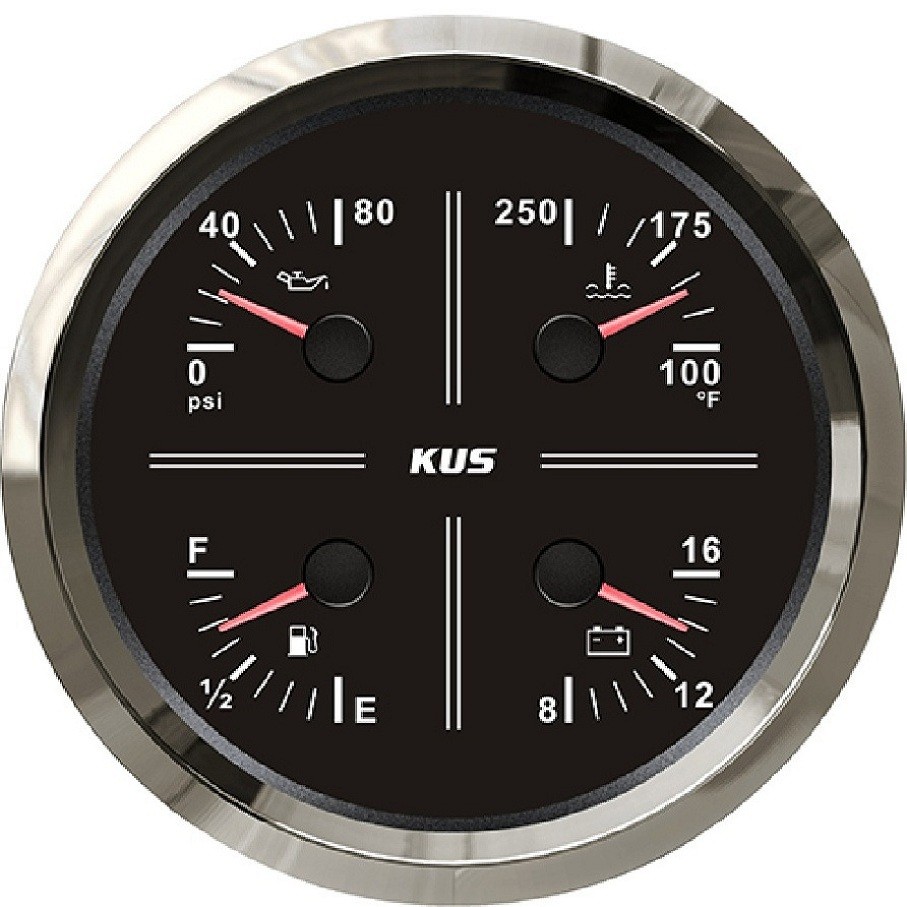

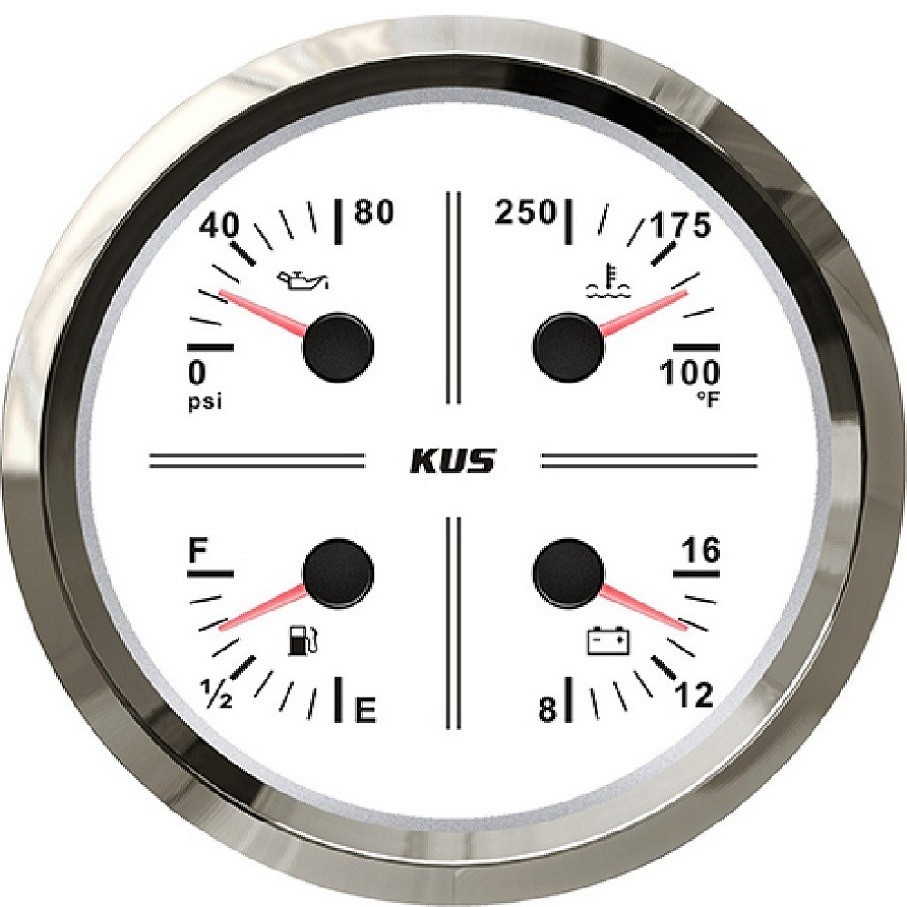

KUS SV 110mm Multi-function Gauge KUS SV 110mm Multi-function Gauge

KUS SV 110mm Multi-function Gauge

  • Product Item:SV 110mm Multi-function Gauge
  • Fuel Level Gauge
  • Voltmeter
  • Water Temp Meter
  • Oil Pressure Gauge
  • Fuel Level Gauge  , Voltmeter  , Water Temp Meter  , Oil Pressure Gauge
    Inquiry Send Email PDF

    Description

    Features:


    -The world's newest 4 in 1 multifunction gauge


    -Convenient Installation by multi-plug socket connecting way


    -The gauge has the advantages of high precision, quick location confirmation and short startup time


    -Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles


    -Excellent anti-fogging function


    -316 Stainless steel bezel with curved glass


    -Convenient Installation by multi-plug socket connecting way


    -Accessories: matched with connectors, Installation Instruction


    Specifications:


    -Fixing dimension: 110mm


    -Indicating Range: Oil press. meter: 0-80psi


    Water temp. meter: 100-250F


    Fuel level meter: empty-full


    Voltmeter: 8-16V


    Working Voltage: 12V


    -Input Signal:


    240-33ohm for 0-80PSI oil pressure meter


    240-33ohm for fuel level meter


    8-16V voltage meter


    Input Signal 310-20ohm for water temperature meter


    -Choice between red and yellow backlight


    -Protection grade is IP67, the whole body is completely waterproof


    Package Includes:


    1 x 4 in 1 Multi-function Gauge


    1 x Cable


    1 x Installation Instruction
