  • ELING Four in One Gauge Meter
  • ELING Four in One Gauge Meter

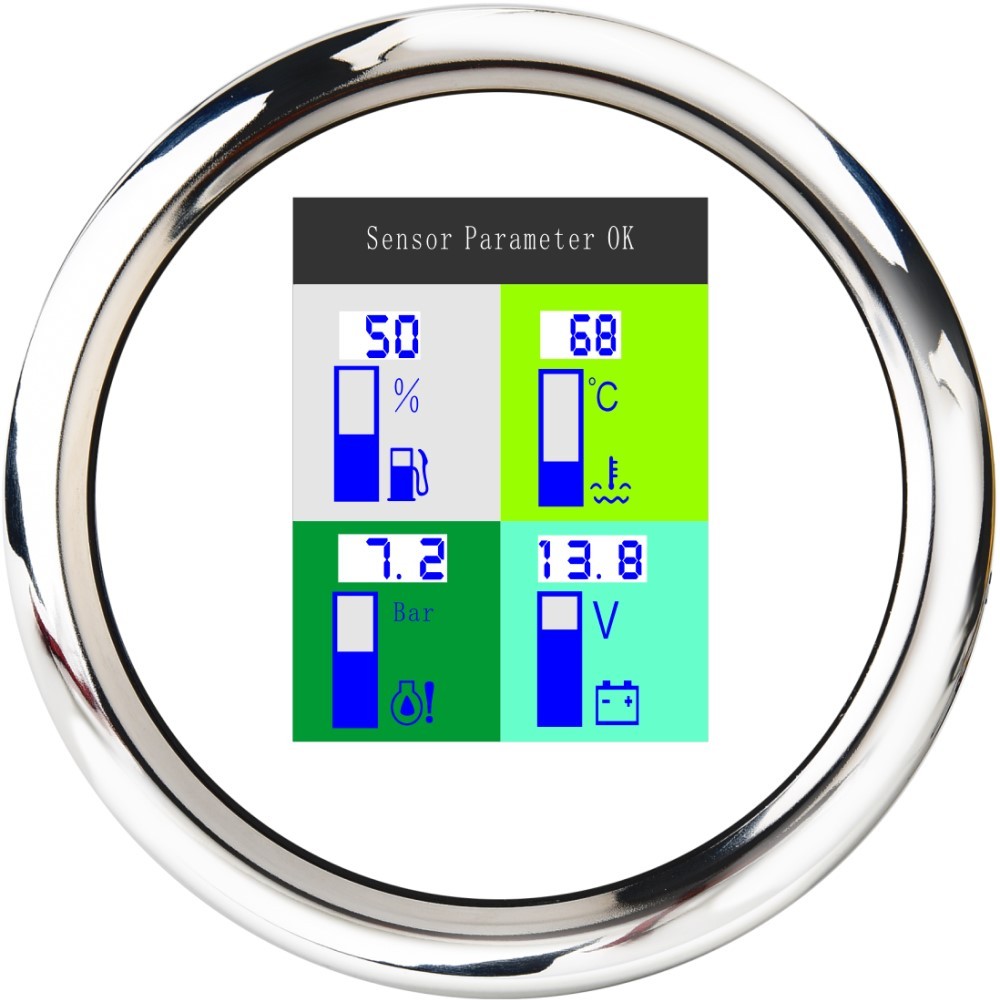

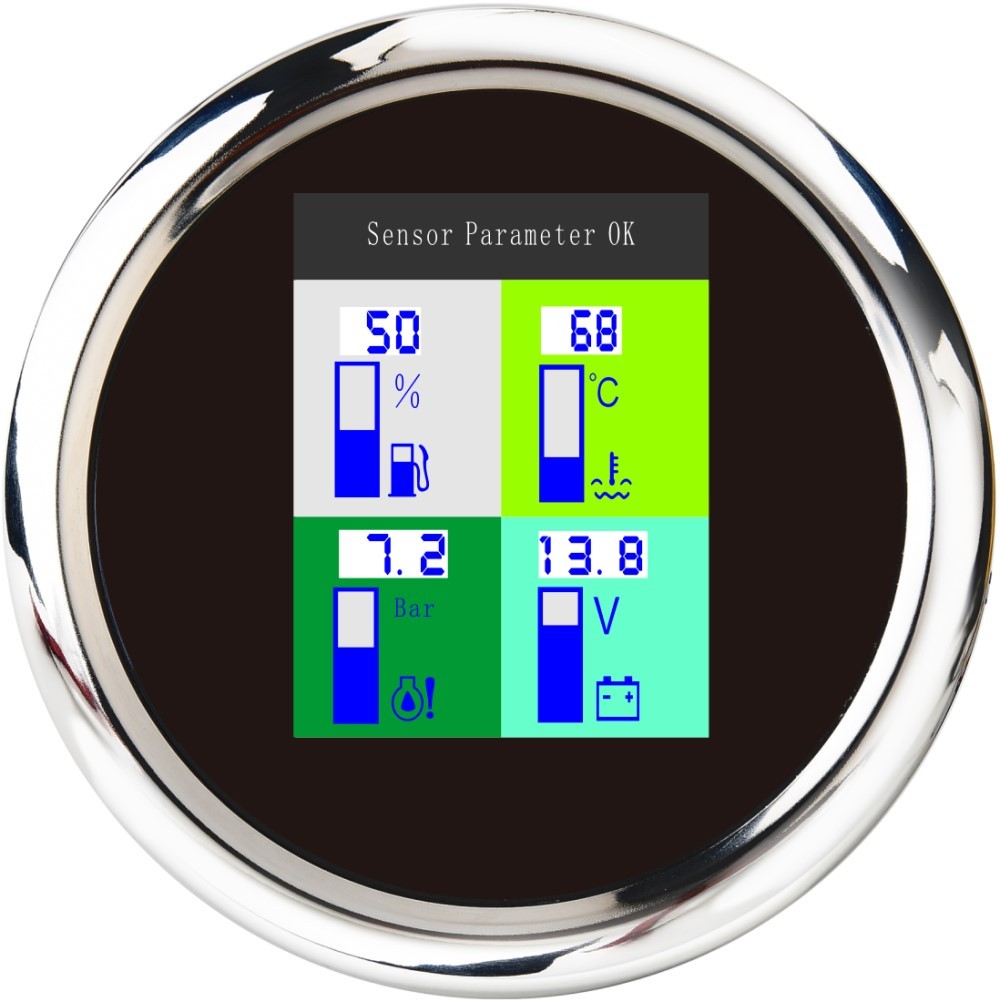

ELING Four in One Gauge Meter ELING Four in One Gauge Meter

ELING Four in One Gauge Meter

  • Product Item:ELING Four in One Gauge
  • Installation Dimension:85mm(3-3/8'')
  • Working Voltage:9-32V
  • Backlight:TFT Screen
  • Indication Range:fuel level,water temp,oil pressure,volt
  • fuel level gauge  , water temp  , oil pressure  , voltmeter
    Inquiry Send Email PDF

    Description

    Features:

    - Oil Pressure: 0-10 bar/0-145psi   (Pressure sensor: 10-184ohm)

    (After power on, press the back button to adjust unit, if the oil pressure unit is "psi", the temperature unit will be "℉".)

    - Water Temperature: 0-120℃/0-250℉   (signal : 1600-22ohm)

    (The water temperature is displayed by default. If you need oil temperature, please contact us to customize.)

    - Voltmeter: 9-32V
    - Fuel Level: 0-100% (Press the back button to adjust the level signal: 0-190Ω/240-33Ω available. )

    - Sensor Fault Alarm (Chinese and English can be switched)

    - Degree of Protection: IP67

    - Backlight: TFT Screen

    * Sensor are not provided with this gauge.

    * Plz. order the sensor separately if you need it.

    Dimensions:
    - 85mm diameter (3-3/8")
    - 55mm Depth (2-3/4")

    Package Included:

    - 1*4 in 1 Gauge

    - 1*multi-plug socket

    - 1*Instruction
