  • ELING ECPW Tachometer Gauge
  • ELING ECPW Tachometer Gauge
  • ELING ECPW Tachometer Gauge
  • ELING ECPW Tachometer Gauge
ELING ECPW Tachometer Gauge ELING ECPW Tachometer Gauge ELING ECPW Tachometer Gauge ELING ECPW Tachometer Gauge

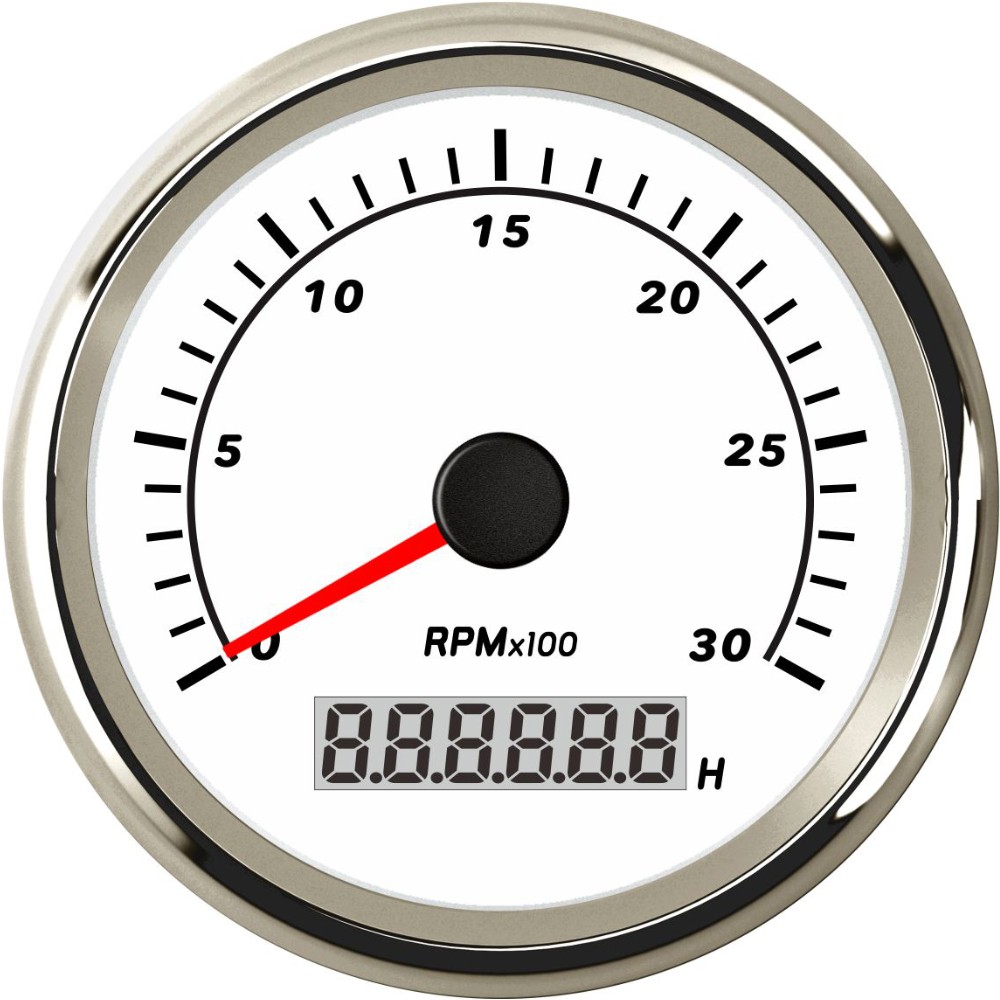

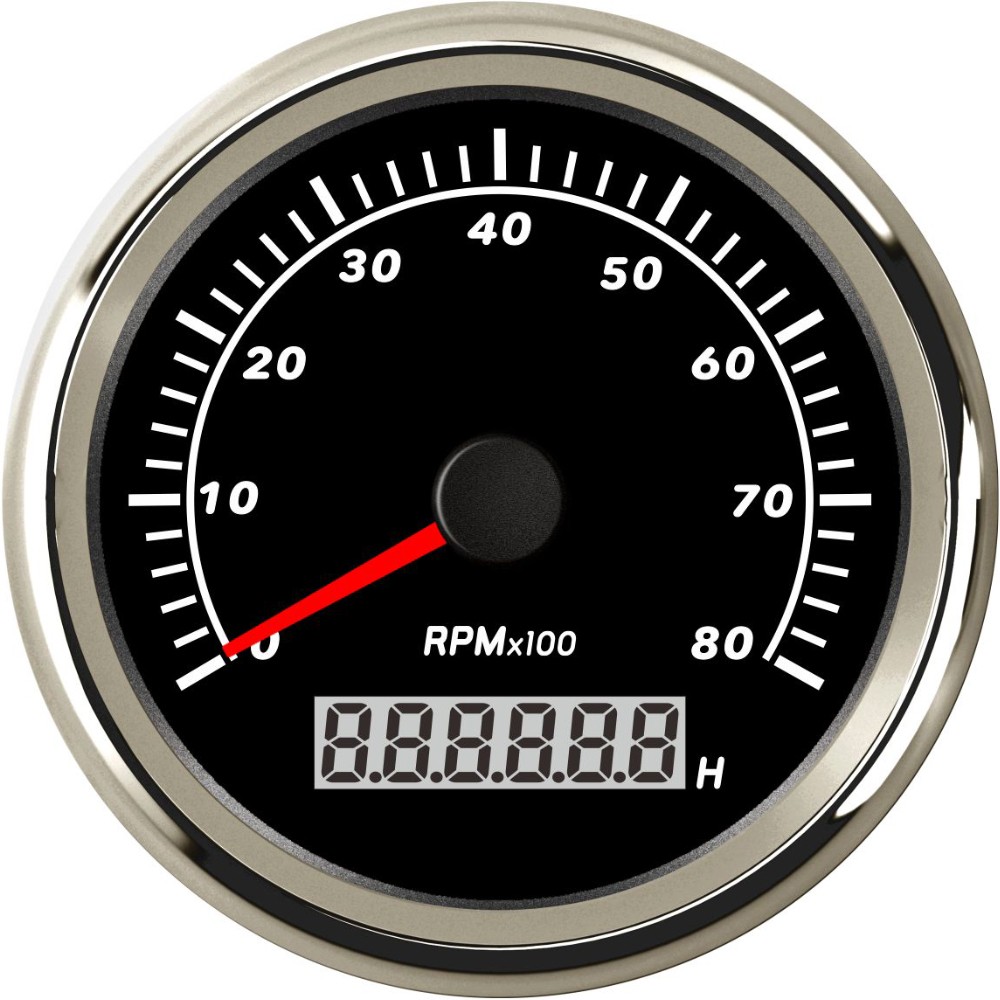

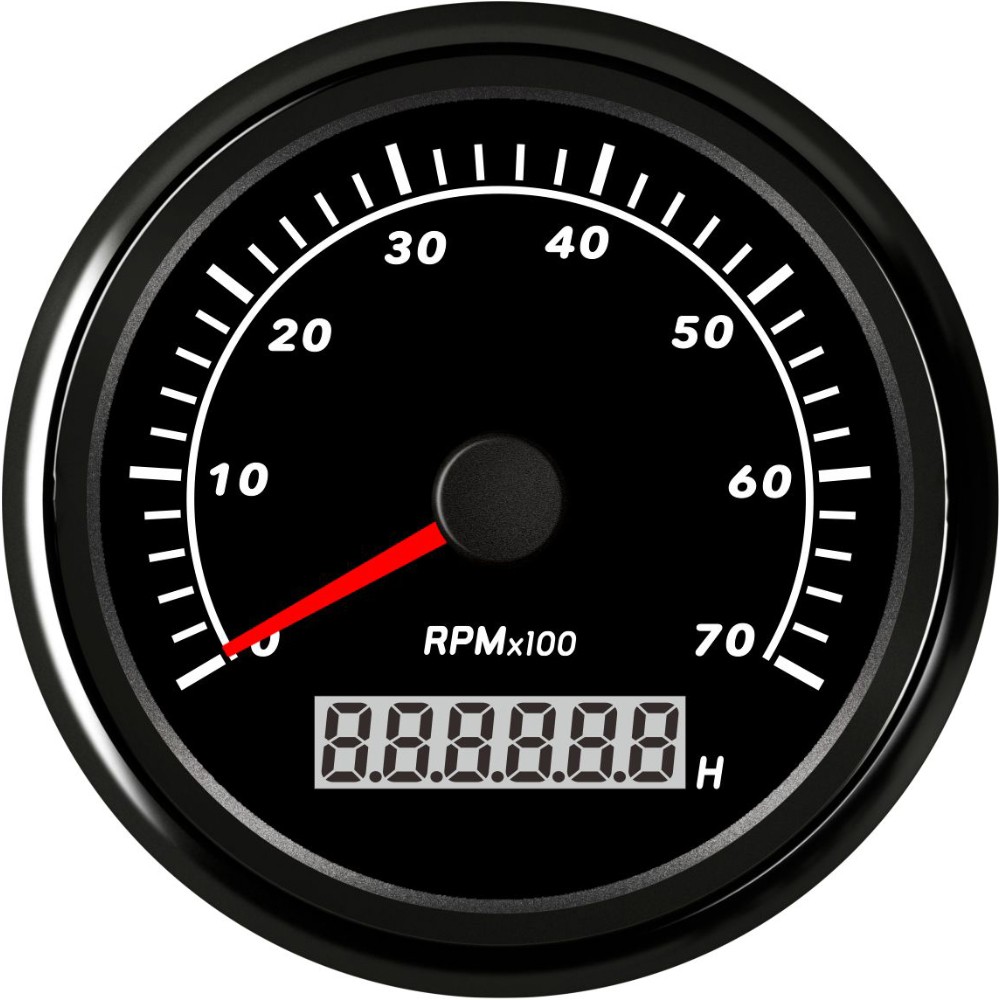

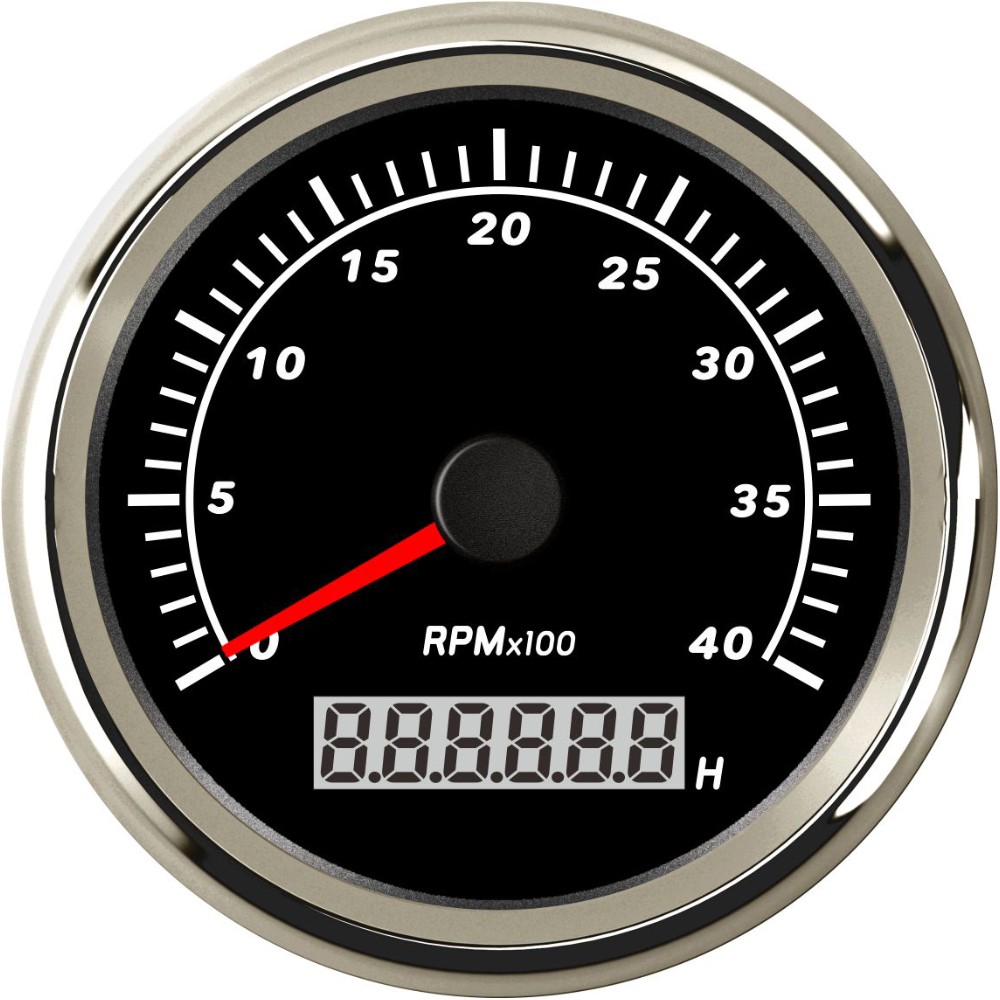

ELING ECPW Tachometer Gauge

  • Product Item:ECPW Tachometer Gauge
  • Fixing dimension: 85mm(3-3/8 inches)
  • Working Voltage:9-32V
  • Backlight:Red
  • Indicating Range: 0-3000RPM 0-4000RPM 0-6000RPM 0-7000RPM 8000RPM
  • tachometer  , rpm tachometer  , rpm gauge  , tacho gauge
    Inquiry Send Email

    Description

    Product Features:


    -Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine.


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 85mm(3-3/8 inches)


    -Indicating Range: 0-3000RPM ,0-4000RPM ,0-6000RPM ,0-7000RPM ,8000RPM


    -Speed Ratio: 1-300 adjustable


    -Suitable for diesel engine and gasoline engine


    -There is a button in the back of tachometer, you can press it to adjust speed ratio.


    When engine is in idle state, tachometer shows 600-800RPM, it means speed ratio is correct.


    If not, you can turn down or up speed ratio to see the difference of tachometer needle.


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Functions: current tacho/RPM and hour, hourmeter cannot be reset.


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Tachometer


    1x Multi-plug socket


    1x Installation Instruction
