  5. ELING ECH Oil Temperature Gauge

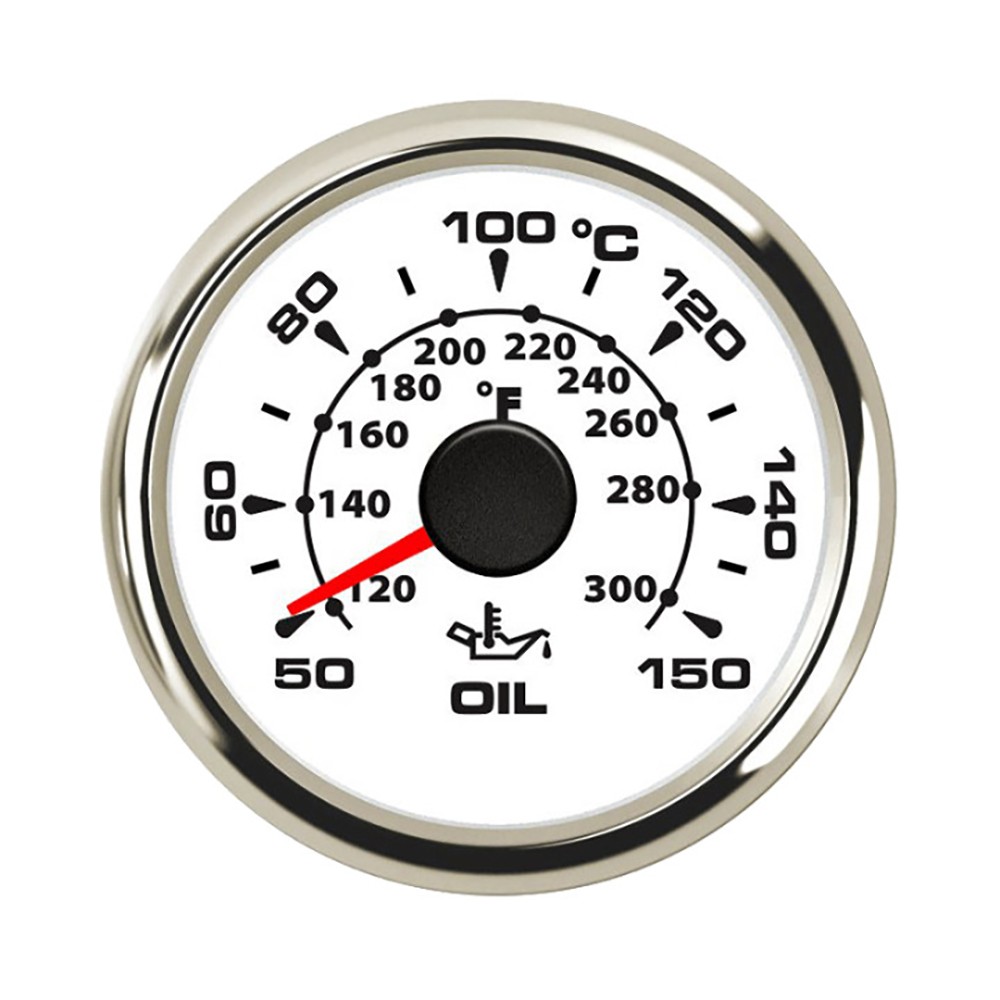

  • ELING ECH Oil Temperature Gauge

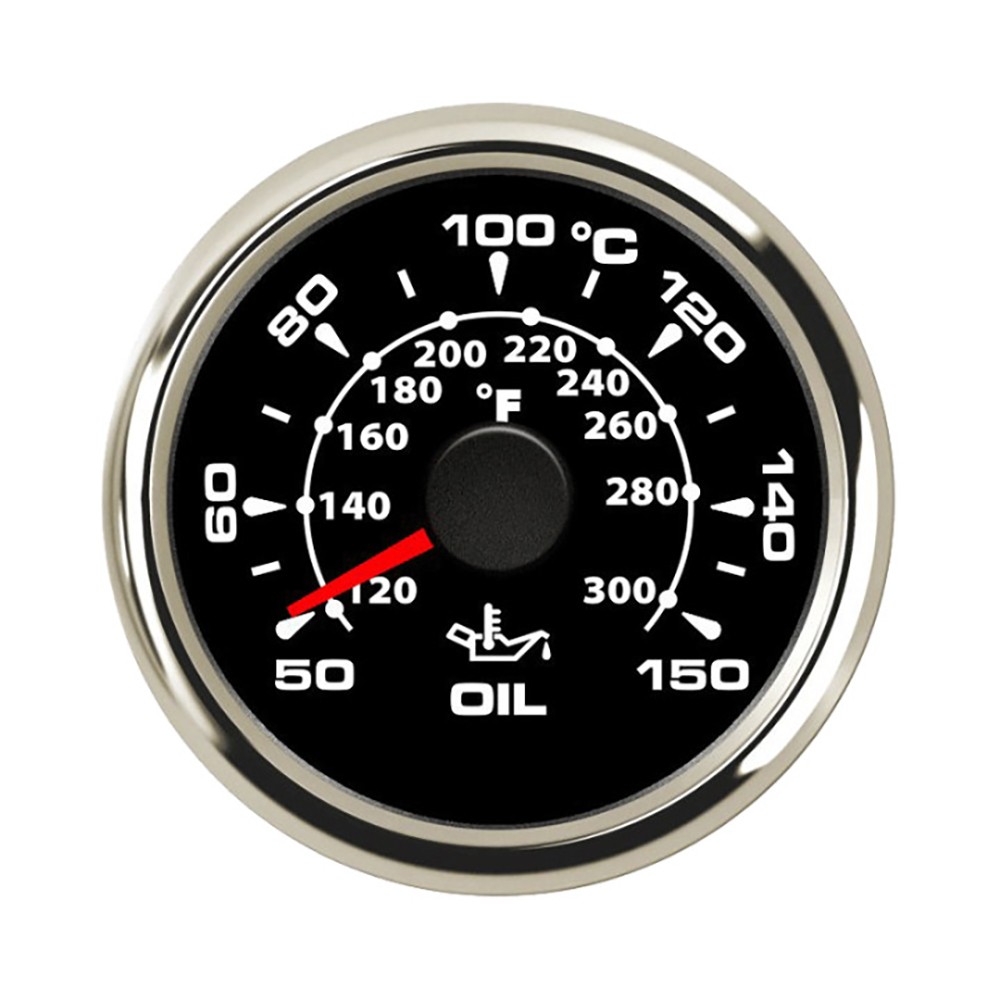

  • ELING ECH Oil Temperature Gauge

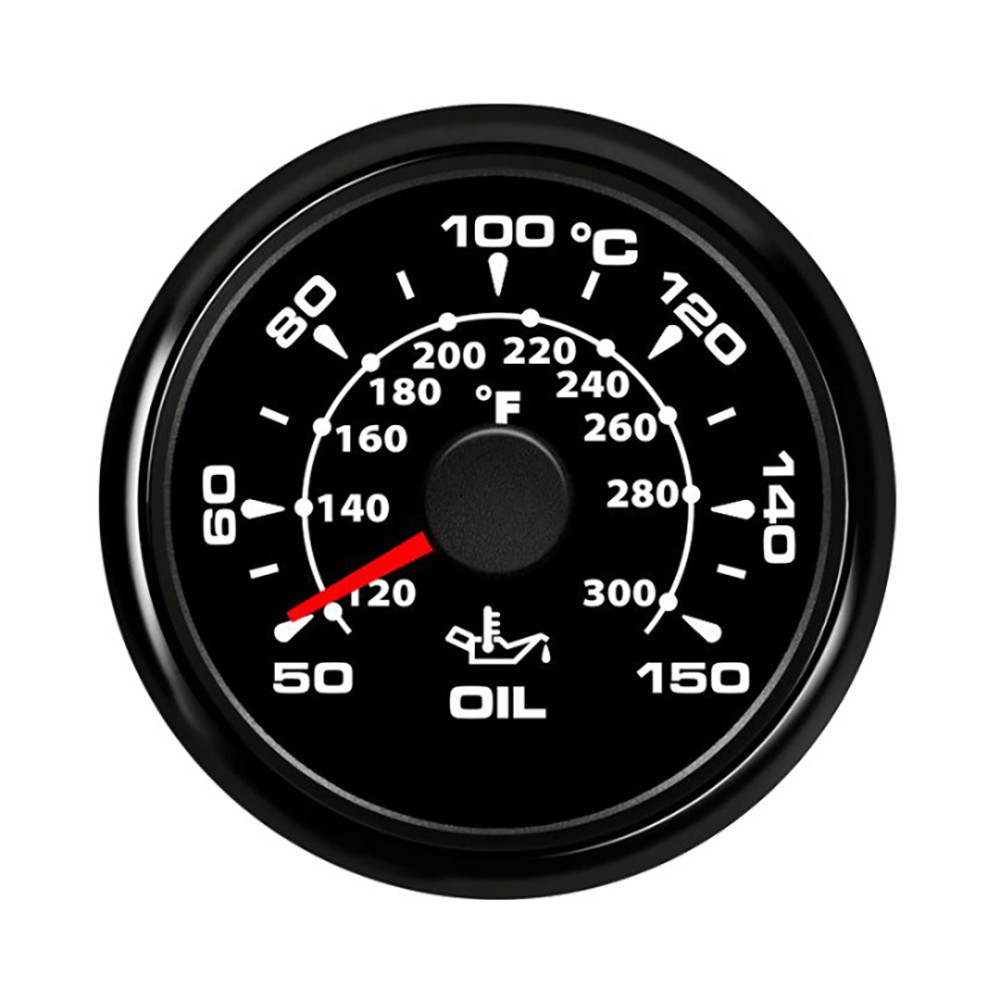

  • ELING ECH Oil Temperature Gauge
ELING ECH Oil Temperature Gauge ELING ECH Oil Temperature Gauge ELING ECH Oil Temperature Gauge

ELING ECH Oil Temperature Gauge

  • Product Item:ECH Oil Temperature Gauge
  • Fixing dimension:52mm(2
  • Working Voltage:9-32V(12V/24V)
  • Backlight:Red Green Blue White Yellow Kelly Orange Purple or automatic
  • Indicating Range: 50-150℃
  • oil temp gauge  , oil temp meter  , oil temp  , temperature meter
    Inquiry Send Email PDF

    Description

    Key Features:


    -Be suitable for all kinds of oil temperature sensors sensors, and display the temperature of the oil tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 50-150℃


    -Water Temp Gauge Signal: 287.4-22.4ohm



    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 8 colors ,Red Green Blue White Yellow Kelly Orange Purple or automatic


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Temp Gauge


    1x Cable


    1x Installation Instruction
