  5. ELING ECP 52mm 3 in 1 Voltmeter Oil Pres

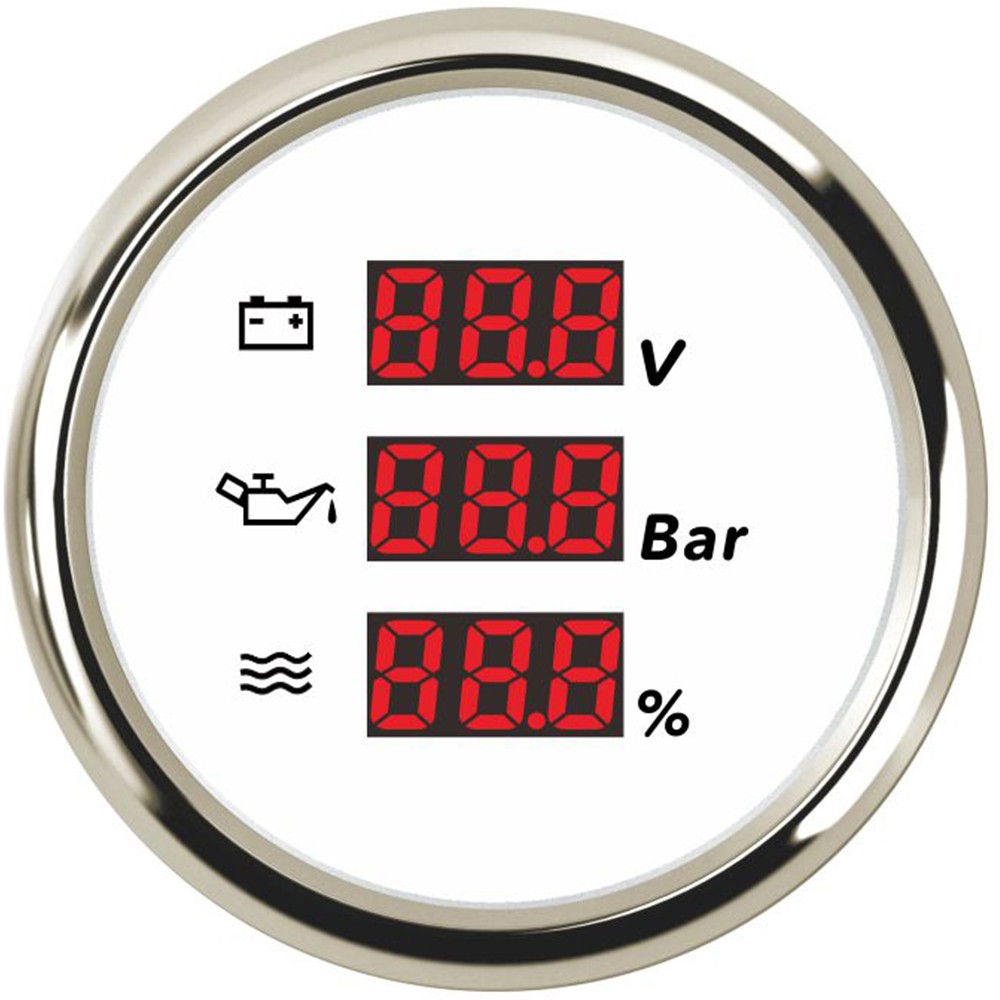

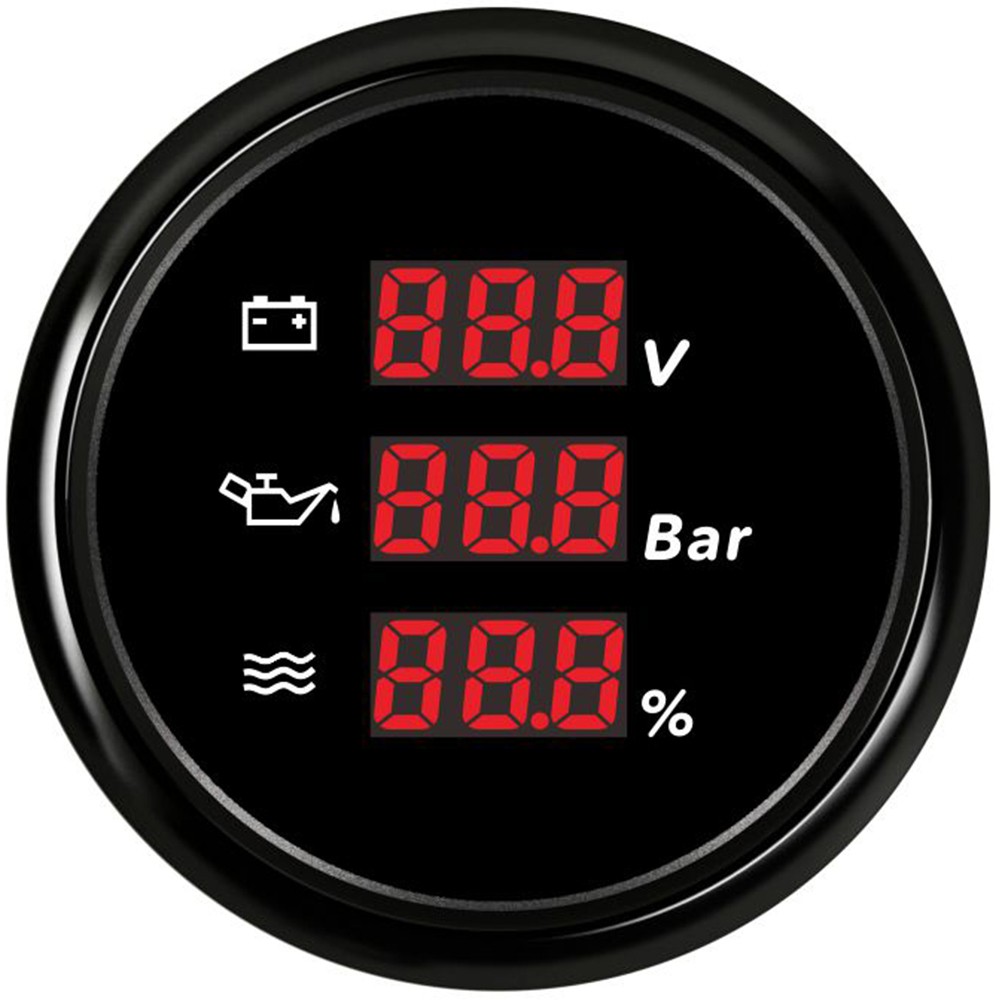

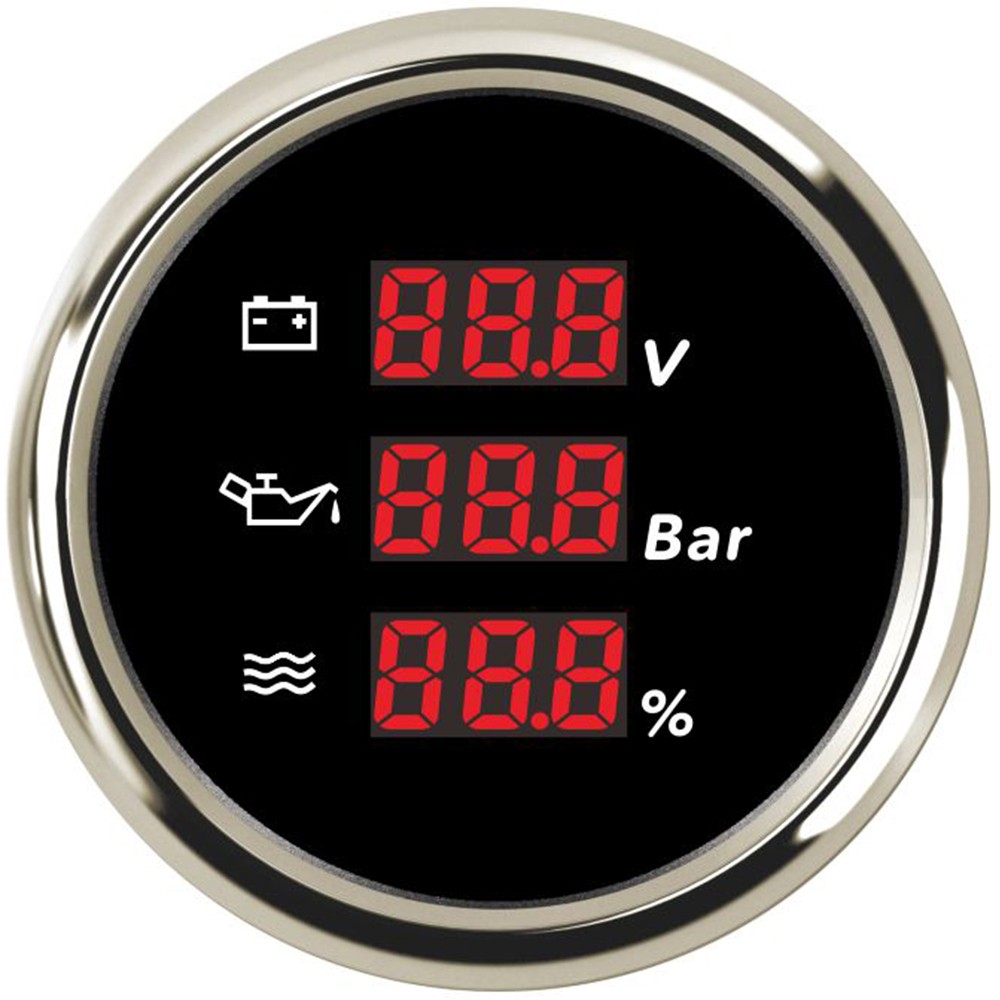

  • ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge
  • ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge
  • ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge
ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge

ELING ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level Gauge

  • Product Item:ECP 52mm 3 in 1 Voltmeter Oil Pressure Water Level
  • Fixing dimension: 52mm (2")
  • Working Voltage: 9-32V(12V/24V)
  • 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .
  • IP67 waterproof and dustproof grade
  • 52mm 3 in 1 Gauge  , Voltmeter  , Oil Pressure Meter  , Water Level Gauge
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of car,truck,vessels


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm (2")


    -Indicating Range:


    Voltmeter 9-32V DC


    Oil Pressure 0-5.0Bar/0-10.0Bar(default)/0-25.0Bar


    Water Level 0-100%;


    -Signal:


    Oil Pressure Signal 10-184ohm;


    Water Level Signal Adjustable 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm;


    -Backlight: 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .


    -Working Voltage: 9-32V(12V/24V)


    -Operation mode: LCD display, stepper motor


    Package include:


    1x 3in1 Gauge


    1x Multi-Plug Socket


    1x Installation Instruction
