  5. ELING 52mm Digital Oil Temperature Meter
  • ELING 52mm Digital Oil Temperature Meter
  • ELING 52mm Digital Oil Temperature Meter
  • ELING 52mm Digital Oil Temperature Meter
  • ELING 52mm Digital Oil Temperature Meter
ELING 52mm Digital Oil Temperature Meter ELING 52mm Digital Oil Temperature Meter ELING 52mm Digital Oil Temperature Meter ELING 52mm Digital Oil Temperature Meter

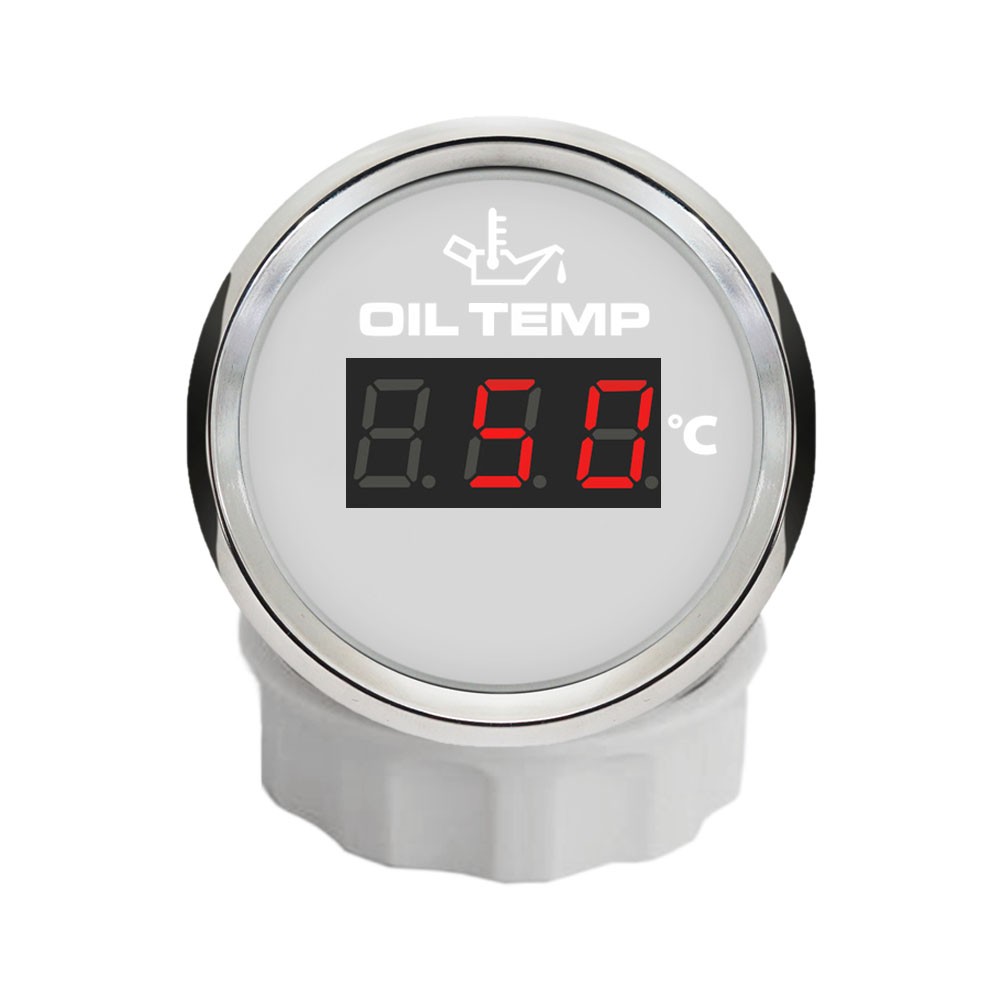

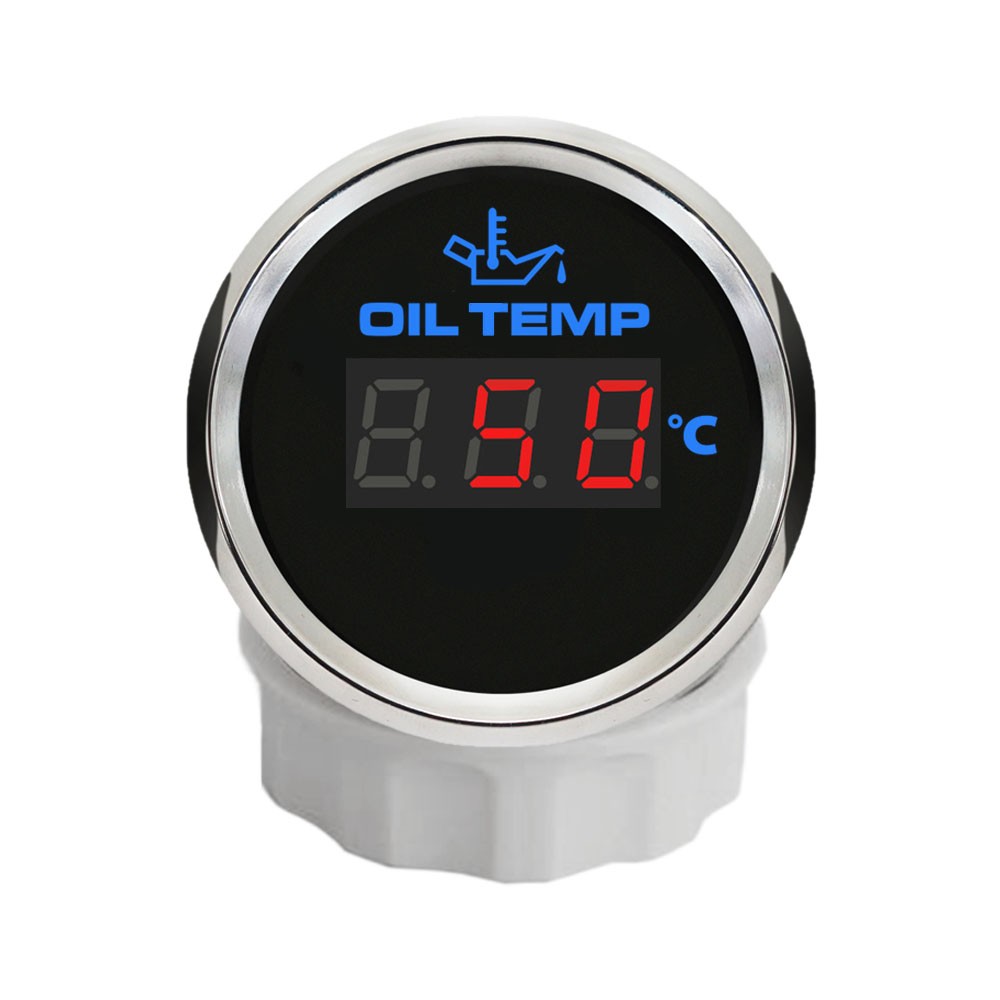

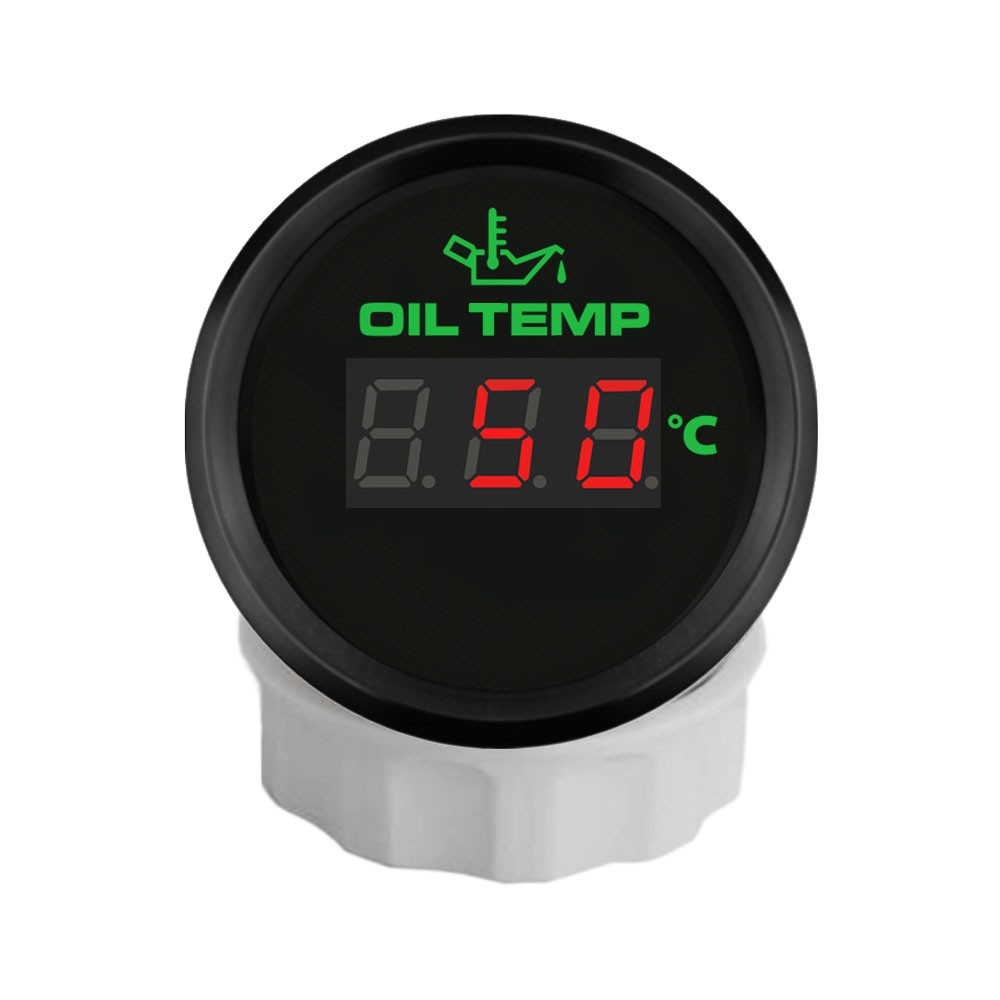

ELING 52mm Digital Oil Temperature Meter

  • Product Item:52mm Digital Oil Temperature Meter
  • Fixing dimension: 52mm(2")
  • Indicating Range: 50-150℃
  • Signal: 361-19ohm

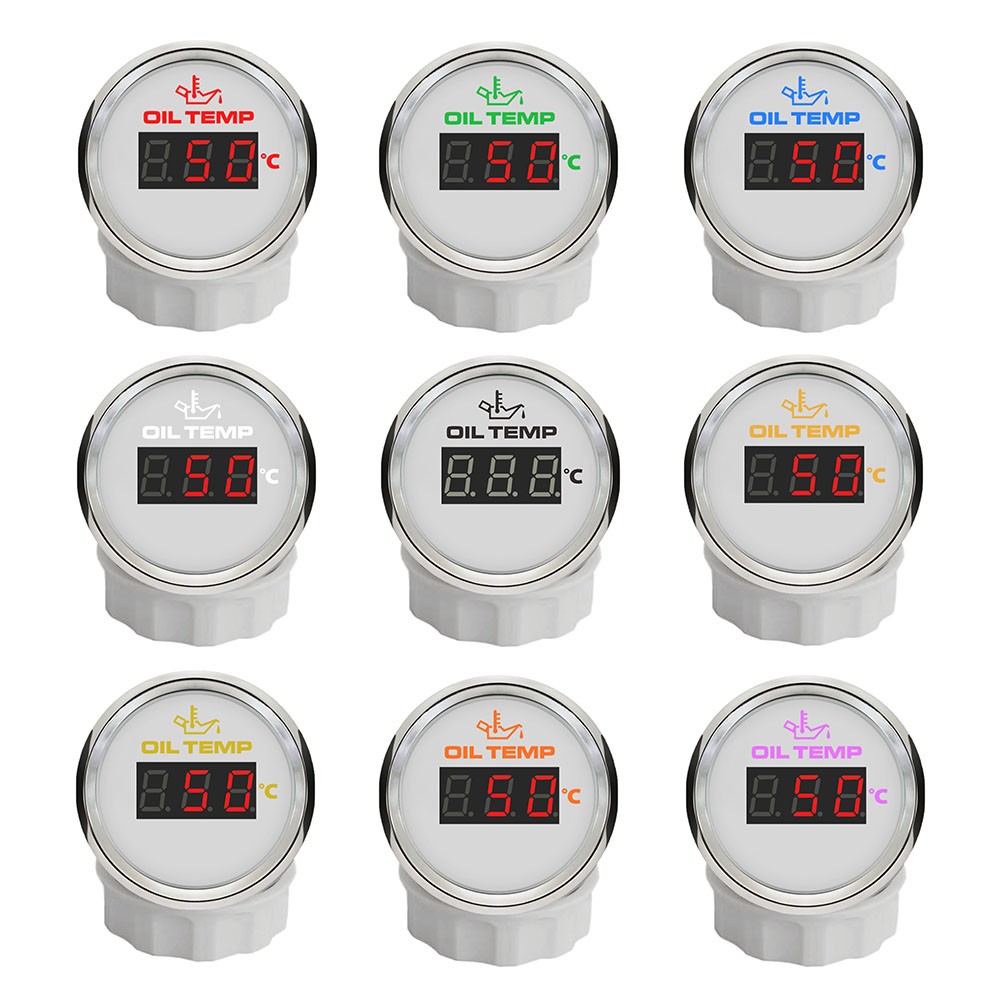

  • Backlight: 8 colors ,Red Green Blue White Yellow Kelly Orange Purple or automatic
  • 52mm Digital Oil Temperature Meter  , Digital Oil Temperature Meter  , Oil Temperature Meter  , Oil Temperature Gauge  , Oil Temp Gauge
    Inquiry Send Email PDF

    Description

    Key Features:


    -Be suitable for all kinds of oil temperature sensors , and display the temperature of the oil tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 50-150℃


    -Signal: 361-19ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 8 colors ,Red Green Blue White Yellow Kelly Orange Purple or automatic


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Temp Gauge


    1x Multi-plug socket


    1x Installation Instruction
