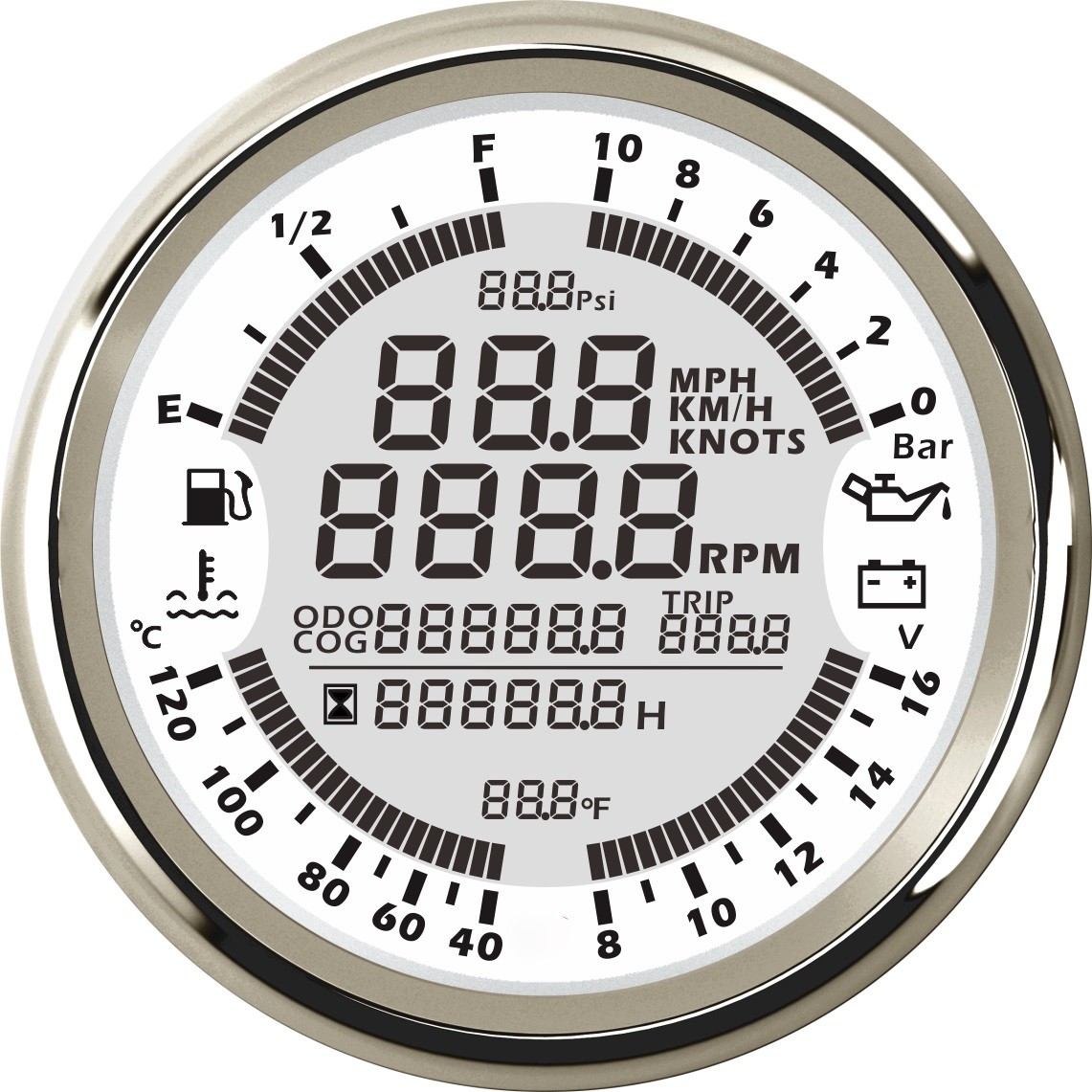

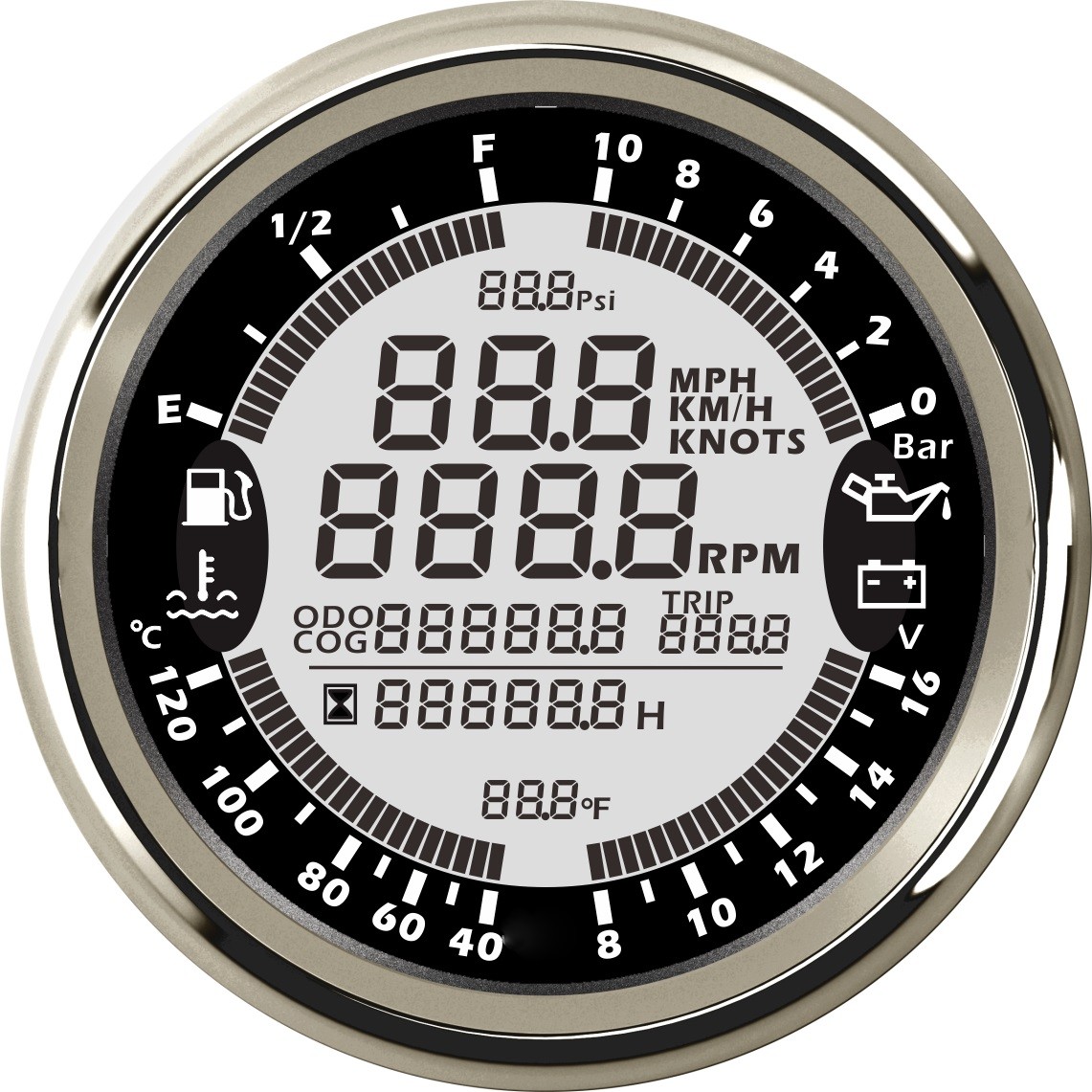

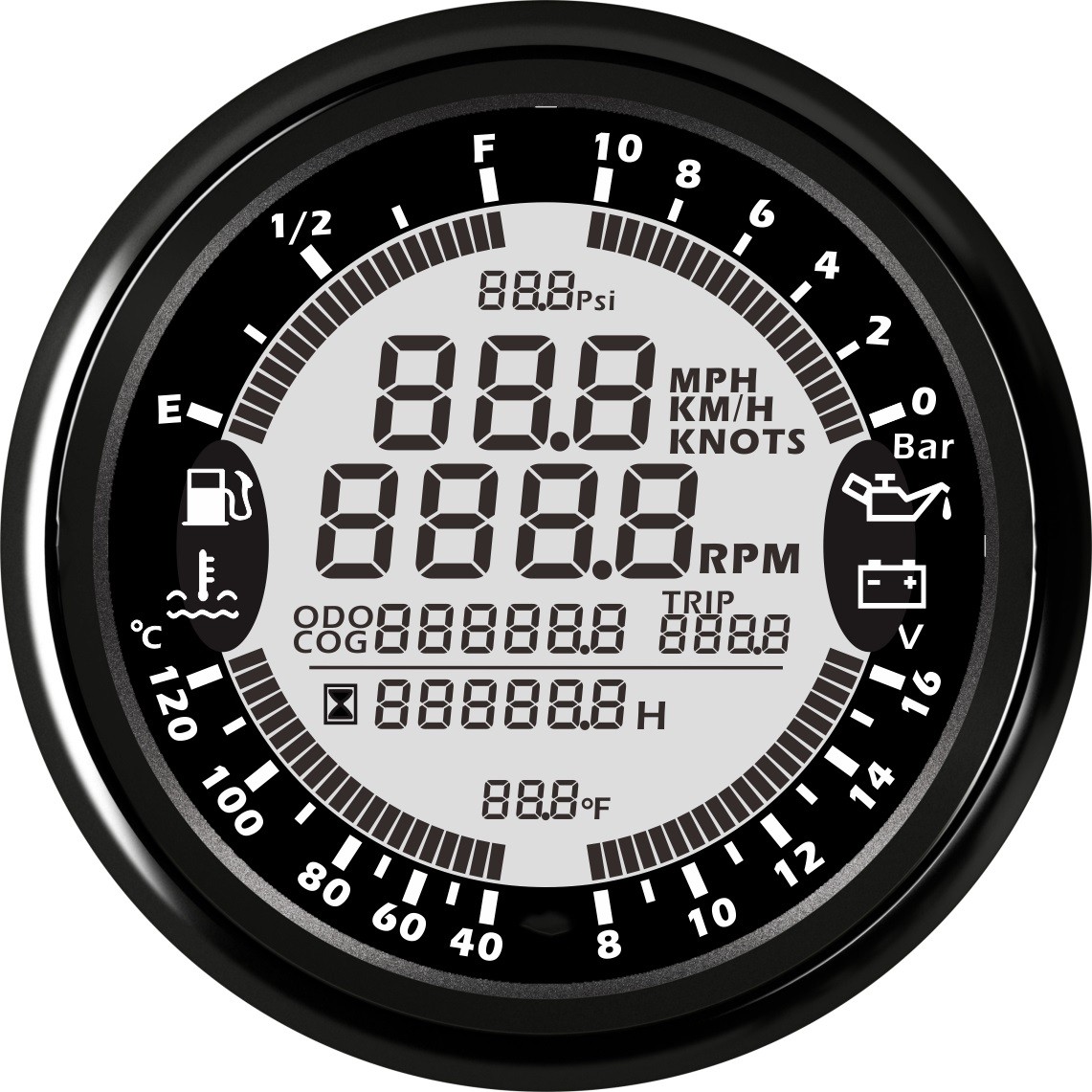

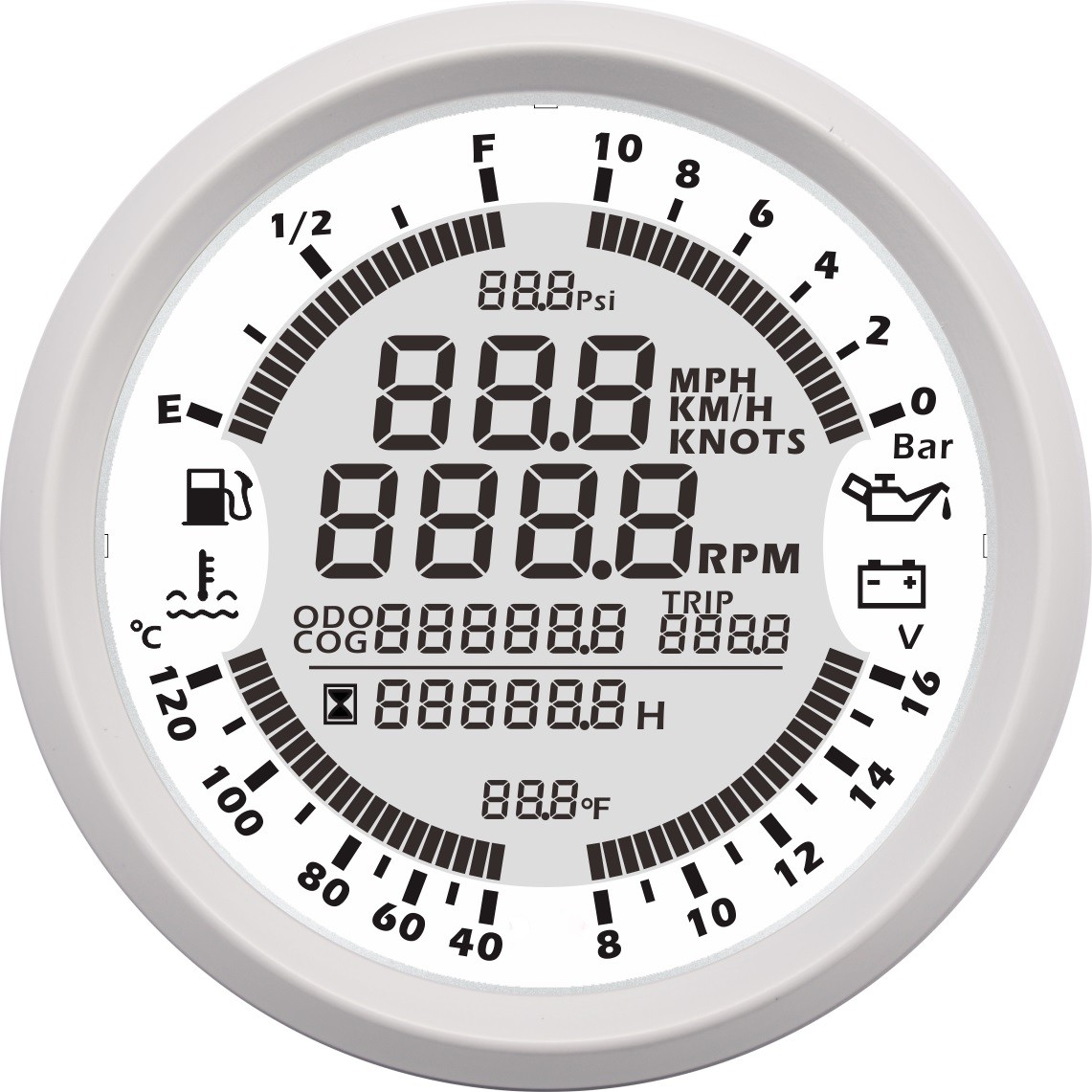

  • ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)
  • ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)
  • ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)
  • ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)
ELING ECP Multi-functional Gauge Meter(12V 0-10Bar) ELING ECP Multi-functional Gauge Meter(12V 0-10Bar) ELING ECP Multi-functional Gauge Meter(12V 0-10Bar) ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)

ELING ECP Multi-functional Gauge Meter(12V 0-10Bar)

  • Product Item:ELING ECP Multi-Functional Gauge 12V 0-10Bar
  • Installation Dimension:85mm(3-3/8
  • Working Voltage:8-16V
  • Indicating Range: GPS Speedometer Tachometer Hour Meter Hour Water Temp Fuel Level Oil Pressure Voltmeter
  • Backlight: Red, Orange, Green, Yellow, Blue, Purple, White( you can press the button to change)
  • gps speedometer  , digital speedometer  , tachometer  , multi-functional gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Suitable for all vehicles, boats and off-road vehicles

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: GPS Speedometer Tachometer Hour Meter  Water Temp Fuel Level Oil Pressure Voltmeter

    -Working Voltage: 8-16V

    -Backlight: Red, Orange, Green, Yellow, Blue, Purple, White( you can press the button to change)

    -Functions:

    Tachometer RPM range:0-9999RPM

    Speedometer indication range:0-999(km/h MPH,knots available)

    Water Temp gauge indication range:40-120℃ (104-248)

    Pressure gauge indication range:0-10Bar (0-1455Psi)

    Total mileage indication range:0-999999(km miles NM available)

    Hour meter indication range:0-99999.9

    Tripmeter indication range:0-999.9(km miles NM available)

    Working voltage:8-16VDC

    Operating current:<150mA

    Operating temperature:-30℃-75℃

    Storage temperature:-40℃-85℃

    Grade of protection:IP67

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x Multi-functional Gauge

    1x GPS Speed Sensor

    1x Multi-plug socket

    1x Installation Instruction
