  • ELING ECPC 52MM Oil Pressure Gauge
  • ELING ECPC 52MM Oil Pressure Gauge
  • ELING ECPC 52MM Oil Pressure Gauge
  • ELING ECPC 52MM Oil Pressure Gauge
ELING ECPC 52MM Oil Pressure Gauge ELING ECPC 52MM Oil Pressure Gauge ELING ECPC 52MM Oil Pressure Gauge ELING ECPC 52MM Oil Pressure Gauge

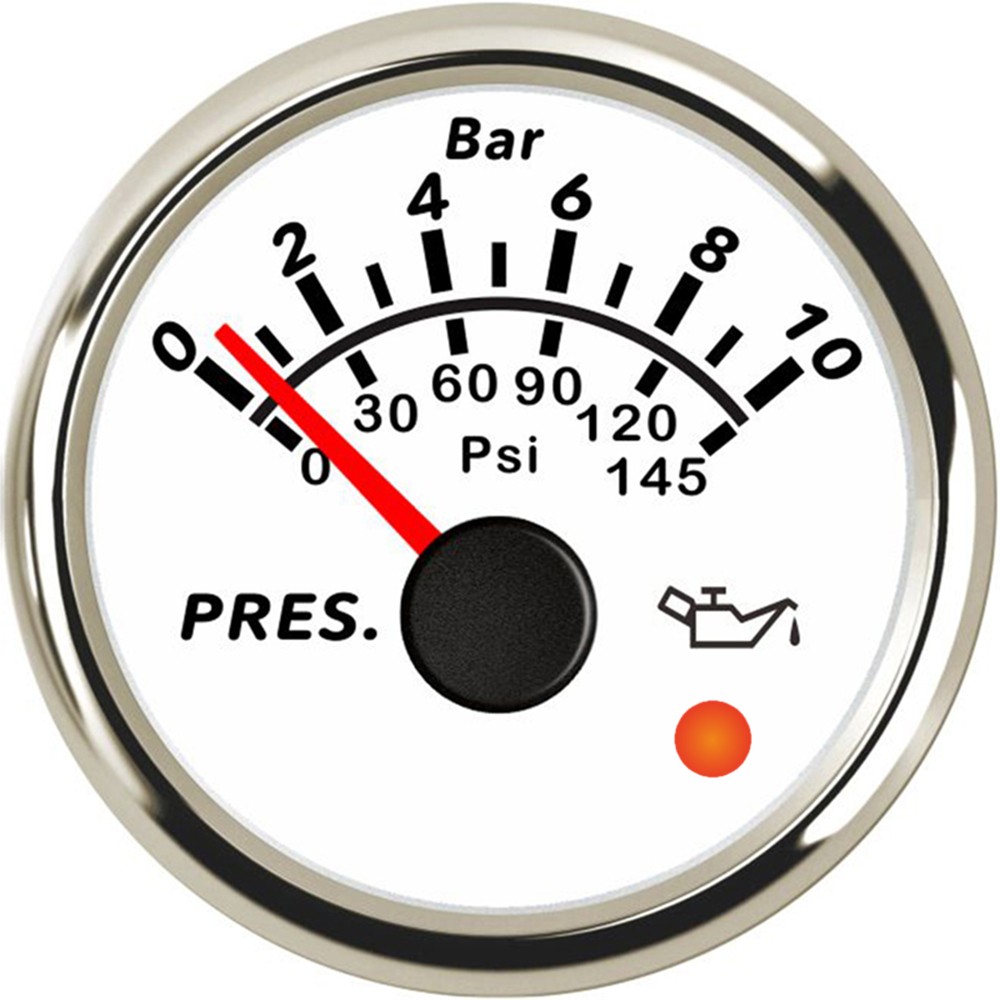

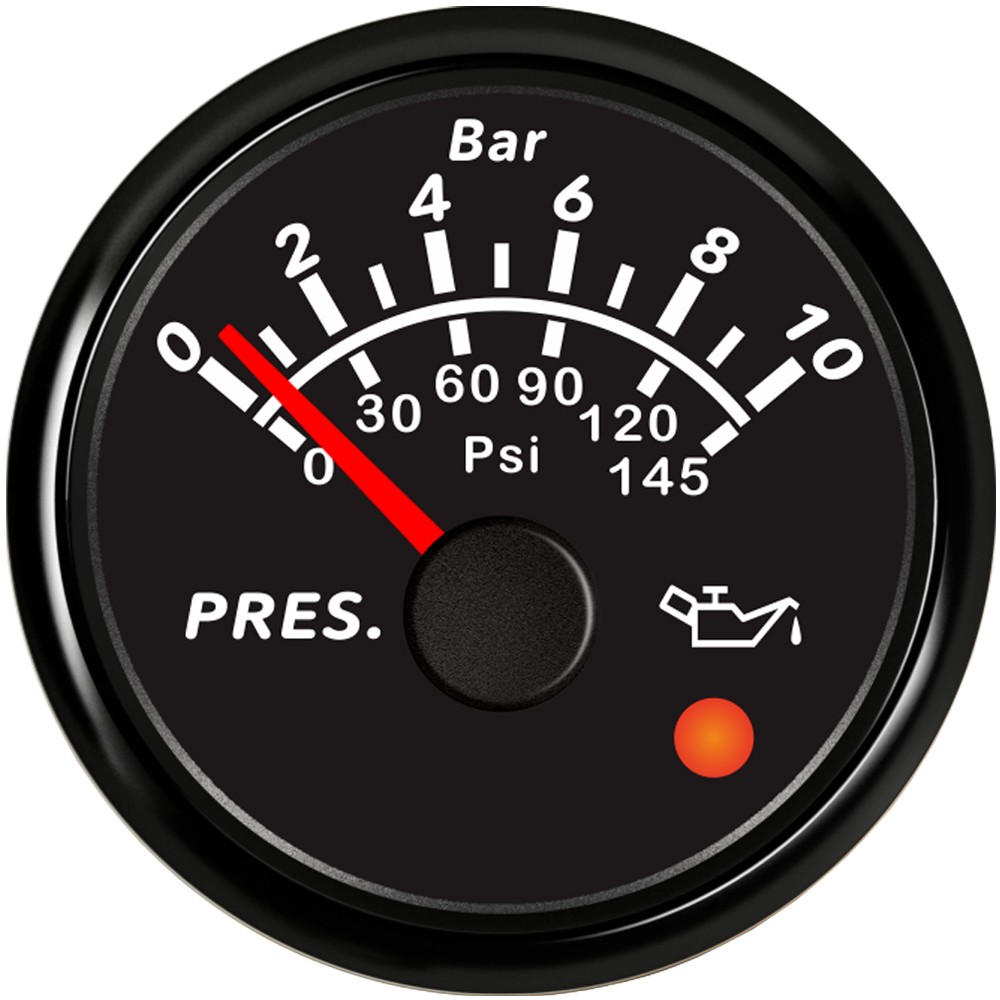

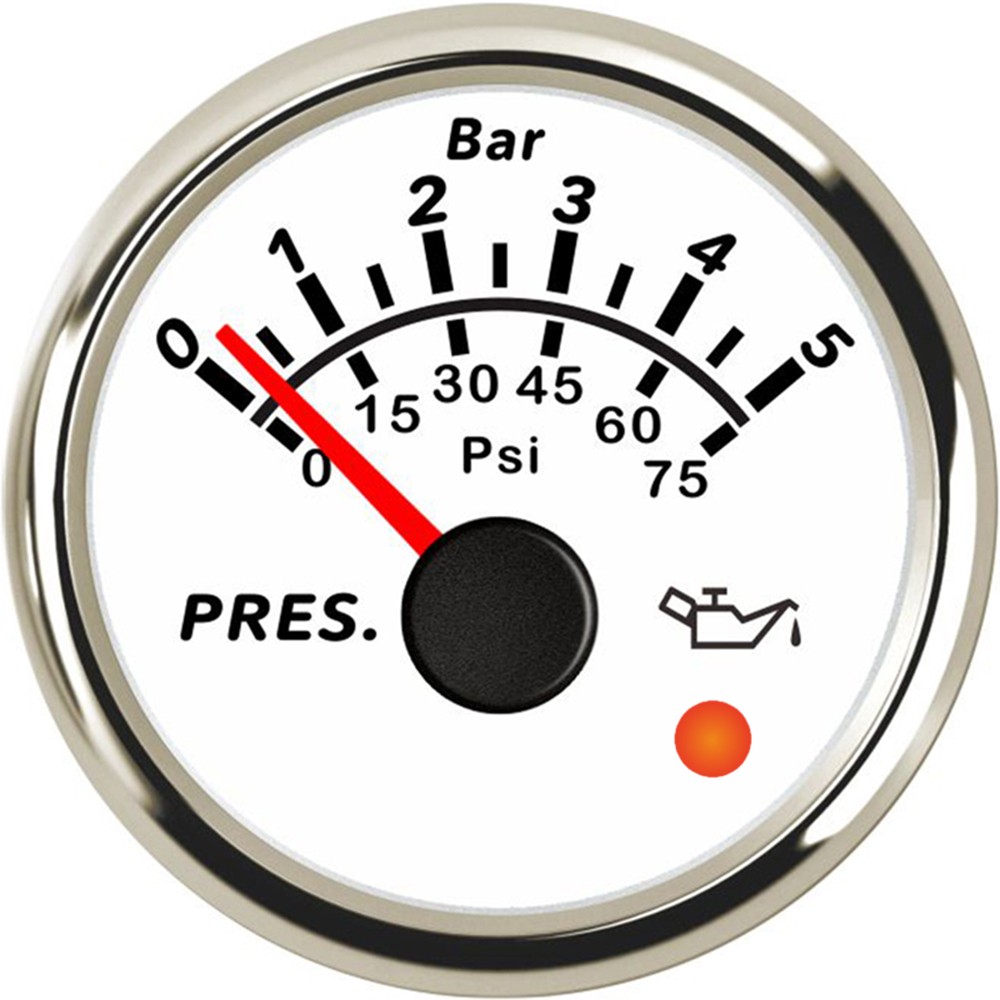

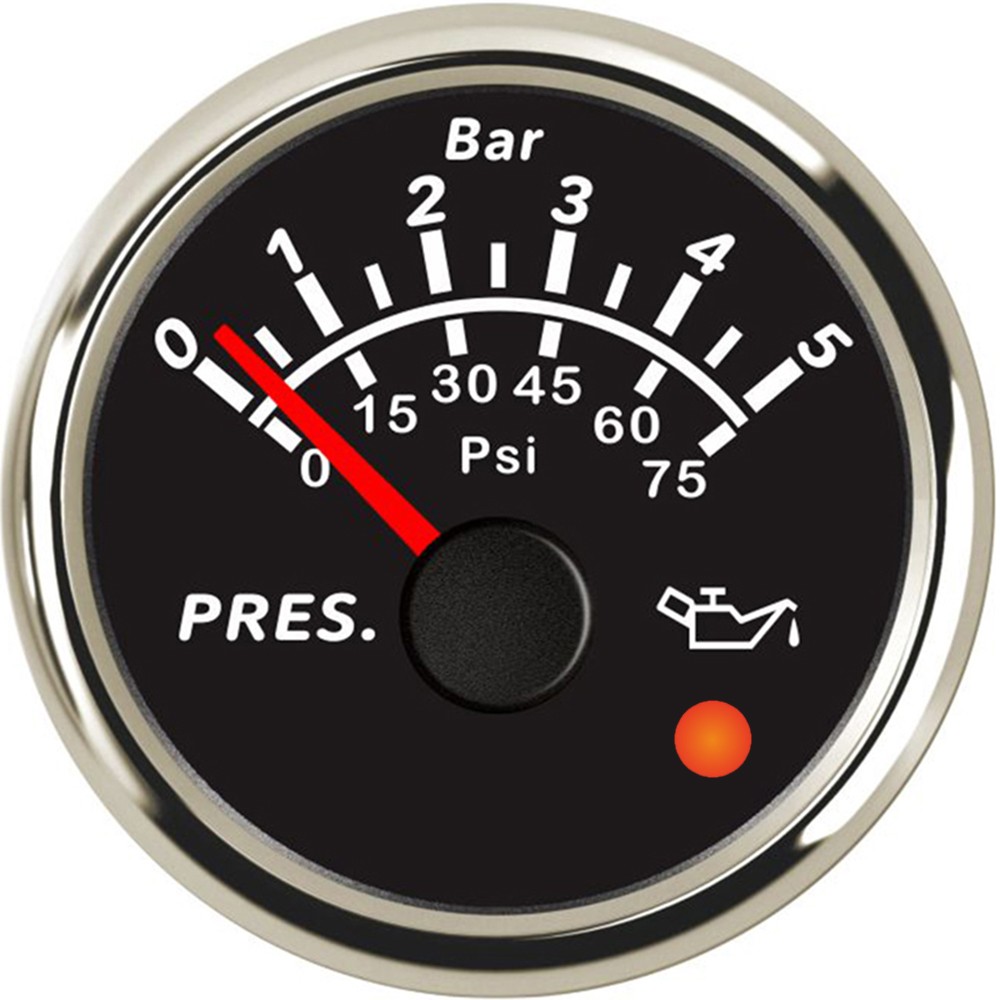

ELING ECPC 52MM Oil Pressure Gauge

  • Product Item:ECPC 52MM Oil Pressure Gauge
  • Fixing dimension: 52mm(2")
  • Indicating Range: 0-5Bar 0-75Psi;0-10Bar 0-145Psi
  • Default for gauges with alarm light: Oil Pressure ≤ 0.8bar alarm
  • 8 Colors Backlight
  • Oil Pressure Gauge  , Oil Pressure Meter
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of pressure sensors, and display the value of oil pressure


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 0-5Bar 0-75Psi;0-10Bar 0-145Psi

    -Signal: 10-184ohm


    -Default for gauges with alarm light: Oil Pressure ≤ 0.8bar alarm


    -Backlight: 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .


    -Working Voltage: 9-32V(12V/24V)


    -Operation mode: LCD display, stepper motor


    Package include:


    1x Oil Pressure Gauge


    1x Multi-Plug Socket


    1x Installation Instruction
