  5. ELING ECP Digital GPS Odometer(52mm)
  • ELING ECP Digital GPS Odometer(52mm)
  • ELING ECP Digital GPS Odometer(52mm)
  • ELING ECP Digital GPS Odometer(52mm)
  • ELING ECP Digital GPS Odometer(52mm)
ELING ECP Digital GPS Odometer(52mm) ELING ECP Digital GPS Odometer(52mm) ELING ECP Digital GPS Odometer(52mm) ELING ECP Digital GPS Odometer(52mm)

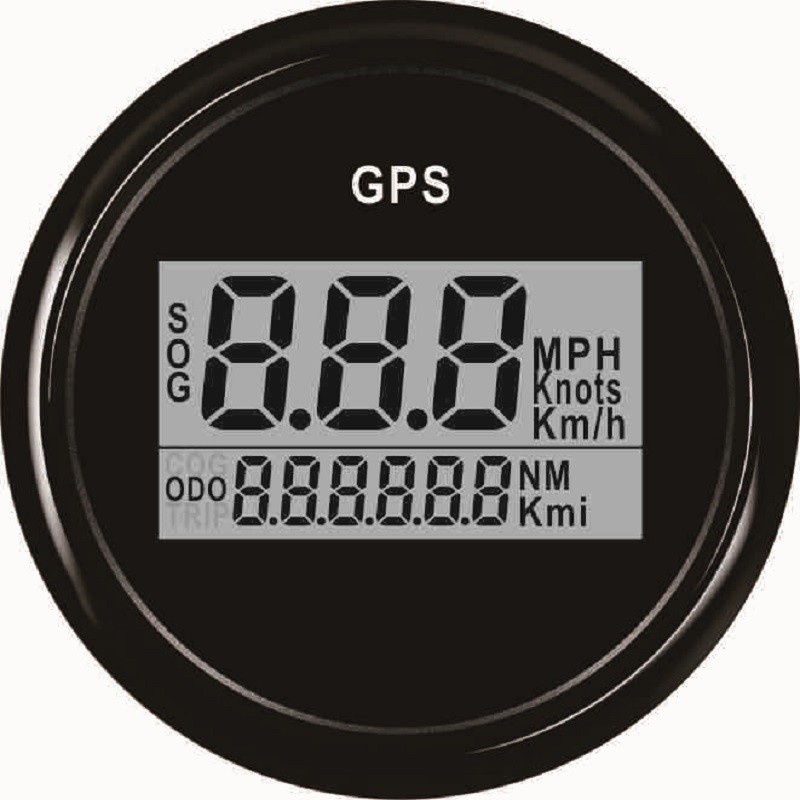

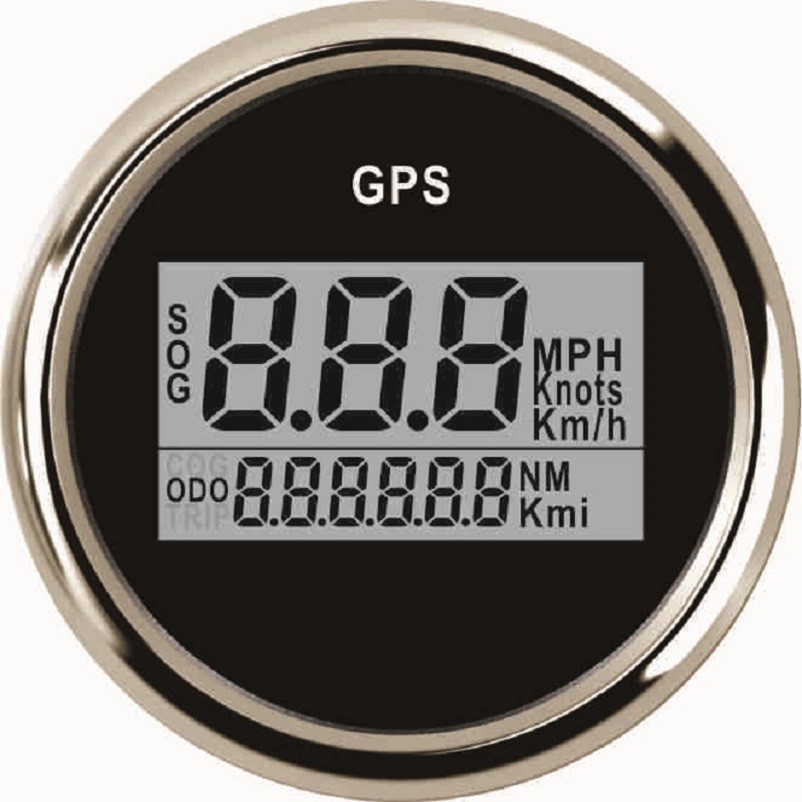

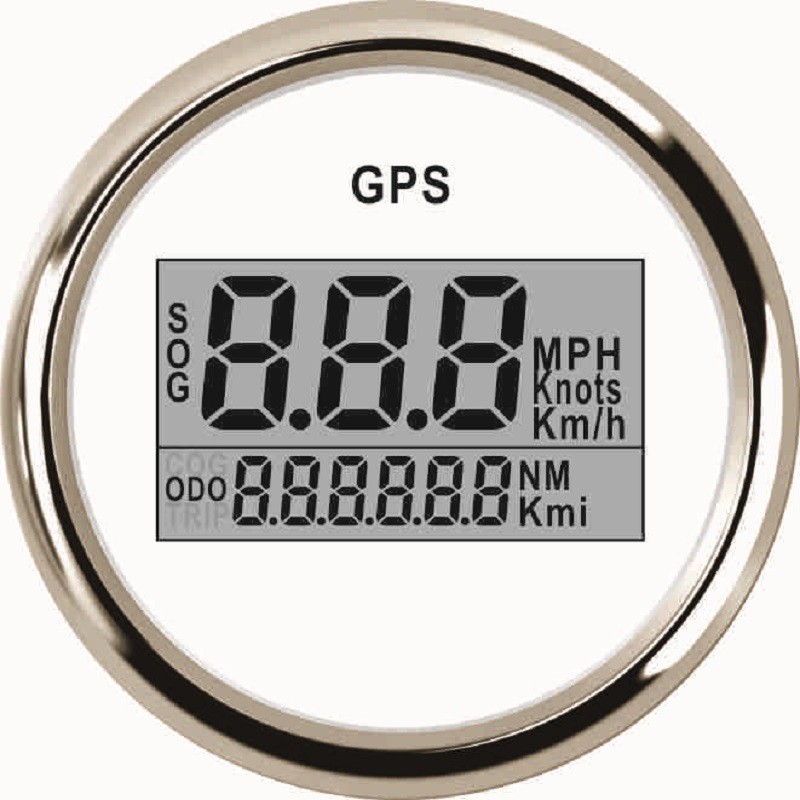

ELING ECP Digital GPS Odometer(52mm)

  • Product Item:ELING ECP Digital speedometer 52mm
  • Installation Dimension:52mm(2'')
  • Working Voltage:9-32V
  • Indicating Range: 0-999(MPH, Knots, KM/H adjustable)
  • Backlight: Red
  • gps speedometer  , digital speedometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:

    -Suitable for all vehicles, boats and off-road vehicles

    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor)

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Fixing dimension: 52mm(2")

    -Indicating Range: 0-999(MPH, Knots, KM/H adjustable)

    -Odometer:0-999999 (miles, NM, km adjustable)

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: Red

    -Functions:

    -SOG---current speed;

    -ODO/TRIP/COG(just choose one display): Default ODO,cumulative total mileage(cannot be reset),

    -COG--Course over ground;

    -Trip--mileage for one trip (return zero after turn off the power);

    -NOTES:if you need "TRIP" or "COG" function ,please  leave message to us

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x GPS speedometer

    1x GPS Speed Sensor

    1x Multi-plug socket

    1x Installation Instruction
