  • ELING ECP Digital Fuel Level Gauge 0-5V
  • ELING ECP Digital Fuel Level Gauge 0-5V
  • ELING ECP Digital Fuel Level Gauge 0-5V
ELING ECP Digital Fuel Level Gauge 0-5V ELING ECP Digital Fuel Level Gauge 0-5V ELING ECP Digital Fuel Level Gauge 0-5V

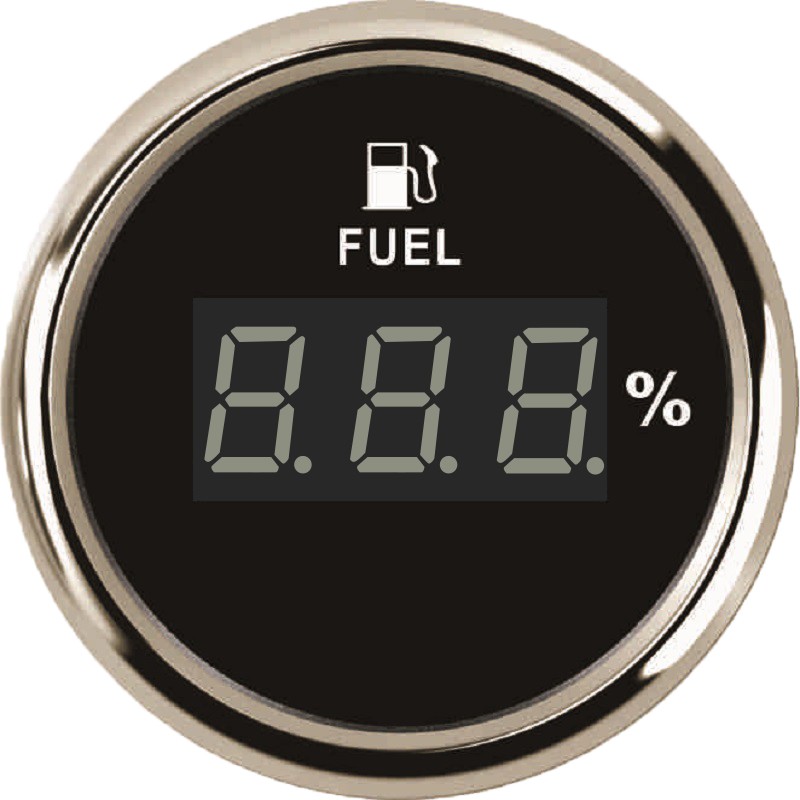

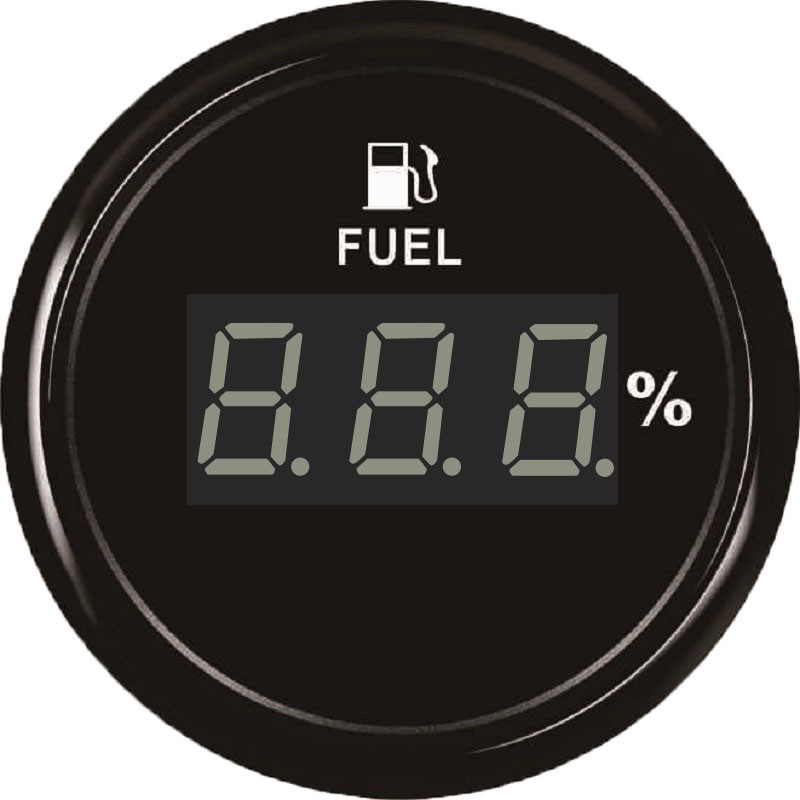

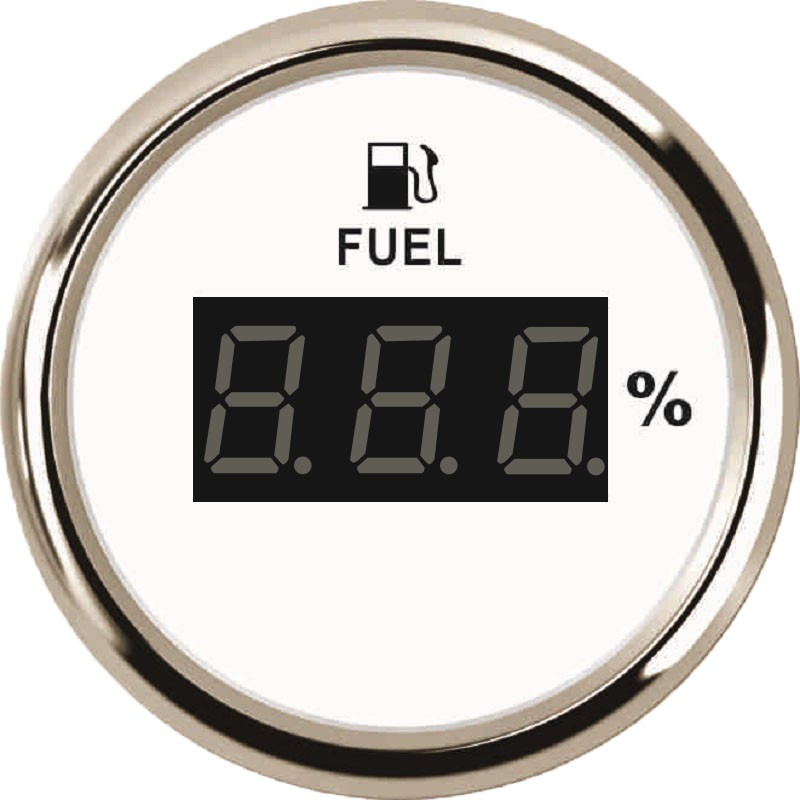

ELING ECP Digital Fuel Level Gauge 0-5V

  • Product Item:ECP Digital Fuel Level Gauge 0-5V
  • Fixing dimension: 52mm(2")
  • Signal: 0-5V
  • Working Voltage: 9-32V(12V/24V)
  • Backlight: Red
  • fuel level gauge  , digital fuel level gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: E-1/2-FULL


    -Signal: 0-5V


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Fuel Level Gauge


    1x Multi-plug socket


    1x Installation Instruction
