  5. ELING ECC Tachometer Gauge
  • ELING ECC Tachometer Gauge
  • ELING ECC Tachometer Gauge
  • ELING ECC Tachometer Gauge
  • ELING ECC Tachometer Gauge
ELING ECC Tachometer Gauge ELING ECC Tachometer Gauge ELING ECC Tachometer Gauge ELING ECC Tachometer Gauge

ELING ECC Tachometer Gauge

  • Product Item:ELING ECC Tachometer
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Backlight:Red

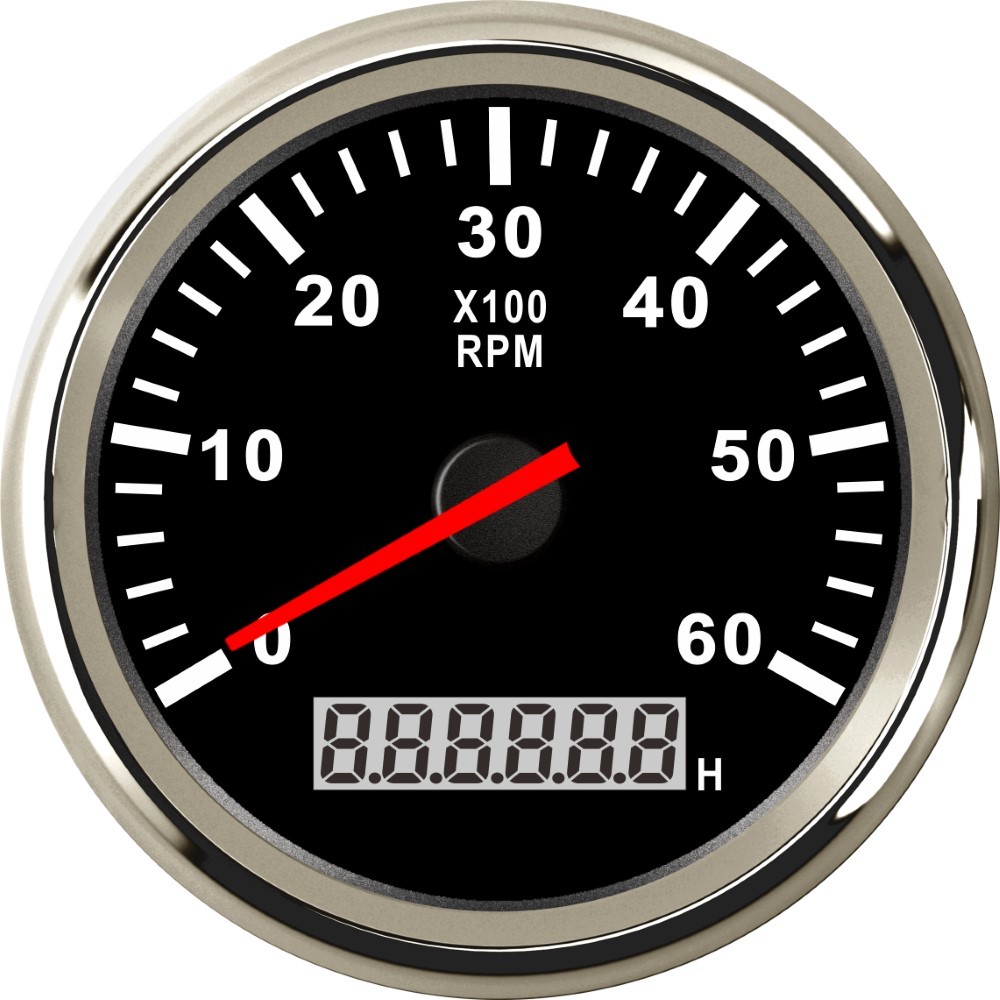

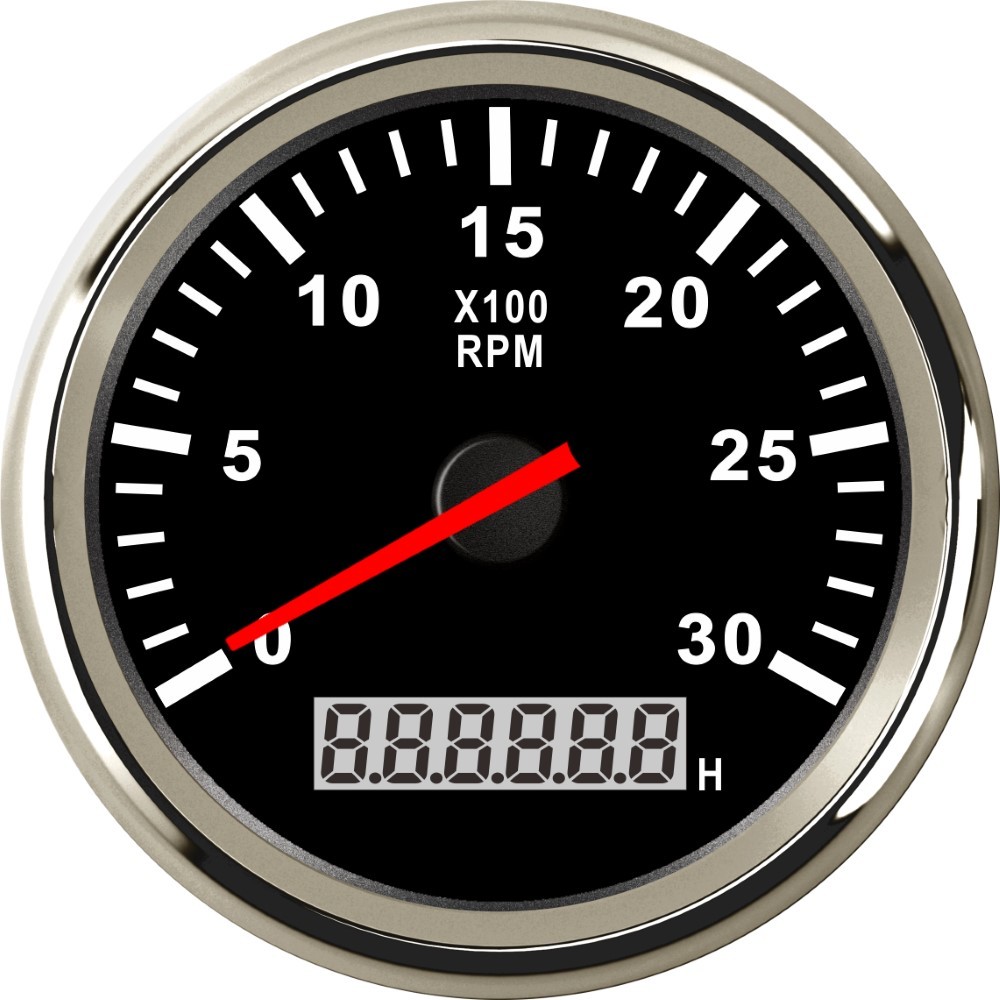

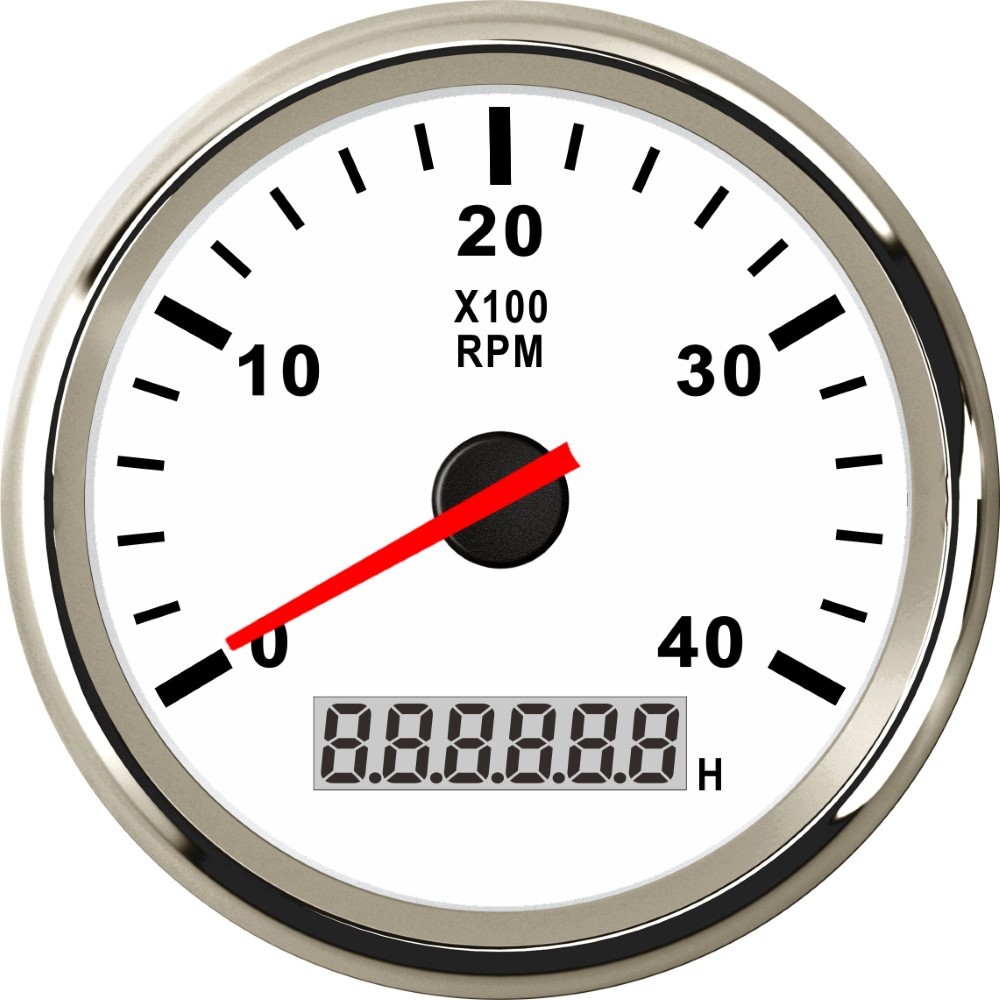

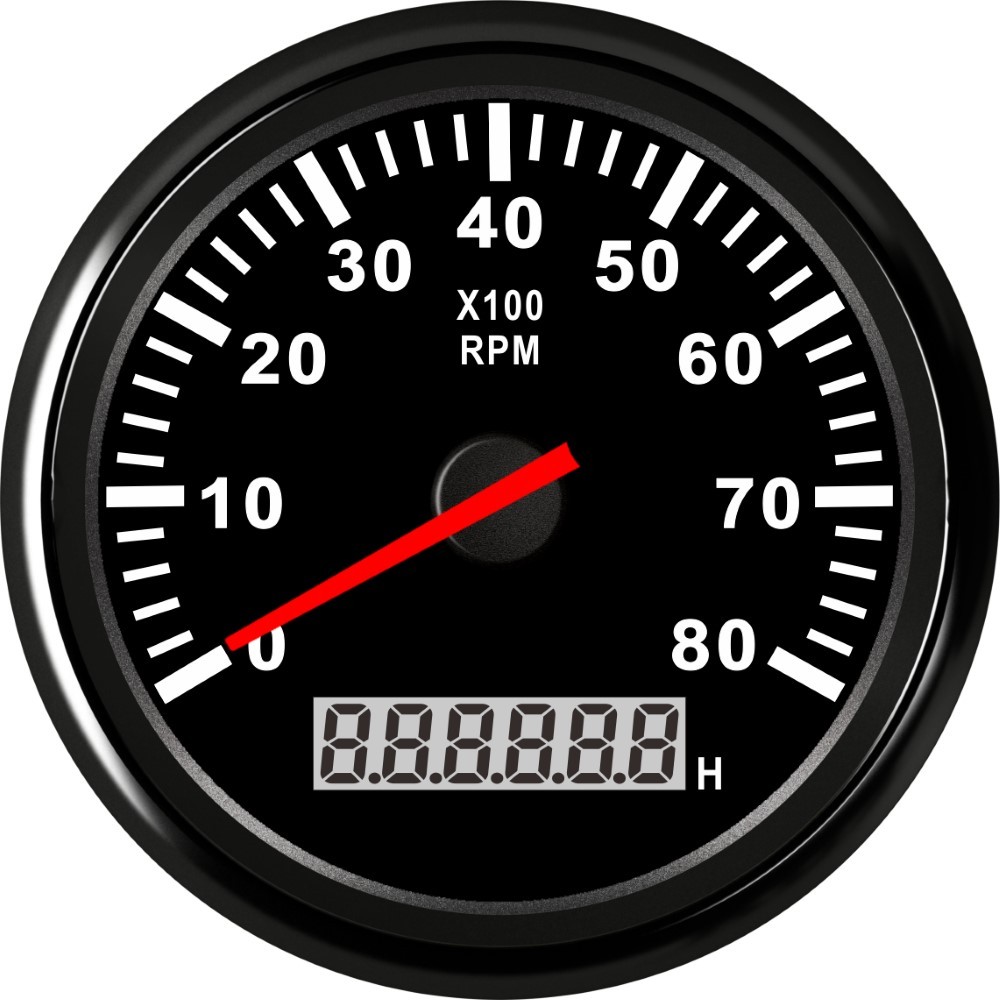

  • Indicating Range: 0-3000RPM 4000RPM 6000RPM 8000RPM
  • tachometer  , rpm tachometer  , rpm gauge  , tacho gauge
    Inquiry Send Email PDF

    Description

    Specifications:

    • -Materials:stainless steel+nickel-plated plastic button

    • -Operating Current: ≤100MA

    • -Operating Voltage:12V/24

    • -Indicating Range: 0-3000RPM 0-4000RPM 0-6000RPM 0-8000RPM

    • -Input Signal: Pulse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.

    • -Adjustable speed ratio: 1-300

    • -Protection Class: IP67, the whole body is completely waterproof.

    • -Backlight: Red.

    • -Opration Mode: LCD Display, stepper motor.

    • -High Precision.


    Features:

    • -Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM, and with the LCD display clear display hour,

    • with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on.

    • -Tachometer using stepper motor drive pointer, accurate display of the engine RPM, and with the LCD display clear display hour.

    • -Convenient Installation by multi-plug terminal connecting way.

    • -Excellent anti-fogging function.

    • -Protection grade is IP67, the whole body is completely waterproof.


    Instructions:

    • -Before installation , firstly ,to open a hole (Dia:85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well

    • -Put the gauge in the hole.

    • -Mount the gauge in hole, twist the back cover on after adjustment.


    Package Included:

    • 1 x Tachometer

    • 1 x Owner's Manual
