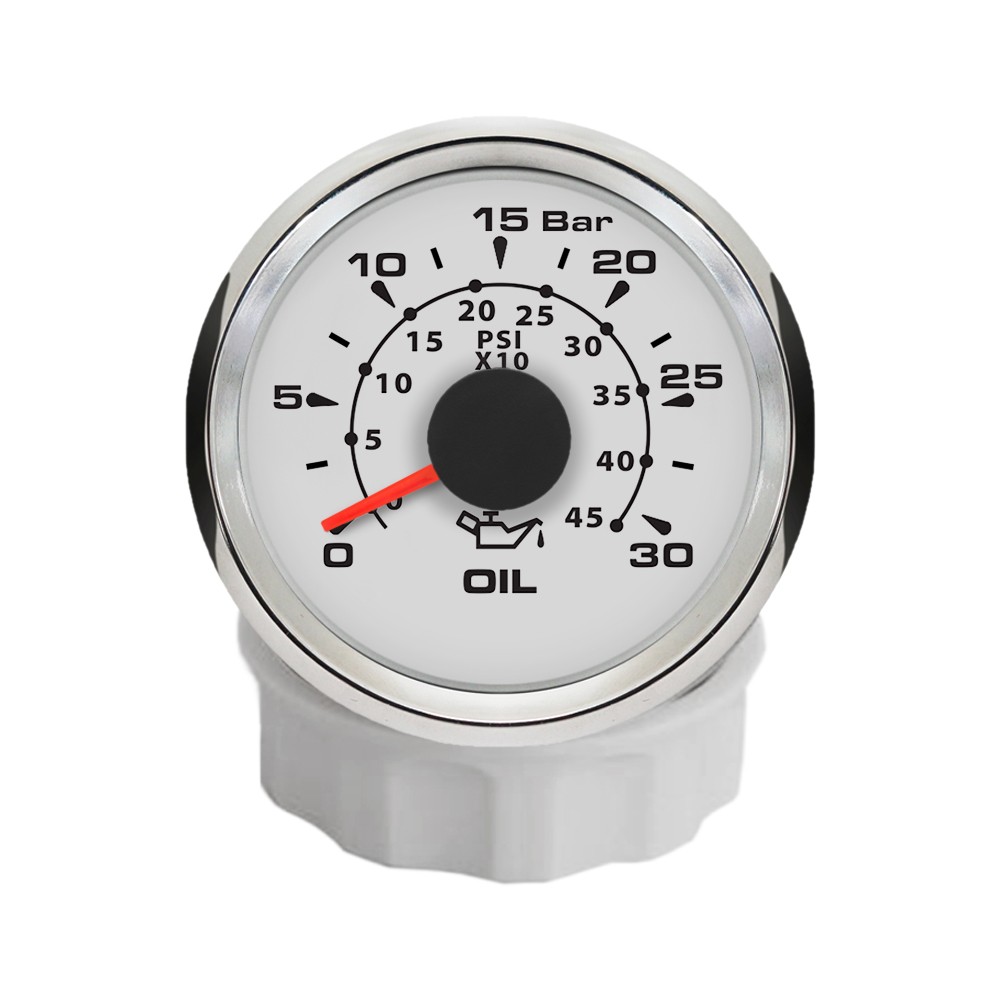

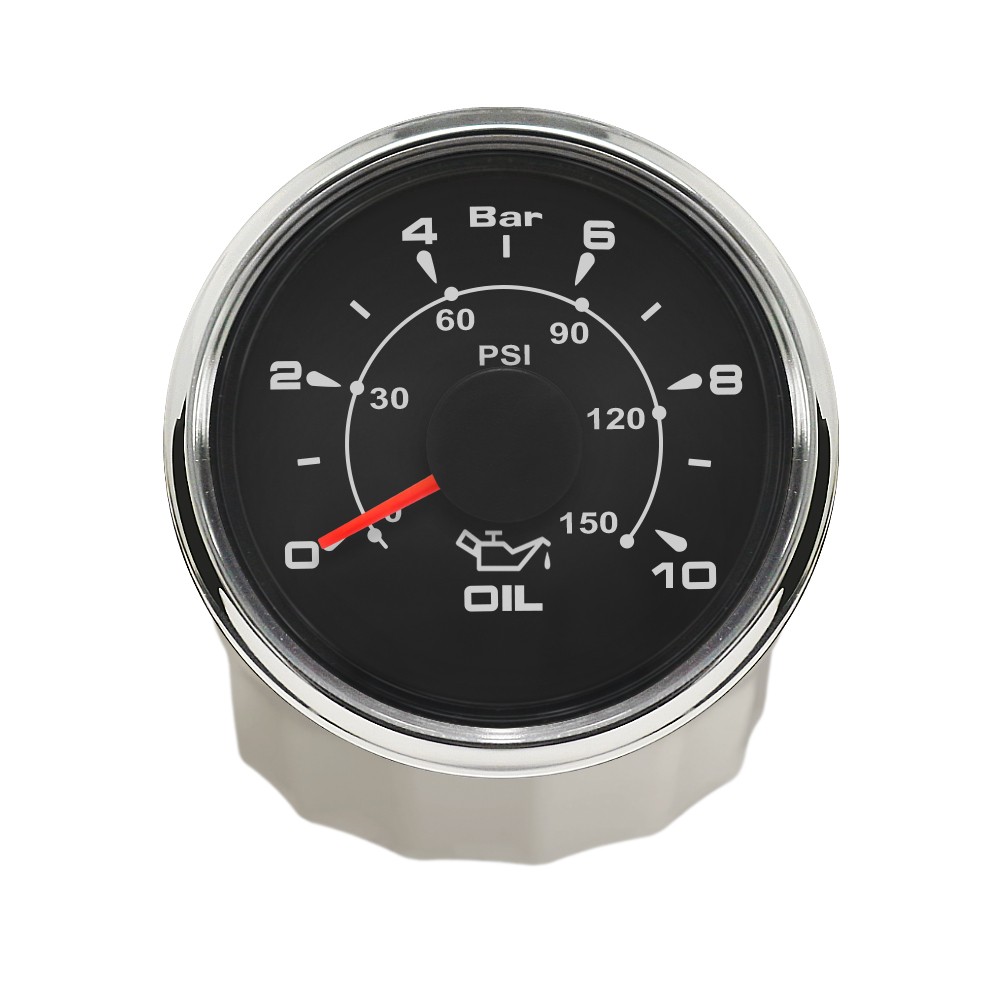

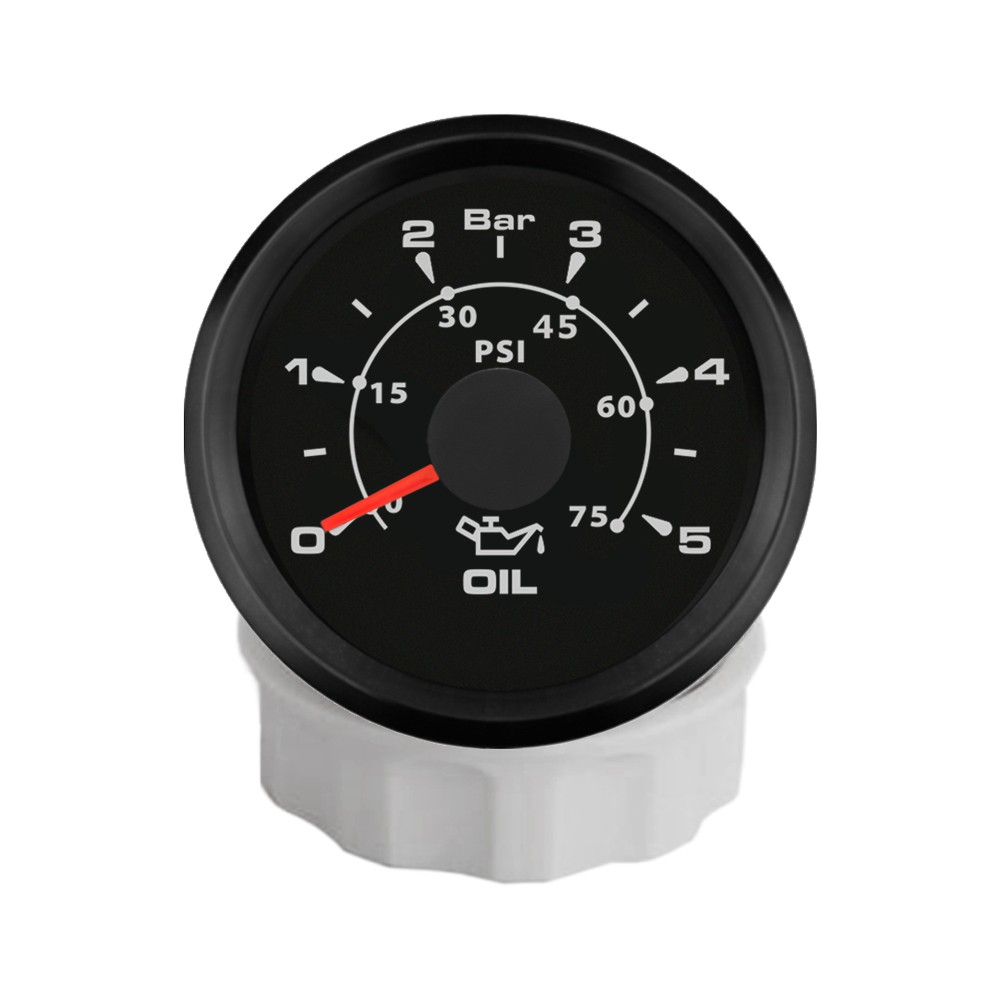

  5. ELING 52mm Oil Pressure Gauge Meter 5Bar
  • ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar
  • ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar
  • ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar
  • ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar
ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar

ELING 52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar

  • Product Item:52mm Oil Pressure Gauge Meter 5Bar 10Bar 30Bar
  • Fixing dimension: 52mm(2")
  • Indicating Range: 0-5Bar 0-10Bar 0-30Bar
  • Working Voltage: 9-32V(12V/24V)

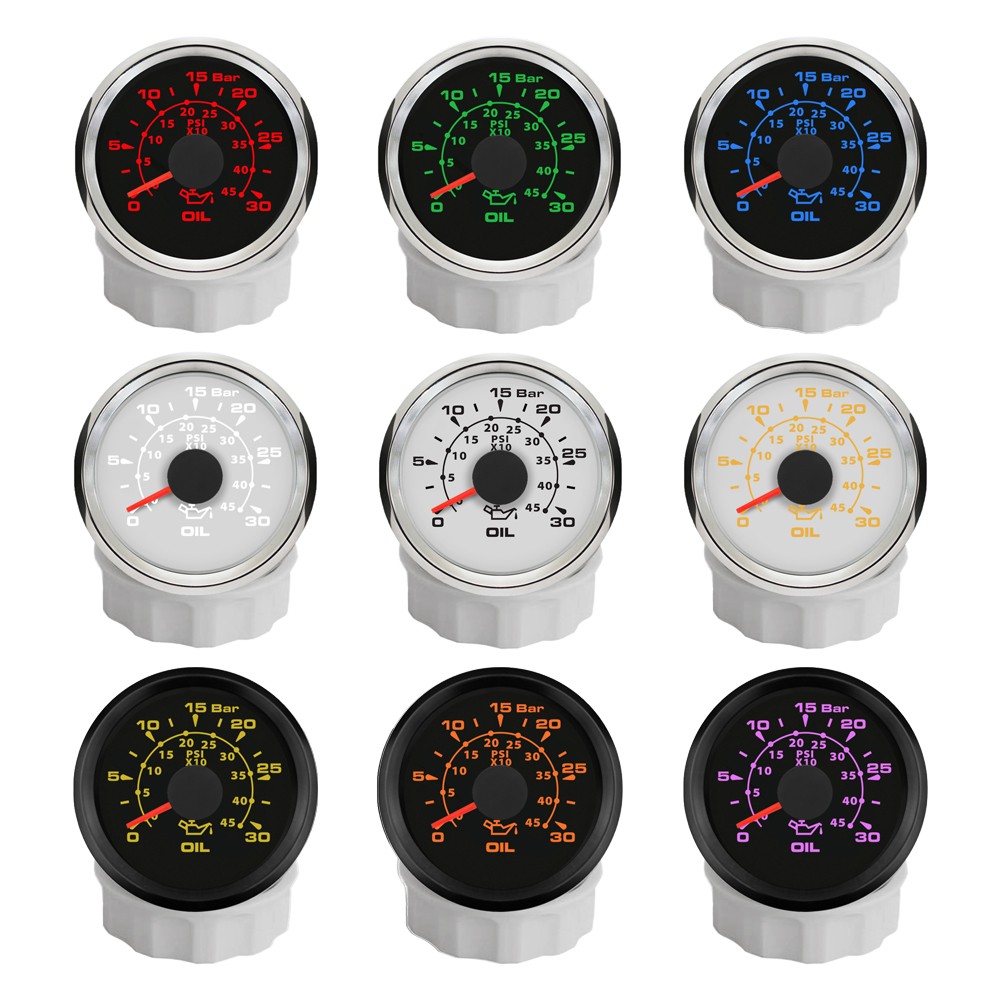

  • Backlight:Red Green Blue White Yellow Kelly Orange Purple or automatic
  • Oil Pressure Gauge  , Oil Pressure Gauge Meter  , 52mm Oil Pressure Meter
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of pressure sensors, and display the value of oil pressure


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 0-5Bar 0-75Psi,0-10Bar 0-150Psi,0-30Bar 0-450Psi

    -Signal: 10-184ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight:Red Green Blue White Yellow Kelly Orange Purple or automatic


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Pressure Gauge


    1x Multi-plug socket


    1x Installation Instruction

    Inquiry Us





    Related Products

    ELING Water Temp Tachometer Oil pressure Gauge Meter

    ELING Water Temp Tachometer Oil pressure Gauge Meter

    FIAT MAP Sensor 0281002456

    FIAT MAP Sensor 0281002456

    ELING ECPW Tachometer Gauge

    ELING ECPW Tachometer Gauge

    ELING ECP Water Level Meter

    ELING ECP Water Level Meter

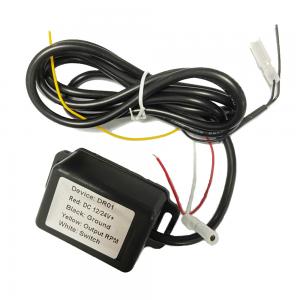

    TN 6 in 1 Tachometer
