  • ELING ECCW Fuel Level Gauge
  • ELING ECCW Fuel Level Gauge
  • ELING ECCW Fuel Level Gauge
  • ELING ECCW Fuel Level Gauge
ELING ECCW Fuel Level Gauge ELING ECCW Fuel Level Gauge ELING ECCW Fuel Level Gauge ELING ECCW Fuel Level Gauge

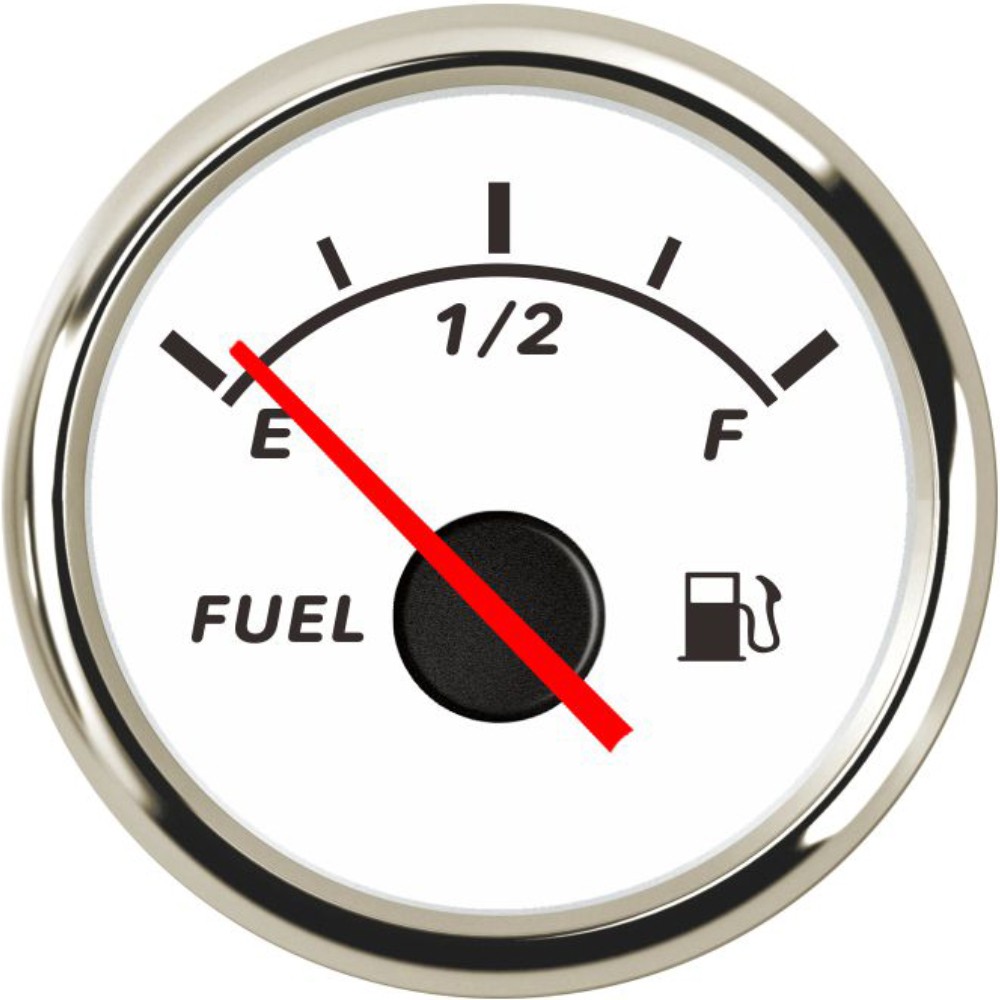

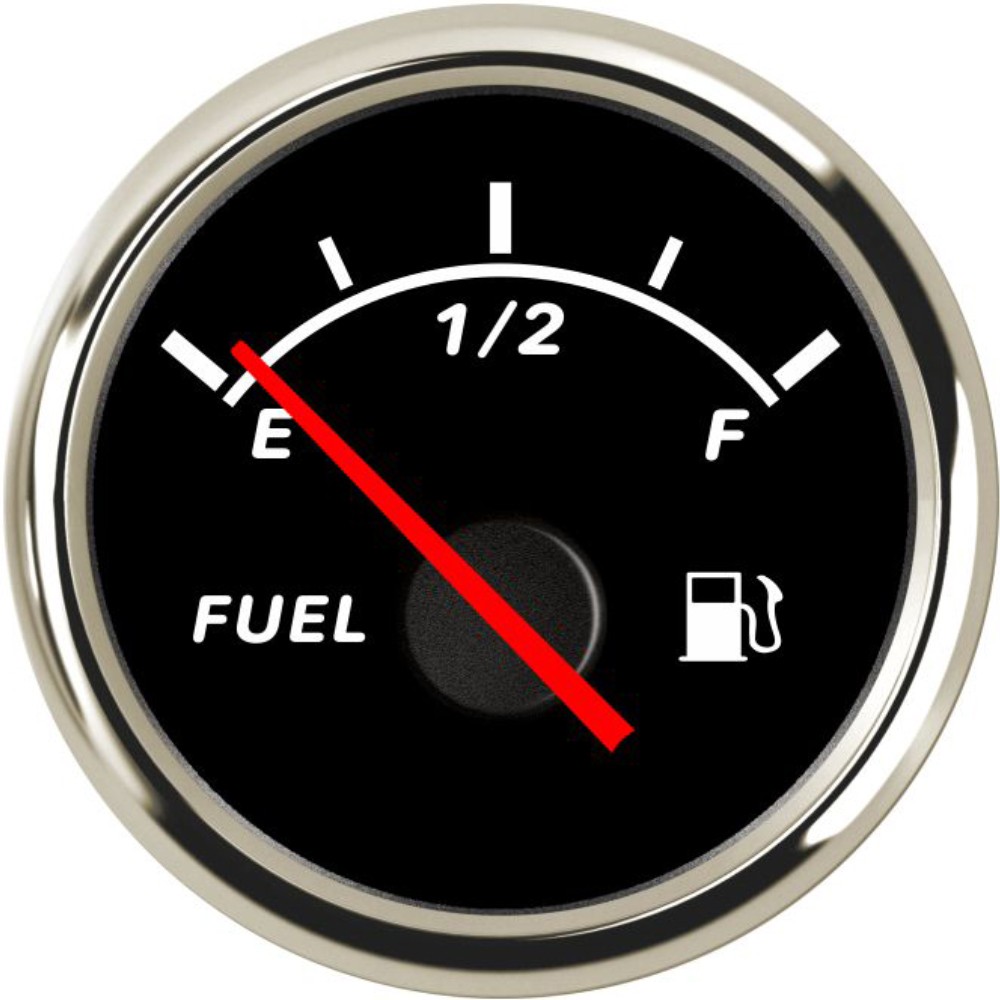

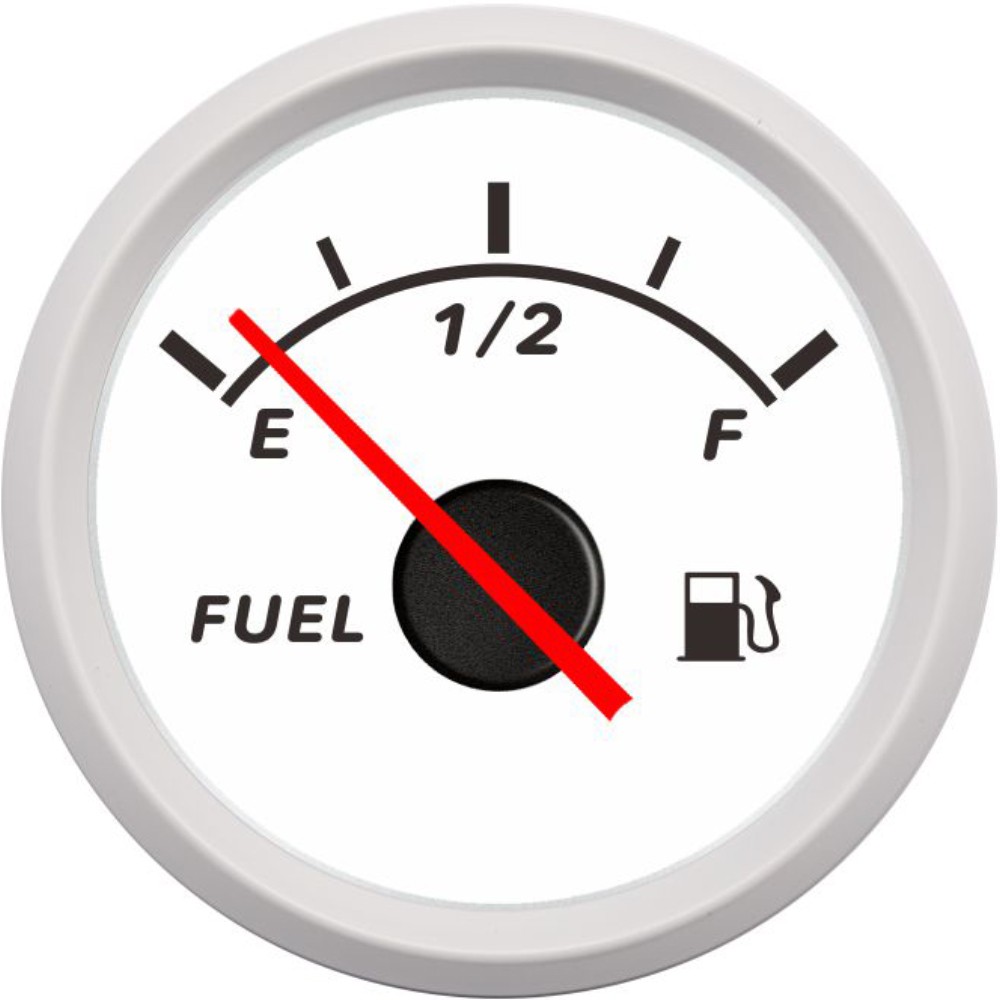

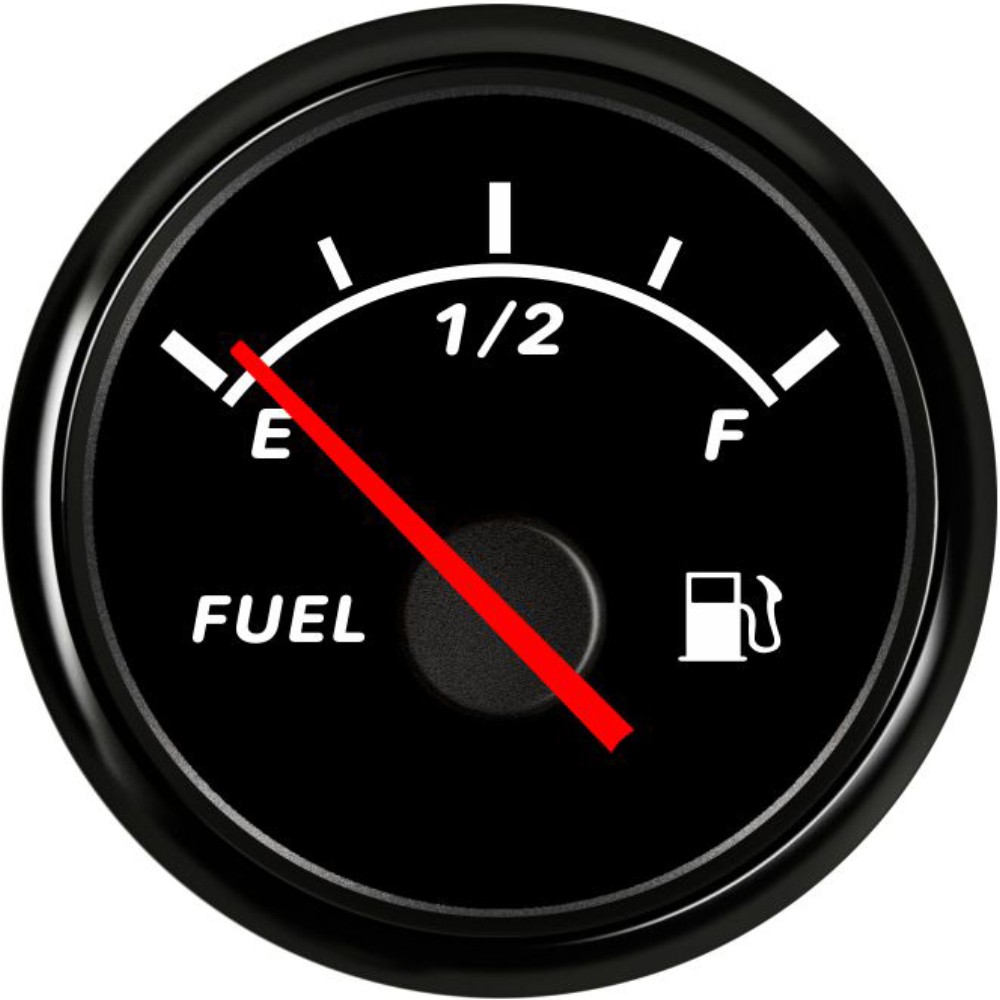

ELING ECCW Fuel Level Gauge

  • Product Item:ECCW Fuel Level Gauge
  • Fixing dimension: 52mm(2")
  • Working Voltage:9-32V
  • Backlight:Red
  • Input signal: 0-190ohm/240-33ohm
  • fuel levelgauge  , fuel gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With flat glass (with anti-fogging function) .


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Fuel Gauge Indicating Range: E-1/2-FULL


    -Signal: 0-190ohm,240-33ohm

    -Working Voltage: 9-32V


    -Backlight: Red


    Package Includes:


    1x Fuel Level Gauge

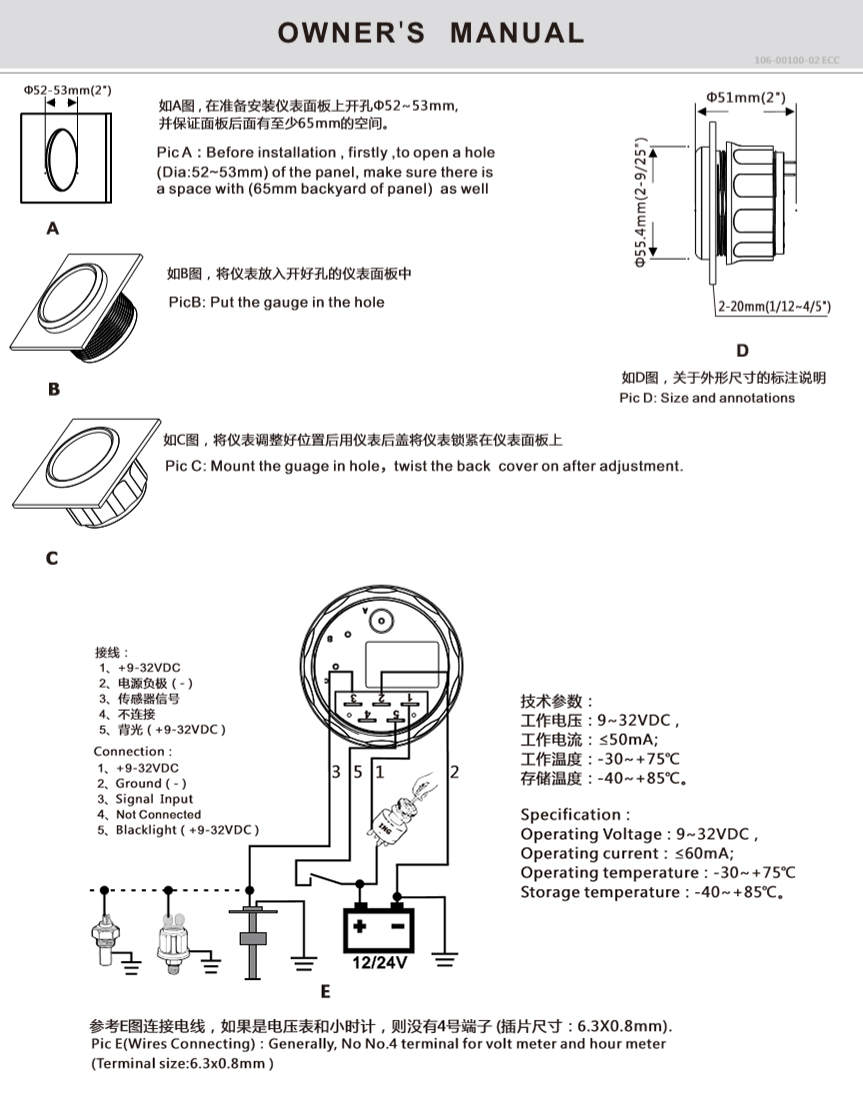

    1x Installation Instruction

    Inquiry Us
