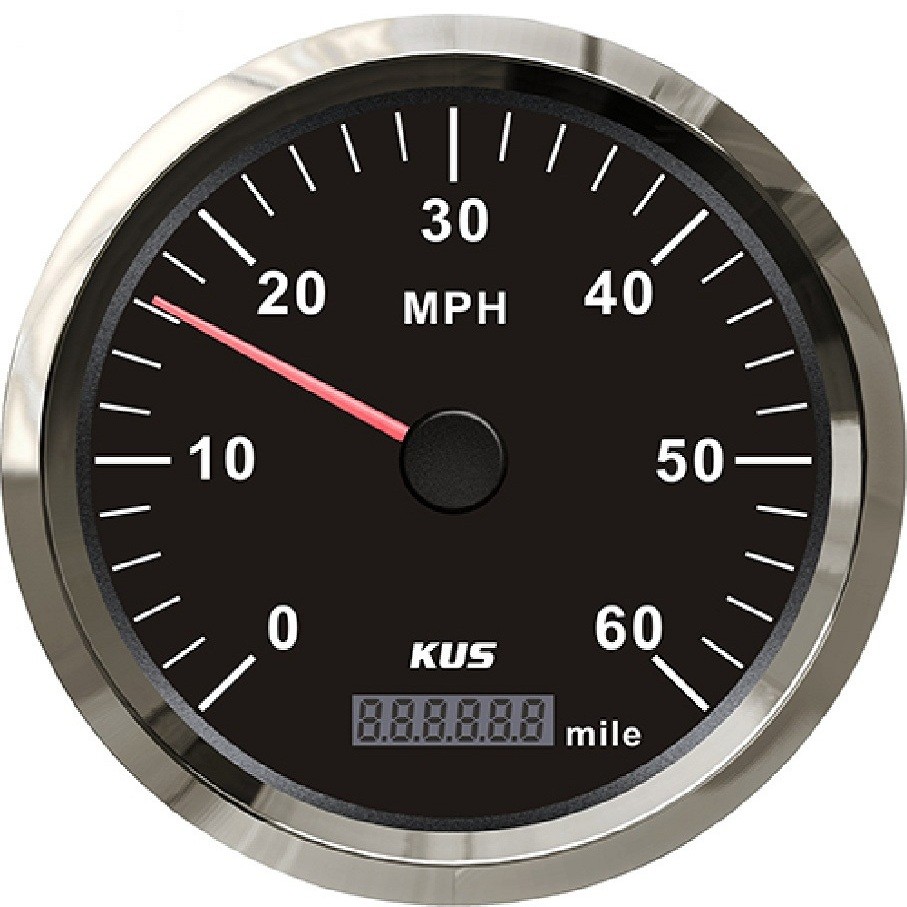

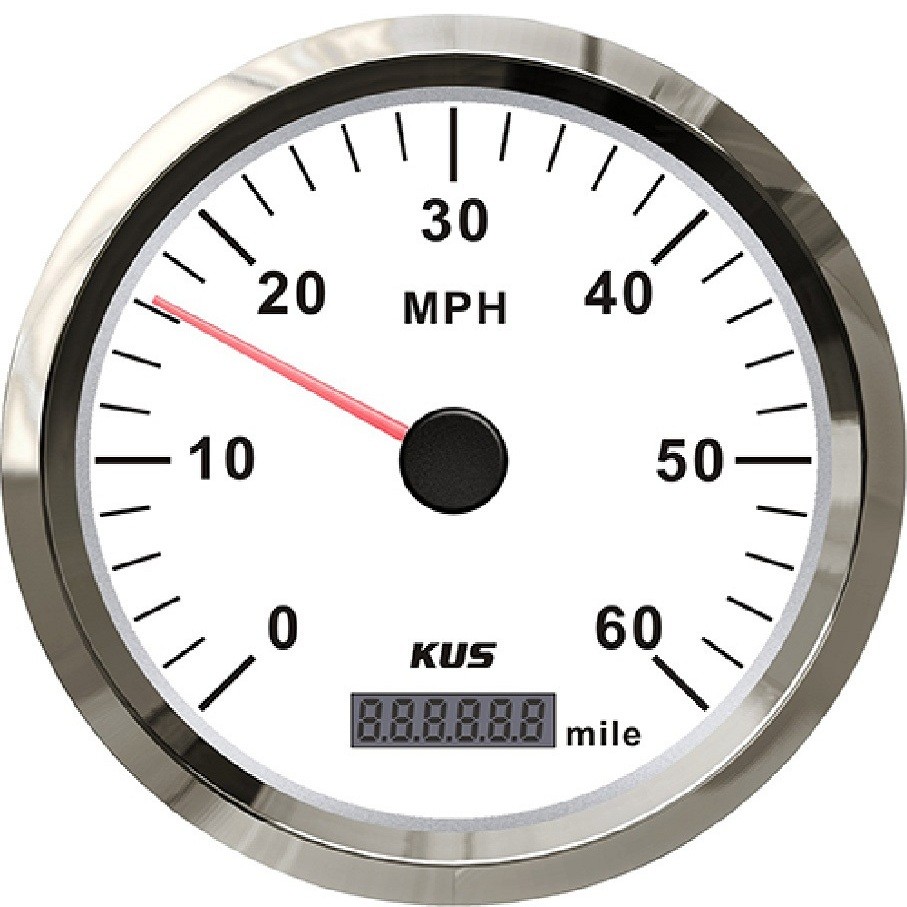

  5. KUS SV 110mm GPS Speedometer 60MPH
  • KUS SV 110mm GPS Speedometer 60MPH
  • KUS SV 110mm GPS Speedometer 60MPH
KUS SV 110mm GPS Speedometer 60MPH KUS SV 110mm GPS Speedometer 60MPH

KUS SV 110mm GPS Speedometer 60MPH

  • Product Item:SV 110mm GPS Speedometer 60MPH
  • Installation Dimension: 110mm
  • Indicating Range:0-60MPH
  • Backlight: Red or Yellow Optional
  • Working Voltage: 9-32V
  • GPS Speedometer  , 60MPH  , Speed Gauge
    Inquiry Send Email

    Description

    Features:


    -Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display current speed, and with the LCD display clear display mileage, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on.


    -Speed odometer using stepper motor drive pointer, accurate display of current speed, and with the LCD display clear display odo.


    Specifications:


    -Materials: stainless steel+nickel-plated plastic


    -Operating Voltage: 12V/24V


    -Connection: Red-Battery(+9-32VDC) Blue-Battery(-) Orange/Yellow-Backlight(+9-32VDC)


    -Indicating Range: 0-60MPH


    -Total Mileage Range 0-99999.9miles ,The total mileage is accumulated and will not be cleared when power off.


    -Input Signal: GPS signal, with GPS antenna


    -Protection Class: IP67, can work underwater 1m position


    Package Includes:


    1 x GPS Speedometer


    1 x Cable


    1 x GPS Antenna


    1 x Installation Instruction
