Description
Function:
1.Suitable for all vehicles and off-road vehicles
2.The measuring device is characterized by high precision and short start-up time.
3.IP67 waterproof and dustproof
4.Reverse polarity protection and anti-fog performance
5.Stepper motors are used for the full range of pedometers, excellent function with lower power consumption, longer life, higher precision, etc.
Specification:
-Mounting dimension: 85 mm (3-3/8")
-Display range: 0-3000 rpm/0-4000 rpm/0-6000 rpm/0-8000 rpm and 0-10 bar and 40-120 degrees
-Hour counter: 0-99999 .9H
-Working voltage: 9-32VDC
-Speed ratio: 1.0-360 adjustable

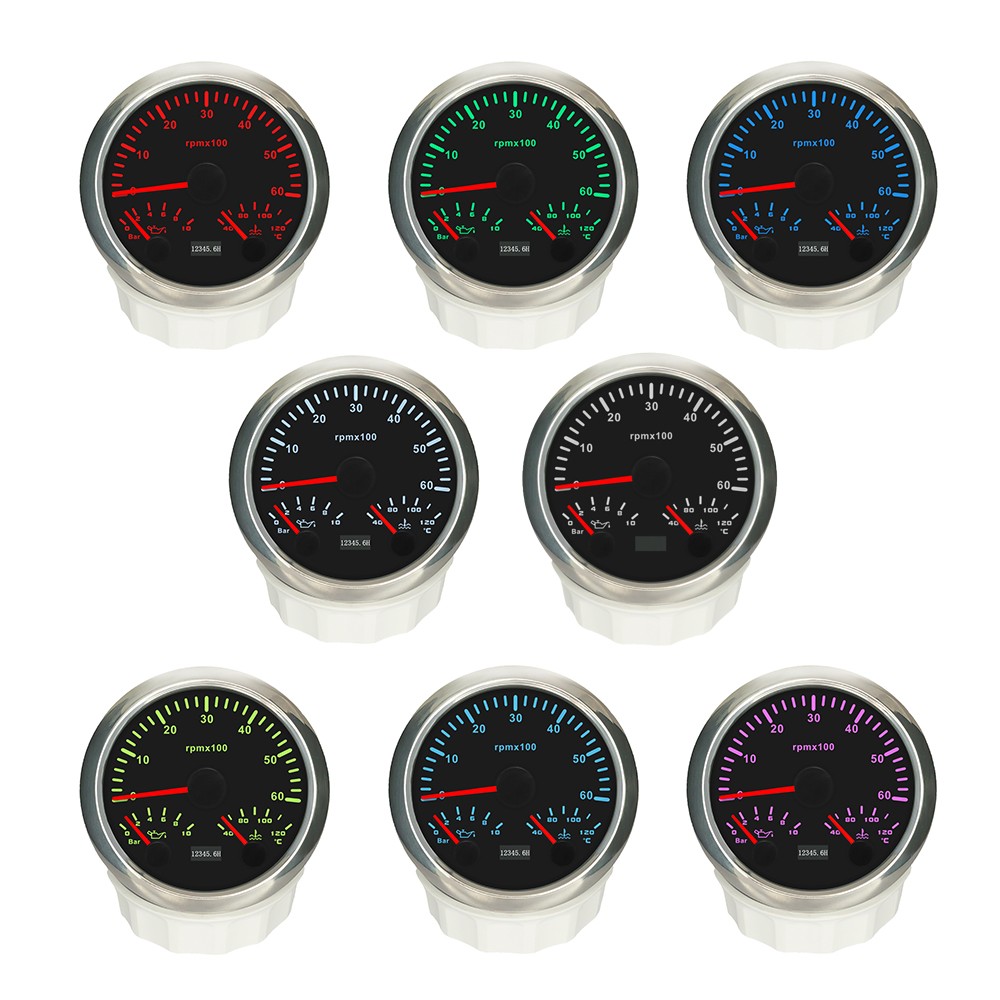

-Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)
-Working temperatures: - 30 to 80 °C
-Operating mode: LCD display, stepper motor
The package includes:

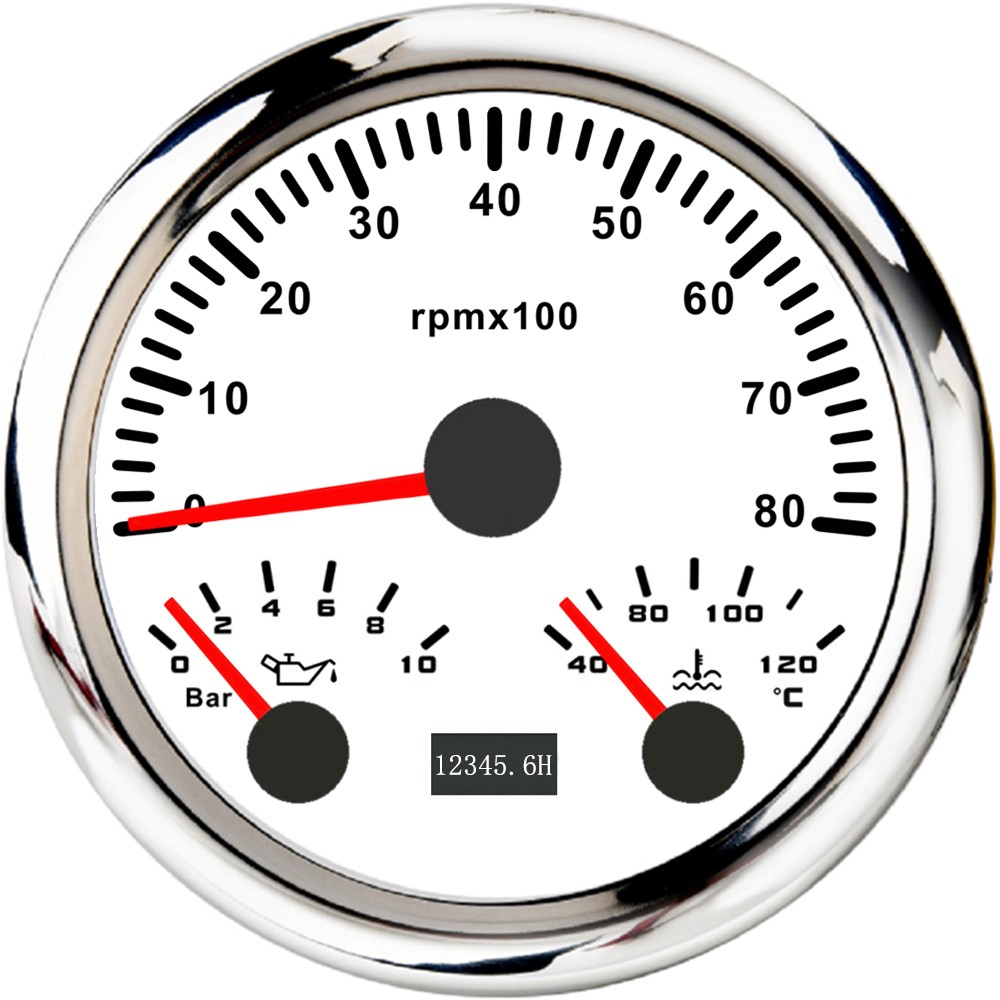

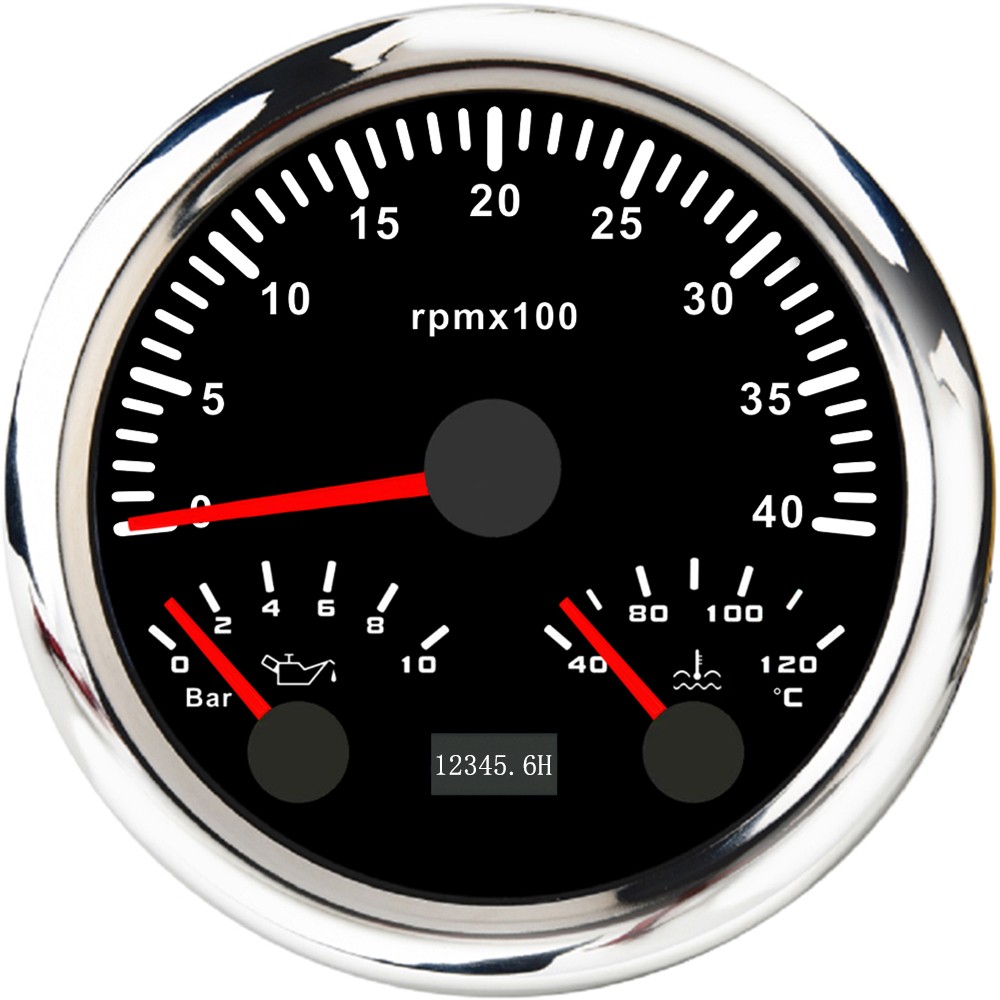

1x 3-in-1 multifunctional Gauge
2x multiple socket
