  • ELING ECH Water Level Meter
  • ELING ECH Water Level Meter
  • ELING ECH Water Level Meter
  • ELING ECH Water Level Meter
ELING ECH Water Level Meter ELING ECH Water Level Meter ELING ECH Water Level Meter ELING ECH Water Level Meter

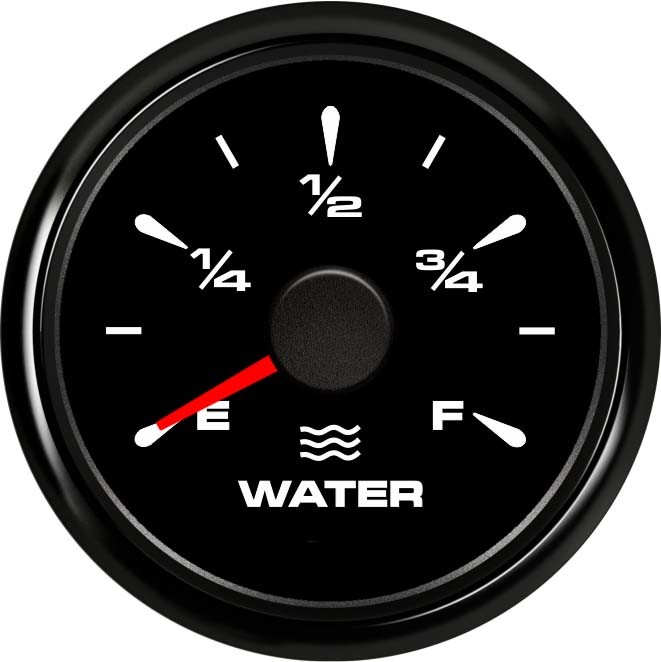

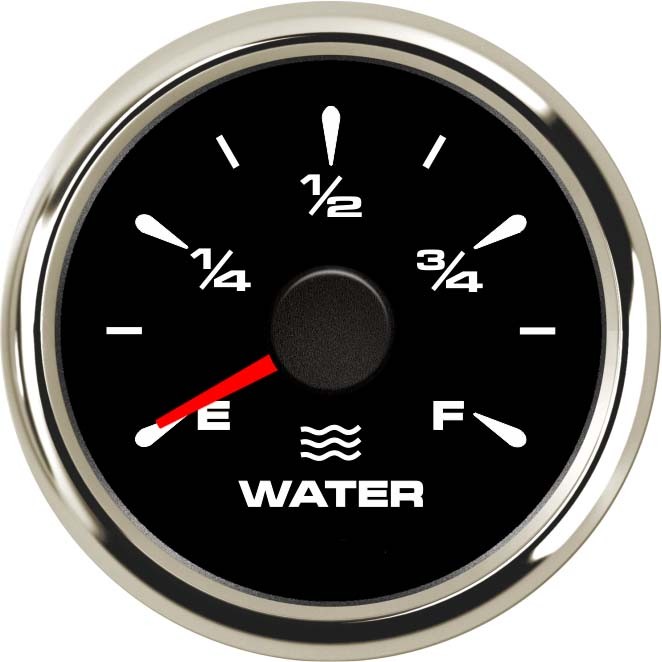

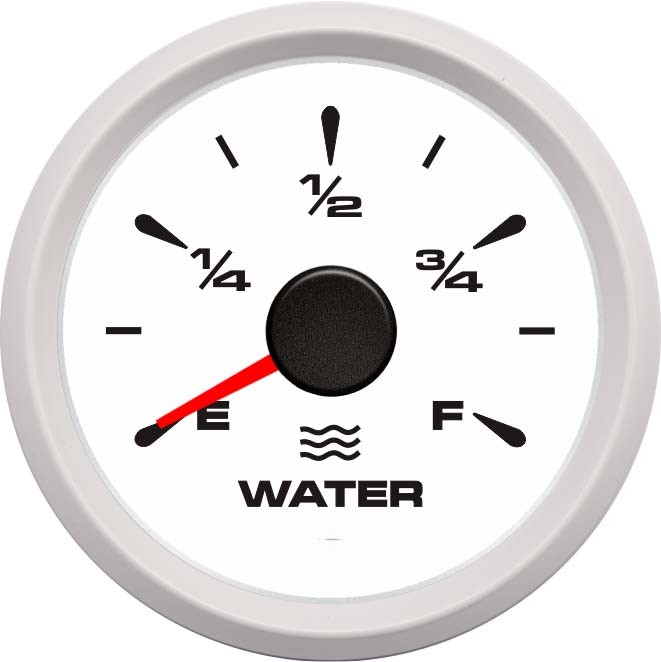

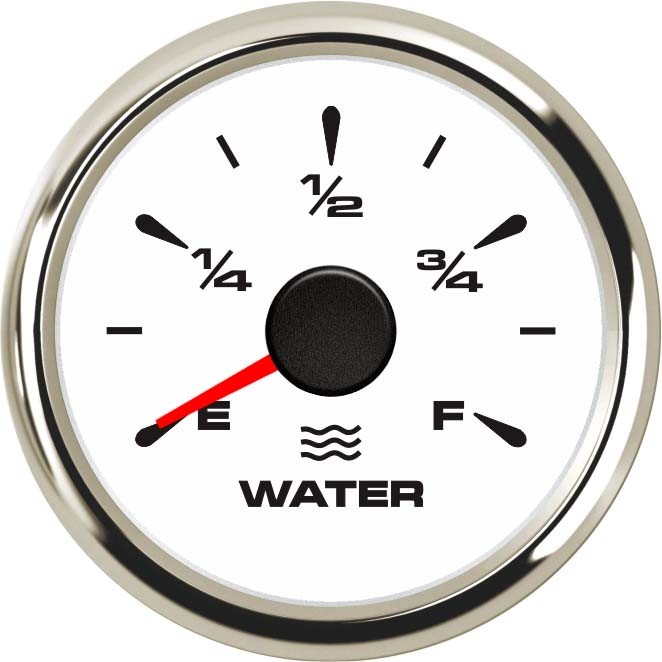

ELING ECH Water Level Meter

  • Product Item:ELING ECH Water Level Meter
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight: 8 Colors
  • water level gauge  , water level meter
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of water level sensors with same signal, and display liquid level of the water tank

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Specifications:

    -Name: Water Level Gauge

    • -Materials: stainless steel+nickel-plated plastic

    • -Operating Voltage: 9-32V

    • -Indicating Range: E-1/4-1/2-3/4-F

    • -Input signal: 0-190ohm/240-33ohm(Parameters Adjustable)

    • -Connectioning: Red-Battery(+9-32VDC) Blue-Battery(-)  Black-Signal Orange-Blacklight(+9-32VDC)

    • -Backlights: 8 colors

    • -Protection Class: IP67,can work underwater 1m position


    Package Included:

    • 1 x Water Level Gauge

    • 1 x Cable

    • 1 x Owner's Manual
