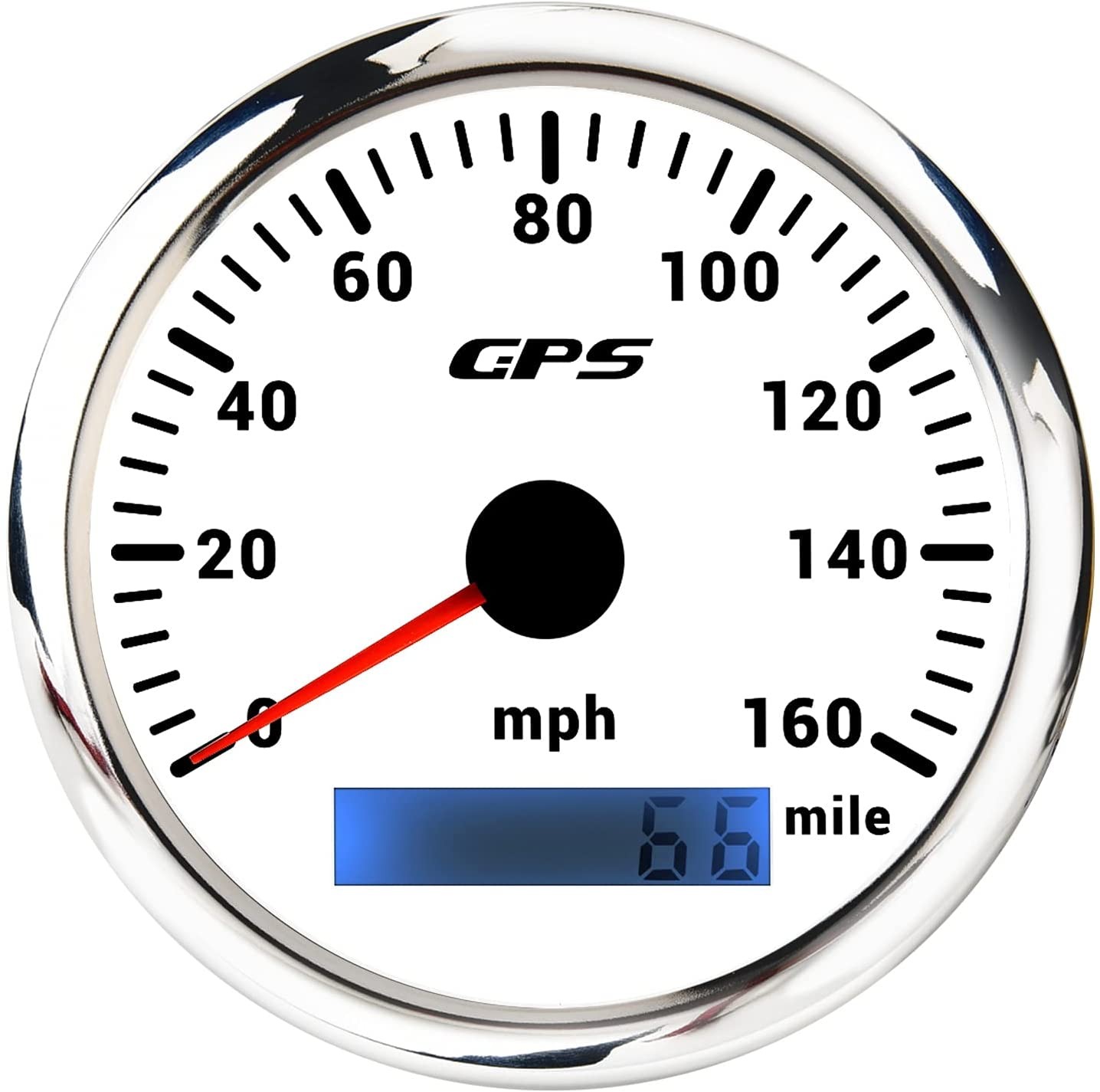

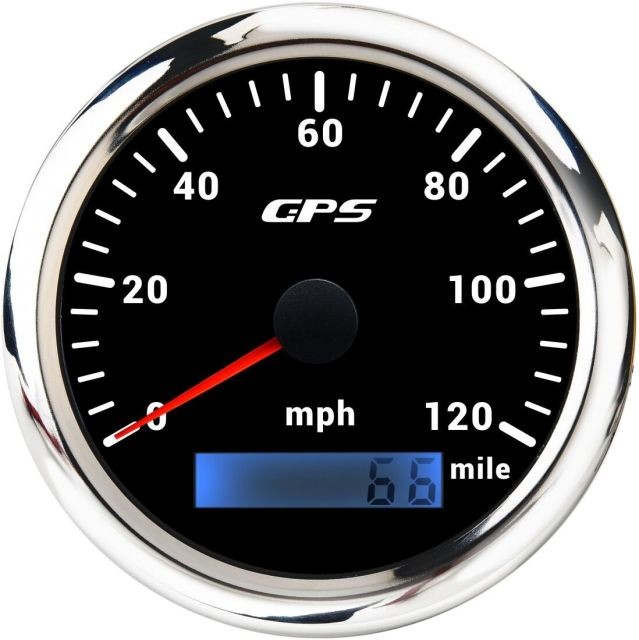

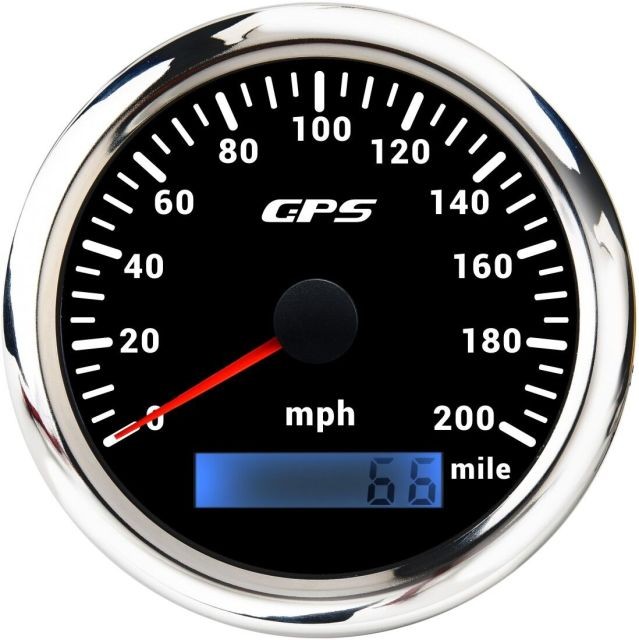

  • ELING CX GPS Speedometer 120MPH 160MPH 200MPH
  • ELING CX GPS Speedometer 120MPH 160MPH 200MPH
  • ELING CX GPS Speedometer 120MPH 160MPH 200MPH
  • ELING CX GPS Speedometer 120MPH 160MPH 200MPH
ELING CX GPS Speedometer 120MPH 160MPH 200MPH ELING CX GPS Speedometer 120MPH 160MPH 200MPH ELING CX GPS Speedometer 120MPH 160MPH 200MPH ELING CX GPS Speedometer 120MPH 160MPH 200MPH

ELING CX GPS Speedometer 120MPH 160MPH 200MPH

  • Product Item:CX GPS Speedometer 120MPH 160MPH 200MPH
  • Fixing dimension:85mm(3-3/8
  • Speedometer Range:0-120MPH,0-160MPH,0-200MPH
  • Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple)
  • Working Voltage:9-32V
  • gps speedometer  , MPH speedometer  , odometer
    Inquiry Send Email PDF

    Description

    Feature:


    -High-brightness LED backlight.


    -316 stainless steel for long-term use even in acid-base, humid environment.


    -IP67 waterproof and dust-proof grade.


    -With curved glass (with anti-fog function).


    -Suitable for all kinds of vehicle modification.


    -Using stepper motor drive pointer, accurate display of the engine speed, and with the LCD display clear display mileage.


    Specification:


    - Installation Diameter: Φ85mm or 3-3/8"


    - Function: Current speed and accumulative ODO(record the mileage after power off)


    - Material: Stainless Steel 316L Bezel + Anti-fog Glass


    - Speedometer indicating range:0-120MPH,0-160MPH,0-200MPH


    - Total mileage:0-999999miles(record the mileage after power off)


    - Signal: GPS


    - Working Voltage: 9~32V DC


    - Working Current: ≤100mA


    - Operating Temperature: -30℃ ~ 75℃


    - Storage Temperature: -40℃ ~ 85℃


    - IP67 waterproof and dustproof grade


    Package Includes:


    1X GPS Speedometer


    1X GPS Antenna


    1X Installation Instruction
