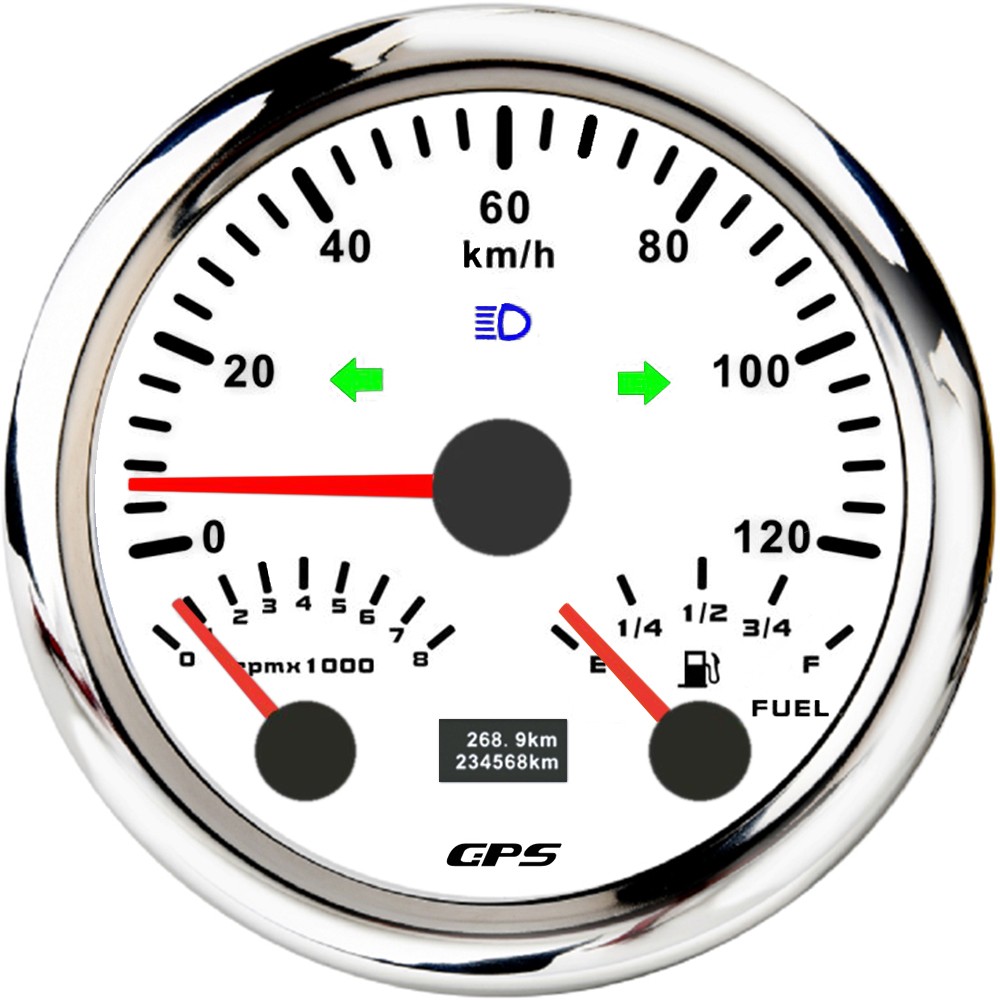

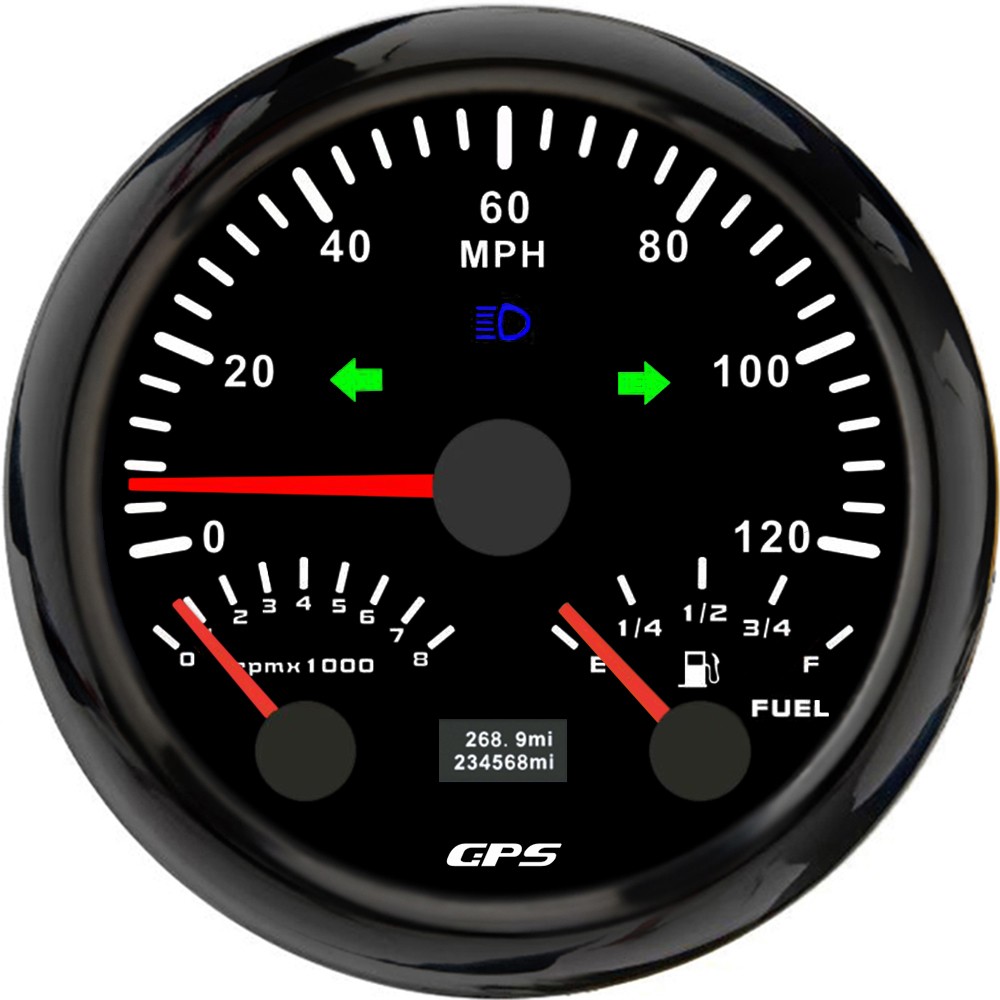

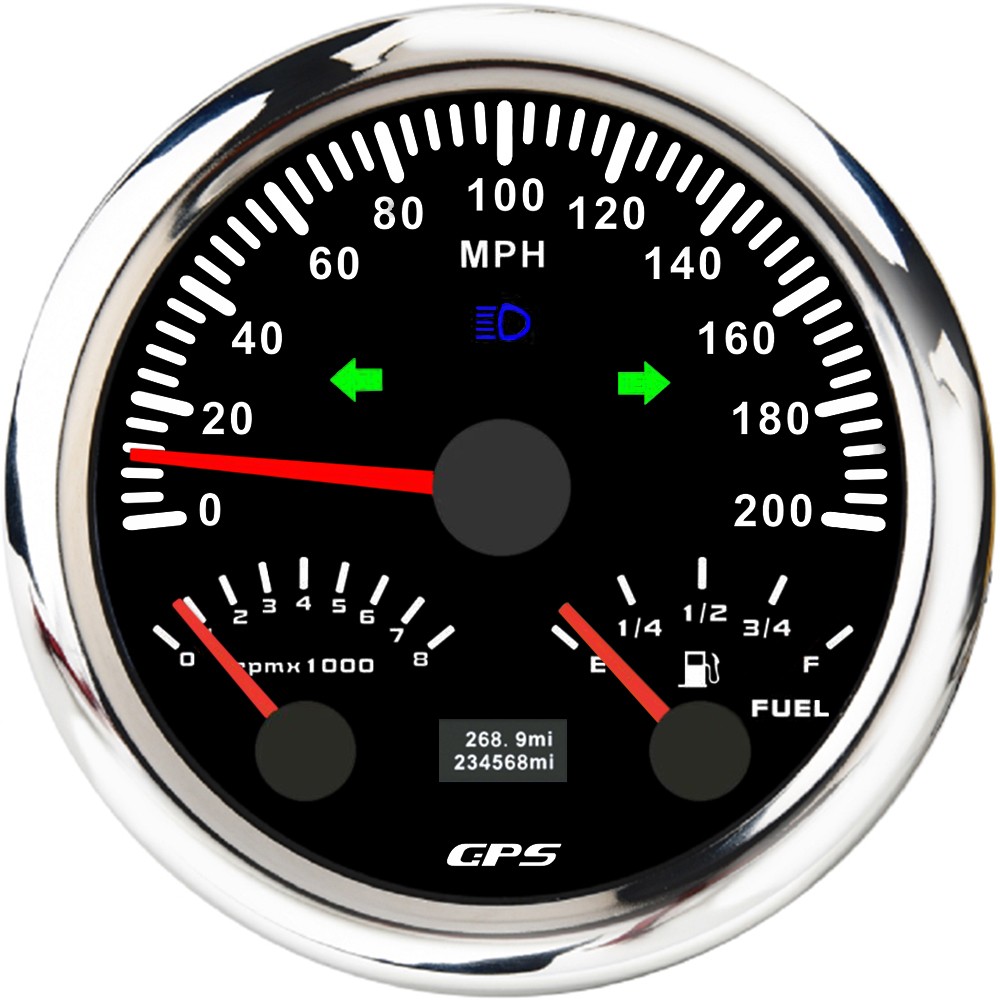

ELING CX GRF 85mm Multifunction Gauge

  • Product Item:CX GRF 85mm Multifunction Gauge
  • Mounting dimension: 85 mm (3-3/8")
  • Display range: 0-120km/h,0-200km/h,0-120mph,0-200mph
  • Working voltage: 12V/24V
  • Backlight: 7 backlights available
  • 85mm Multifunction Gauge  , Multifunction Gauge  , 85mm Gauge Meter
    Inquiry Send Email PDF

    Description

    Function:


    1.Suitable for all vehicles and off-road vehicles


    2.The speedometer signal comes directly from the satellite signal receiver (GPS antenna), no other speed sensor required. The tachometer must receive a speed signal.The fuel level meter must receive a fuel level signal


    3. The measuring device offers the advantages of high precision, quick location confirmation and short start-up time.


    4.IP67 waterproof and dustproof


    5.Reverse polarity protection and anti-fog performance


    6.No stationery drift


    7.Stepper motors are used for the full range of step meters, great function with lower power consumption, longer lifespan, higher precision etc.


    Specification:


    -Mounting dimension: 85 mm (3-3/8")


    -Display range: 0-120km,0-200km,0-120mph,0-200mph and 0-8000 rpm and E-1/4-1/2-3/4-F


    -Working voltage: 12V/24V


    - Fuel level gauge signal:10-180ohm,240-33ohm,0-190ohm,0-90ohm,240-30ohm


    -Trip odometer range: 0-999.9 km or 0-999.9 miles


    -ODO mileage range: 0-999999 km or 0-999.9 miles


    -Speed ratio:1.0-360


    -Overspeed buzzer alarm (value adjustable)


    -Indicator light: LEFT , HIGH BEAM, RIGHT


    -Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)


    -Working temperatures: - 40 to 85 °C


    -Operating mode: LCD display, stepper motor


    Package includes:


    1x 3in1 Multifucntion Gauge


    1x GPS antenna


    1x multiple socket


    1x installation instructions
