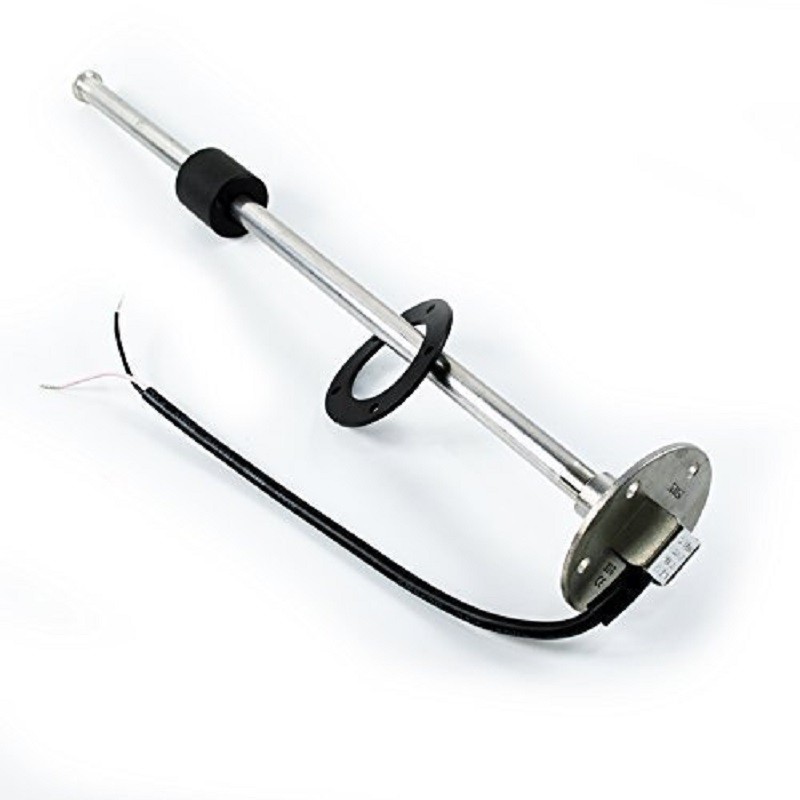

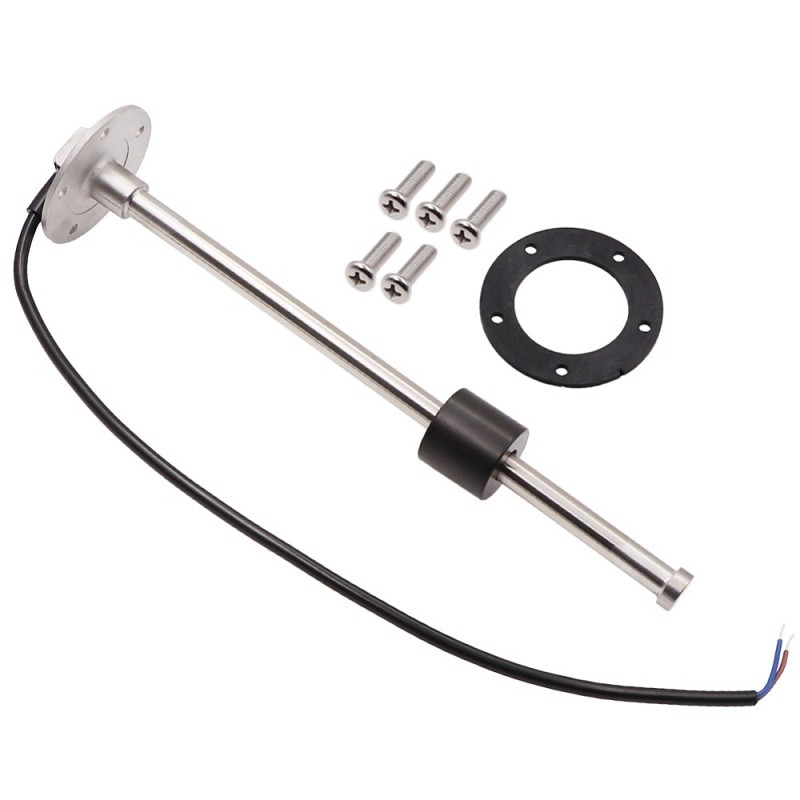

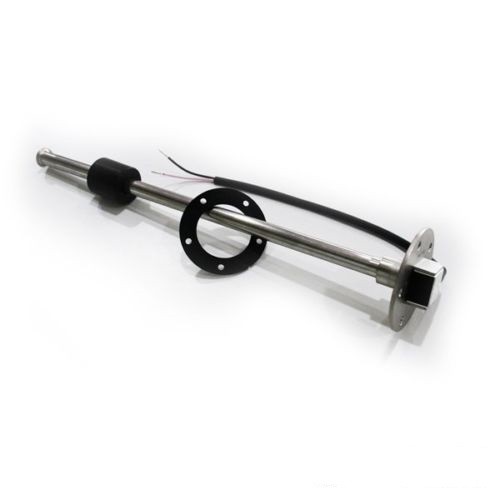

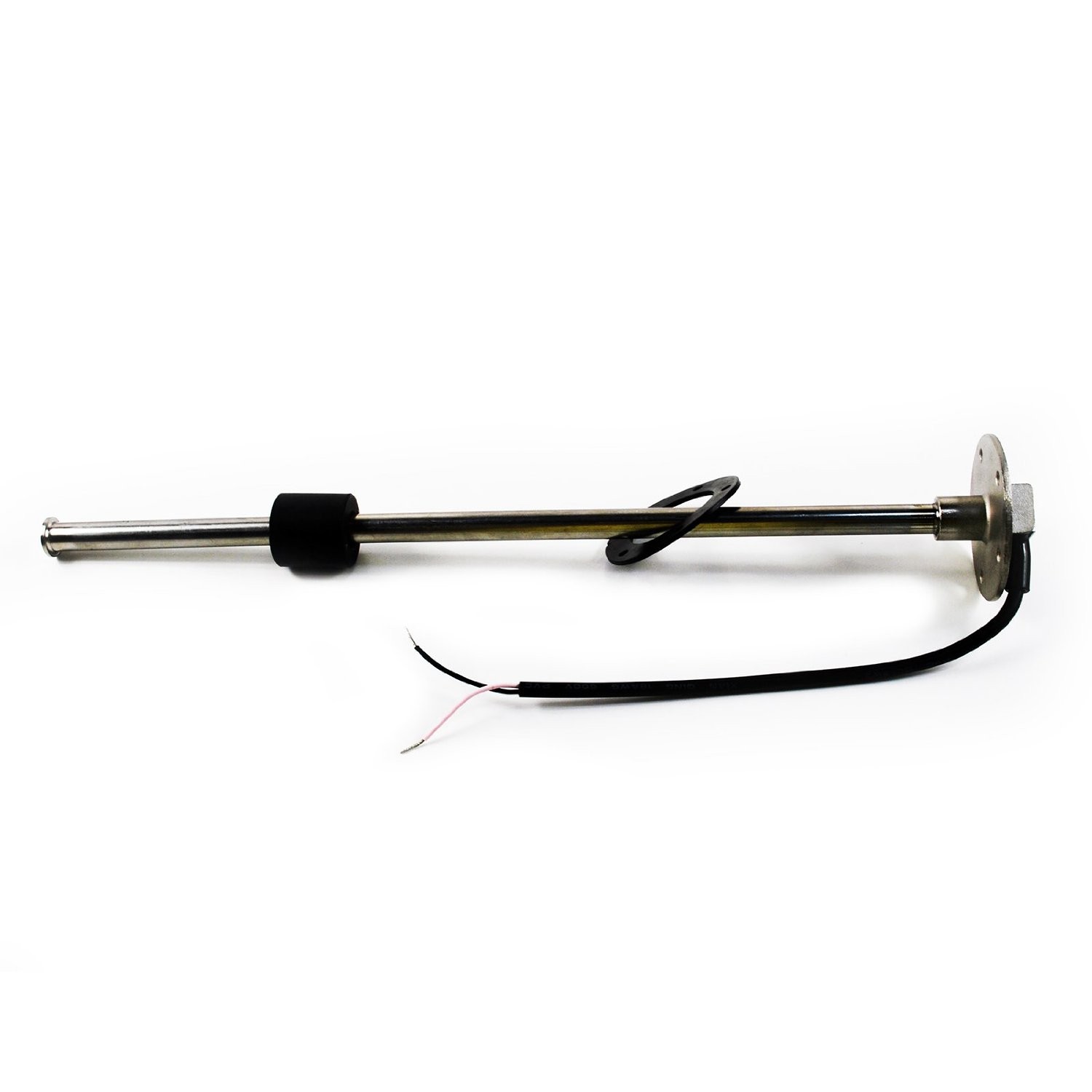

S5 Fuel and Water Level Sensor

  • Product Item:Level Sensor
  • Fuel Level Sensor
  • Water Level Sensor
  • 5 Holes Level Sensor
  • 0-190ohm 240-33ohm
  • 0-190ohm  , 240-33ohm  , 5 Holes Level Sensor  , Fuel Level Sensor  , Water Level Sensor
    Inquiry Send Email PDF

    Description



    Feature:

    Suitable for truck, generators/genset, bus and marine field

    Widely used in fuel, water, kerosene and chemical tanks

    OEM quality, widely used on automotive and marine OEMs

    Reed switch, steady output signal

    Simple and strong structure , Advanced corrosion resistance

    Long using life, anti-vibration,anti-explosion

    High quality fuel and water level sensor

    Economical level sensing solution, long service lifespan

    Without limitation of environment,length can be customized



    Specifications:



    Material: SUS316 or SUS304 stainless steel

    Length range: 100 to 3,000mm for standard (can be customized)

    Assembly: SAE standard 5 holes

    Mounting: 5 pieces of M5 screws and 2 mm thick gasket

    Various types of flanges are available for fitting fuel tank if necessary

    Connector: Brand Delphi,Tyco or others is available according to customer’s Requirement

    Supply voltages: 10V to 32V

    Rated current for alarm switch: 500mA

    Output signal: 0-190ohm, 240-33ohm, 4-20mA, 0-20mA, 0-5V, 0.5-4.5V or customized

    Resolution range: 10mm to 40mm

    Operating temperatures: - 40 to 85°C

    Protection rank: IP67

    Option: high/low alarm
