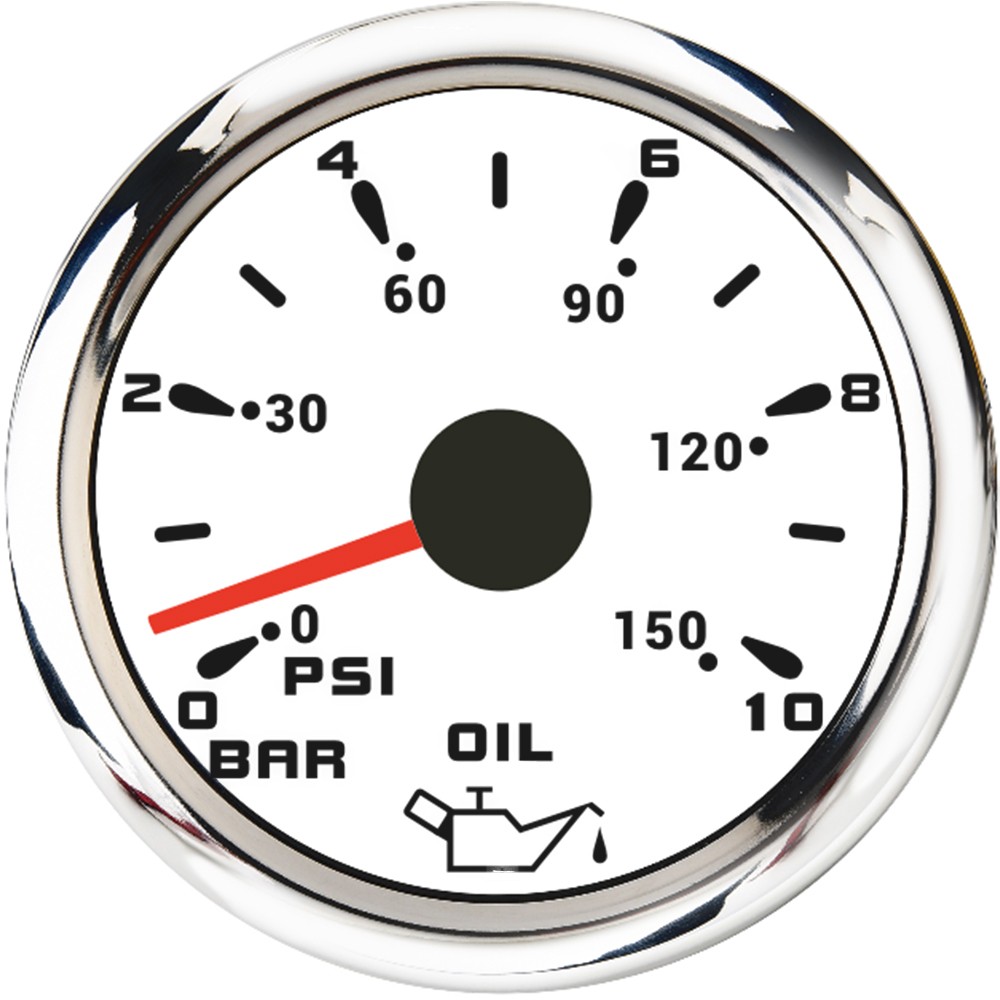

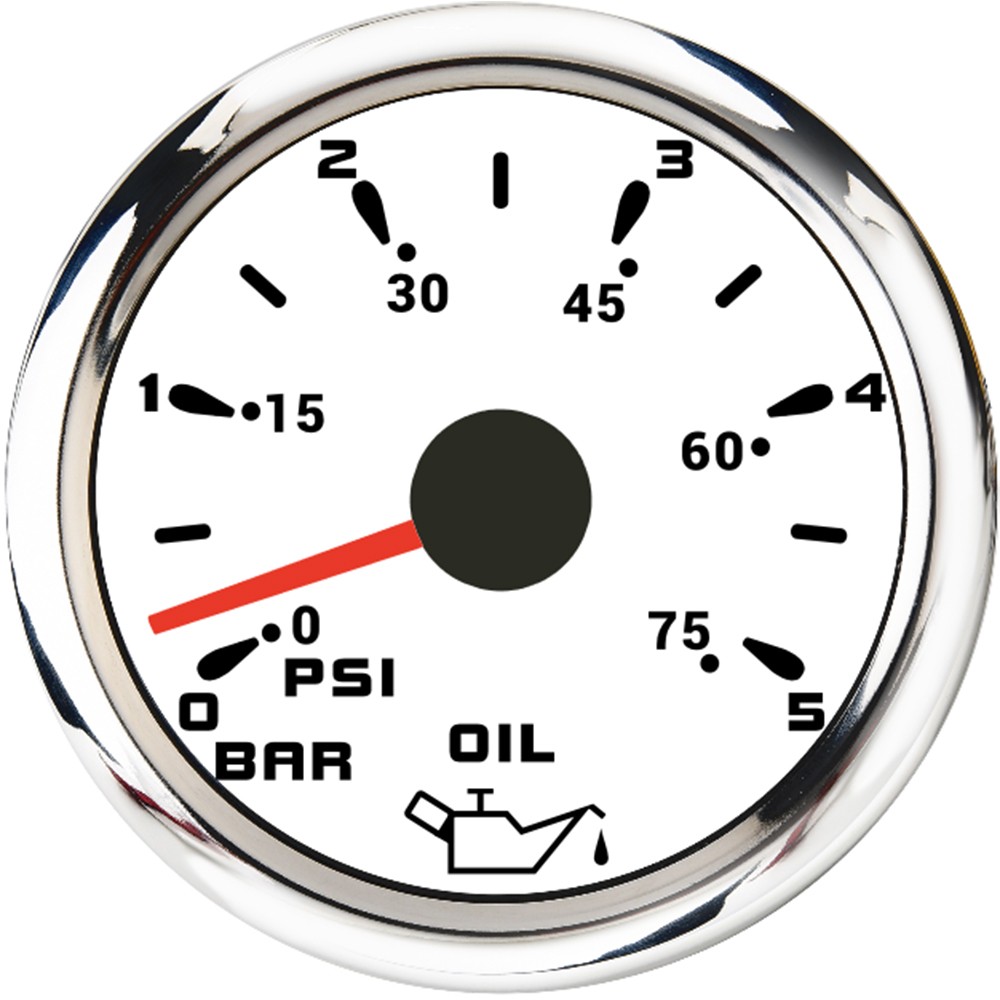

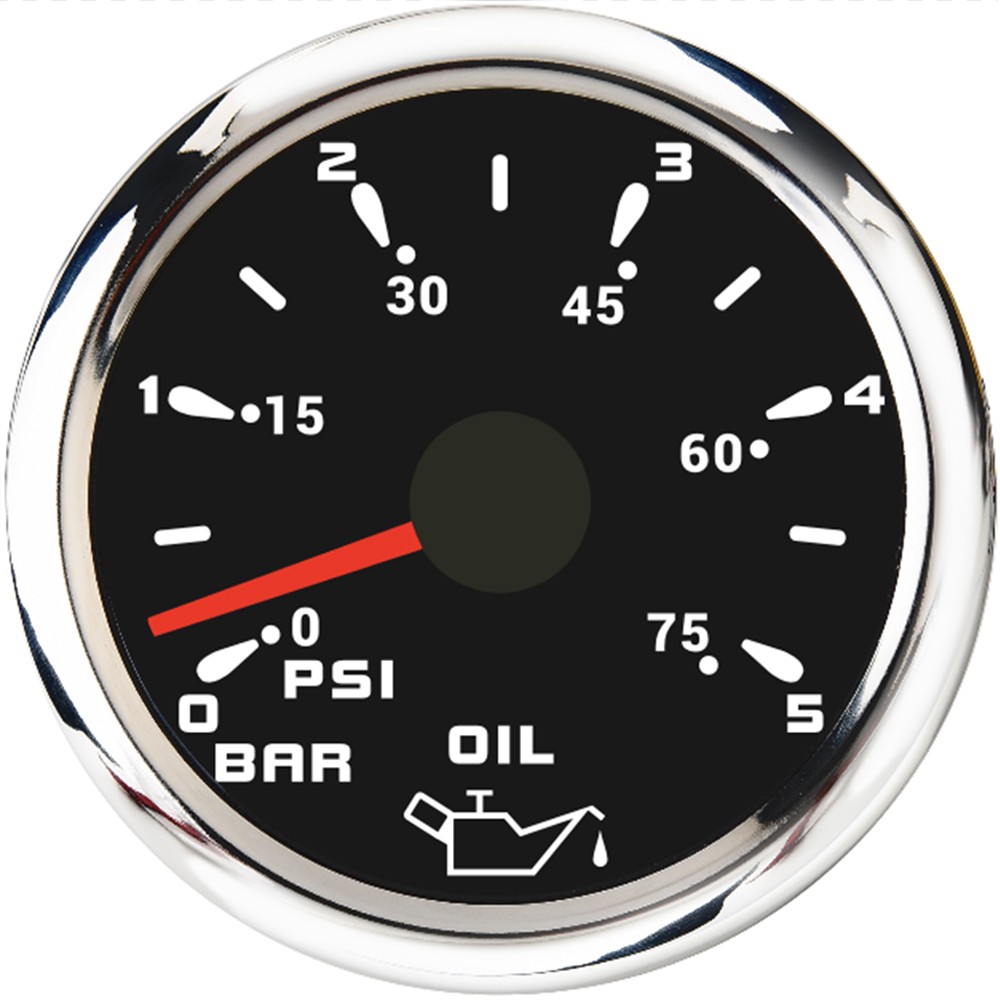

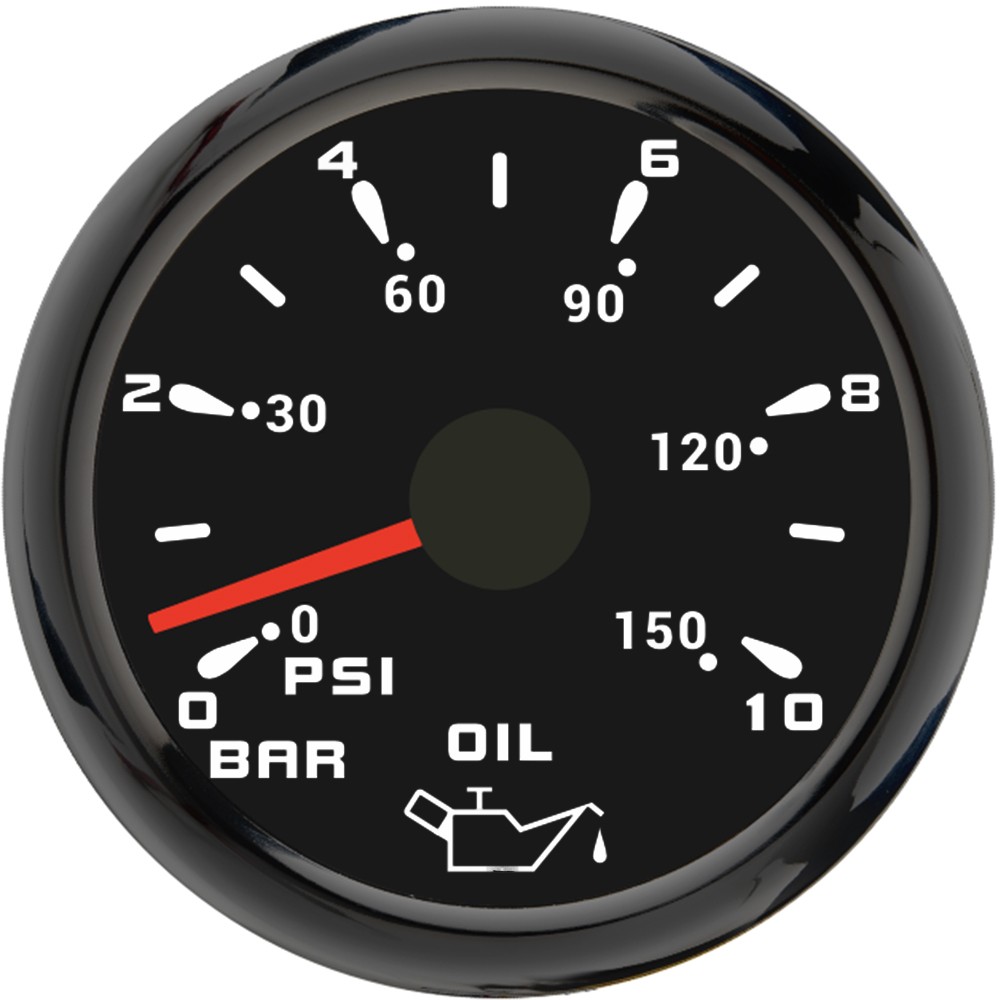

LING CX Oil Pressure Gauge

  • Product Item:CX Oil Pressure Gauge
  • Fixing dimension: 52mm(2
  • Indicating Range: 0-5bar,0-75psi;0-10bar,0-150psi
  • Working Voltage: 9-32V(12V/24V)
  • Backlight: 7 backlights available(red, green, blue, white, yellow, cyan,purple)
  • Oil Pressure Gauge  , Oil Pressure Meter  , 52mm Oil Pressure Gauge
    Inquiry Send Email

    Description

    Product Features:


    -Be suitable for all kinds of pressure sensors, and display the value of oil pressure


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 0-5bar,0-75psi;0-10bar,0-150psi


    -Signal: 10-184ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 7 backlights available(red, green, blue, white, yellow, cyan,purple)


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Pressure Gauge


    1x Cable


    1x Installation Instruction
