  5. KUS SV Fuel Level Gauge
  • KUS SV Fuel Level Gauge
  • KUS SV Fuel Level Gauge
  • KUS SV Fuel Level Gauge
KUS SV Fuel Level Gauge KUS SV Fuel Level Gauge KUS SV Fuel Level Gauge

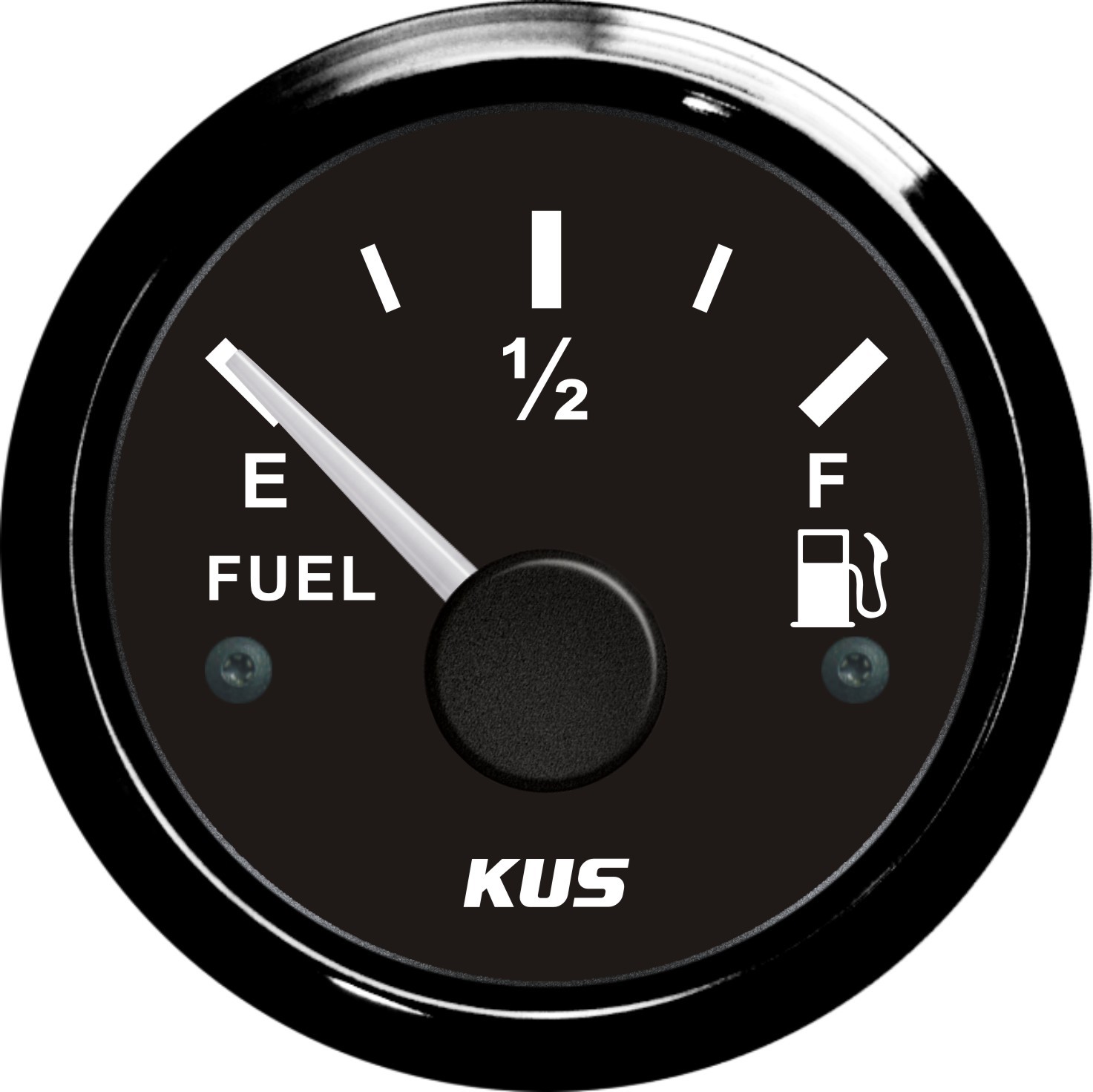

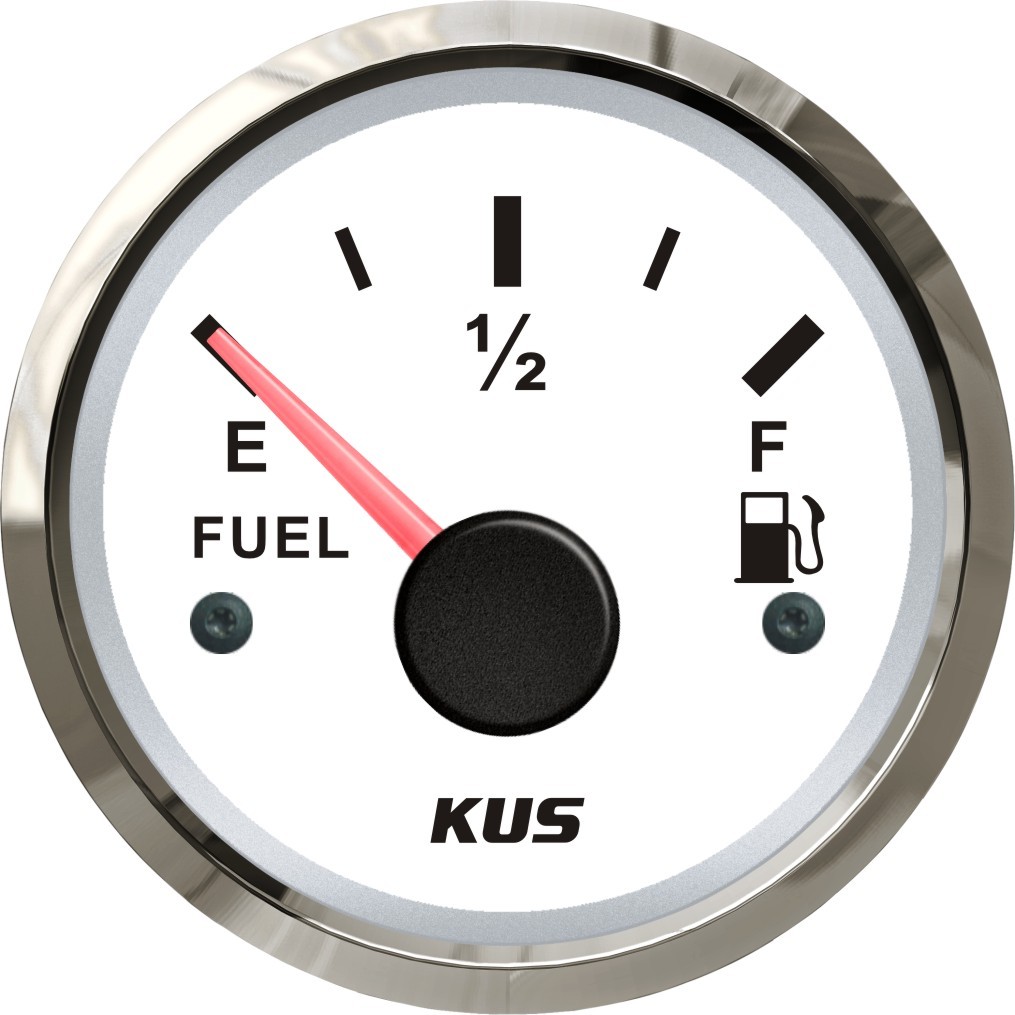

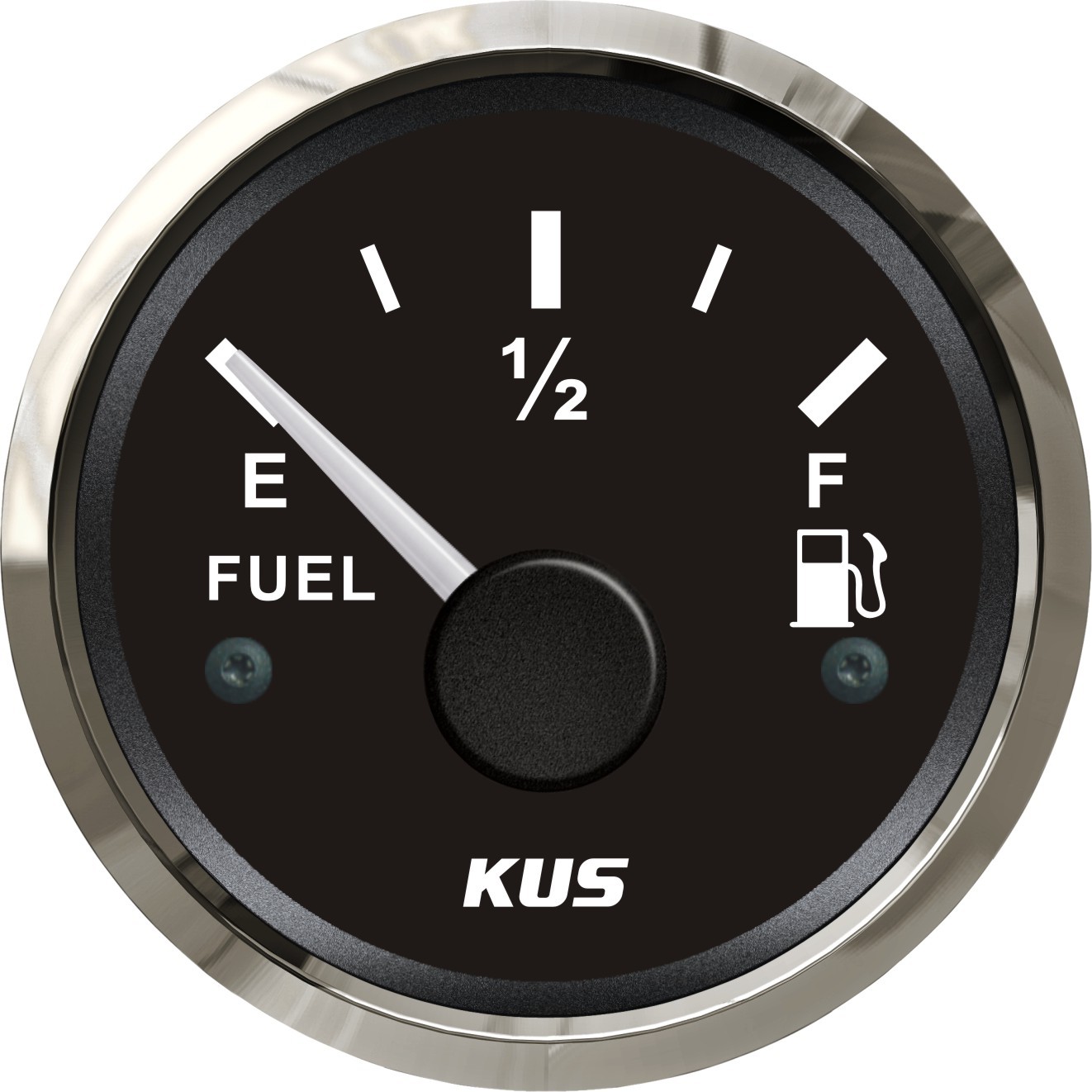

KUS SV Fuel Level Gauge

  • Product Item:KUS SV Fuel Level Gauge
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight:Red and Yellow available
  • Signal: 0-190ohm, 240-33ohm, 0-5V, 4~20mA or can be customized
  • fuel level gauge  , fuel gauge
    Inquiry Send Email PDF

    Description

    Key Features:

    -Be suitable for all kinds of fuel level sensors with same signal, and display oil level of fuel tank

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -Operating temperature: -40°C ~+85°C

    -Protection rank : IP67.



    Technical Data:

    -Fixing dimension: 52mm(2")

    -Indicating Range: E-1/2-FULL

    -Signal: 0-190ohm, 240-33ohm, 0-5V, 4~20mA or can be customized

    -Working Voltage: 12V/24V

    -Choice between red and yellow backlight

    -Operation mode: LCD display, stepper motor

    -Protection grade is IP67, the whole body is completely waterproof,can work up to 1m under water;

    -Excellent anti-fogging function;

    -316 Stainless steel bezel with curved glass;

    -Convenient Installation by multi-plug socket connecting way;


    Package Includes:

    1x Fuel Level Gauge

    1x Multi-plug socket

    1x Installation Instruction
