  • KUS SV Digital Tachometer
  • KUS SV Digital Tachometer
KUS SV Digital Tachometer KUS SV Digital Tachometer

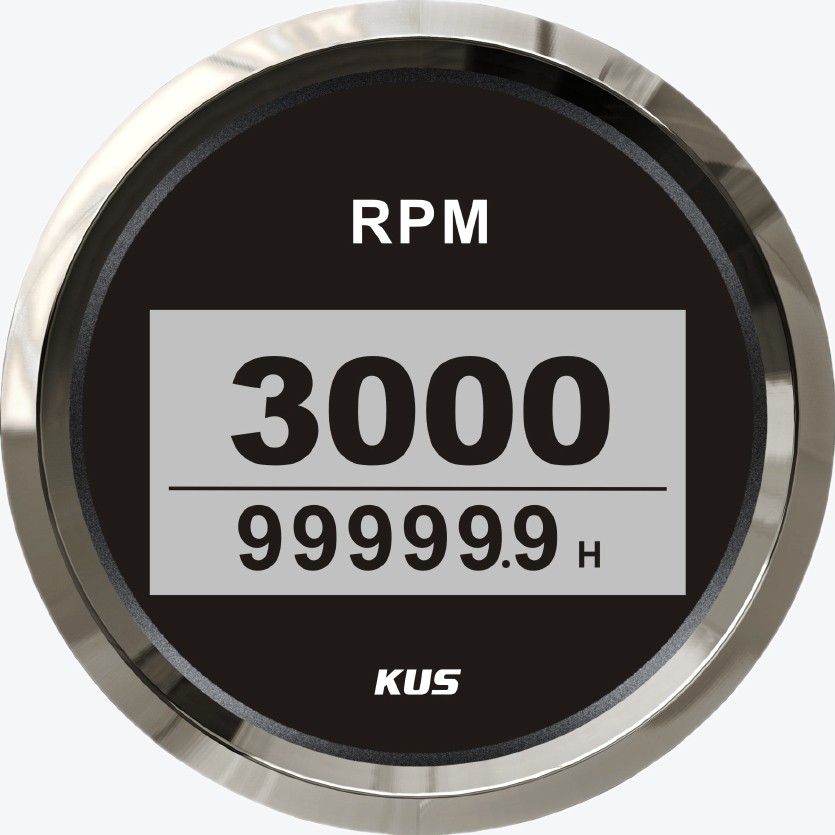

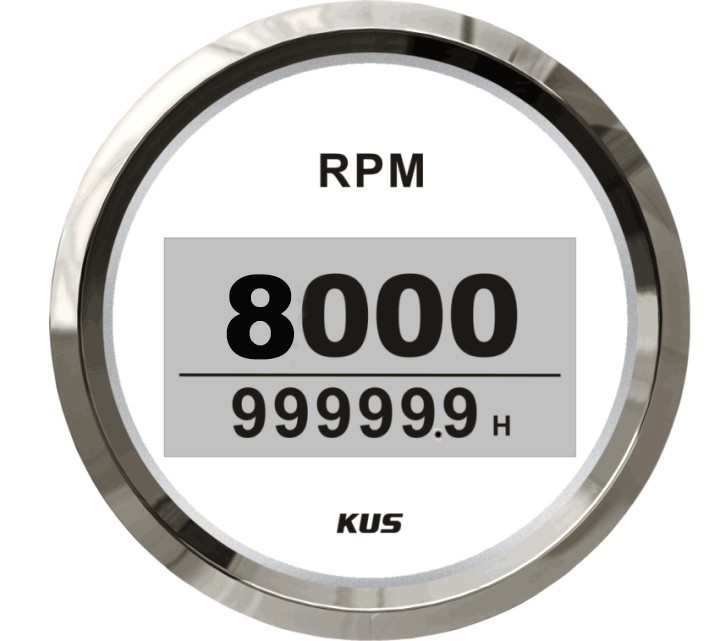

KUS SV Digital Tachometer

  • Product Item:KUS SV Tachometer
  • Installation Dimension: 85mm
  • Indicating Range:0-8000RPM
  • Backlight: Red or Yellow Optional
  • Tachometer  , Tacho Gauge  , RPM Tachometer  , RPM Gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM, and with the LCD display clear display hour, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on.


    -Tachometer using stepper motor drive pointer, accurate display of the engine RPM, and with the LCD display clear display hour.


    Specifications:


    -Materials: stainless steel+nickel-plated plastic


    -Operating Voltage: 12V/24V


    -Connection: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal, Orange/Yellow-Backlight(+9-32VDC)


    -Indicating Range: 0-8000RPM


    -Input Signal: Pulse signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.


    -Adjustable speed ratio: 0.5-250


    -Protection Class: IP67, can work underwater 1 meter position


    Package include:


    -1 x Tachometer


    -1 x Cable


    -1 x Installation Instructions
