  5. KUS SV AMP Meter/Ammeter
  • KUS SV AMP Meter/Ammeter
  • KUS SV AMP Meter/Ammeter
  • KUS SV AMP Meter/Ammeter
  • KUS SV AMP Meter/Ammeter
KUS SV AMP Meter/Ammeter KUS SV AMP Meter/Ammeter KUS SV AMP Meter/Ammeter KUS SV AMP Meter/Ammeter

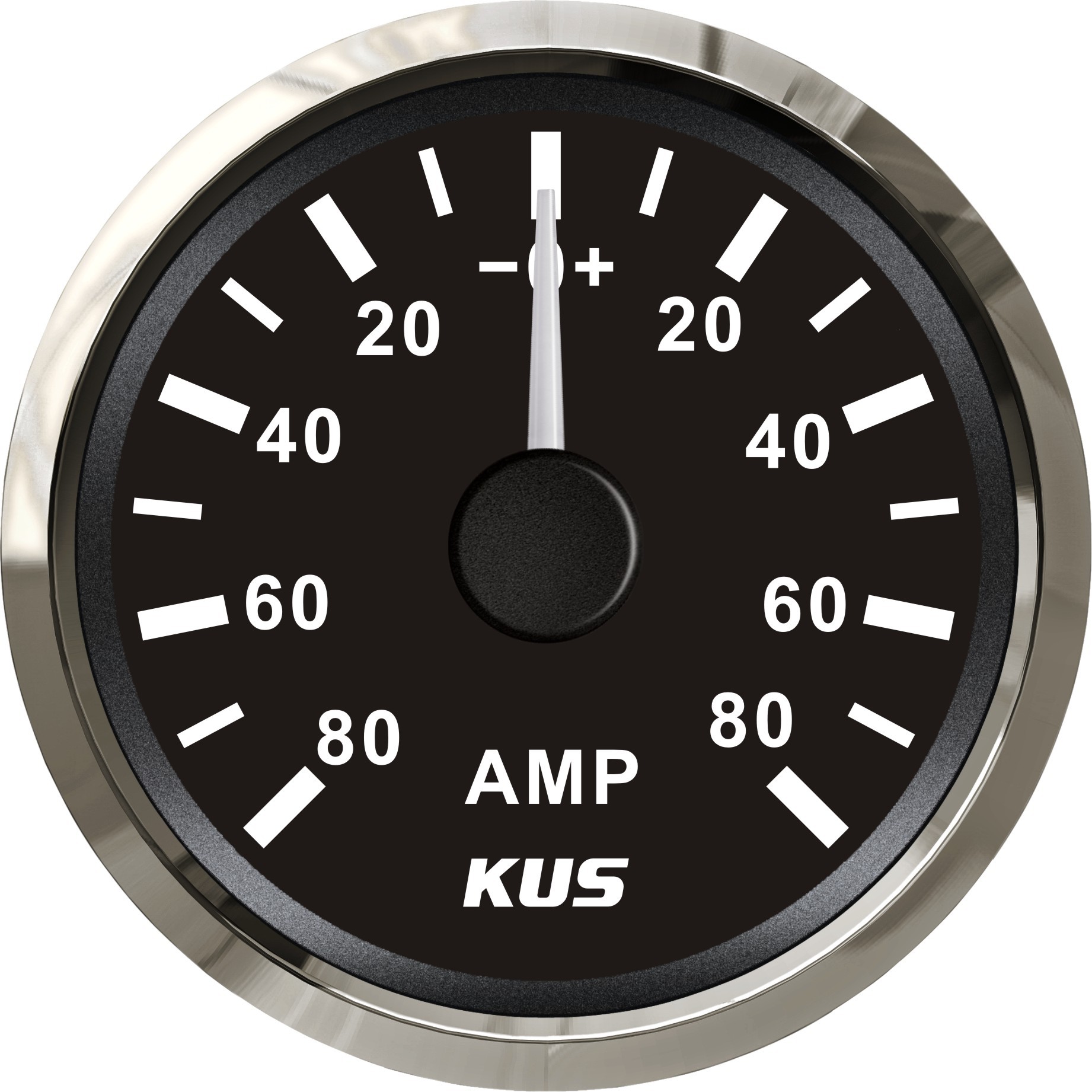

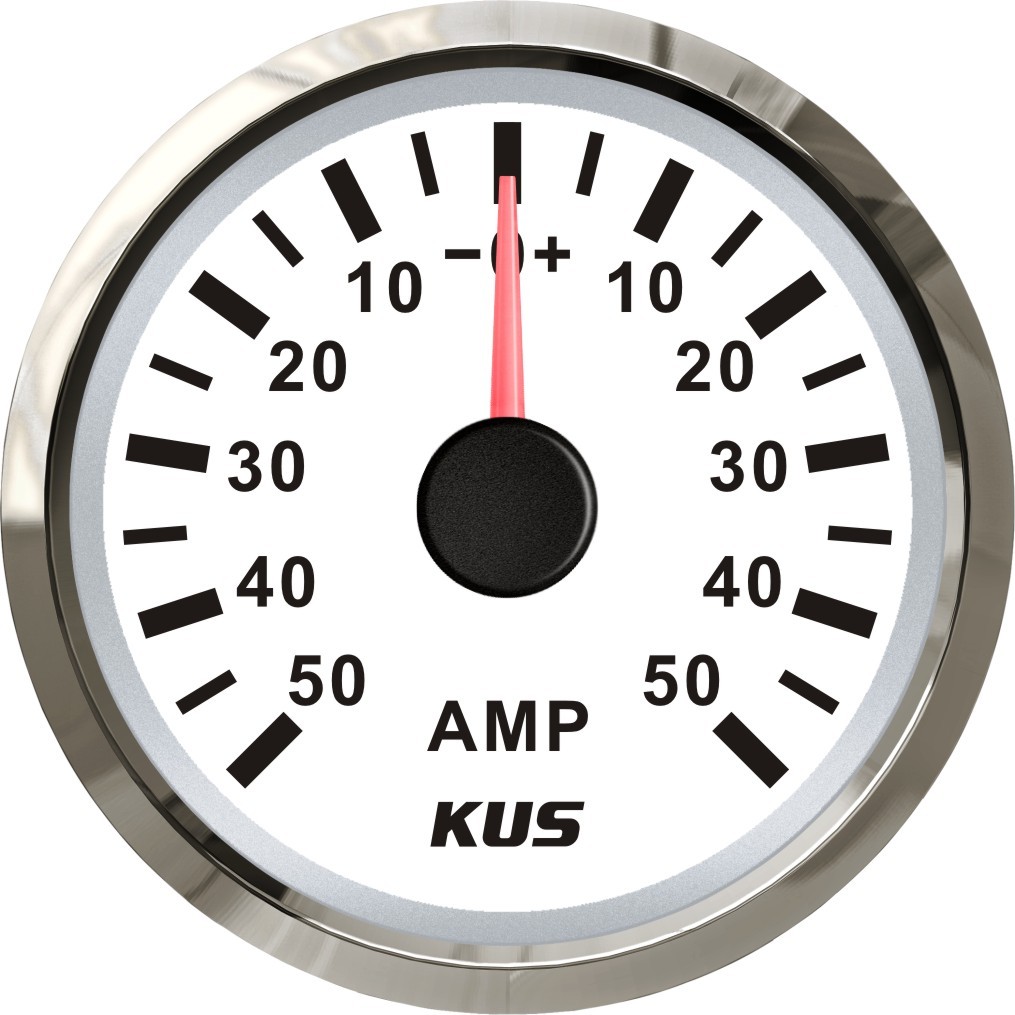

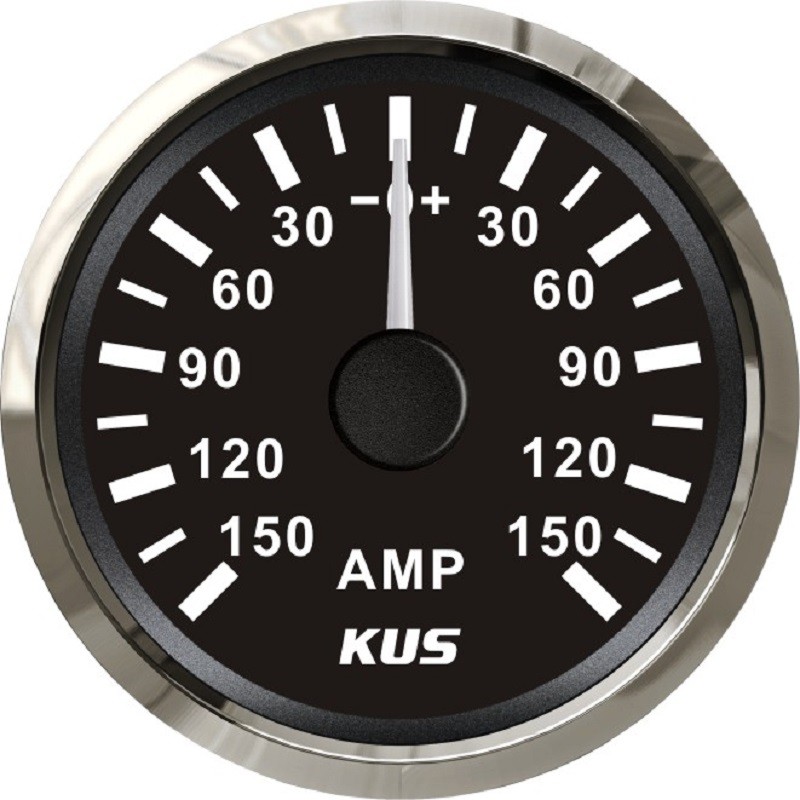

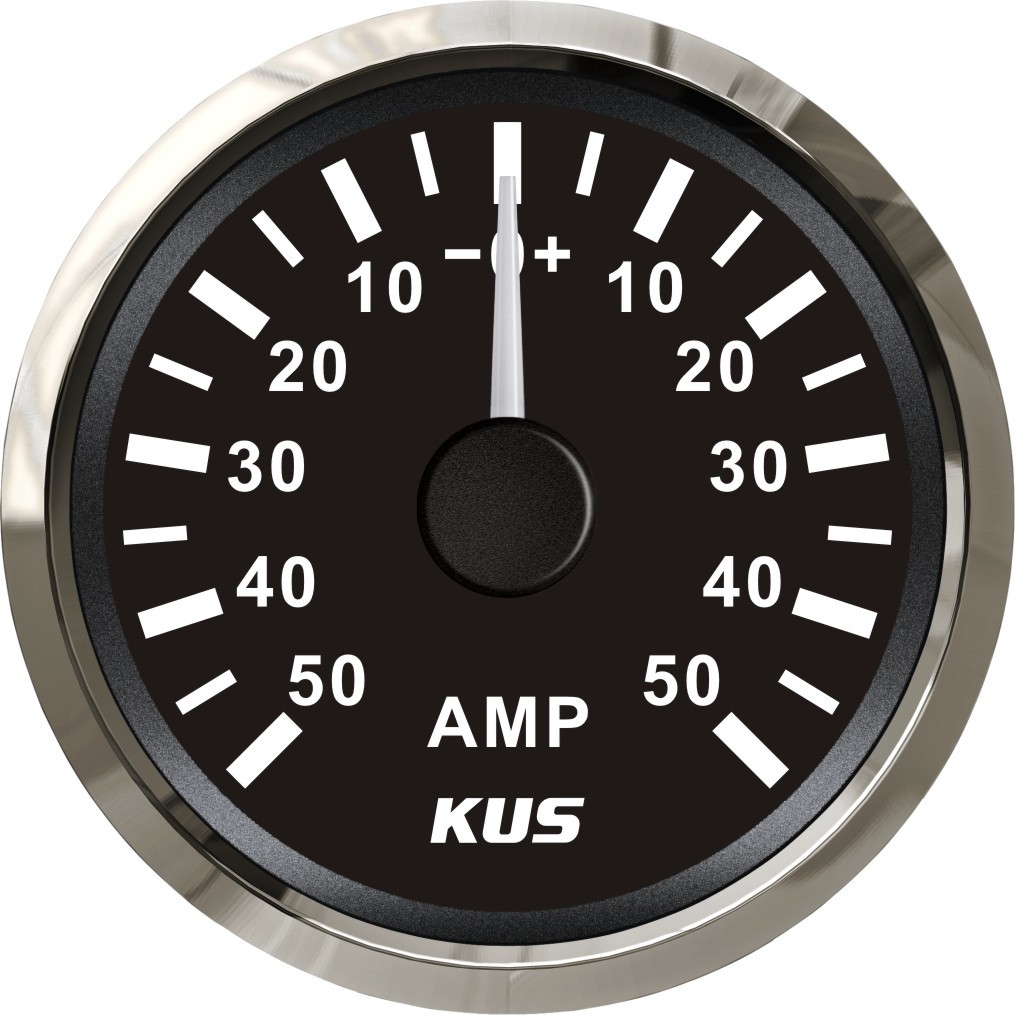

KUS SV AMP Meter/Ammeter

  • Product Item:KUS SV AMP Meter/Ammeter
  • Installation Dimension:52mm(2")
  • Working Voltage:12V/24V
  • Backlight:Red and Yellow available
  • Indicating Range:± 50A or ±80A or ±150A
  • ammeter  , digital ammeter  , amp meter
    Inquiry Send Email PDF

    Description

    Key Features:

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -Operating temperature: -40°C ~+85°C

    -Protection rank : IP67.



    Technical Data:

    -Fixing dimension: 52mm(2")

    -Indicating Range:+/-50A

    -Working Voltage: 12V/24V

    -Choice between red and yellow backlight

    -Operation mode: LCD display, stepper motor

    -Protection grade is IP67, the whole body is completely waterproof;

    -Excellent anti-fogging function;

    -316 Stainless steel bezel with curved glass;

    -Convenient Installation by multi-plug socket connecting way;



    Package Includes:

    1x Ammeter

    1x Multi-plug socket

    1x Current Pick-up Unit

    1x Installation Instruction
