  5. KUS SQ Water Level Meter
  • KUS SQ Water Level Meter
  • KUS SQ Water Level Meter
KUS SQ Water Level Meter KUS SQ Water Level Meter

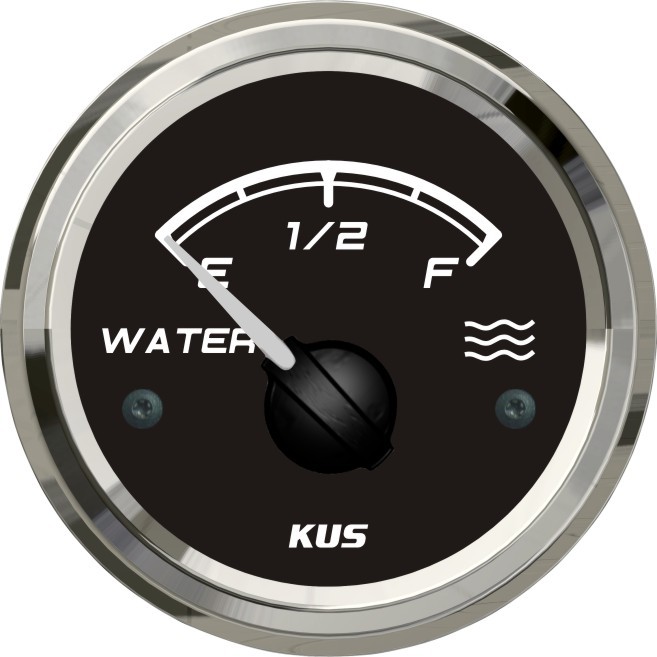

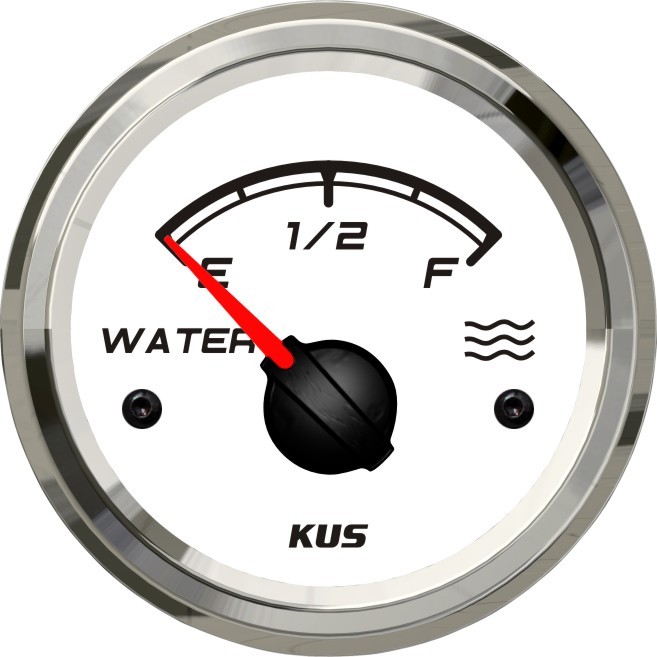

KUS SQ Water Level Meter

  • Product Item:KUS SQ Water Level Meter
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V(12V/24V)
  • Backlight:Red and Yellow available
  • Input signal: 0-190ohm/240-33ohm or customized
  • water level gauge  , water level meter
    Inquiry Send Email PDF

    Description

    Model : FPWR

    ♦ Suitable for all kinds of water level sensors,display the liquid level of the water tank

    ♦ Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration

    ♦ Style(SS=stainless steel): SS & black(BS),black SS & black(BN),SS & White (WS)

    ♦ Bezel Material: SUS316,Double layer anti-fogging glass

    ♦ Installation Dimension: Φ52mm(2”)

    ♦ Installation: lock the gauge to baseboard directly by hand

    ♦ Connector: integrate 12V/24V patchcord

    ♦ Background light: Red or Yellow

    ♦ Indicating Range: Empty- Full

    ♦ Working Voltage:12V/24V

    ♦ Signal: 0~190Ω and 240~33Ω or customized

    ♦ Protection grade:IP67 for front side;IP65 for back side


    Package Includes:

    1x Water Level Gauge

    1x Installation Instruction
