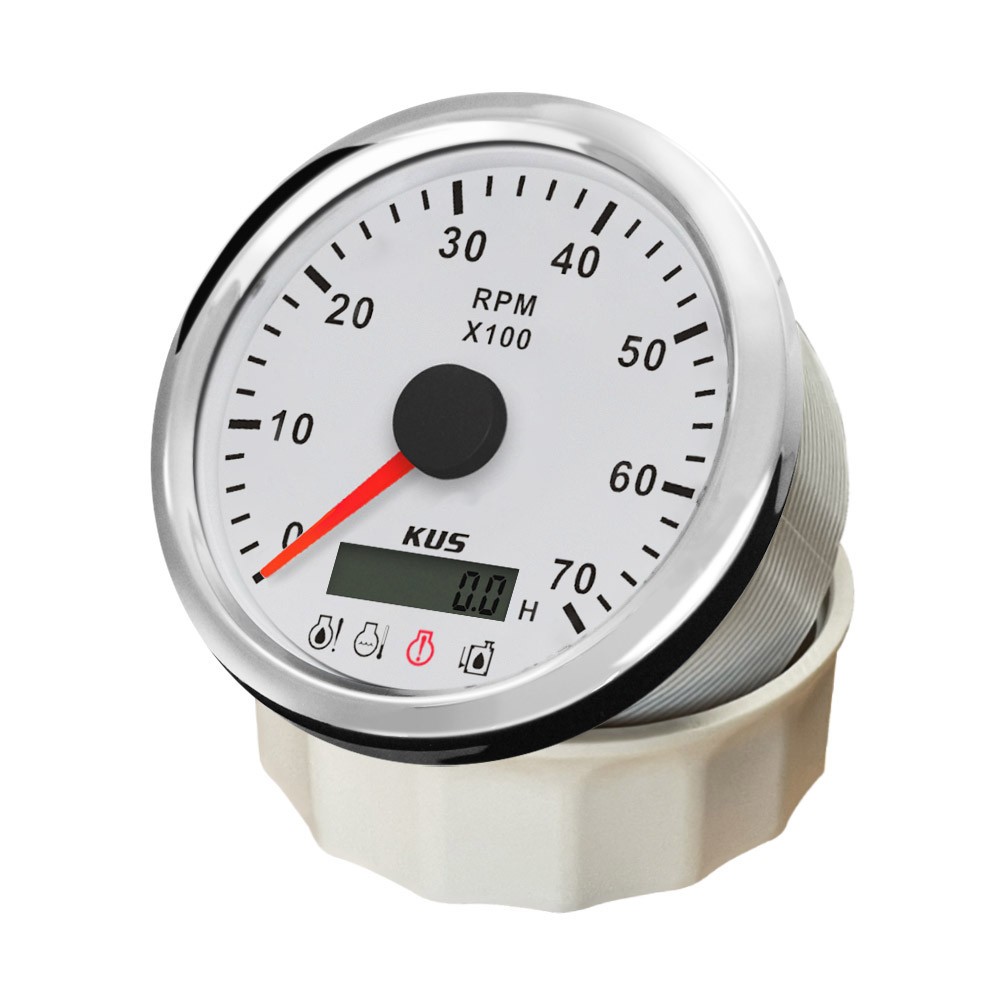

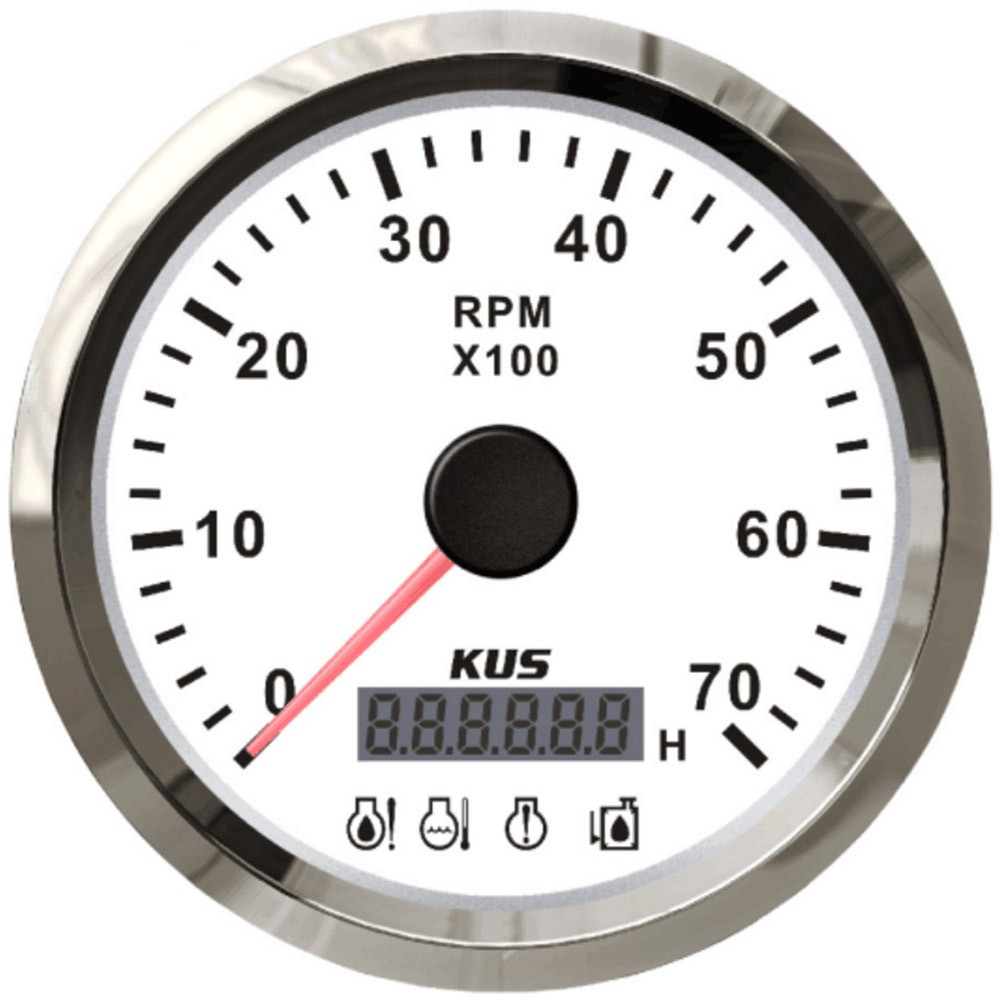

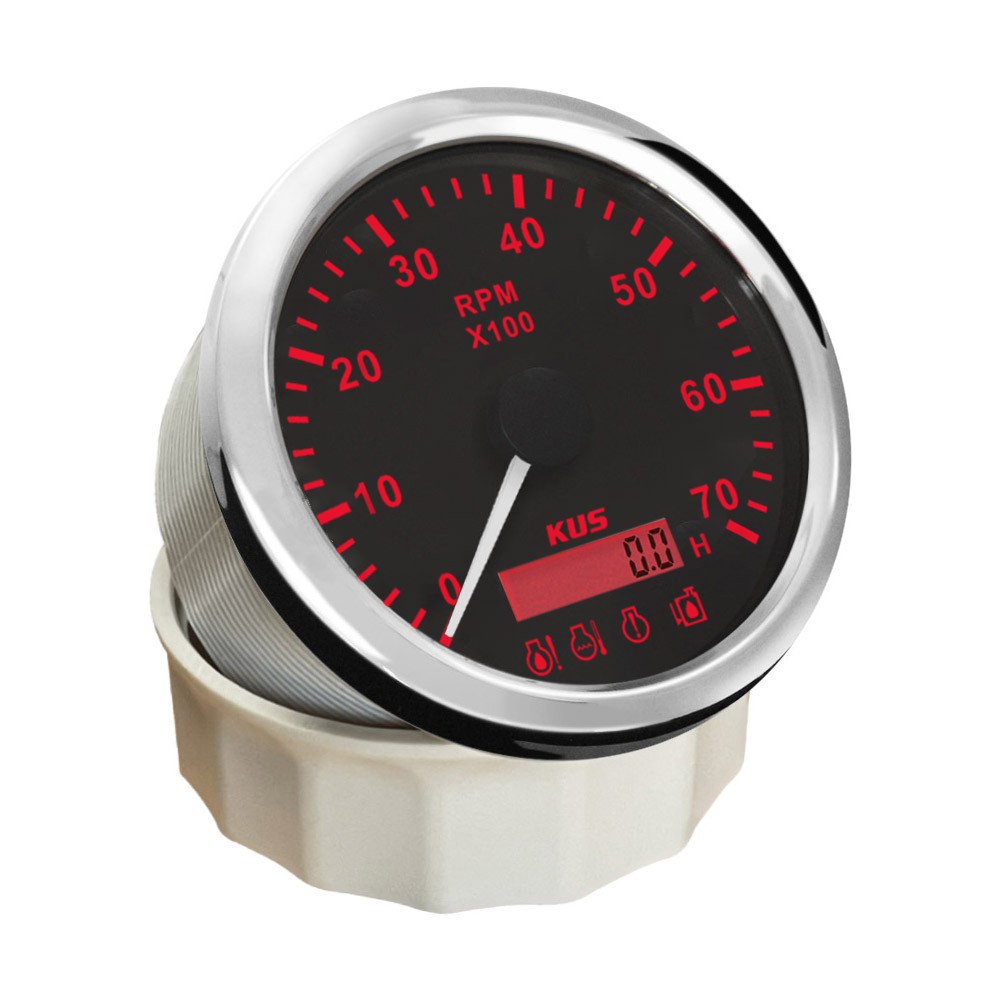

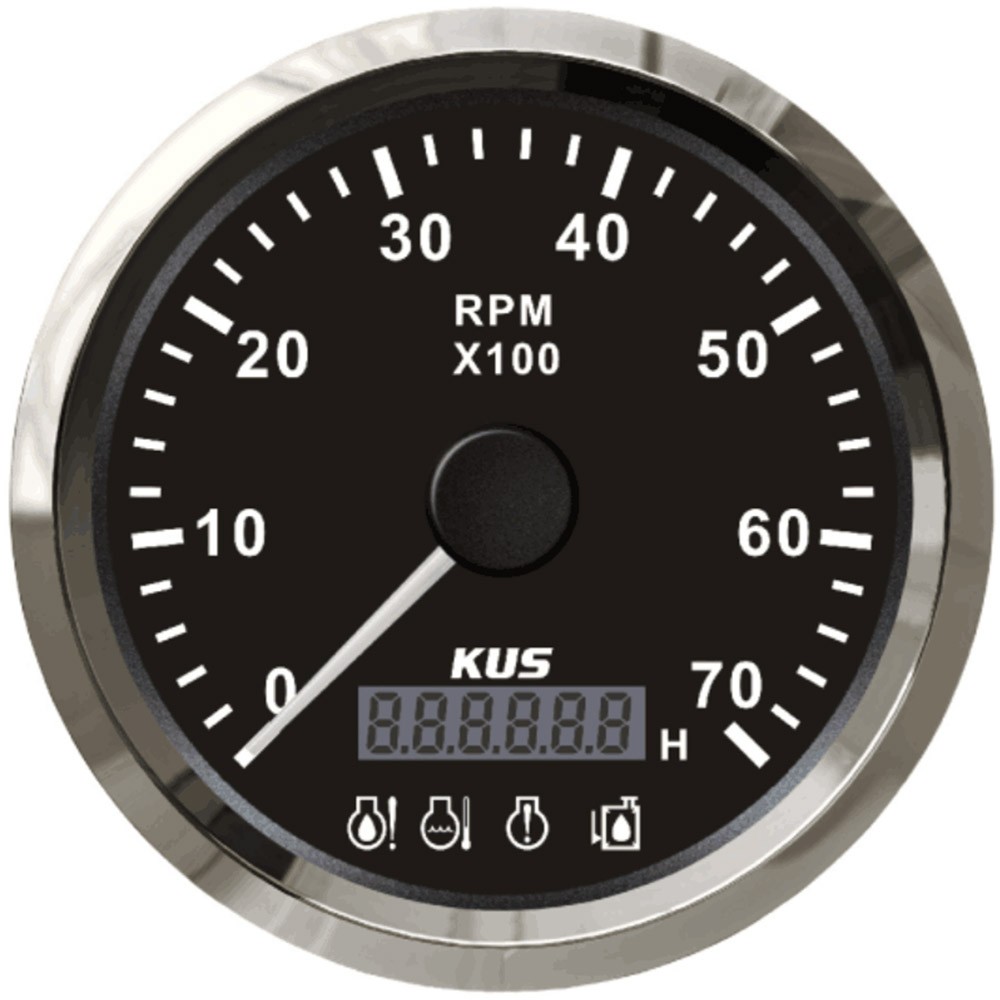

  • KUS 85mm Tachometer with 4 LED Alarm
  • KUS 85mm Tachometer with 4 LED Alarm
  • KUS 85mm Tachometer with 4 LED Alarm
  • KUS 85mm Tachometer with 4 LED Alarm
KUS 85mm Tachometer with 4 LED Alarm KUS 85mm Tachometer with 4 LED Alarm KUS 85mm Tachometer with 4 LED Alarm KUS 85mm Tachometer with 4 LED Alarm

KUS 85mm Tachometer with 4 LED Alarm

  • Product Item:85mm Tachometer with 4 LED Alarm
  • Installation Dimension:85mm(3-3/8'')
  • 4 LED Alarm (from left to right): Low Pressure, High Water Temp, CHK ENG, Low Fuel
  • 12VDC Working Voltage
  • Red backlight
  • 85mm Tachometer  , REV Counter; Tacho Meter Gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of tacho sensors, and display the rotation speed of the engine


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration


    -Operating temperature: -40°C ~+85°C


    -Protection rank : IP67


    Technical Data:


    -Fixing dimension: 85mm(3-3/8")


    -Indicating Range: 0-7000RPM


    -Speed Ratio: 1.0-10.0


    -4 LED Alarm (from left to right): Low Pressure, High Water Temp, CHK ENG, Low Fuel


    -Working Voltage: 12V


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    -Protection grade is IP67, the whole body is completely waterproof


    -Excellent anti-fogging function


    -316 Stainless steel bezel with curved glass


    -Convenient Installation by multi-plug socket connecting way


    Package Includes:


    1x Tachometer with 4-LED Alarm


    1x Multi-plug socket


    1x Installation Instruction
