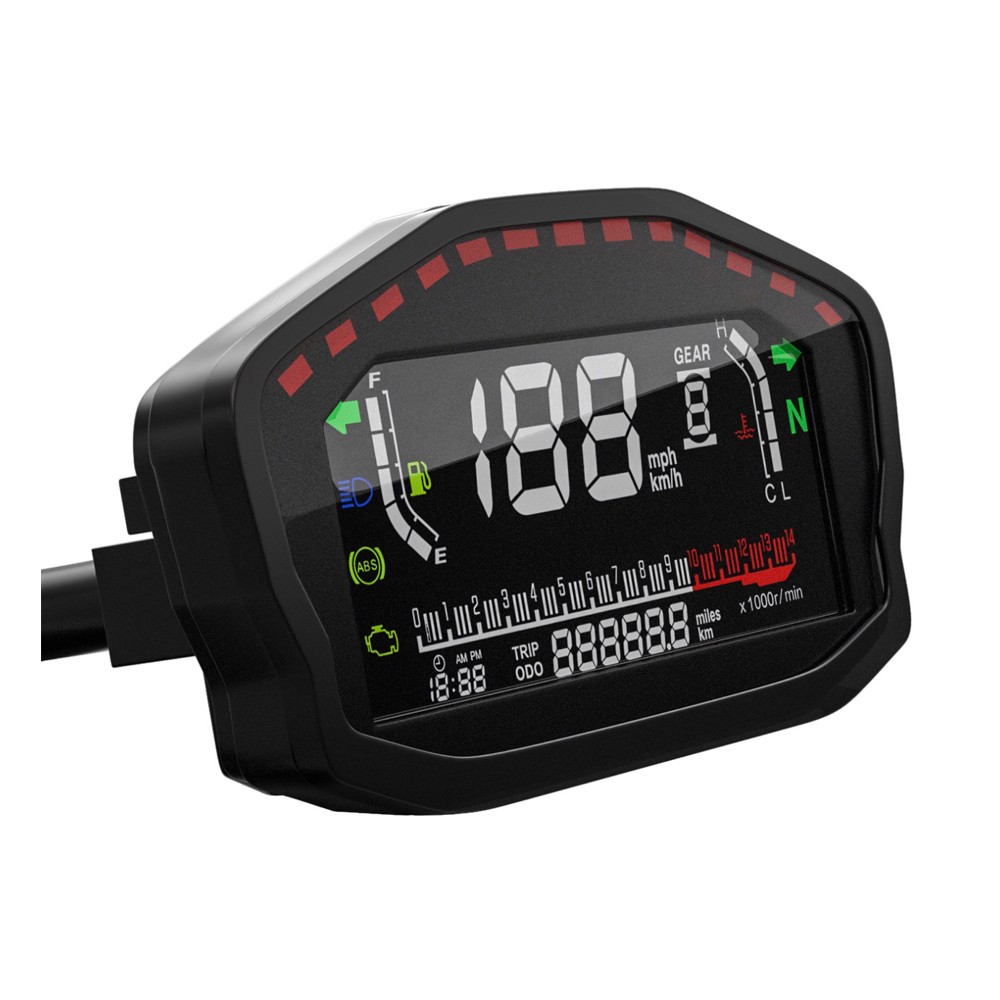

ELING GPS Motorcycle Gauge TRG165

  • Product Item:Motorcycle Gauge TRG165
  • GPS Speedometer: 0-199km/h; MPH
  • Tachometer: 0-14000RPM
  • GPS Blind Area Odometer Compensation
  • Support GPS, BeiDou & GLONASS Satellites
  • Motorcycle Gauge  , Motorcycle GPS speedometer  , Motorcycle tachometer
    Inquiry Send Email PDF

    Description

    Descriptions:


    Plug & Play installation with GPS Antenna, No need mechanical speed sensor.


    Range 0~199 km/h or mph (unit switchable)


    Fast start-up GPS Location Time:

    Hot Start: <1s
    Warm Start: <10s

    Cold Start: < 38s (first power on when installation)


    Support GPS, BeiDou & GLONASS Satellites


    Support Tunnel GPS lost Odometer Compensation


    No calibration required


    Three dimensional velocity calculations accurate to 0.2km/h


    Specification:


    No Mechanic Sensor, get a speed signal from GPS Satellite


    No GPS Stationary Drift with accurate algorithm


    Total Mileage Adjustable


    Trip Odometer Reset to zero


    GPS Blind Area Odometer Compensation


    Indication Light (Fuel Level, Water Level, ABS Alarm, Engine Alarm, Neutral, Left Turn, Right Turn and High Beam)


    Speed Range: 0~199km/h or MPH, unit switchable


    GPS antenna length: 300cm


    RPM Tachometer Range: 0~14000RPM


    Programmable RPM Ratio


    Reverse polarity protection and anti-fogging performance


    Working temperatures: - 40 to 85°C


    Size: 165*93*42mm


    IP65 Waterproof


    Setting:


    1. Quick Setting for Trip Odometer, Time


    When power on the Speedometer,


    1) Quick Press side button, switch show TRIP, ODO


    2) When show ODO, press and hold the side button for 8 seconds, switch unit between km &mile


    3) When show TRIP, press and hold the side button for 4 seconds, TRIP odometer will reset to zero.


    4) When show ODO, press and hold the side button for 4 seconds, you can enter TIME


    setting menu:


    Quick press to set value, long press 3 seconds to switch Hour & Minute


    2. Configure Tachometer RPM Ratio


    Menu 1--Press & Hold Side Button, Power on the Speedometer, Hold on the button for 6 seconds, then the LCD will show 1 C-1850, then release button


    Menu 2--Press and Hold the side button again for 6 seconds, then LCD will show "2 C---02", then release button


    Menu 3--Press and Hold the side button again for 6 seconds, then LCD will show "3 C----2", then release button


    "C----2" means 2 cylinder, quick press side button to switch show "C----4", which means 4 cylinder for RPM tachometer.


    Then Press and Hold button for 3 seconds to save settings


    3. Change unit to km/h or MPH


    After Configure RPM tachometer ratio, then Press & Hold the side button again for 6 seconds, then LCD will show Menu 4, release button.

    Then Press & Hold the side button again for 6 seconds, then LCD will show Menu 5, release button


    Quick Press side button to switch unit between km/h and mph.


    Then Press and Hold button for 3 seconds to save settings


    4. Reset Total Odometer to Zero


    After Menu 5, Then Press & Hold the side button again for 6 seconds, then LCD will show Menu 6, release button


    Quick press side button to reset Total Odometer to Zero.

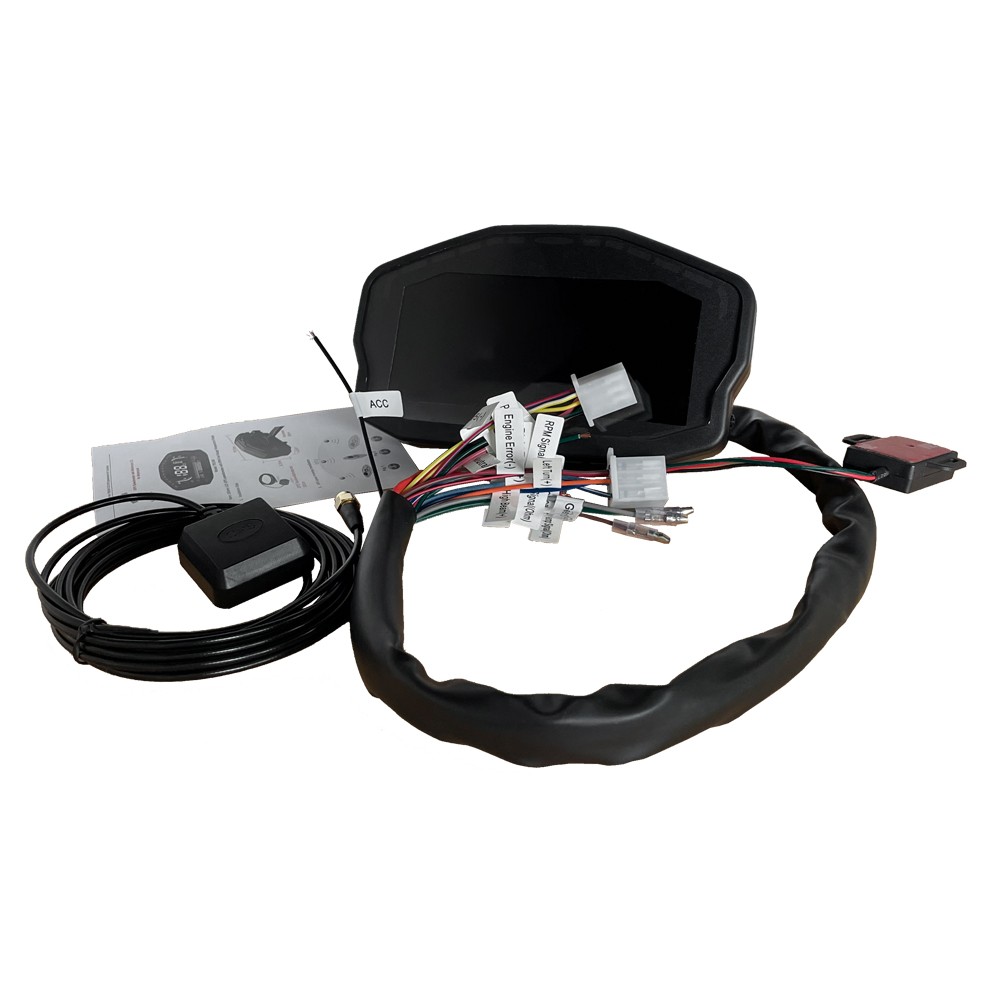

    Package included:


    1* LCD GPS Speedometer


    1* GPS Antenna / Speed Sensor


    1* User Guide
