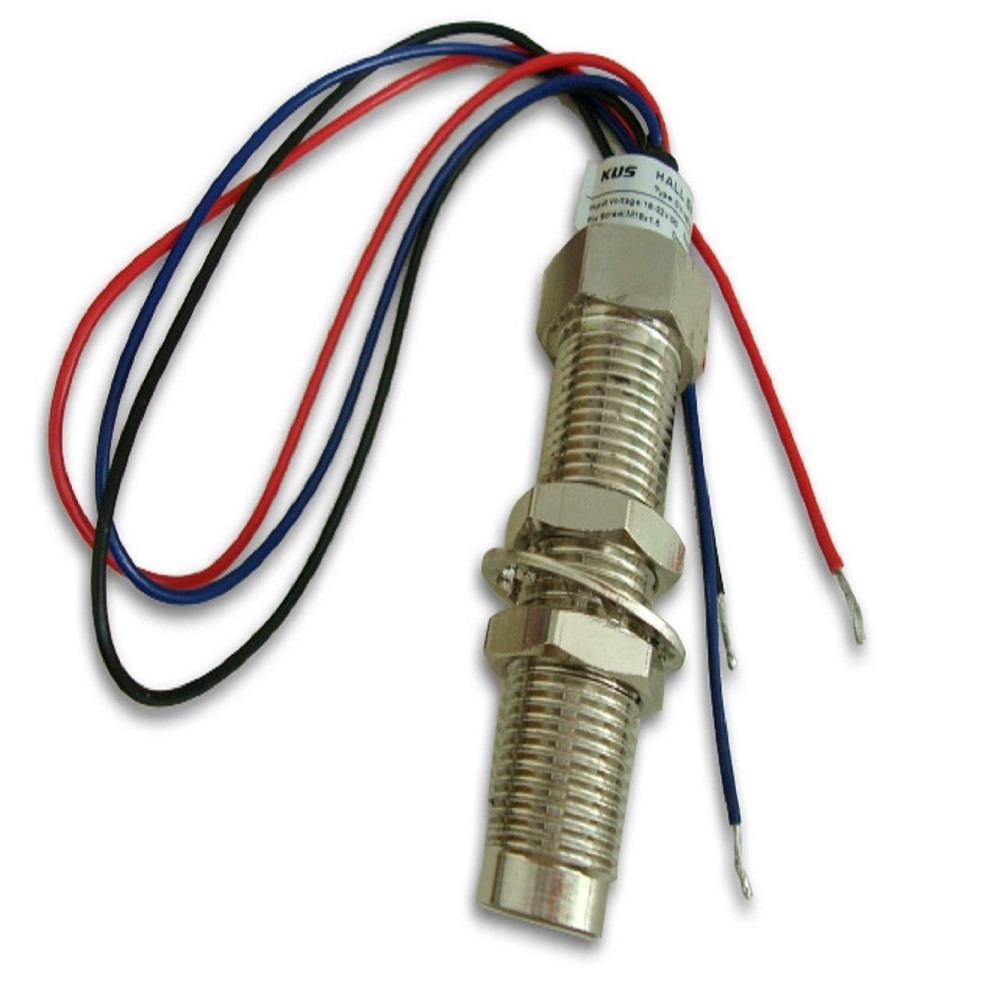

Holzer Tacho Sensor

  • Product Item:Holzer Tacho Sensor
  • Tacho Sensor
  • Holzer Tacho Sensor
  • M16*1.5, M18*1.5
  • Holzer Tacho Sensor  , Tacho Sensor  , M1615  , M1815
    Inquiry Send Email PDF

    Description

    Be used for gear rotation speed measurement

    Combining the advantages of stable signal, wide range of operating temperature, small size, simple assembly, etc

    It covers a wide range of measurement, and it is able to measure the zero rotation speed

    The shell appearance, material and thread fitting can be customized as requires

    Operating voltage: 8~32Vwith polarity protection

    Operating current: <50mA

    Operating temperature:-40 ~150℃

    Output signal:Square wave

    Signal duty factor: 47±5%

    Inductance distance:≤2mm

    Connecting way:  three wires connecting

    Protection rank:IP67
