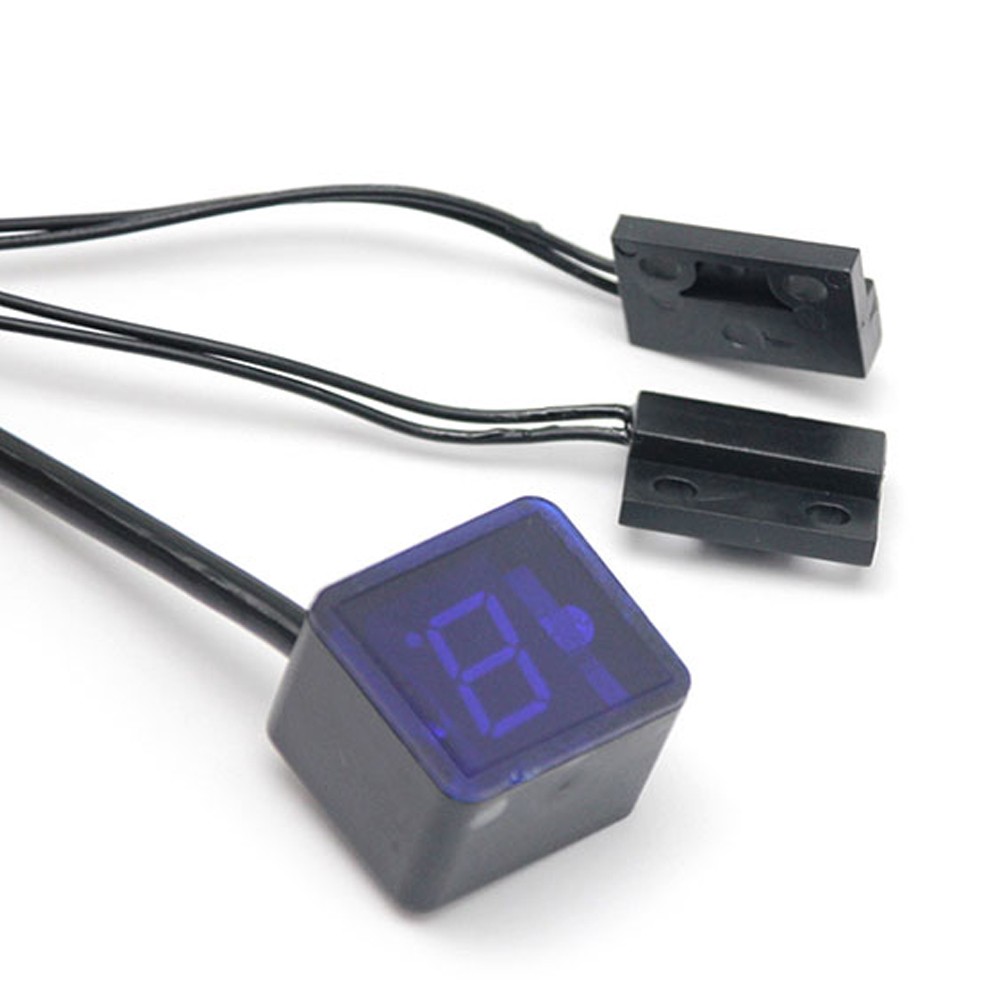

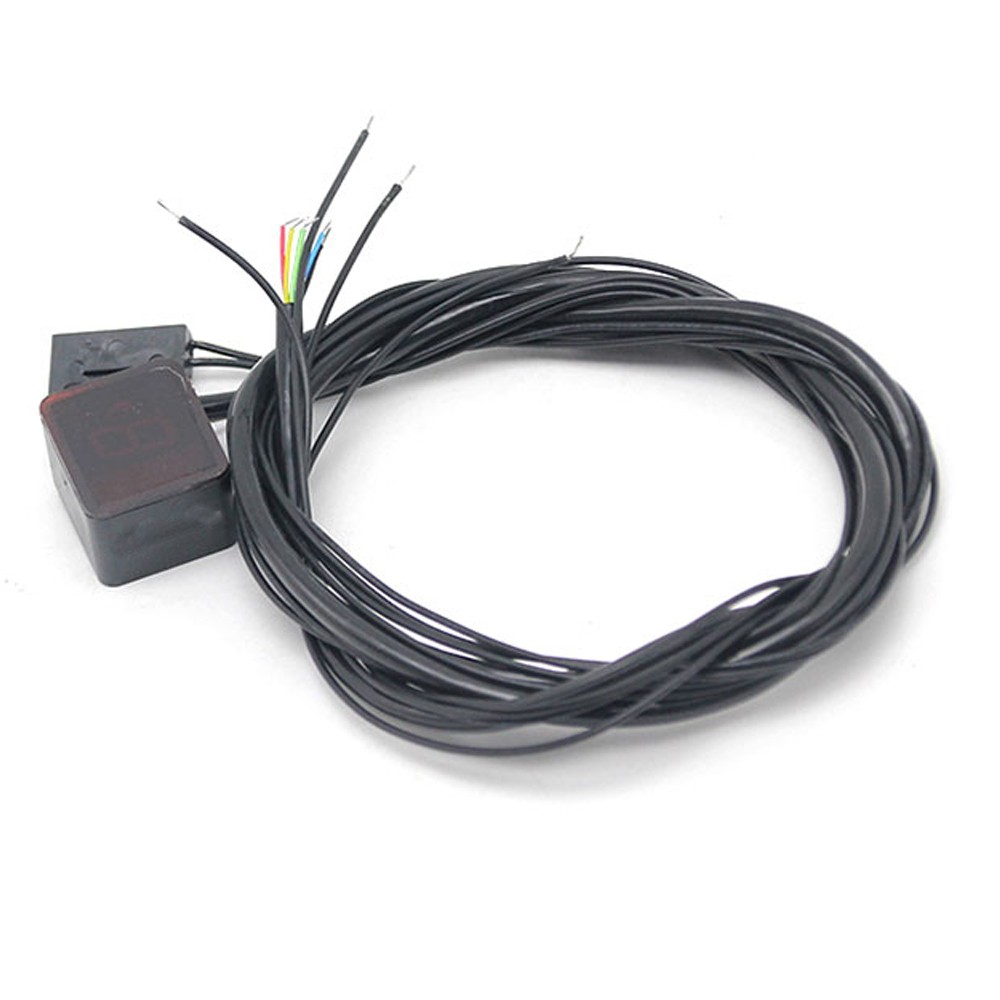

ELING Universal Gear Indicator

  • Product Item:Universal Gear Indicator

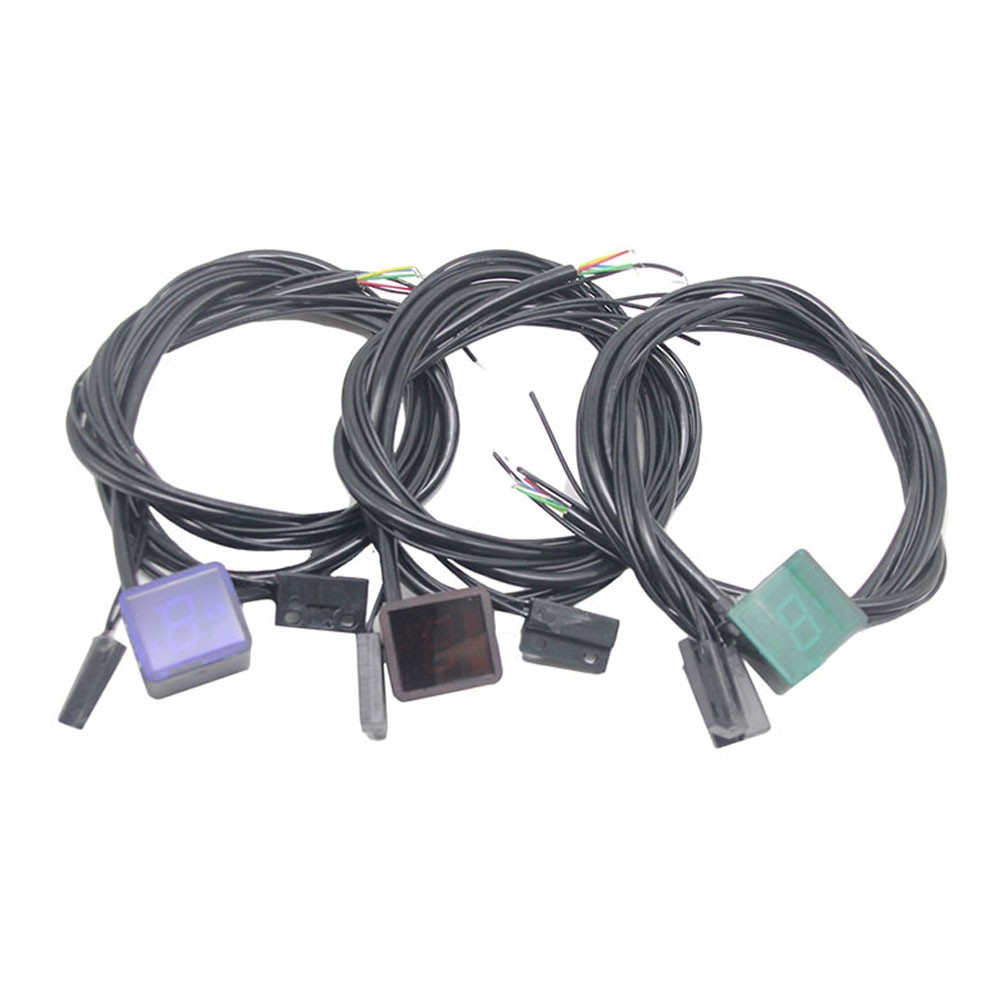

  • Color: red, blue, green
  • Used for: universal

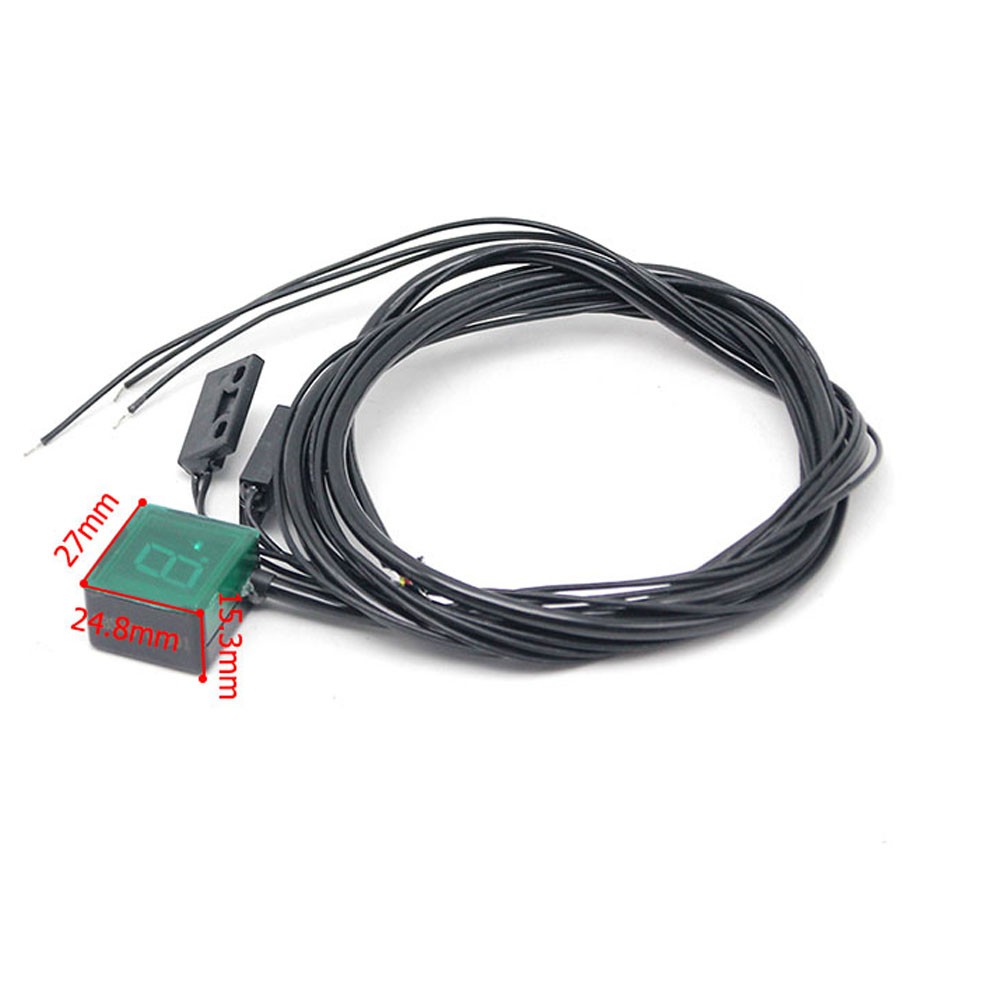

  • Size: 27*24*15mm
  • Gear: 1-8
  • Universal Gear indicator  , motorcycle gear counter  , motorcycle accessories
    Inquiry Send Email

    Description

    Key Product Features:


    Shows current gear number


    Indicates current gear from 1 to max of 8, as well as a neutral indicator


    Auto programming


    Compatible with all motorbikes, four wheelers, bikes etc. will fit anything with a shift lever


    Red illuminated display will automatically dim at night


    Detects the current gear faster than other gear indicators that use speedometer tachometer signal


    Display can be mounted anywhere


    Display Size: 27 x 24 x 15 mm


    How it works?


    A small magnet mounted on the gear shift lever moves past the upshift and downshift sensor as shifts occur. The shift signals are then sent to the display, where the current gear number is shown.


    Why do I need gear indicator?


    How many times do you find yourself trying to upshift on the highway just to find out that you are already in thetop gear, or try to downshift only to find out you are already in first gear How often do you get asked what gear you were in around a tight corner These are just a few examples of the usefulness of this gear indicator.


    Installation guide:


    Black cable is for -


    Red cable is for +


    White cable is for neutral (0)


    Yellow cable is for the first sensor cable 1


    green cable is for the 2nd sensor cable 1


    Blue is for the other cables of sensor 1 and 2 together


    Package includes:


    1* Digital Gear Indicator


    1* Instruction Sheet


    2* shift sensors


    1* shift lever magnet
