  • ELING Speedometer Sender Adapter
  • ELING Speedometer Sender Adapter
  • ELING Speedometer Sender Adapter
ELING Speedometer Sender Adapter ELING Speedometer Sender Adapter ELING Speedometer Sender Adapter

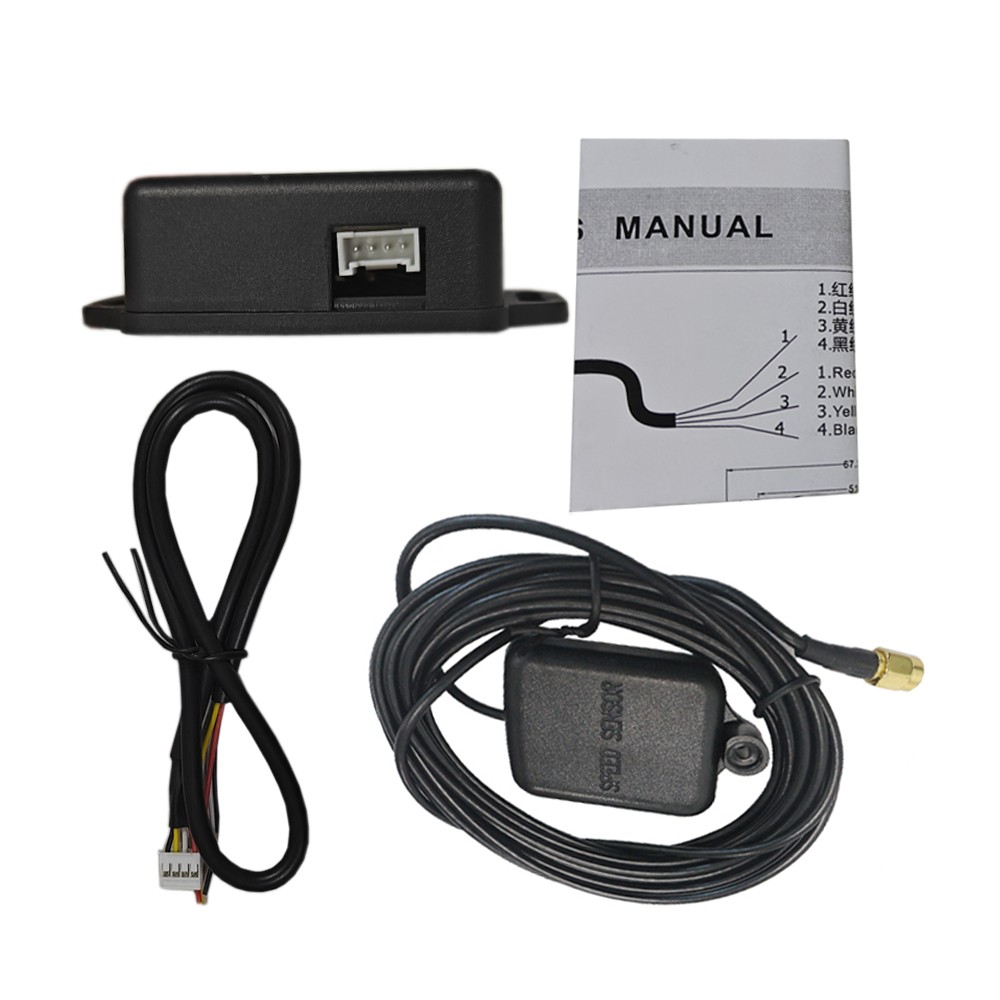

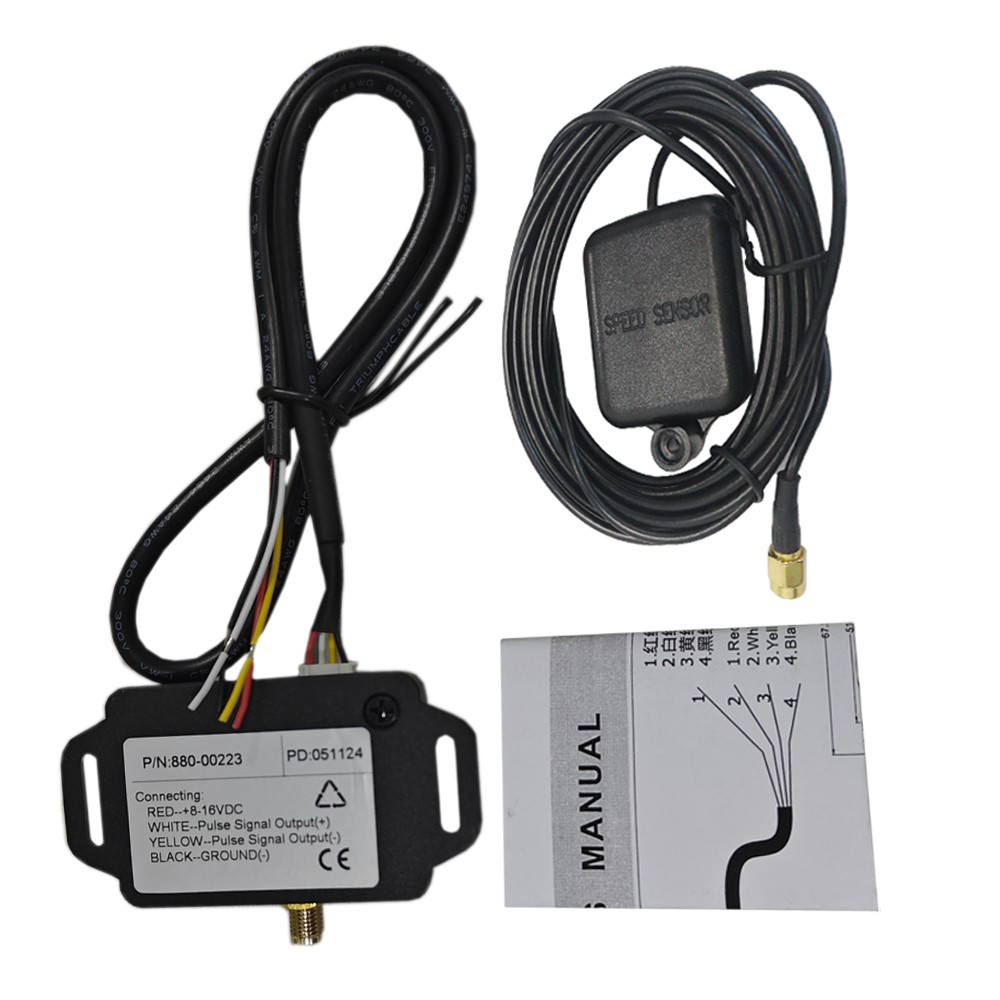

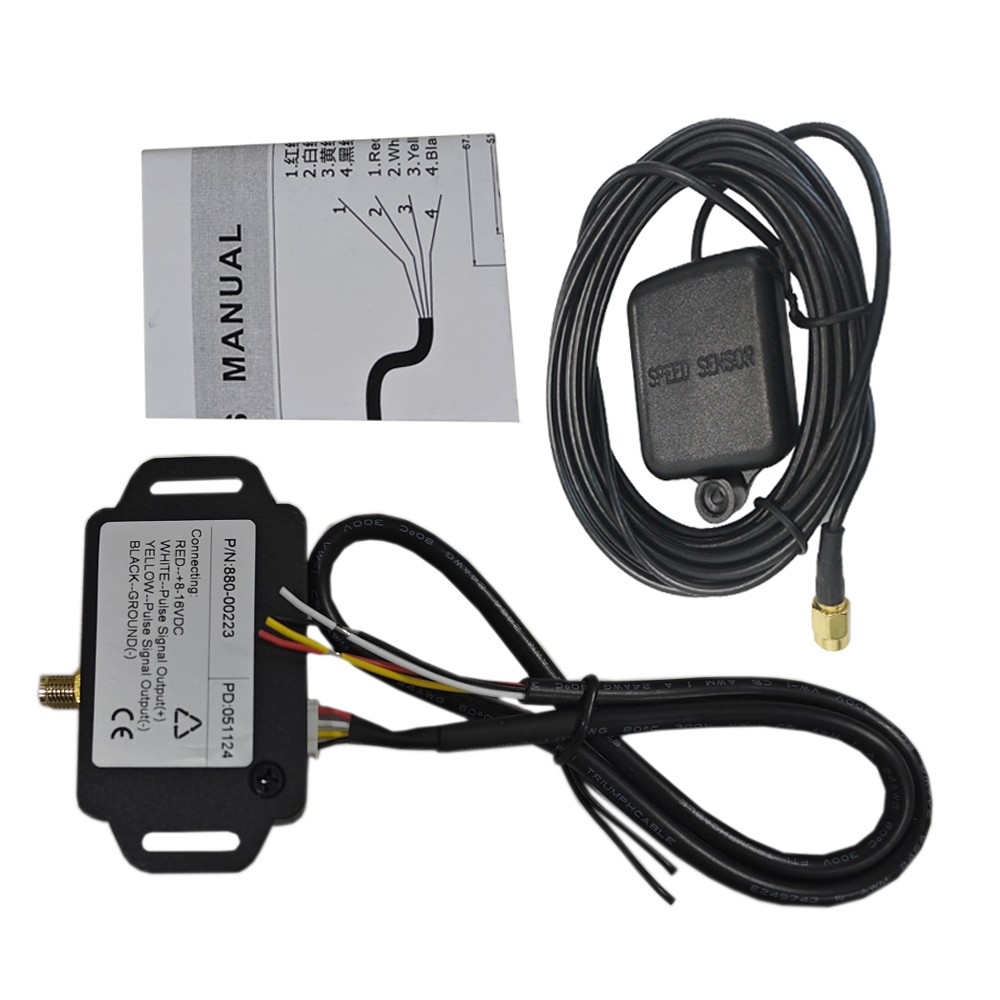

ELING Speedometer Sender Adapter

  • Product Item:Speedometer Sender Adapter
  • Adapter cable 46cm long, GPS sensor/antenna 390cm long
  • DC12V Power Supply (8~16VDC)
  • Shockproof and Circuit Protection design
  • Output two speed signals which are reversed
  • Speedometer Sender;Speedometer Sender Adapter;Speed Signal Convertor
    Inquiry Send Email PDF

    Description

    Product feature:


    -Application: All kinds of Speedometer, Tachograph


    -High Accuracy only 0.2% deviation (mechanical speed sensor will be 3~5% deviation)


    -Anti-GPS Stationary Drift technology


    -Support both Negative & Positive Pulse output with Max 50,000pules/km


    -Compatible with different gauges with programmable speed ratio and lowest 0.5km/h speed to start


    -Output two speed signals which are reversed


    -Shockproof and Circuit Protection design


    -Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses per km)


    -High quality GPS Active Antenna which performs well in windy or heavy rainy weather


    -Adapter cable 46cm long, GPS sensor/antenna 390cm long


    -DC12V Power Supply (8~16VDC)


    How does it work?


    -GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders.


    -Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three dimensional ground speed and provides a pulsed output compatible with existing mechanical speed senders.


    -This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.


    Package include:


    1*Speed Signal Convertor
