Description
Main Functions:
OBD mode information display: vehicle speed, water temperature, voltage, fuel consumption, RPM, single mileage, total cumulative mileage, travel time, system time, intake pressure, oil temperature, air-fuel ratio, turbine pressure, intake pressure, acceleration test, brake test, read data stream.
Alarm: Overspeed alarm, Speed alarm, High water temperature alarm, Low voltage alarm, Engine fault alarm, Clear fault code, Free switching between kilometer and miles, KM/h & MPH Switch, °C & ℉ Switch freely.
C500 OBD Functions:

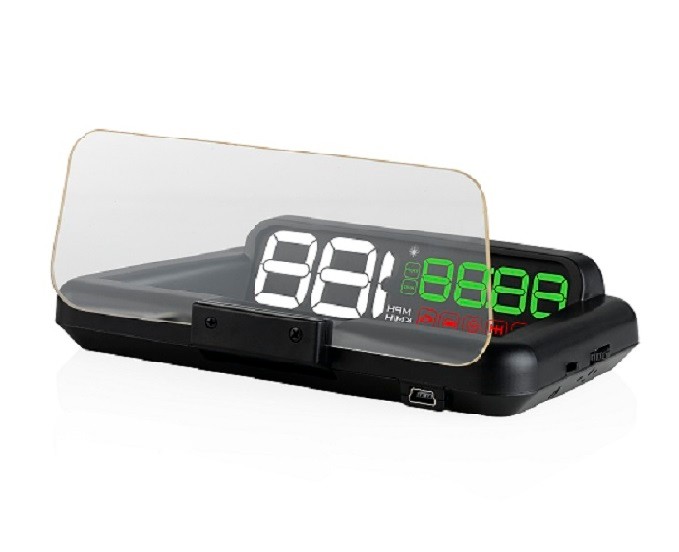

1. Alarm Icon: High water temperature / Low voltage alarm / shift reminder / over speed alarm / Fatigue driving / Engine Error
2. Multi-functions display: RPM / Voltage / driving distance /clock / water temperature / fuel consumption
3. Light sensor:HUD can automatically adjust the brightness according to the environment
4. Mileage unit:TRIP means the driving distance from engine start to off
5. Fuel consumption unit: unit of Average fuel consumption per hundred kilometers / instantaneous fuel consumption =AVG
6. Speed:digital display the vehicle driving speed
7. Speed unit :KM/H=kilometer/hour, MPH=Mile/hour
Product Specification:
1. Environment temperature: - 40 0C— +80 0C
Barometric press: 86-106KPa
Relative humidity: 10%-95%
Environment voice:<=60dB
2. Work voltage: 11V~18Vdc(12Vdc/200mA)
3. Sleep current: <=30mA
4. Product size: fold 135X68X30 mm,full size:135x68x56mm
5. Projector image size: 90x20mm
6. Display way: projector
7. Display channel: LED Display
8. Reflector transmittance: 96%
9. Virtual image distance: 55 mm
10. Left and right angle view: 60°
11. Downwards angle view: 15°
