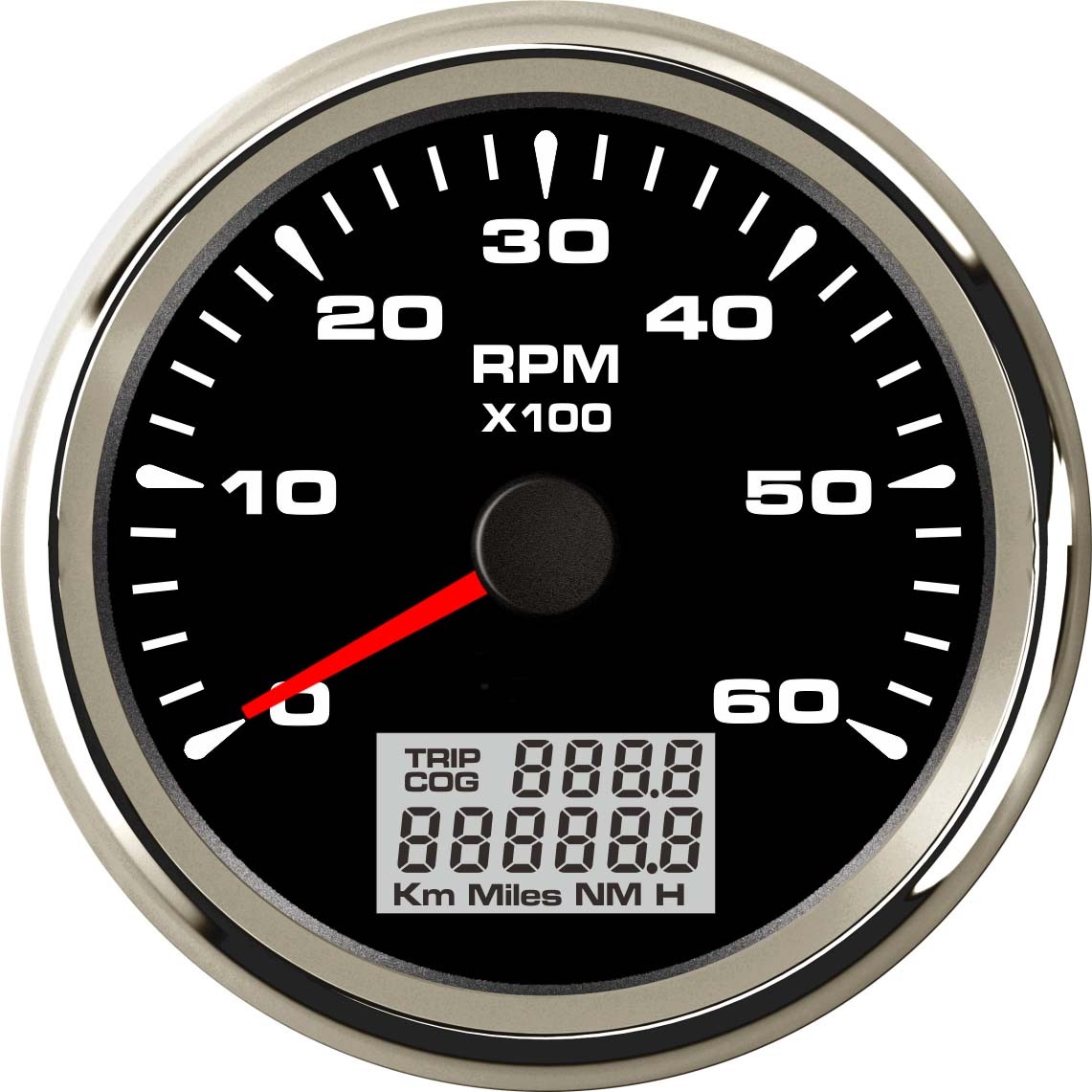

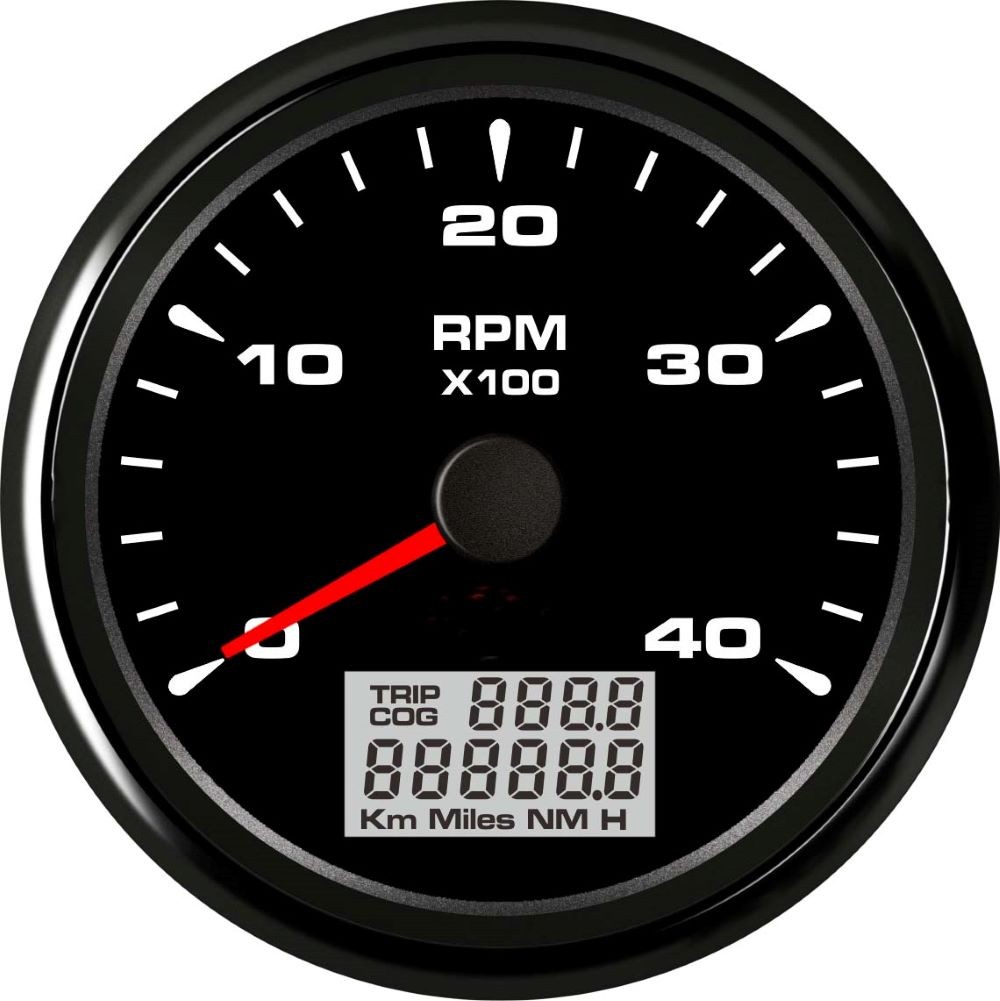

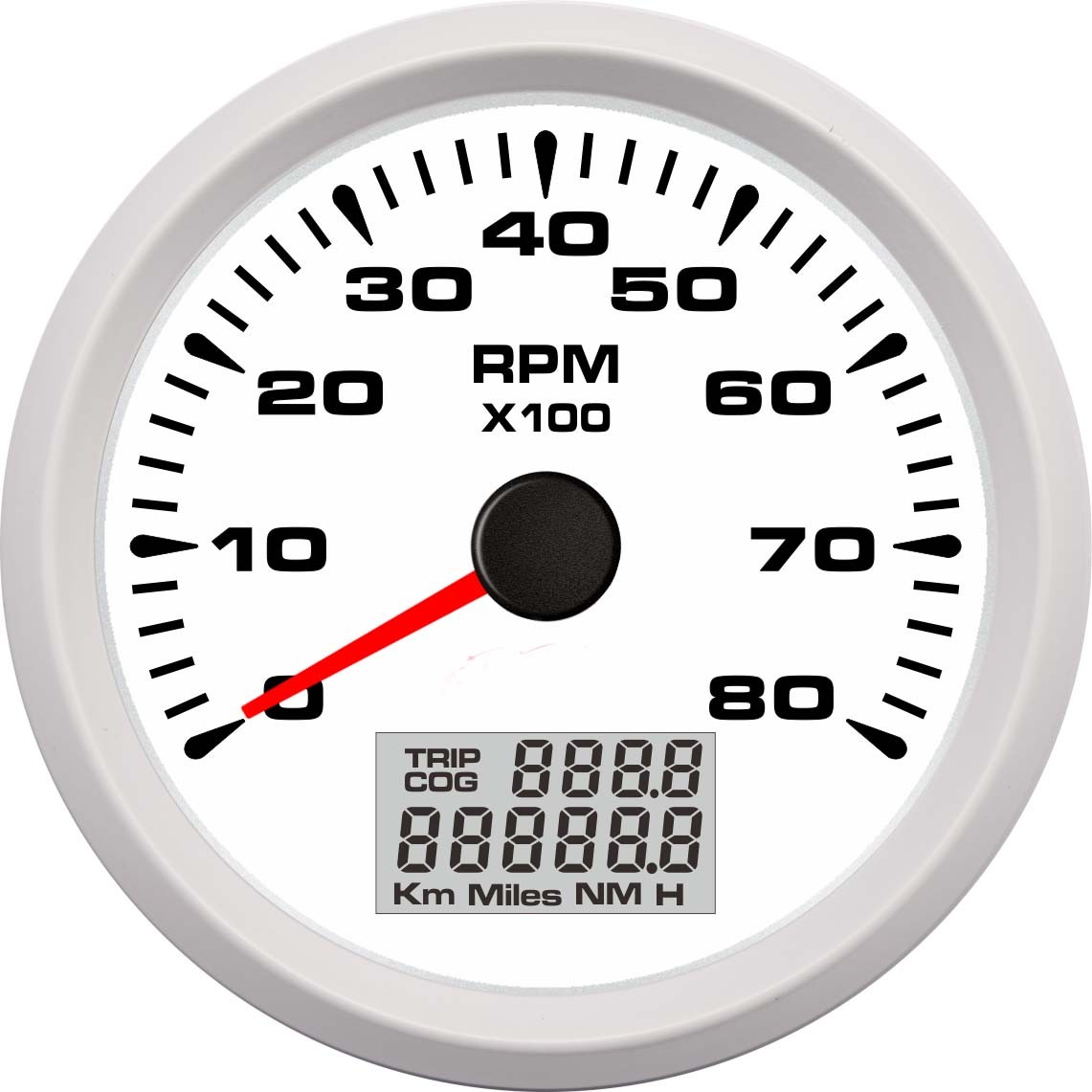

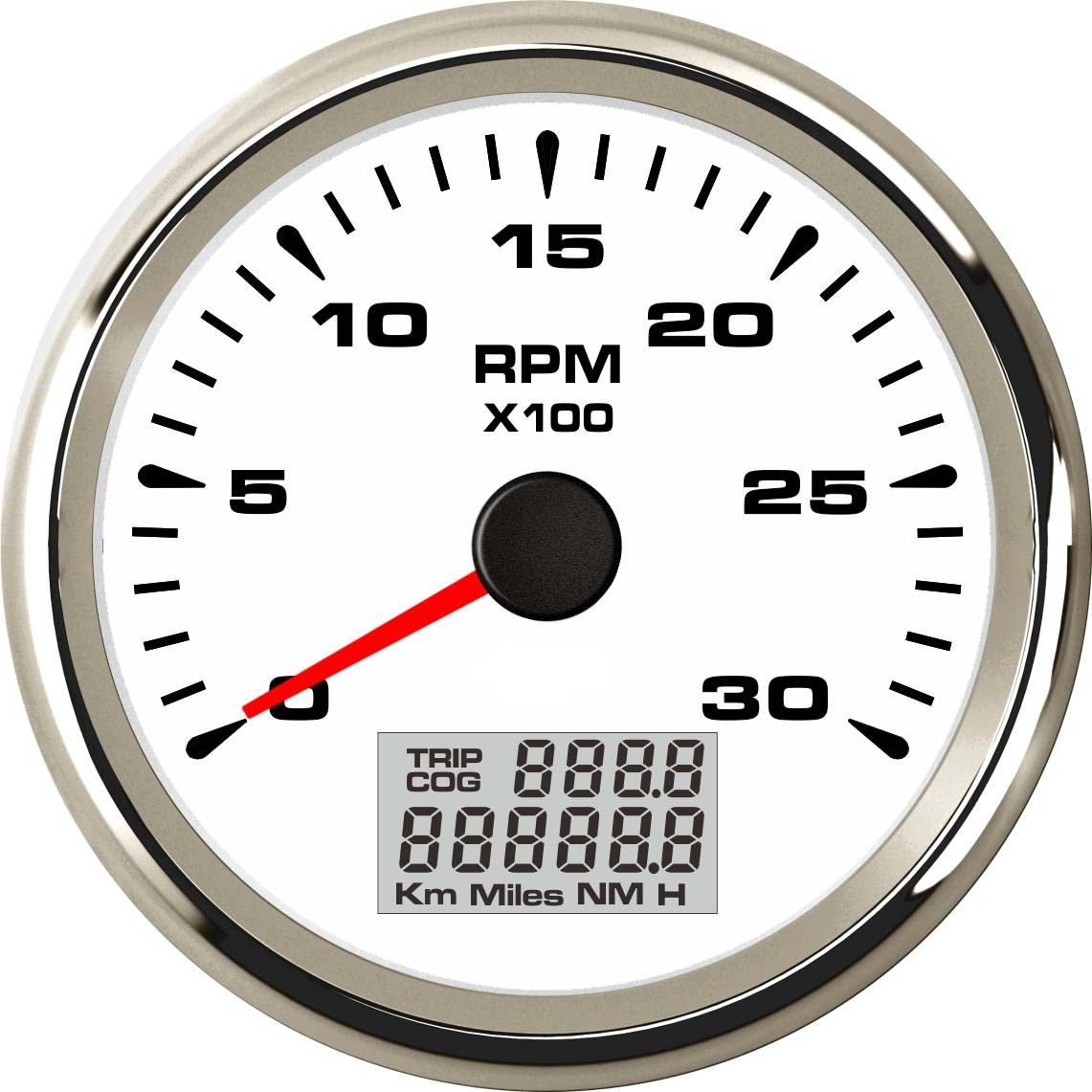

ELING ECH Tachometer Gauge

  • Product Item:ELING ECH Tachometer
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Indicating Range:0-3000RPM,0-4000RPM 0-6000RPM 0-8000RPM
  • 8 Color Backlight: Red, Green, Blue, White , Yellow, Grass, Orange, Purple, Automatic
  • tachometer  , rpm tachometer  , rpm gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine.

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade.

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer  life, higher precision, etc.

    -With curved glass (with anti-fogging function).

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Name:Tachometer

    -Fixing dimension: 85mm(3-3/8 inches)

    -Indicating Range: 0-3000RPM; 0-4000RPM; 0-6000RPM; 0-8000RPM

    -Speed Ratio: 1-300 adjustable

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: Red, Green, Blue, White , Yellow, Grass, Orange, Purple, Automatic

    -Functions: current tacho/RPM, trip hour(clear data after power off) and total hour(accumulate data after  power off)

    -Operation mode: LCD display, stepper motor


    Install Instruction:

    -Open a 3-3/8" dimension and 2-3/4" depth hole, put gauge into it and fasten

    -After the instrument is mounted in the panel,screw down with a fixed ring

    -Connect the wire,the instrument housing is directly connected to the 12/24v power supply

    -Insert wire harness,firmly locked in the table


    Package Includes:
    1x Tachometer
    1x Multi-plug socket
    1x Installation Instruction
