  • ELING ECCW Water Level Gauge
  • ELING ECCW Water Level Gauge
  • ELING ECCW Water Level Gauge
  • ELING ECCW Water Level Gauge
ELING ECCW Water Level Gauge ELING ECCW Water Level Gauge ELING ECCW Water Level Gauge ELING ECCW Water Level Gauge

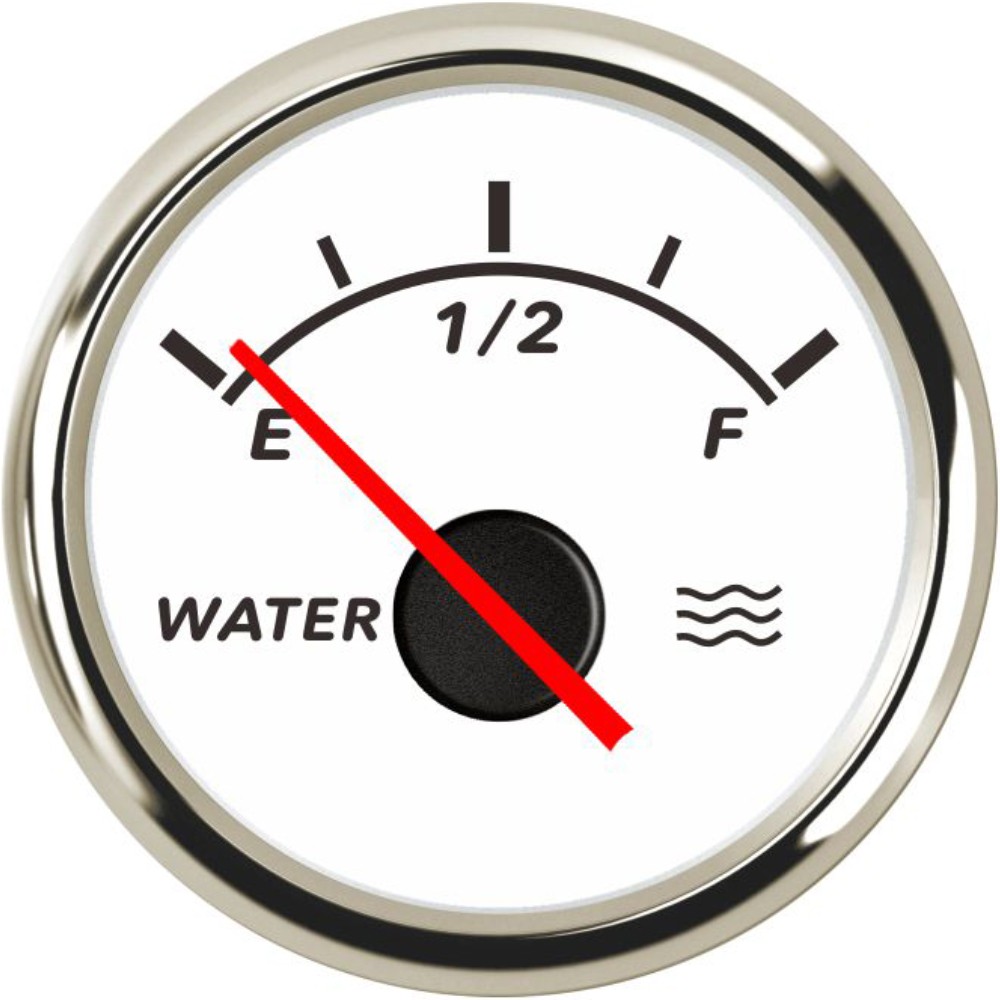

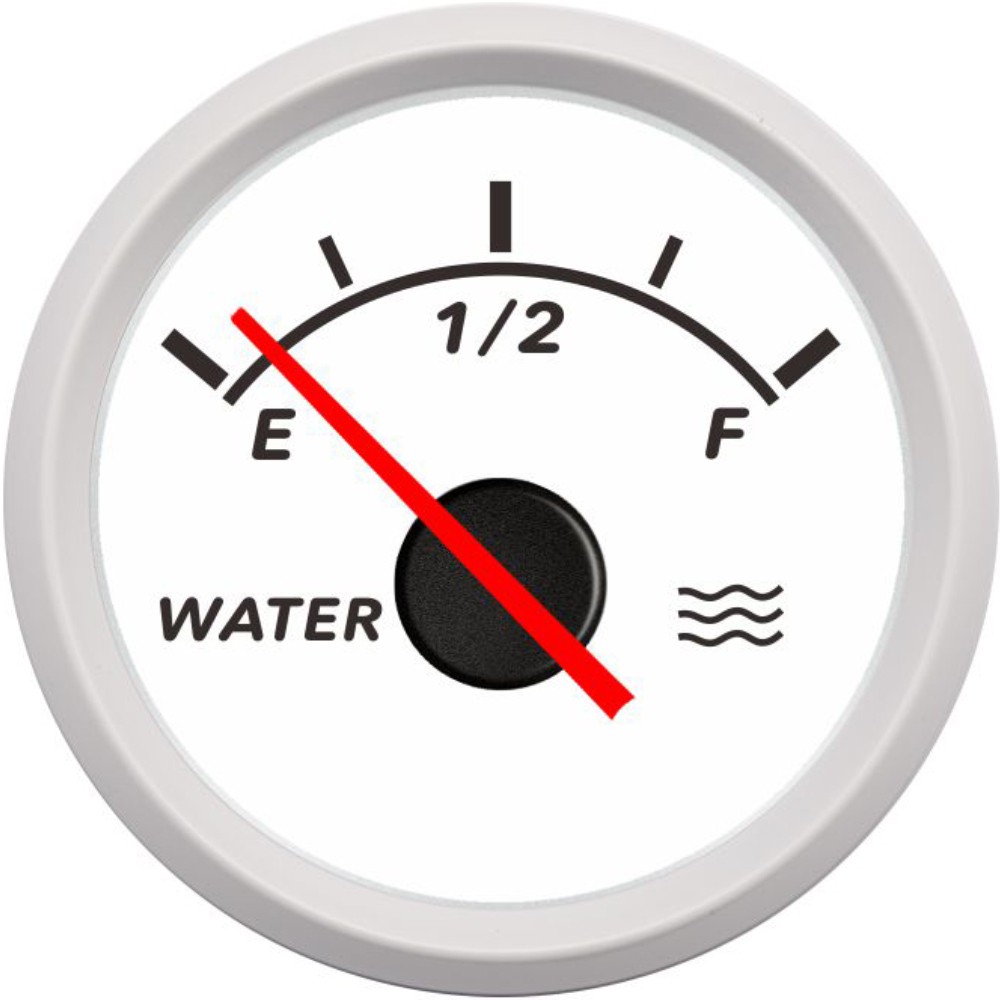

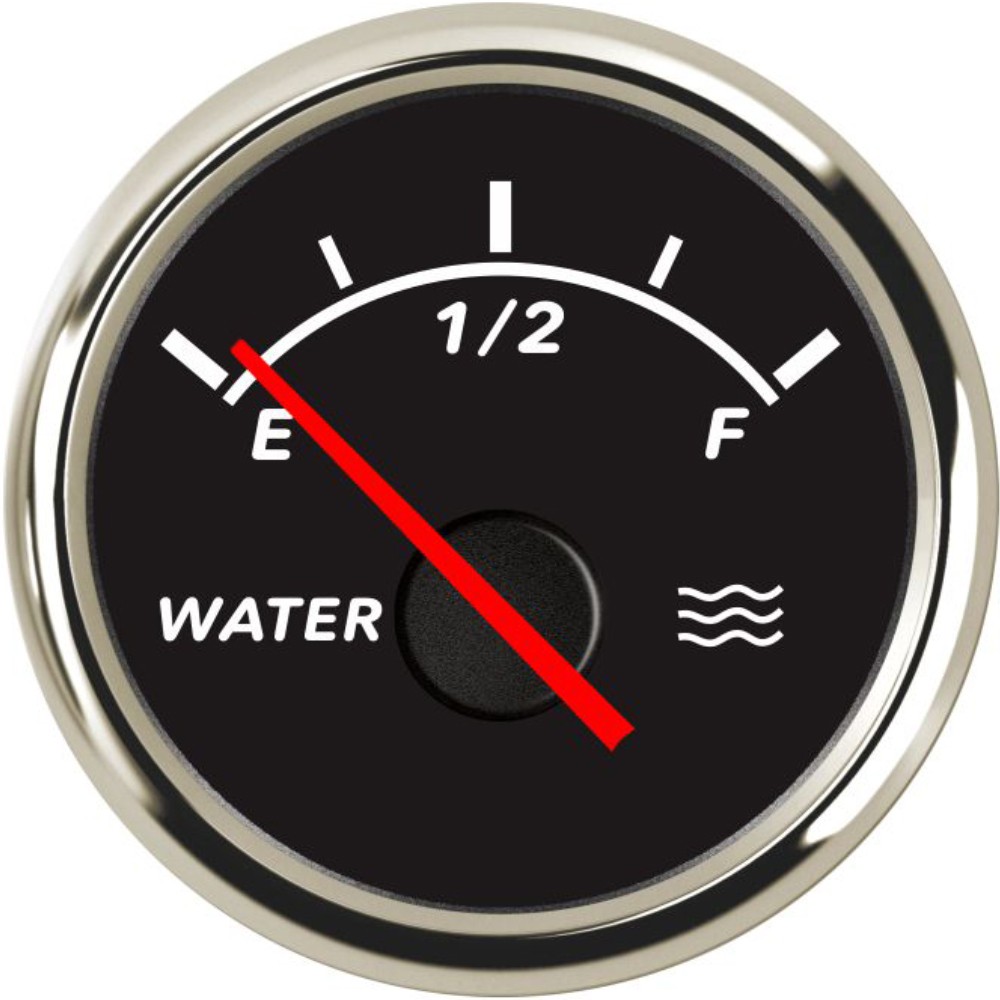

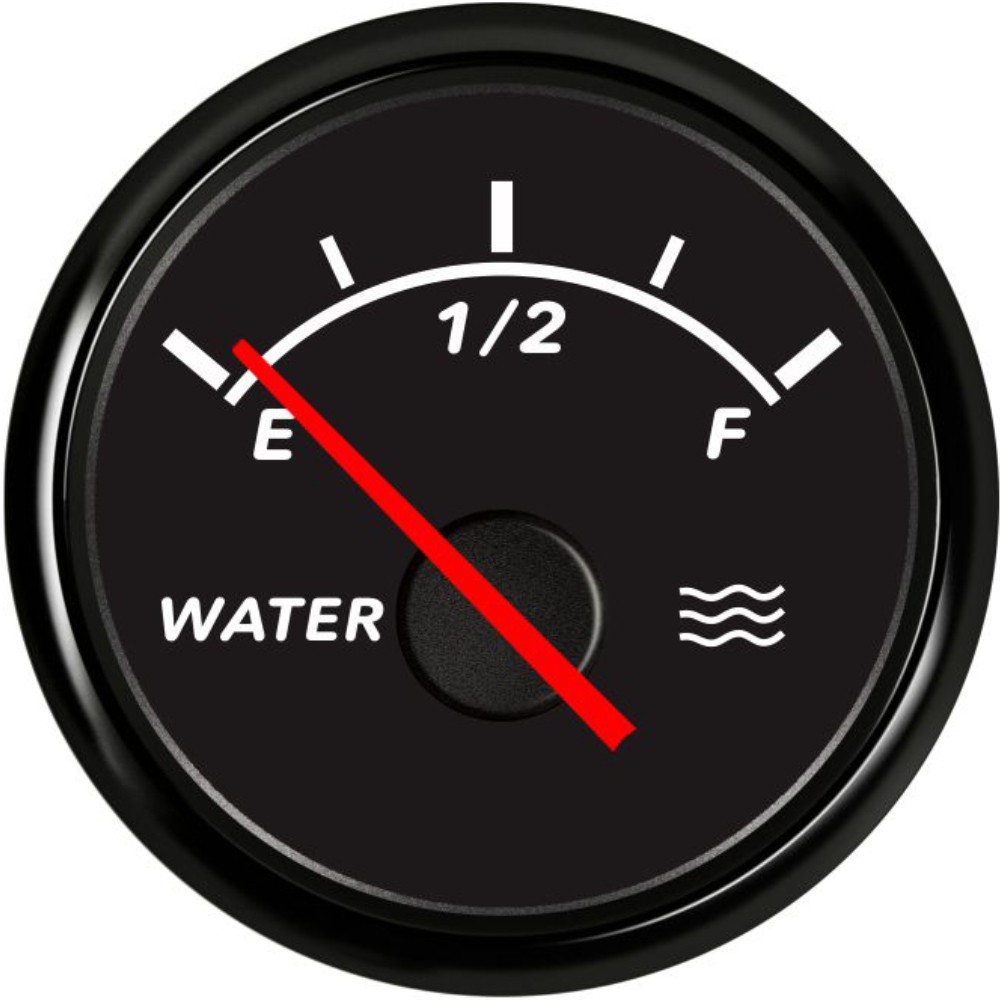

ELING ECCW Water Level Gauge

  • Product Item:ECCW Water Level Gauge
  • Fixing dimension: 52mm(2
  • Working Voltage: 9-32V(12V/24V)
  • Input signal: 0-190ohm/240-33ohm
  • Backlight: Red
  • water level gauge  , water level meter
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of water level sensors with same signal, and display liquid level of the water tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With flat glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: E-1/2-FULL


    -Signal: 0-190ohm,240-33ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Water Level Gauge

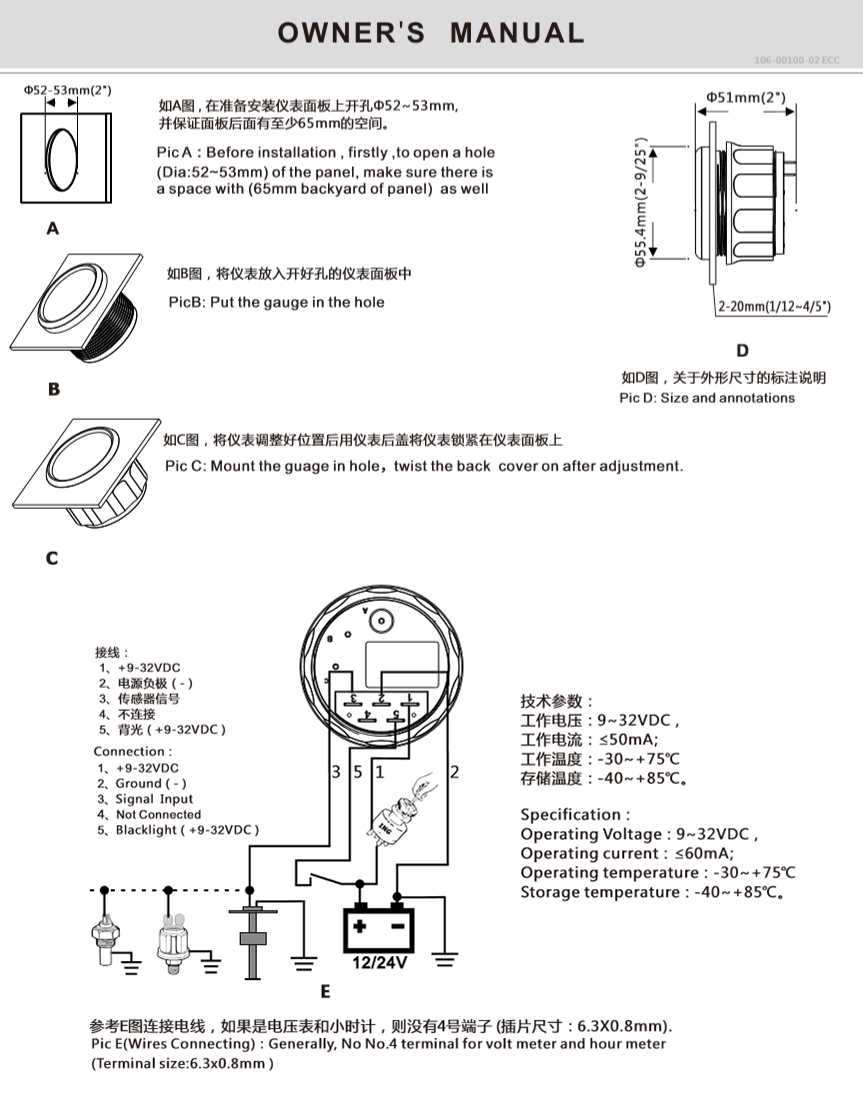

    1x Installation Instruction
