  5. ELING CX GPS Speedometer Tachometer
  • ELING CX GPS Speedometer Tachometer
  • ELING CX GPS Speedometer Tachometer
  • ELING CX GPS Speedometer Tachometer
  • ELING CX GPS Speedometer Tachometer
ELING CX GPS Speedometer Tachometer ELING CX GPS Speedometer Tachometer ELING CX GPS Speedometer Tachometer ELING CX GPS Speedometer Tachometer

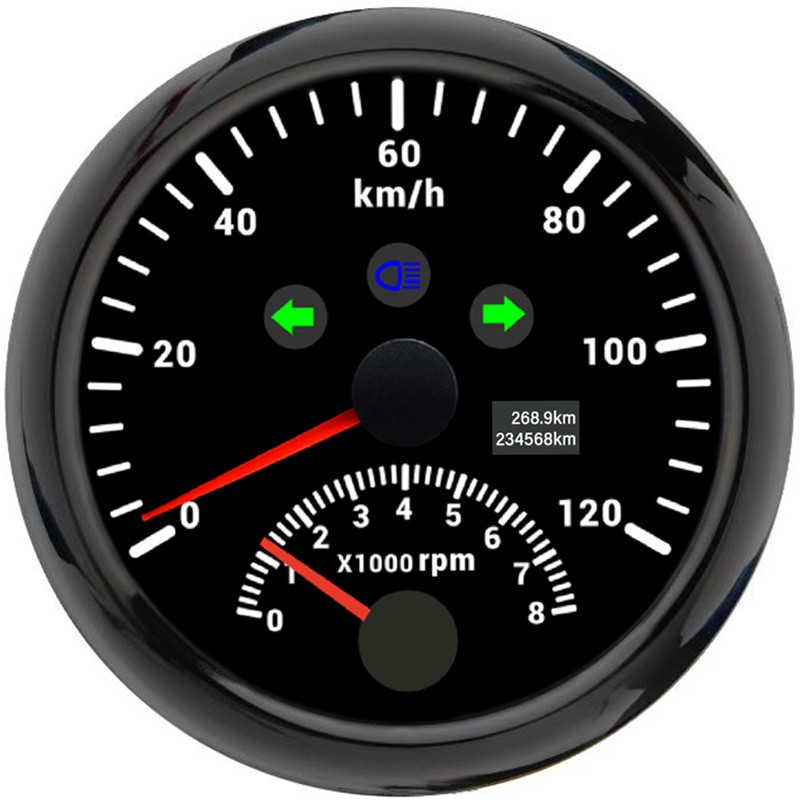

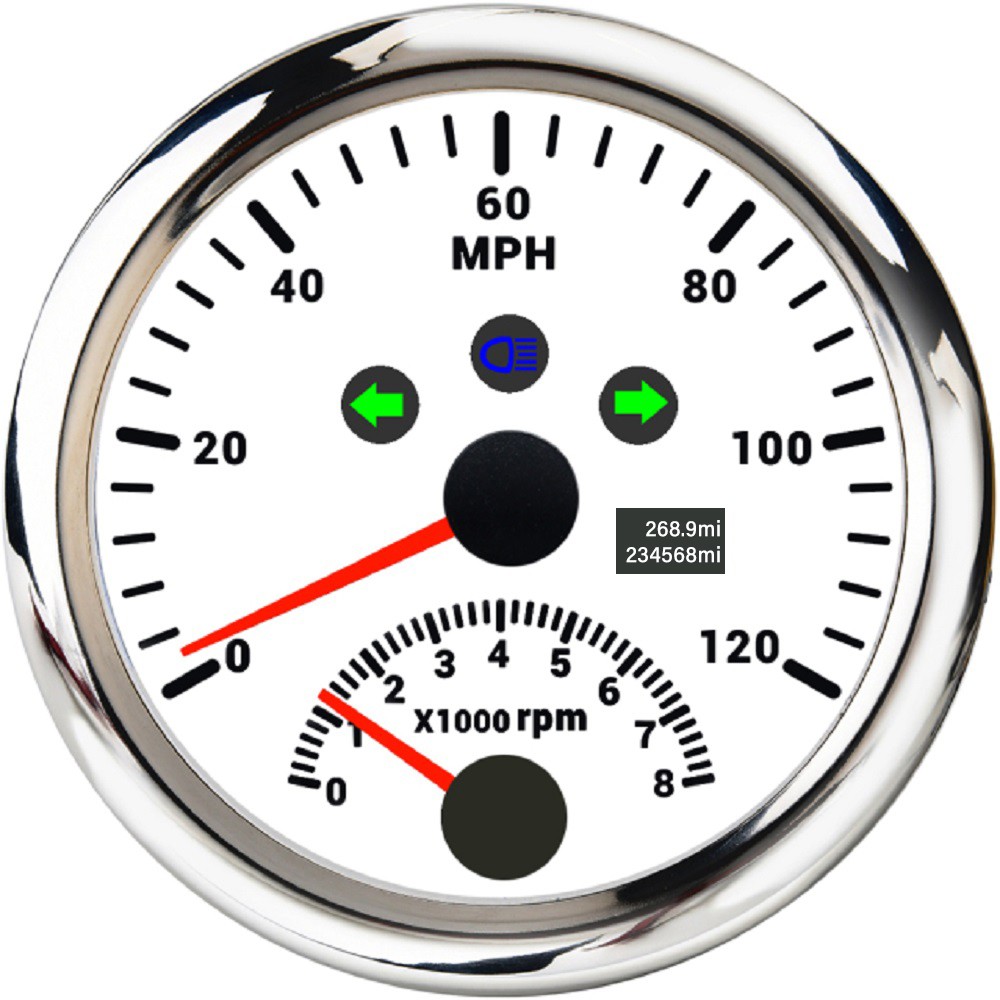

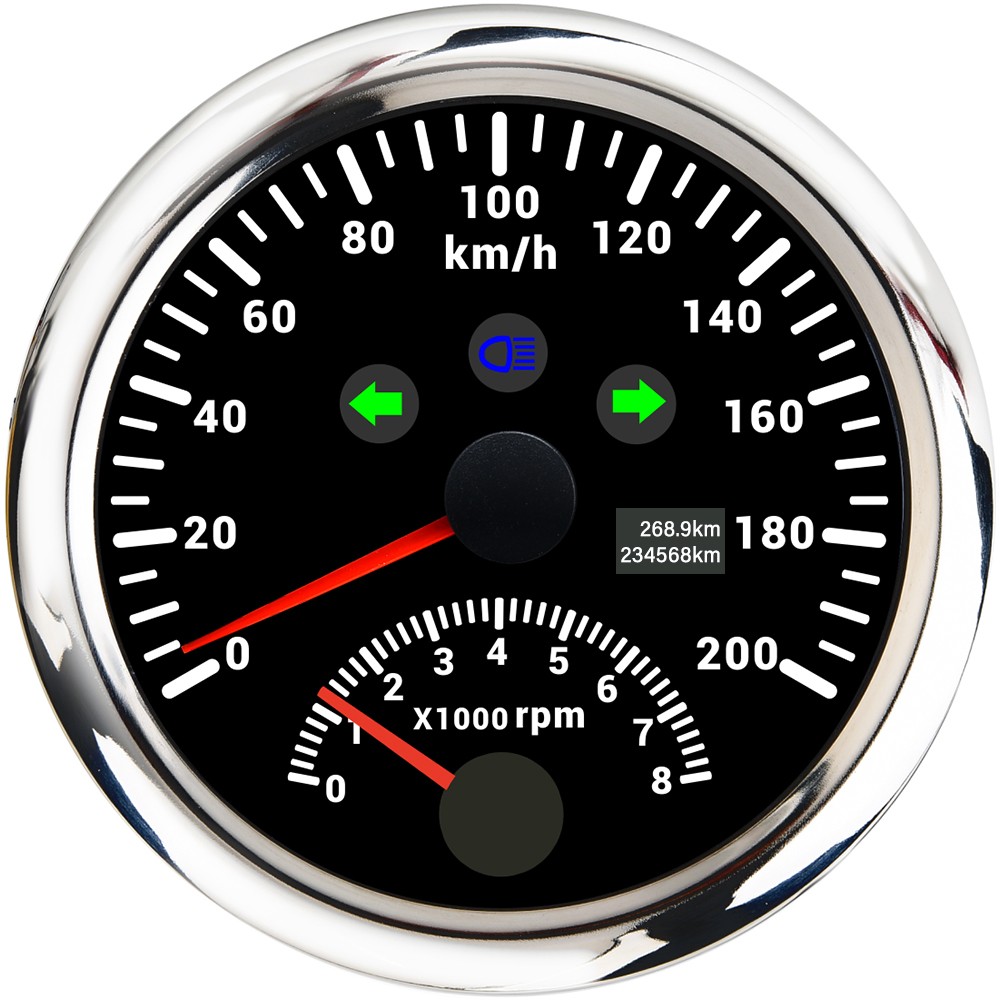

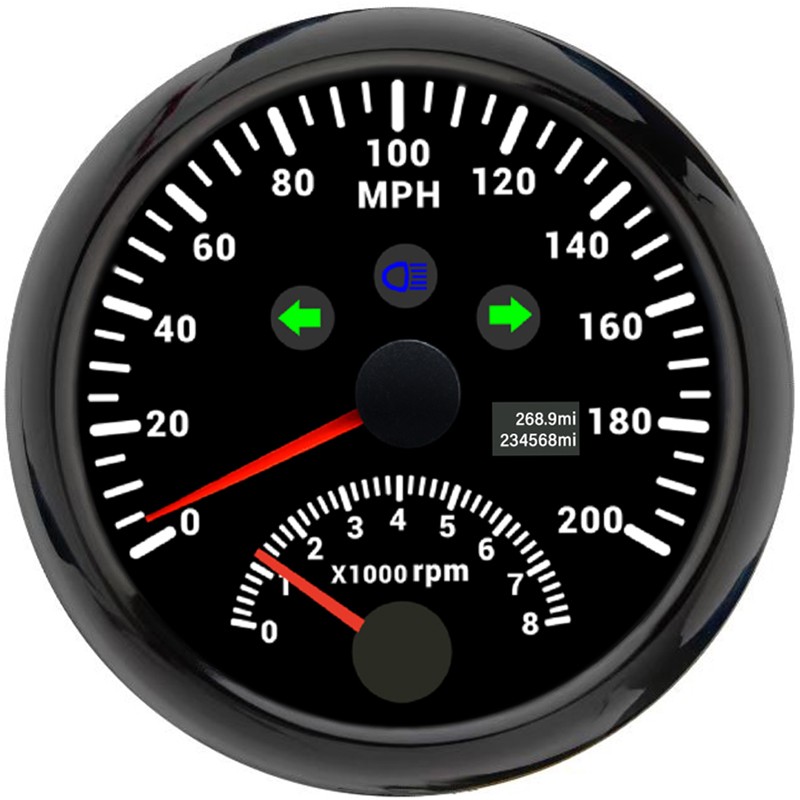

ELING CX GPS Speedometer Tachometer

  • Product Item:CX GPS Speedometer Tachometer
  • GPS Speedometer: 0-120km/h,0-120MPH,0-200km/h,0-200MPH
  • Tachometer: 0-8000RPM
  • Indicating Light: High Beam, Turn Light
  • Backlight:Red
  • GPS Speedometer  , Tachometer  , RPM Gauge
    Inquiry Send Email PDF

    Description

    Feature:


    1.Suitable for all vehicles and off-road vehicles


    2.Speedometer signal comes directly from the satellite signal receiver(GPS Antenna), don’t need other speed sensor. Tachometer needs to get rpm signal.


    3.The gauge has the advantages of high precision, quick location confirmation and short start up time.


    4.IP67 waterproof and dustproof grade


    5.Reverse polarity protection and anti-fogging performance


    6.No Stationery Drift


    7.Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    Specification:


    -Fixing dimension: 85mm(3-3/8")


    -Indicating Range: 0-120km/h,0-120MPH,0-200km/h,0-200MPH and 0-8000rpm


    -Working Voltage: 12V/24V


    -Trip meter range: 0-999.9 km,0-999.9MPH


    -ODO Mileage Range: 0-999999 km,0-999999MPH


    -Tripmeter and ODO will record the last mileage after power off. You can press the back to reset them to 0.


    -OverSpeed Buzzer Alarm (Value Adjustable)


    -Indication light: LEFT, HIGH BEAM, RIGHT


    -Backlight: Red


    -Working temperatures: - 40 to 85°C


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x GPS speedometer with tachometer


    1x GPS Antenna


    1x Multi-plug socket


    1x Installation Instruction
