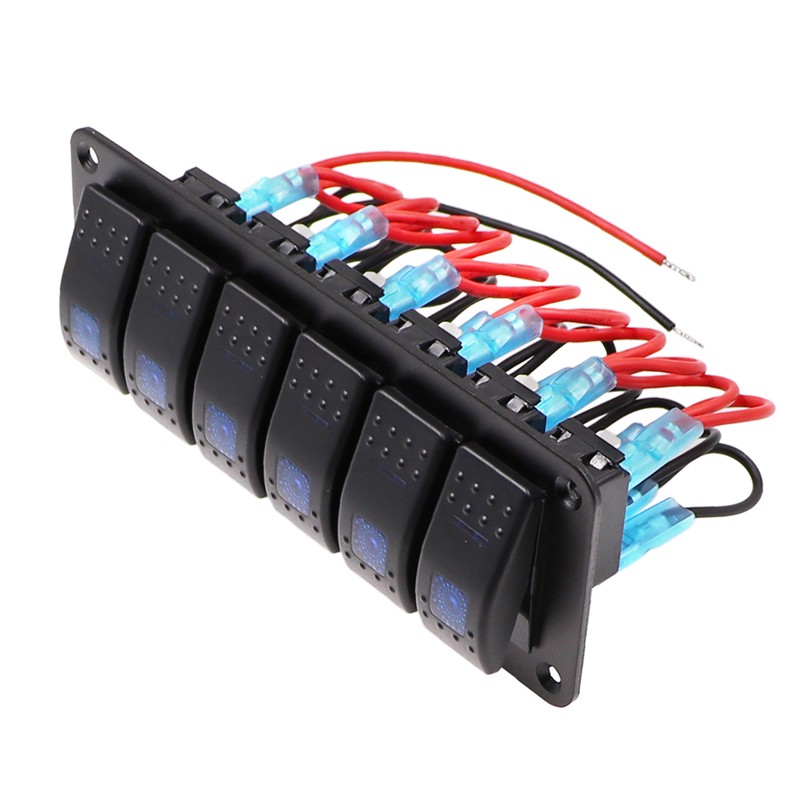

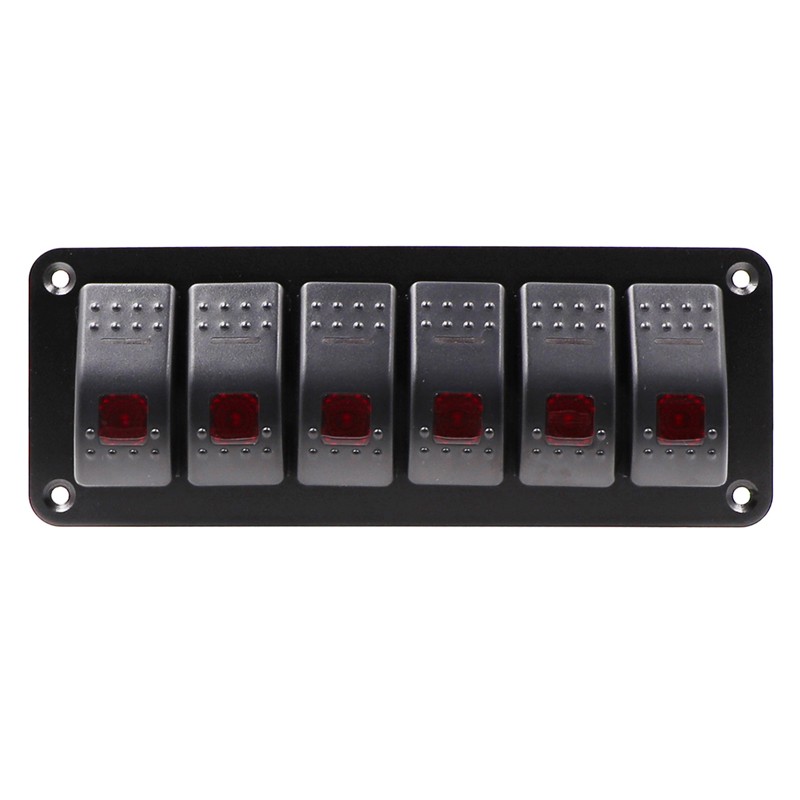

ELING 6 Gang Switch Panel

  • Product Item:Switch Panel
  • 6 Gang Switch Panel
  • Rocker switch
  • Red Blue Green
  • 6 Gang Switch Panel  , Rocker switch  , Red Blue Green
    Inquiry Send Email

    Description

    Specification:

    -Rating: DC 12V 20A, 24V 10A

    -Loop Circuit: ON-OFF

    -Breaker: 6

    -Light Color: Red/Green/Blue

    -Dielectric Strength: AC 1500V 1minute

    -Electrical Life: 10000 make and break cycles at full load

    -Operating Temperature:-25° to 80°

    -IP rating: IP67

    -Approved: CE

    -Panel Material: PA66

    -Size(L*W): Approx. about 180mm*68mm

    Product Material:

    ABS, nylon, aluminum plate resistant to high and low temperature, flame retardant and environmentally friendly materials

    Product Use:

    Installation Scope: applicable to ships, yachts , RVs, buses and other high-end large-scale transportation tools installation and use

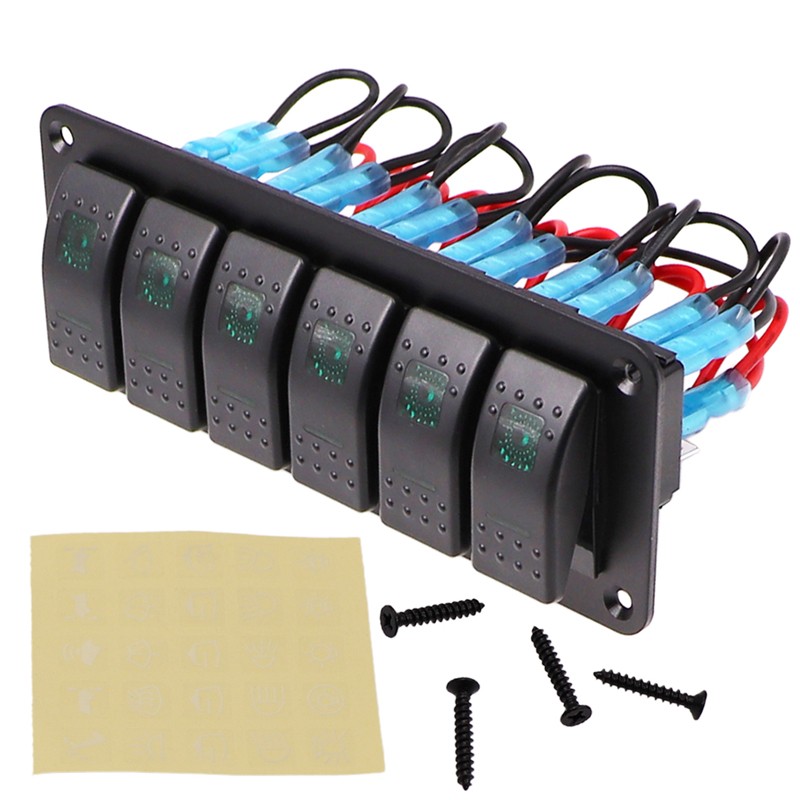

    Packing included:

    1 x Switch Panel
    1 x Sticker
    4 x Screws
