  5. ELING CX GFV 85mm 3in1 Multifunction Gau

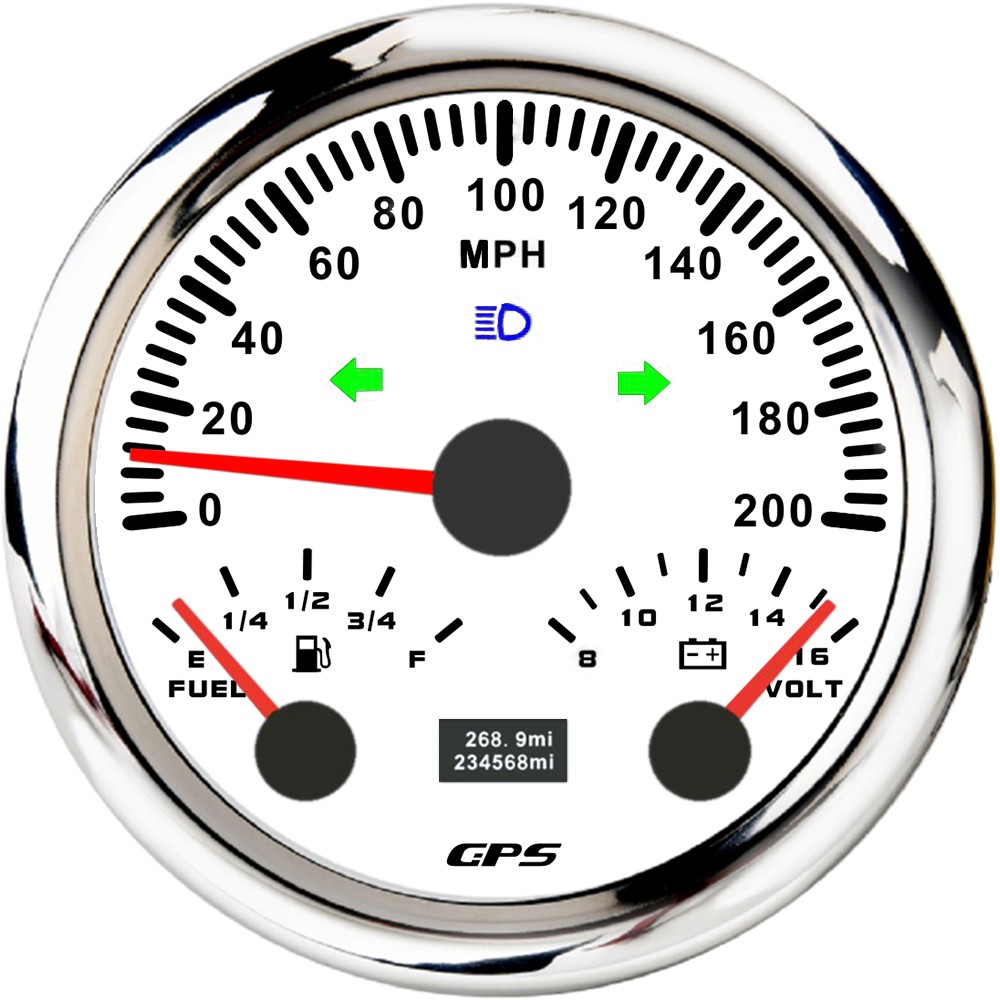

  • ELING CX GFV 85mm 3in1 Multifunction Gauge

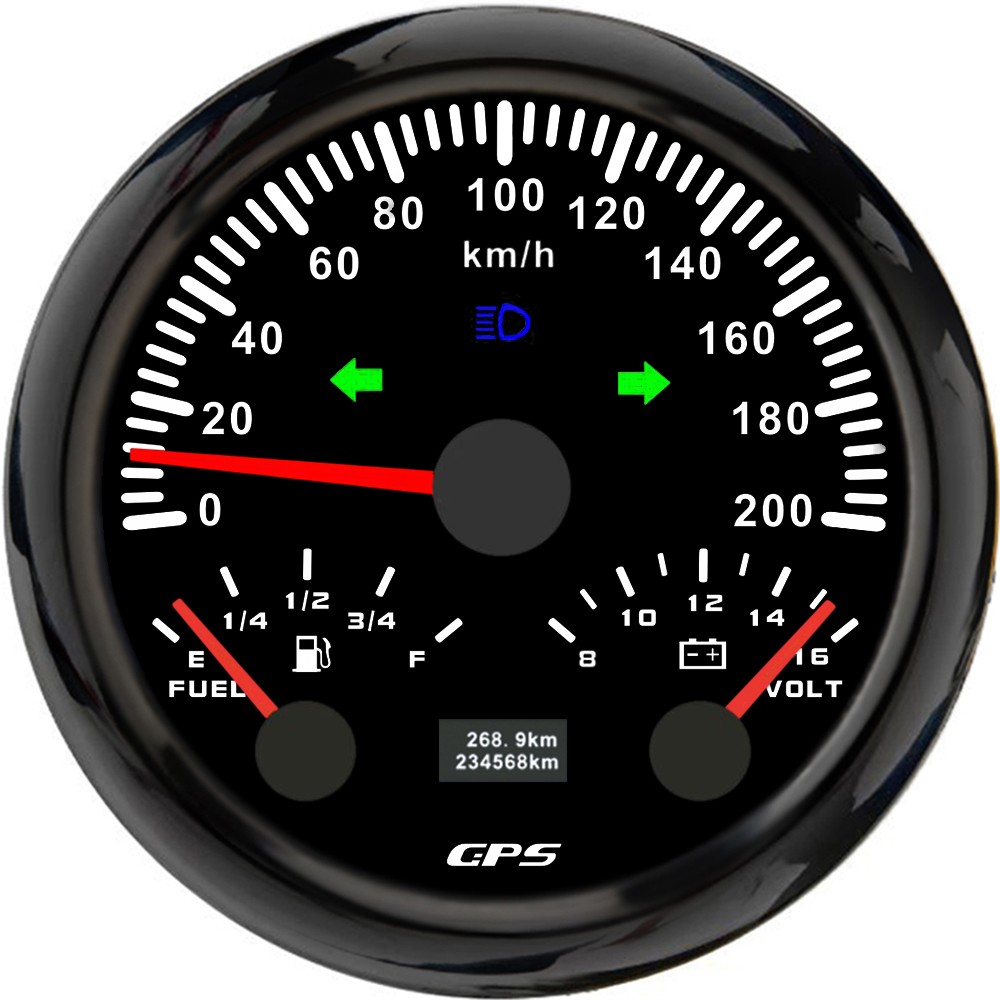

  • ELING CX GFV 85mm 3in1 Multifunction Gauge

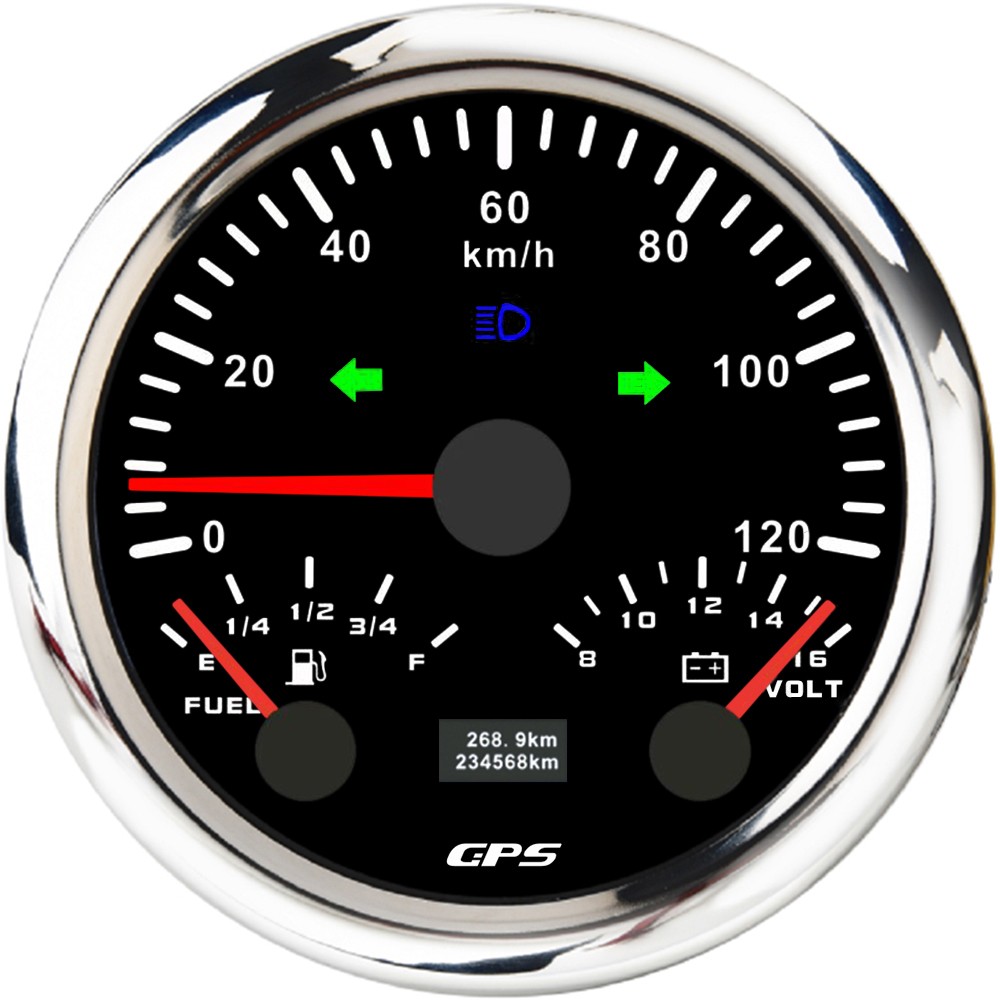

  • ELING CX GFV 85mm 3in1 Multifunction Gauge
ELING CX GFV 85mm 3in1 Multifunction Gauge ELING CX GFV 85mm 3in1 Multifunction Gauge ELING CX GFV 85mm 3in1 Multifunction Gauge

ELING CX GFV 85mm 3in1 Multifunction Gauge

  • Product Item:CX GFV 85mm 3in1 Multifunction Gauge
  • Mounting dimension: 85 mm (3-3/8")
  • Display range: 0-120km,0-200km,0-120mph,0-200mph
  • Working voltage: 12V
  • Indicator light: LEFT , HIGH BEAM, RIGHT
  • 85mm 3in1 Multifunction Gauge  , 85mm Multifunction Gauge  , 3in1 Multifunction Gauge
    Inquiry Send Email PDF

    Description

    Function:


    1.Suitable for all vehicles and off-road vehicles


    2.The speedometer signal comes directly from the satellite signal receiver (GPS antenna), no other speed sensor required.The fuel level meter must receive a fuel level signal


    3. The measuring device offers the advantages of high precision, quick location confirmation and short start-up time.


    4.IP67 waterproof and dustproof


    5.Reverse polarity protection and anti-fog performance


    6.No stationery drift


    7.Stepper motors are used for the full range of step meters, great function with lower power consumption, longer lifespan, higher precision etc.


    Specification:


    -Mounting dimension: 85 mm (3-3/8")


    -Display range: 0-120km and E-1/4-1/2-3/4-F and 8-16V


                             0-120mph and E-1/4-1/2-3/4-F and 8-16V


                             0-200km and E-1/4-1/2-3/4-F and 8-16V


                             0-200mph and E-1/4-1/2-3/4-F and 8-16V


    -Working voltage: 12V


    - Fuel level gauge signal:10-180ohm,240-33ohm,0-190ohm,0-90ohm


    -Trip odometer range: 0-999.9km


                                        0-999.9miles


    -ODO mileage range: 0-999999km


                                       0-999999miles


    -Overspeed buzzer alarm (value adjustable)


    -Indicator light: LEFT , HIGH BEAM, RIGHT


    -Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)


    -Working temperatures: - 40 to 85 °C


    -Operating mode: LCD display, stepper motor


    Package includes:


    1x 3in1 Multifucntion Gauge


    1x GPS antenna


    1x multiple socket


    1x installation instructions
