  • ELING CX GPS Speedometer 30km/h 60km/h 80km/h
  • ELING CX GPS Speedometer 30km/h 60km/h 80km/h
  • ELING CX GPS Speedometer 30km/h 60km/h 80km/h
  • ELING CX GPS Speedometer 30km/h 60km/h 80km/h
ELING CX GPS Speedometer 30km/h 60km/h 80km/h ELING CX GPS Speedometer 30km/h 60km/h 80km/h ELING CX GPS Speedometer 30km/h 60km/h 80km/h ELING CX GPS Speedometer 30km/h 60km/h 80km/h

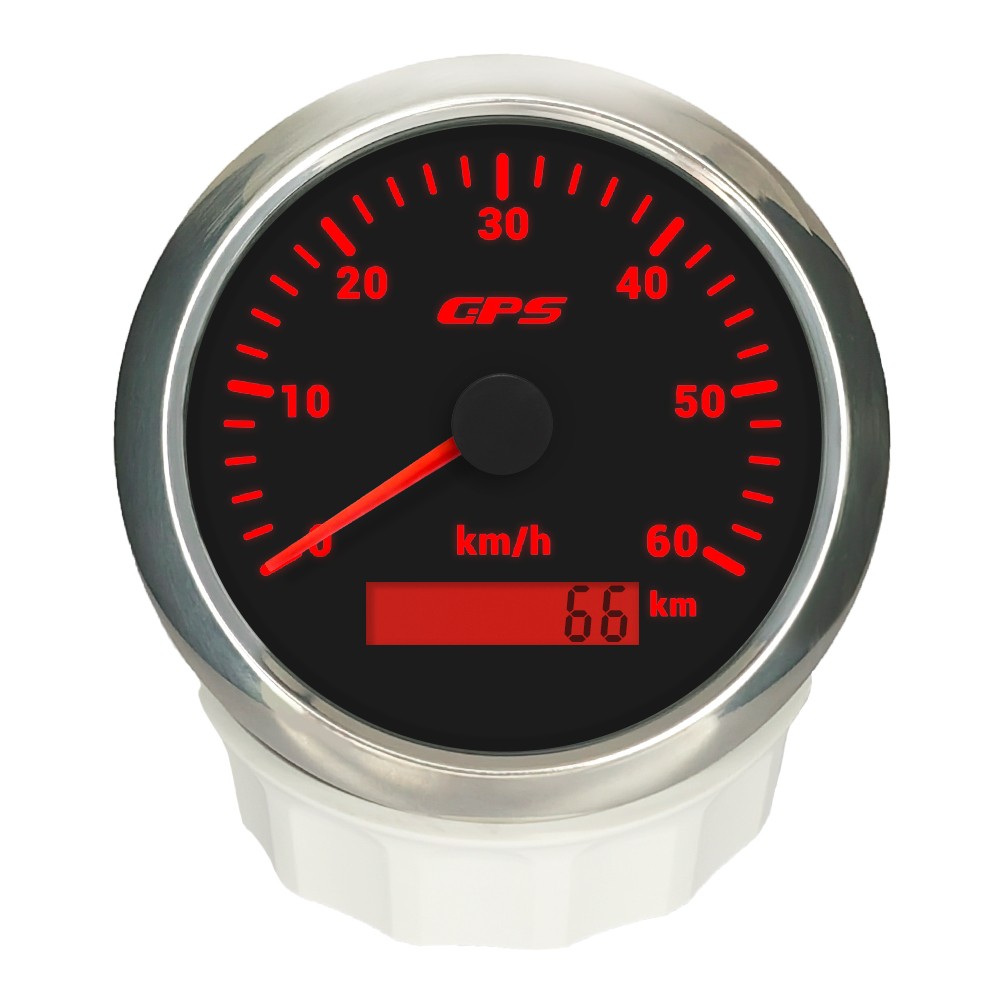

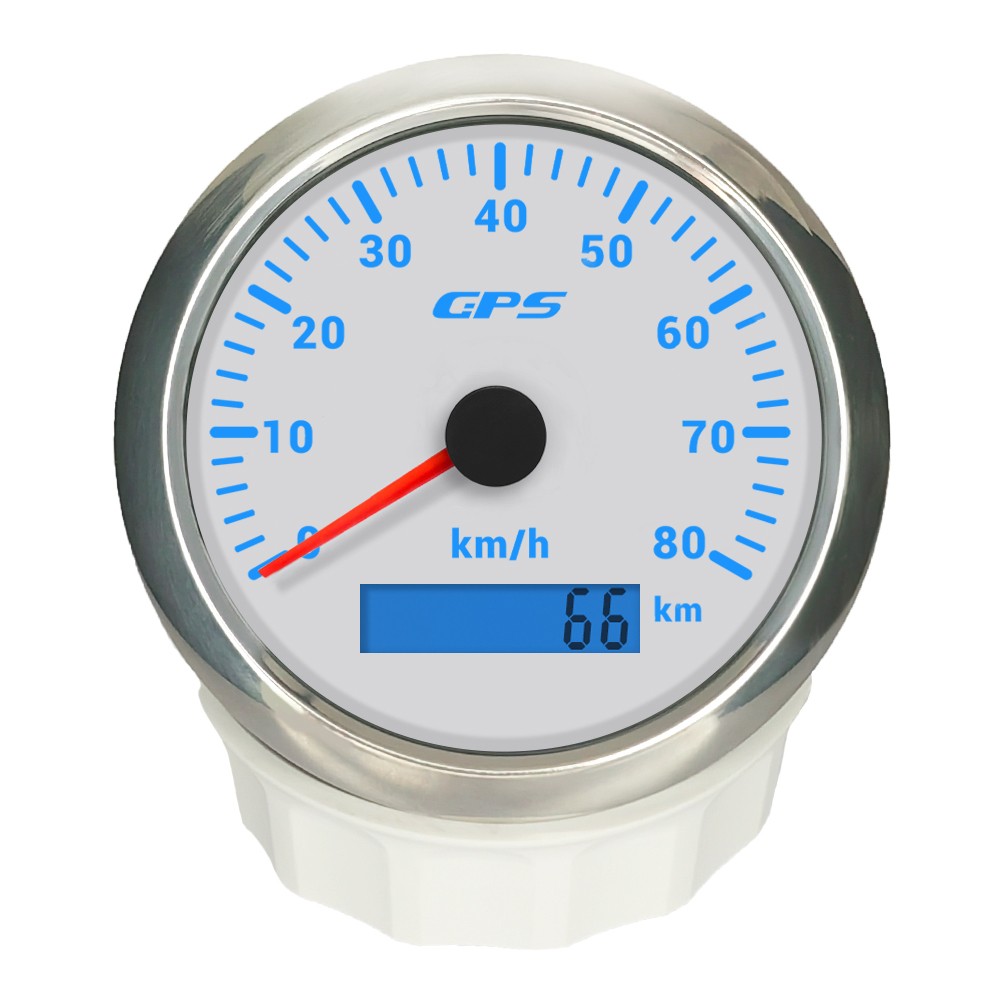

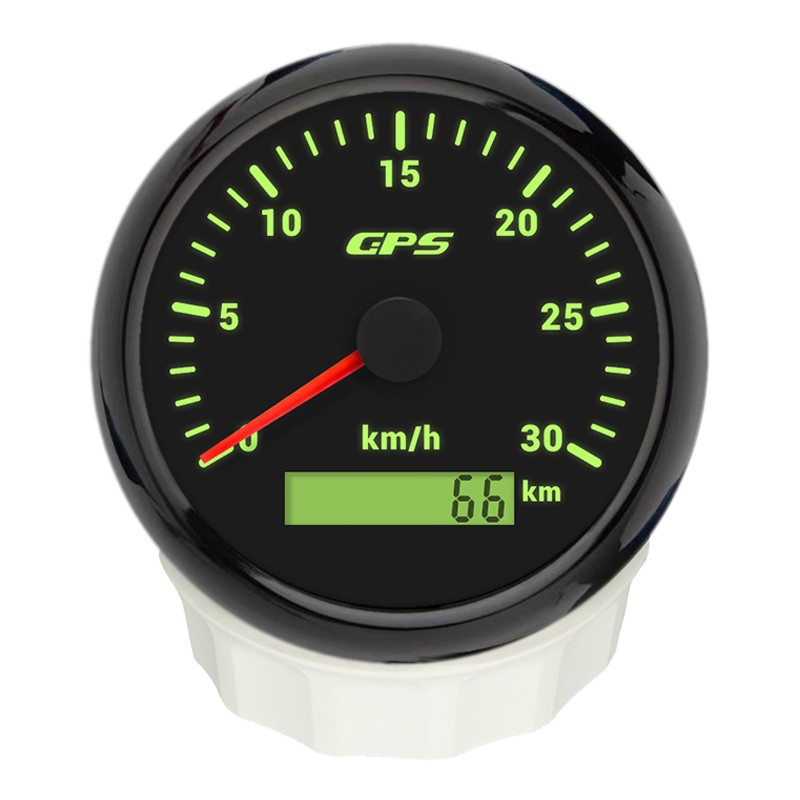

ELING CX GPS Speedometer 30km/h 60km/h 80km/h

  • Product Item:CX GPS Speedometer 30km/h 60km/h 80km/h
  • Fixing dimension:85mm(3-3/8‘’)
  • Speedometer Range:0-30km/h,0-60km/h,0-80km/h

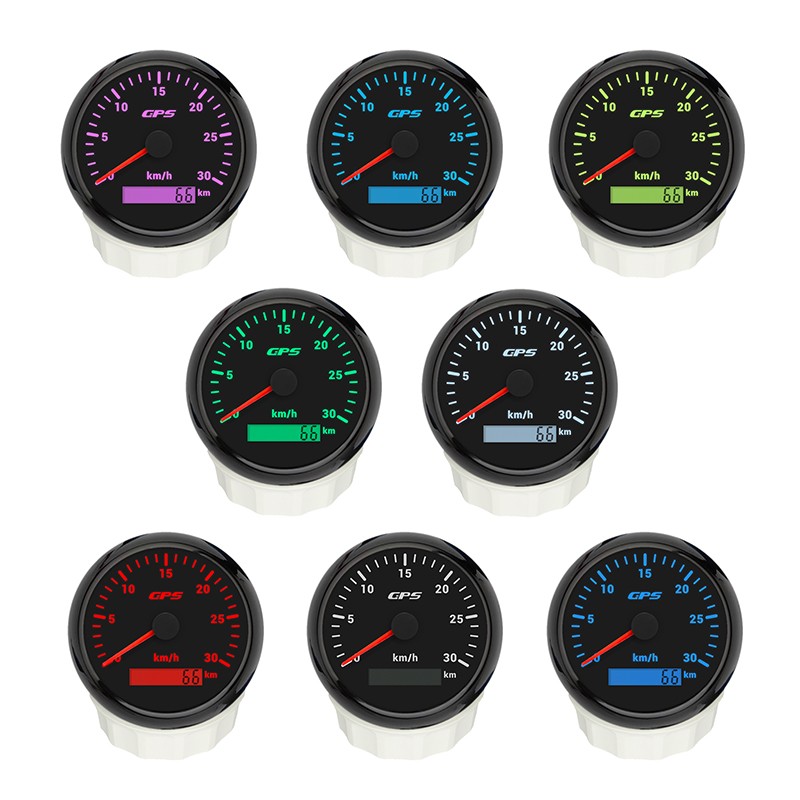

  • Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple)
  • Working Voltage:9-32V
  • gps speedometer  , km speedometer  , odometer
    Inquiry Send Email PDF

    Description

    Feature:


    -High-brightness LED backlight.


    -316 stainless steel for long-term use even in acid-base, humid environment.


    -IP67 waterproof and dust-proof grade.


    -With curved glass (with anti-fog function).


    -Suitable for all kinds of vehicle modification.


    -Using stepper motor drive pointer, accurate display of the engine speed, and with the LCD display clear display mileage.


    Specification:


    - Installation Diameter: Φ85mm or 3-3/8"


    - Function: Current speed and accumulative ODO(record the mileage after power off)


    - Material: Stainless Steel 316L Bezel + Anti-fog Glass


    - Speedometer indicating range:0-30km/h,0-60km/h,0-80km/h


    - Total mileage:0-999999km(record the mileage after power off)


    - Signal: GPS


    - Working Voltage: 9~32V DC


    - Working Current: ≤100mA


    - Operating Temperature: -30℃ ~ 75℃


    - Storage Temperature: -40℃ ~ 85℃


    - IP67 waterproof and dustproof grade


    Package Includes:


    1X GPS Speedometer


    1X GPS Antenna


    1X Installation Instruction
