Description
Feature:
Suitable for truck, generators/genset, bus and marine field
Widely used in fuel, water, kerosene and chemical tanks
OEM quality, widely used on automotive and marine OEMs
Reed switch, Continuous and steady output signal
Simple and strong structure, Advanced corrosion resistance
Long using life, anti-vibration,anti-explosion

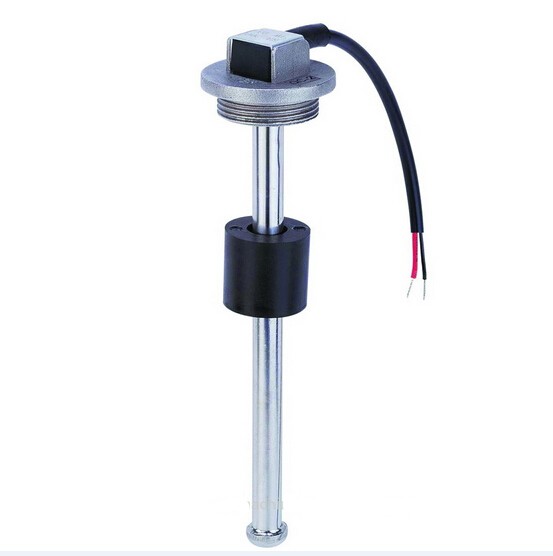

High quality fuel and water level sensor
Economical level sensing solution, long service lifespan
Without limitation of environment,length can be customized
Specifications:
Material: SUS316 or SUS304 stainless steel
Length range: 100 to 3,000mm for standard (can be customized)
Assembly: BSP1 1/4-inch thread twist-in, or NPT thread twist-in
Various types of flanges are available for fitting fuel tank if necessary
Mounting: 38 x 2.6mm O-ring/43 x 3.5mm O-ring
Connector: Brand Delphi,Tyco or others is available according to customer’s Requirement
Supply voltages: 10V to 32V
Rated current for alarm switch: 500mA
Output signal: 0-190ohm, 240-33ohm, 4-20mA, 0-20mA, 0-5V, 0.5-4.5V or customized
Resolution range: 10mm to 40mm
Operating temperatures: - 40 to 85°C
Protection rank: IP67
Option: high/low alarm
