  • KUS SV 4LED Alarm Gauge
  • KUS SV 4LED Alarm Gauge
KUS SV 4LED Alarm Gauge KUS SV 4LED Alarm Gauge

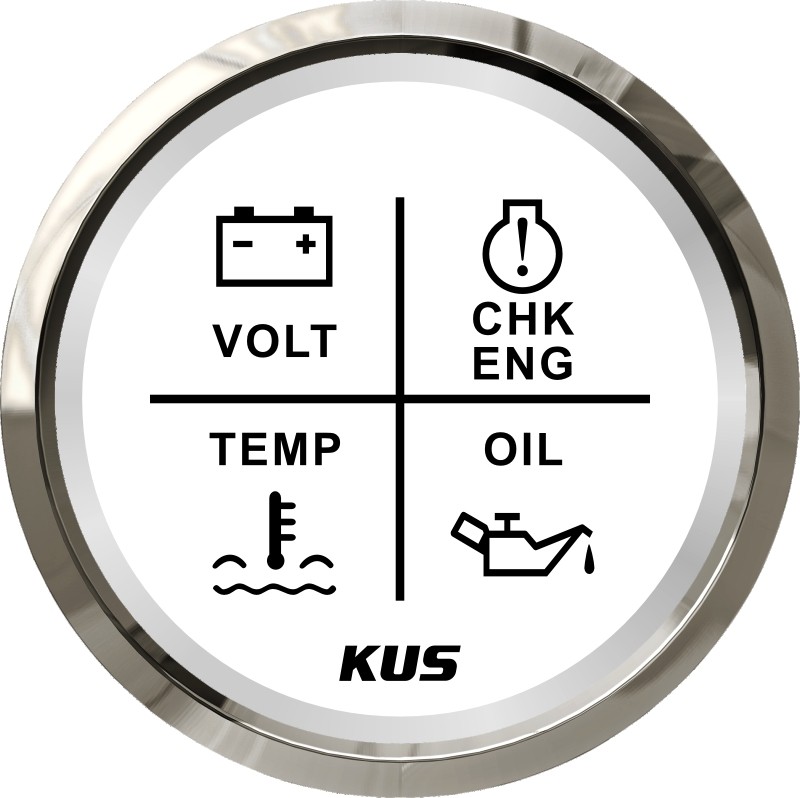

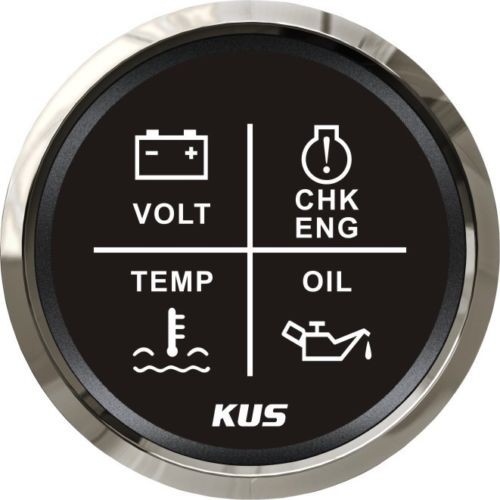

KUS SV 4LED Alarm Gauge

  • Product Item:KUS SV 4LED Alarm Gauge
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight:Red and Yellow available
  • Alarm: volt, oil pressure, water temp, engine
  • volt meter  , oil pressure gauge  , water temp gauge
    Inquiry Send Email PDF

    Description

    Key Features:

    -Display the alarm of oil pressure, water temp, volt and engine CHK.

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -Operating temperature: -40°C ~+85°C

    -Protection rank : IP67.

    Technical Data:

    -Fixing dimension: 52mm(2")

    -Alarm: volt, oil pressure, water temp, engine

    -Working Voltage: 12V/24V

    -Choice between red and yellow backlight

    -Operation mode: LCD display, stepper motor

    -Protection grade is IP67, the whole body is completely waterproof;

    -Excellent anti-fogging function;

    -316 Stainless steel bezel with curved glass;

    -Convenient Installation by multi-plug socket connecting way;

    Package Includes:

    1x 4LED Alarm Gauge

    1x Multi-plug socket

    1x Installation Instruction
